ST4200USBM

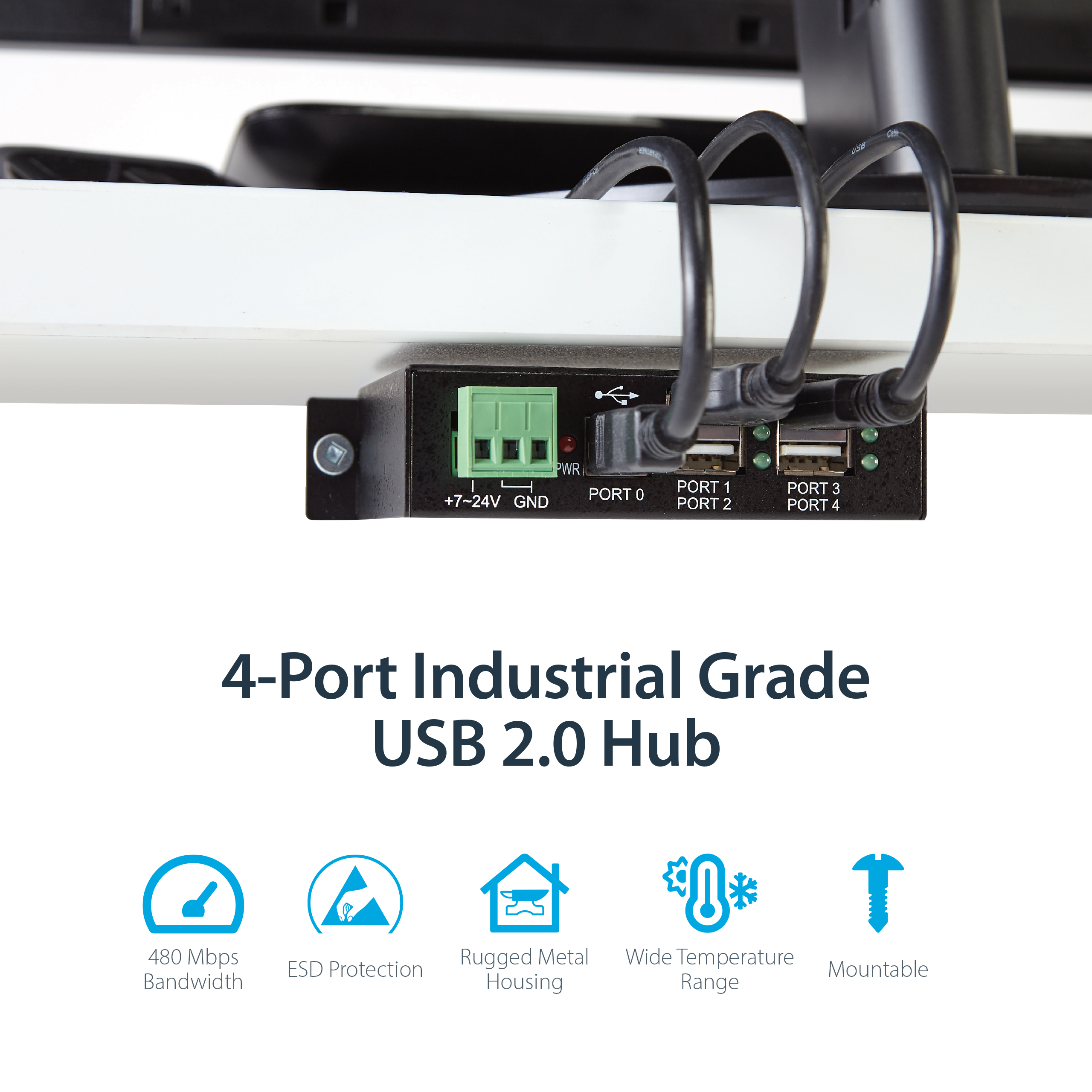

Mountable 4 Port Rugged USB 2.0 Hub
Industrial-grade | 8kV Air | 4kV Contact | Metal | Mountable | DIN Rail | 480 Mbps
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube

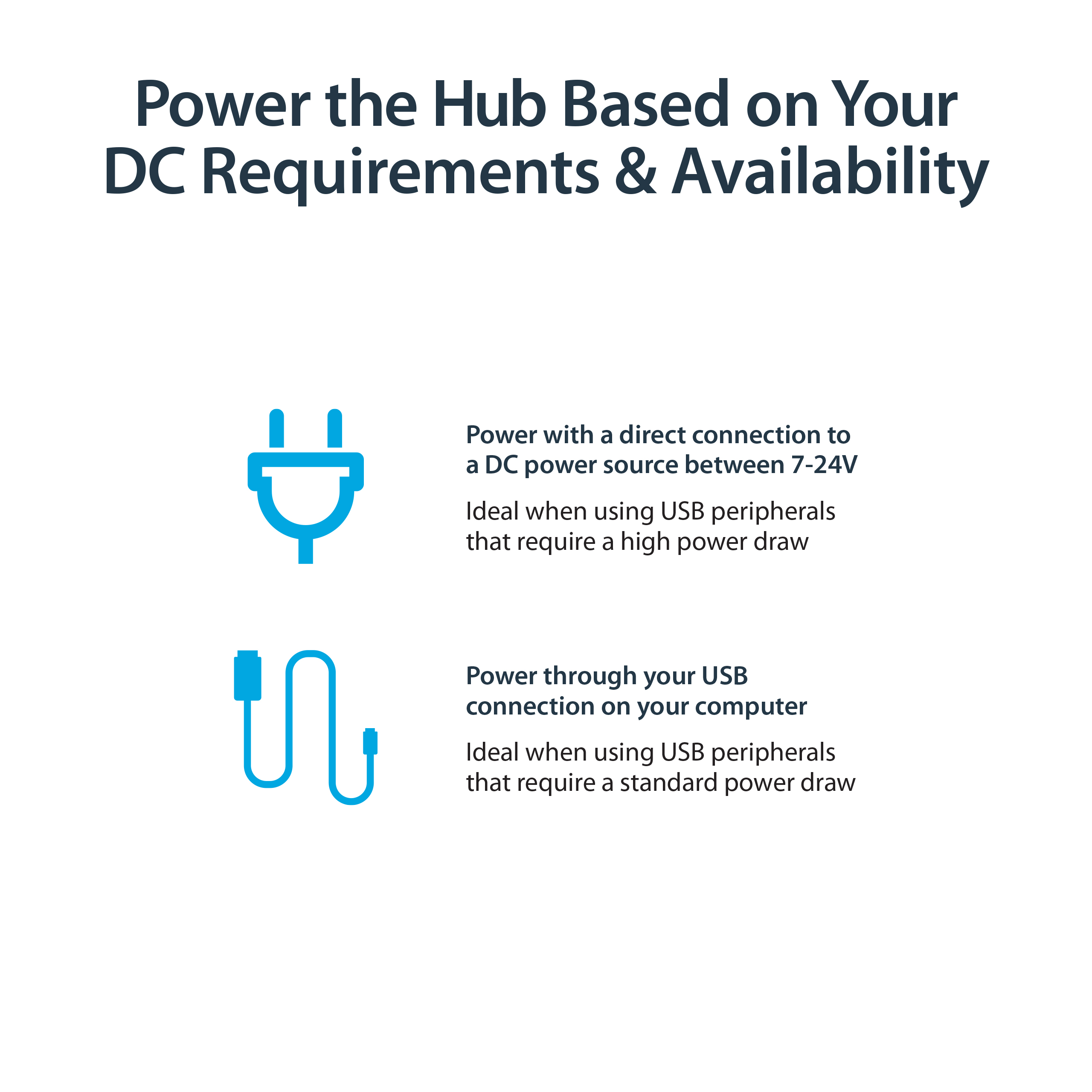

Product Name Mountable 4 Port Rugged USB 2.0 Hub Product Number ST4200USBM UPC 065030831024 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 Industrial USB Hubs Category Level 3 Industrial USB Hubs - USB 2.0 Family Industrial USB Hubs - USB 2.0 - 4-Port Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Short) Mountable 4 Port Rugged USB Hub Product Title (Medium) x Product Title (Standard) 4-Port USB 2.0 Hub, TAA Product Title (Long) 4-Port USB 2.0 Hub - Metal Industrial USB-A Hub - Din Rail, Wall or Desk Mountable USB Data Hub - TAA Compliant USB Expander Hub Product Title (AMZ) 4-Port USB 2.0 Hub - Metal Industrial USB-A Hub - Din Rail, Wall or Desk Mountable USB Data Hub - TAA Compliant USB Expander Hub (ST4200USBM) Title Ingram (Part 1) Mountable 4 Port Rugged Industri Title Ingram (Part 2) al USB Hub Website Product Headline Industrial-grade | 8kV Air | 4kV Contact | Metal | Mountable | DIN Rail | 480 Mbps Bullet 1 Offers flexible, wide-range power inputs with a 7-24V DC terminal block Bullet 2 Mount industrial USB 2.0 hub where required with built-in mounting brackets or included DIN rails Bullet 3 Adds four USB 2.0 ports from a single USB connection Bullet 4 Protects your connected devices with 8kV Air and 4kV Contact ESD protection Bullets (Compact) Add four, rugged, external USB 2.0 ports to your computer from a single USB connection - Four USB 2.0 ports in an industrial metal housing - Terminal block power input - DIN rail & surface mountable - Perfect for harsh industrial & factory settings Bullets (Consolidated) Protects your connected devices with 8kV Air and 4kV Contact ESD protection - Mount industrial USB hub where required with built-in mounting brackets or included DIN rails - Offers flexible, wide-range power inputs with a 7-24V DC terminal block - Adds four USB 2.0 ports from a single USB connection Marketing Copy Marketing Copy (No HTML) Applications - Great for industrial and manufacturing environments where only terminal block connection is preferred

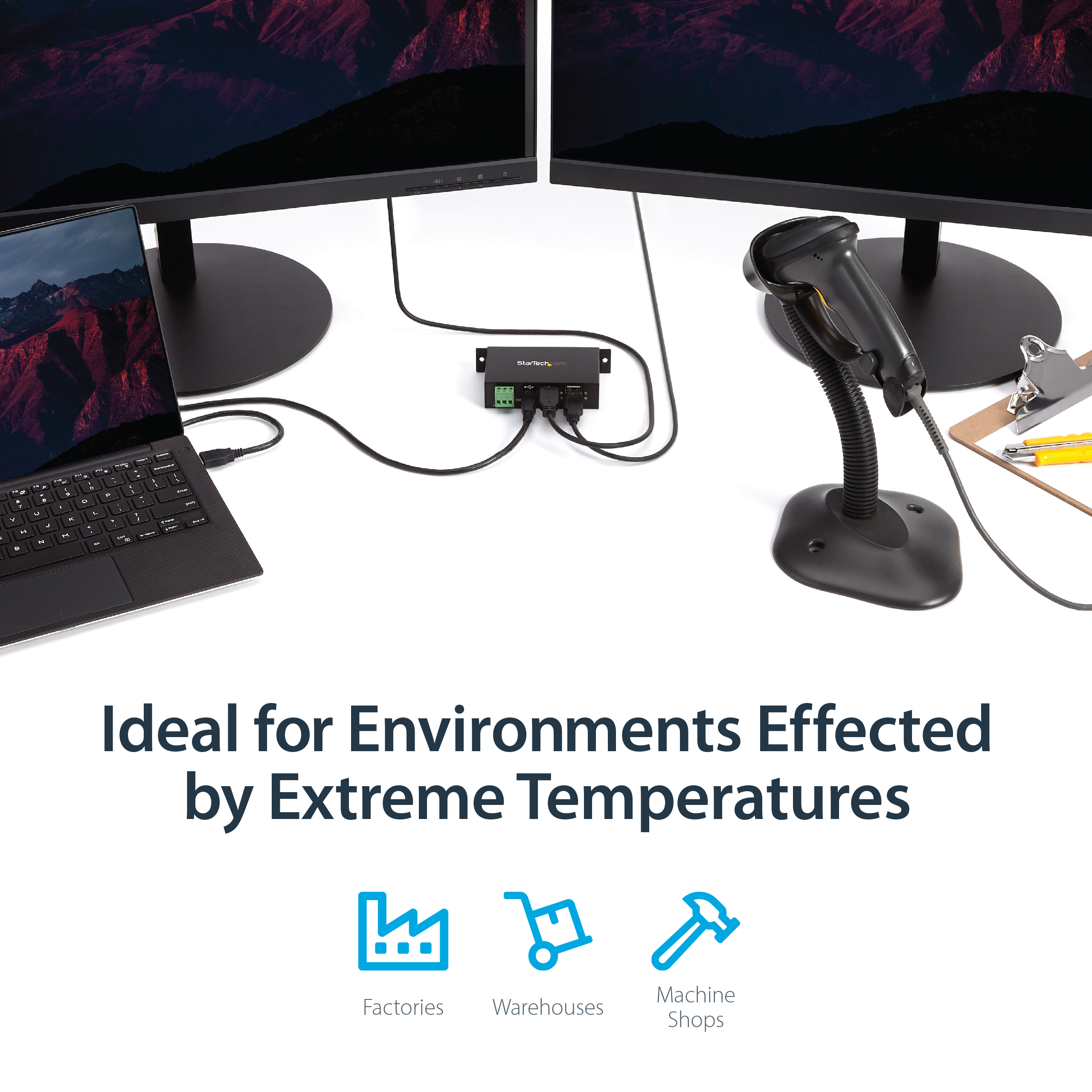

- Ideal for tough conditions that are subject to large temperature variances, or where there’s a risk of physical damage
- Connect a variety of USB devices such as industrial printers or cameras, plus fast-charge your smartphone and tablet

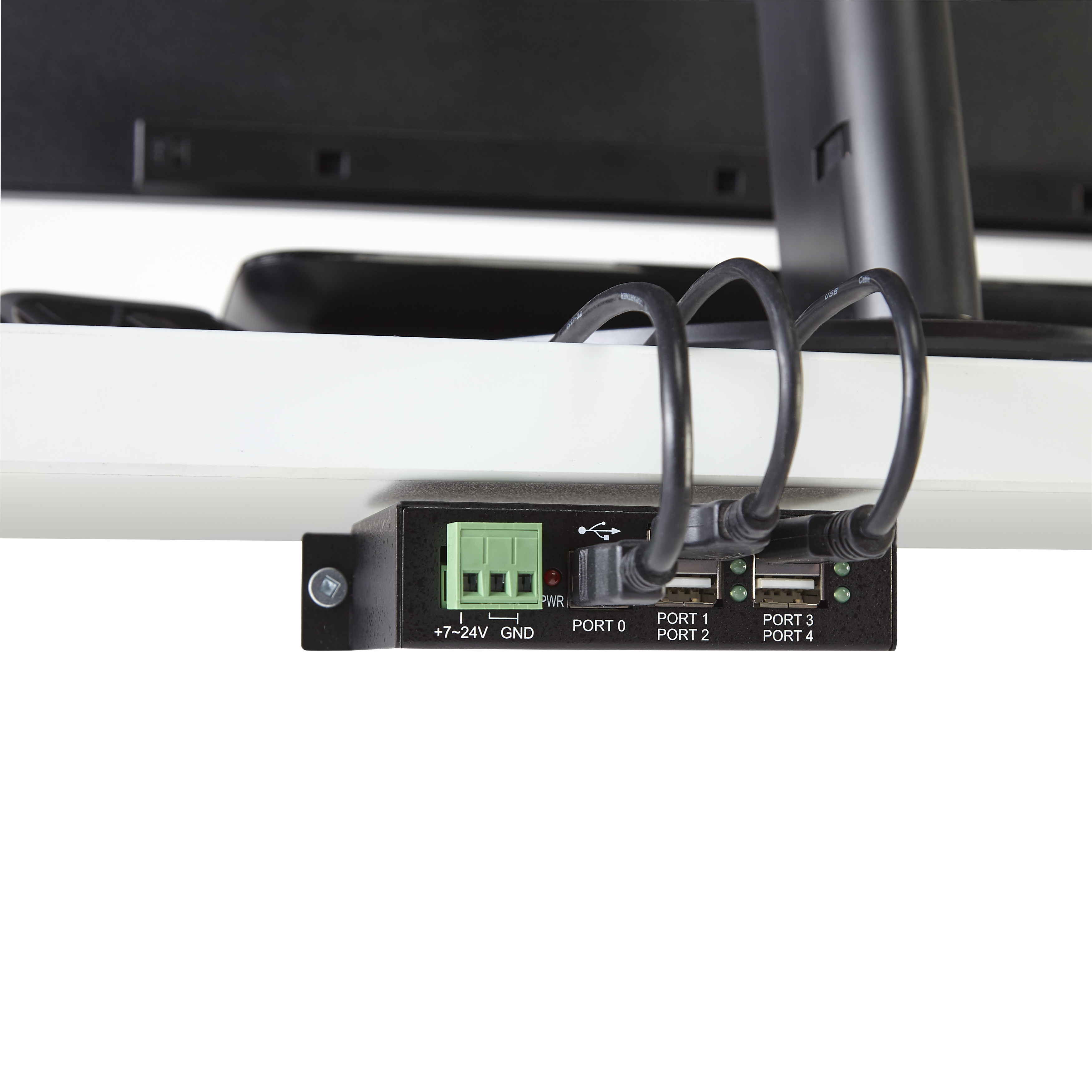

- Mount to a wall near or under a desk surface in a Lab, Service Repair area or office area connecting multiple USB peripherals
- Use in a conference or meeting room utilizing multiple USB peripherals or for charging several mobile devices
Website Search Keyword - USB Hub
- 4 Port
- USB
- Mountable
- U223-004-IND-1
- U223-004-IND
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
System and Cable Requirements Any computer with a USB 2.0 port Accessory Products - ICUSB2321F
- USB2HAB10
- USB2HAB15
- USB2HAB6
- ITB20D3250
Related Products - ST4200MINI
- ST4200USB
- ST7202USB
- ST4205USB
- ST4202USB
- ST7200USBM

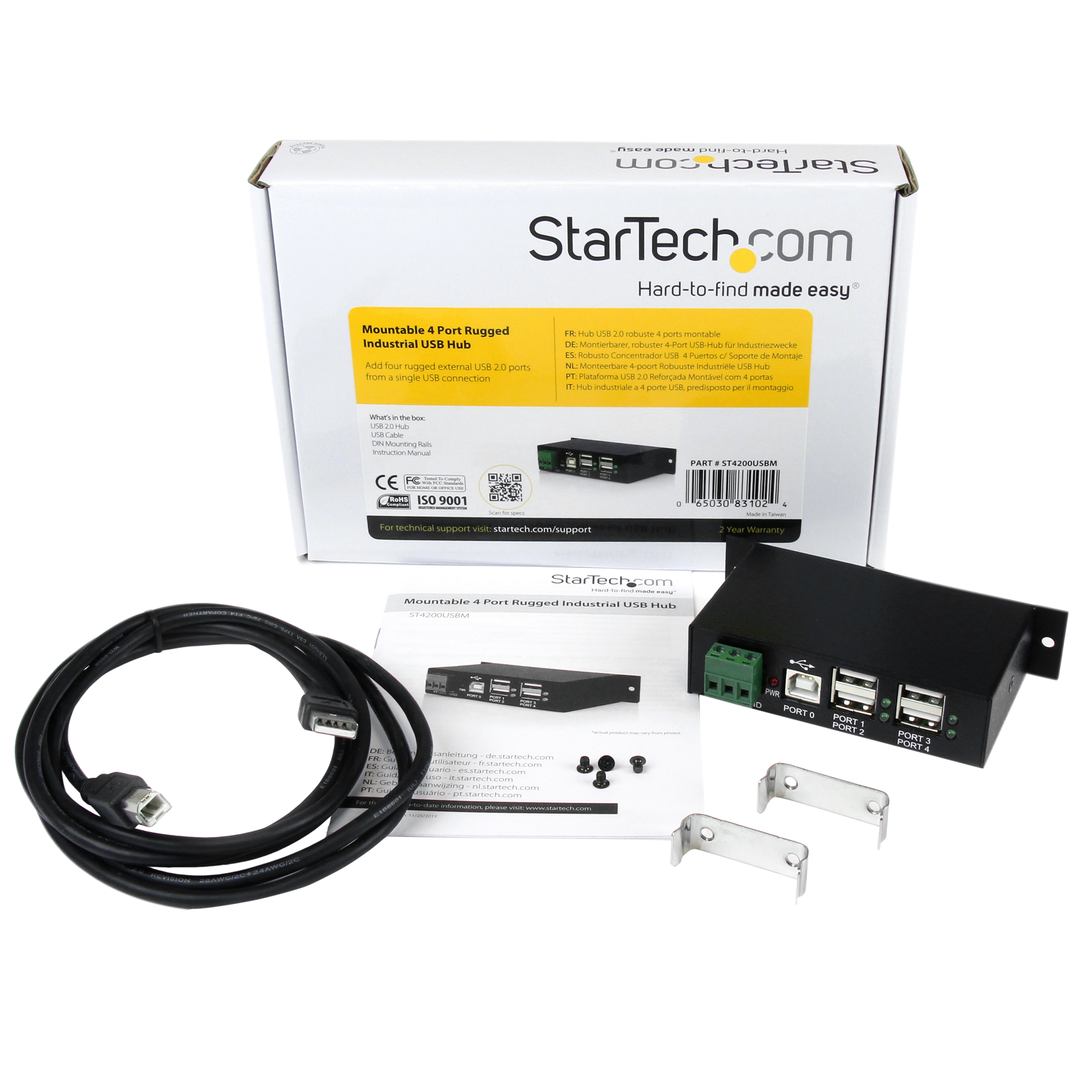

Input Voltage 7 ~ 24 DC Output Voltage (V) 7 ~ 24 DC Power Source Terminal Block Color Black Extended Temperature Range No Humidity 5 to 95% RH Material Steel Operating Temperature 0°C to 55°C (32°F to 131°F) Primary Material Steel Product Length (mm) 114.500 Product Width (mm) 57.300 Product Height (mm) 26.300 Product Weight (g) 207.000 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes Device Power Consumption (In Watts) 12 Watts Downstream Maximum Data Transfer Rate USB 2.0 (480Mbps) Maximum Data Transfer Rate 480 Mbps MTBF (hours) 193,317 Hours OS Compatibility OS Independent Total Available Power Output (In Watts) 10 Watts Bus Type USB 2.0 Chipset ID Terminus - FE2.1 Industry Standards USB 2.0 Interface/Bridge USB 2.0 LED Indicators 1 - Power Mounting Options DIN Rail Carton Depth (mm) 445 Carton Height (mm) 335 Carton Quantity 50 Carton Weight Gross (g) 18950 Included in Package - 1 - USB 2.0 Hub
- 1 - USB Cable
- 1 - Instruction Manual
- 1 - DIN Mounting Rails
Included In Package for Label - 1 - USB 2.0 Hub
- 1 - USB Cable
- 1 - Instruction Manual
- 1 - DIN Mounting Rails

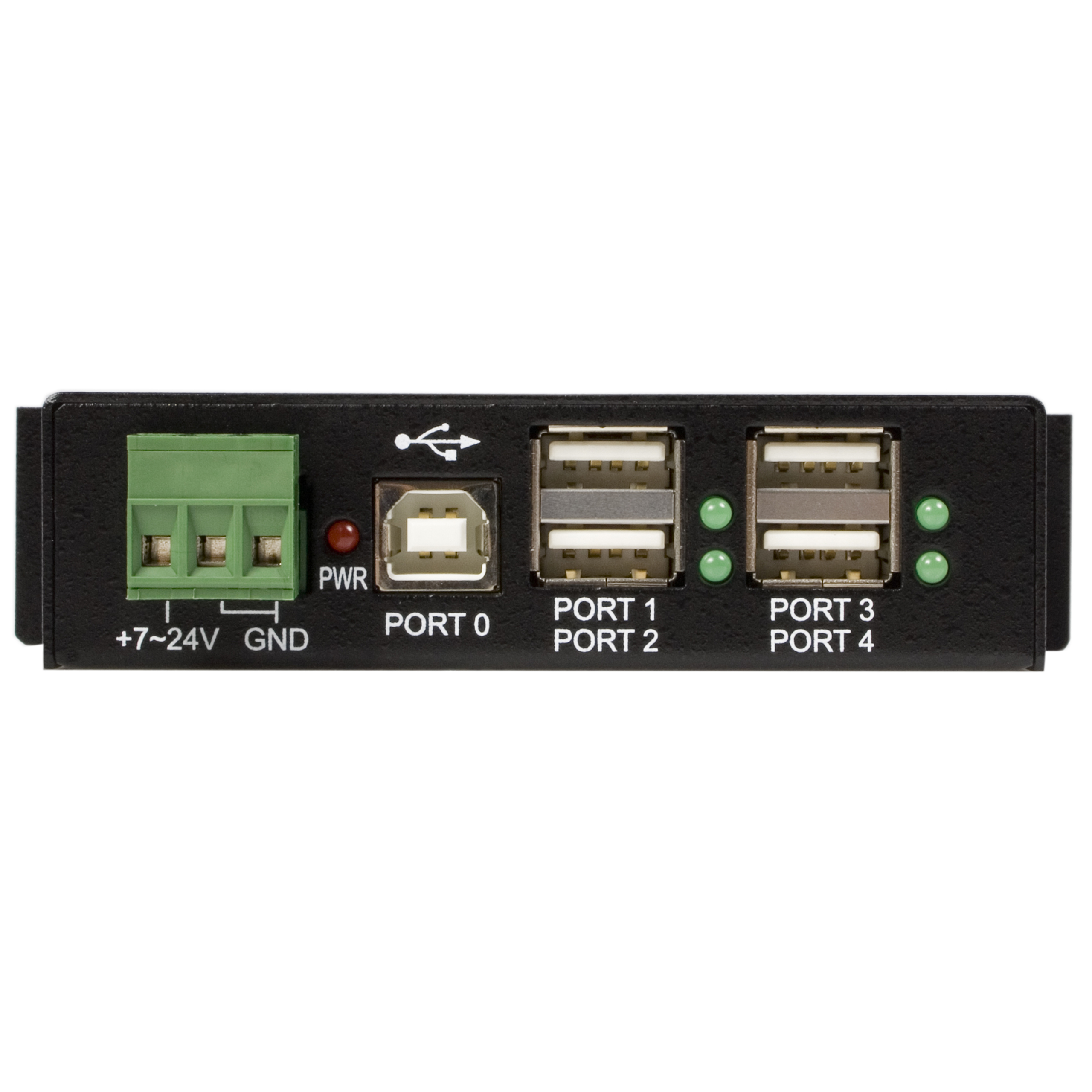

Package Depth (mm) 145 Package Height (mm) 39.1 Package Width (mm) 205 Package Quantity 1 Package Weight (g) 356 Packaging Description Mountable 4 Port Rugged USB 2.0 Hub Packaging Description India Mountable 4 Port Rugged USB 2.0 Hub Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 4 Connector 2 USB-B (480Mbps, 2.5W) Connector 2 (Quantity) 1 Connector 3 Terminal Block (3 Wire) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream
