ST4202USB
4 port Self Powered USB 2 0 Hub
Turn a single USB 2.0 port into 4 external USB 2.0 ports
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 4 port Self Powered USB 2 0 Hub Product Number ST4202USB UPC 065030823807 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 USB-A Hubs Category Level 3 USB-A External Powered Hubs - 2.0 Family USB-A External Powered Hubs - 2.0 - 4-Port Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 4 Port Compact Black USB 2.0 Hub Product Title (Standard) 4 Port USB 2.0 Hub, Hub, 4 ports, Hi-Speed USB, TAA Product Title (Long) 4 Port Compact Black USB 2.0 Hub - TAA Product Title (AMZ) 4 Port Compact Black USB 2.0 Hub - Bus-powered or with Included Power Adapter - Portable Mac/PC laptop hub , TAA (ST4202USB) Title Ingram (Part 1) 4 Port Compact Black USB 2.0 Hub Website Product Headline Turn a single USB 2.0 port into 4 external USB 2.0 ports Bullet 1 Compact and light-weight design Bullet 2 Plug and Play and Hot Swap compatible Bullet 3 Includes optional external power adapter Bullet 4 High Speed USB 2.0 compliant, with supported data transfer rates up to 480 Mbps Bullet 5 Backwards compatible with USB 1.1/1.0 devices Bullets (Consolidated) Turn a single USB 2.0 port into 4 external USB 2.0 ports - USB 2.0 Hub - 4 Port USB Hub - Desktop USB Hub - Powered USB Hub - External USB hub Marketing Copy Marketing Copy (No HTML) This TAA compliant 4 Port USB 2.0 Hub connects to one USB 2.0 port on a Mac or PC computer, adding four USB 2.0 ports - allowing you to maximize the number of high speed USB peripherals connected to your computer. The hub supports cascaded installation with other USB 2.0 hubs, supporting up to 127 USB 2.0 device connections - a scalable solution for connecting multiple USB devices to a single host computer. The 4-port compact hub includes a power adapter, but can be powered through USB bus connection to the host computer - allowing you to install the hub as needed without worrying about the availability of a power outlet. The USB 2.0 black hub offers an attractive black casing that suits any operating environment and includes a 3ft USB 2.0 A/B male-male cable, for the connection between the hub and the host computer. The 4-port compact black USB 2.0 hub is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Charge older portable devices like iPod's. The product is not suitable for charging modern smartphones or tablets.
- Add additional USB 2.0 ports to a computer to connect more devices
- Move USB ports further away from the computer chassis with an external hub
- Make hard to reach USB ports more accessible, by being able to position the hub anywhere the cable will reach
Website Search Keyword - USB Hub
- U225-004-R
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
System and Cable Requirements Any computer with a USB 2.0 port Accessory Products - CBUSB220
- PCI225USB
- USB2HAB10
- USB2HAB15
- USB2HAB6
- SVA5H2NEUA
Related Products - ST4200MINI
- ST4200USB
- ST7202USB
- ST4205USB
- ST4200USBM

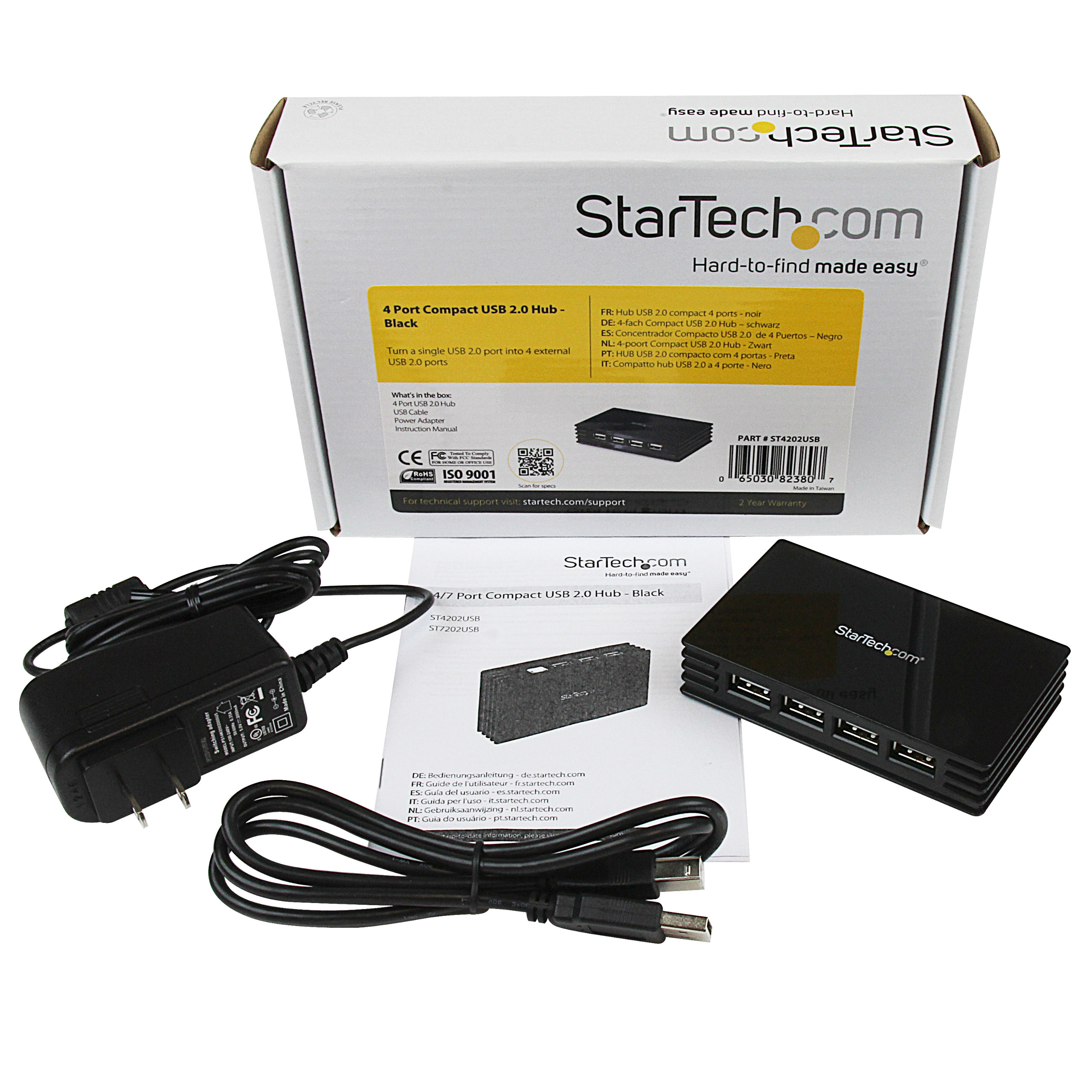

Equivalent Part Number in the UK ST4202USBGB Input Current 0.35 A Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Plug Type H Center Tip Polarity Positive Color Black Material Plastic Operating Temperature 0 to 70 Degrees °C Primary Material Plastic Product Length (mm) 600 Product Width (mm) 100 Product Height (mm) 20.000 Product Weight (g) 71.000 TAA Compliant Yes Downstream Maximum Data Transfer Rate USB 2.0 (480Mbps) Fast Charge Ports (BC 1.2) No Maximum Data Transfer Rate 480 Mbps MTBF (hours) 75,537 hours OS Compatibility OS Independent Chipset ID Genesys Logic - GL850G Ethernet Port No Industry Standards USB 2.0 Interface/Bridge USB 2.0 Carton Depth (mm) 350 Carton Height (mm) 310 Carton Quantity 50 Carton Weight Gross (g) 14700 Included in Package - 1 - 4 Port USB 2.0 Hub
- 1 - USB Cable
- 1 - Power Adapter
- 1 - Instruction Manual
Package Depth (mm) 145 Package Height (mm) 40 Package Width (mm) 210 Package Quantity 1 Package Weight (g) 276 Packaging Description 4 Port Compact USB 2.0 Hub - Black Packaging Description India 4 Port Compact USB 2.0 Hub - Black Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 4 Connector 2 USB-B (480Mbps, 2.5W) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,CL,CO,MX,NZ,PE,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream
