ST424HDBT
4 x 4 HDMI (HDBaseT) CAT5 Matrix Switcher
Share and extend four HDMI video sources up to 230ft over Cat5, and switch between four remote displays
Main Image
Product Images
Product Images
BOM Image
Product Name 4 x 4 HDMI (HDBaseT) CAT5 Matrix Switcher Product Number ST424HDBT UPC 065030852791 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Switchers Category Level 3 HDMI Matrix Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX099X Product Title (Ultra-Short) 4x4 Matrix Extender Product Title (Short) 4x4 HDMI Matrix Switcher / CAT5 Extender Product Title (Standard) 4x4 HDMI Matrix Switcher and HDMI over HDBaseT CAT5 Extender - 230ft (70m) - 1080p Product Title (Long) 4x4 HDMI Matrix Switcher and HDMI over HDBaseT CAT5 Extender - 230ft (70m) - 1080p Product Title (AMZ) 4x4 HDMI Matrix Switcher / HDMI Extender over CAT5/CAT6 – HDMI over Cat5 Cat6 Extension w/ 4x4 Matrix – 230ft (70m) – 1080p (ST424HDBT) Title Ingram (Part 1) HDMI over CAT5 Extender w/ 4x4 Title Ingram (Part 2) Matrix Switcher - 70m – 1080p Website Product Headline Share and extend four HDMI video sources up to 230ft over Cat5, and switch between four remote displays Bullet 1 4x4 Matrix Switching Bullet 2 4 x 230ft HDMI extension over Cat5/6 Cabling Bullet 3 RS232/Ethernet Control Bullet 4 4 x Local HDMI out Ports Bullet 5 IR Extension Bullets (Compact) Use this 4-port HDBaseT matrix extender to share and extend 4 HDMI video sources up to 230ft over CAT5 - Works with Blu-ray players computers & HDBaseT receivers - Switch between 4 HDMI video sources & 4 HDMI remote displays - Resolutions up to 1080p Bullets (Consolidated) Use this 4-port HDBaseT matrix extender to share and extend four HDMI video sources up to 230ft over Cat5 - Compatible with HDMI video sources such as Blu-ray players and computers and HDBaseT receivers with HDMi monitors televisions and projectors - Switch between four HDMI video sources and four HDMI remote displays - HDBaseT Extender/HDMI over Cat5/HDMI Matrix Switcher/HDMI matrix 4x4/HDMI Extender over Cat 5/Matrix Cat5 Cat6 Extender - Supports resolutions up to 1920x1200 or 1080p Marketing Copy Applications - Connect 4 different HDMI sources to 4 different displays, in different locations around a large building such as a shopping center, school, or hospital
- Place the displays in a convenient viewing area, while the HDMI source equipment is placed elsewhere in a separate, secured environment
- Remotely switch your display from video source to another
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - SVA12M5NA
- HDMM6
- HDMM10
- HDMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
- STHDBTRX
Related Products - ST121SHD50
- ST121HDBTE
- ST12MHDLAN
- ST121UTPHDMI
- ST121UTPHD2
- VS410HDMIE
- VS123HD
- VS721MULTI
- VS122HDMIU
- VS440HDMI
Input Current 1.8 A Input Voltage 100 - 240 AC Output Current 5 A Output Voltage (V) 12V DC Power Consumption (In Watts) 60 Power Source AC Adapter Included Plug Type M Color Black Humidity 5 to 90 % RH Material Aluminum Operating Temperature -5 to 35°C (-41 to +95 °F) Product Length (mm) 440.000 Product Width (mm) 170.000 Product Height (mm) 50.000 Product Weight (g) 2303.000 Storage Temperature -5 to 35°C (-41 to +95 °F) TAA Compliant No Max Distance 70m [230ft] Maximum Digital Resolutions 1920x1200/1080p Wide Screen Supported Yes Audio Yes Cabling Cat 5 UTP or better LED Indicators - 4 - Output 1 Display Selection
- 4 - Output 2 Display Selection
- 4 - Output 3 Display Selection
- 4 - Output 4 Display Selection
- 1 - Power
- 1 - Output 2 UTP Activity (Rear)
- 1 - Output 3 UTP Activity (Rear)
- 1 - Output 4 UTP Activity (Rear)
- 1 - Output 1 UTP Activity (Rear)
- 1 - LAN Activity (Rear)

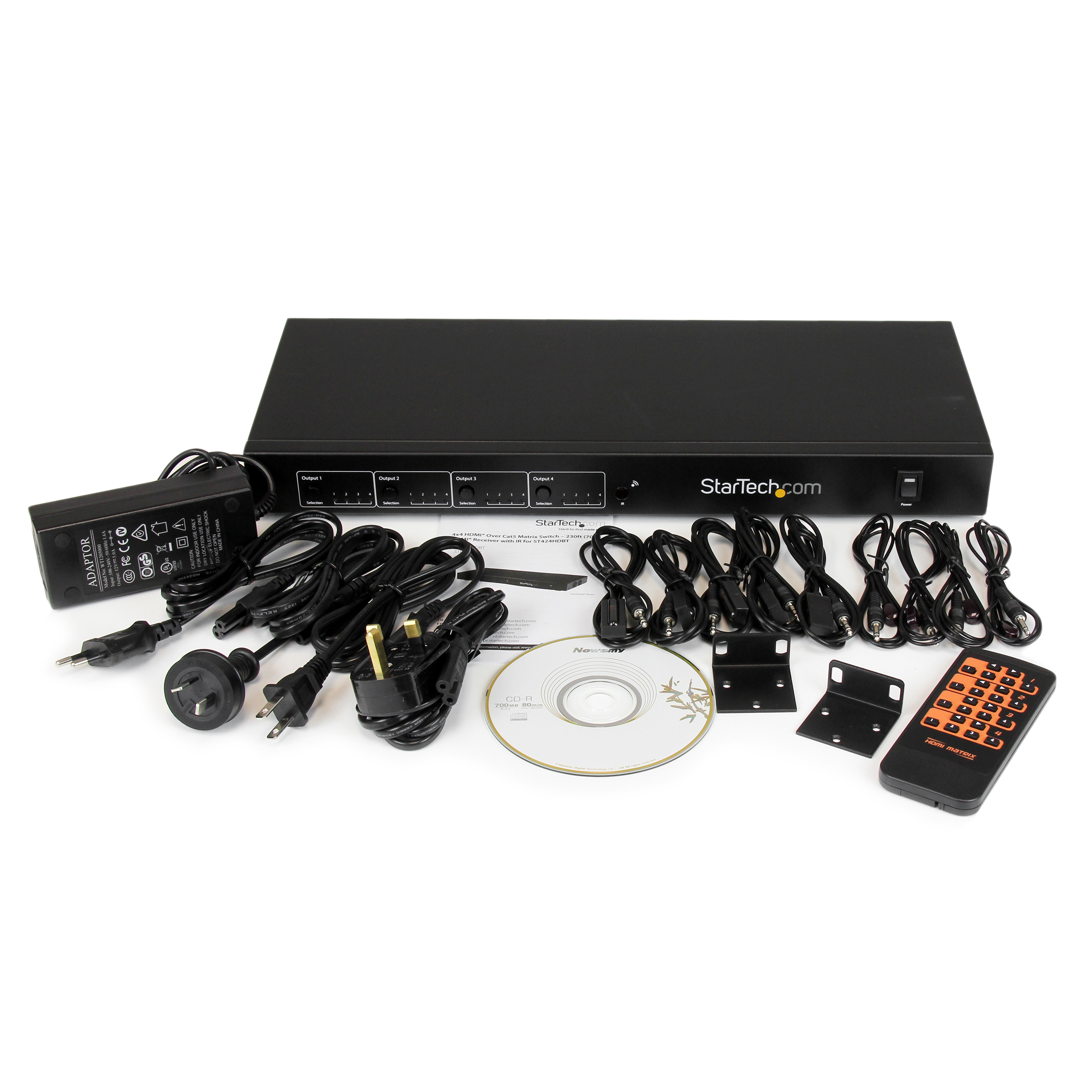

Matrix Video Switch (Filter) Yes Rack-Mountable Yes Carton Depth (mm) 552 Carton Height (mm) 378 Carton Quantity 5 Carton Weight Gross (g) 24204 Included in Package - 1 - HDMI Matrix Switch
- 1 - Software Installation CD
- 1 - Remote control
- 1 - Mounting brackets
- 1 - Quick Install Guide
- 1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
Package Depth (mm) 325 Package Height (mm) 122 Package Width (mm) 525 Package Quantity 1 Package Weight (g) 4175 Packaging Description 4x4 HDMI Over Cat5 Matrix Switch – 230ft (70M) Packaging Description India 4x4 HDMI Over Cat5 Matrix Switch – 230ft (70M) Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 HDMI Host Connector 1 (Quantity) 8 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 5 Host Connector 3 DB-9 Serial Host Connector 3 (Quantity) 1 Host Connector 4 Infrared (IrDA) Host Connector 4 (Quantity) 8 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-10-21 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Greg Visser Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
