ST424MX

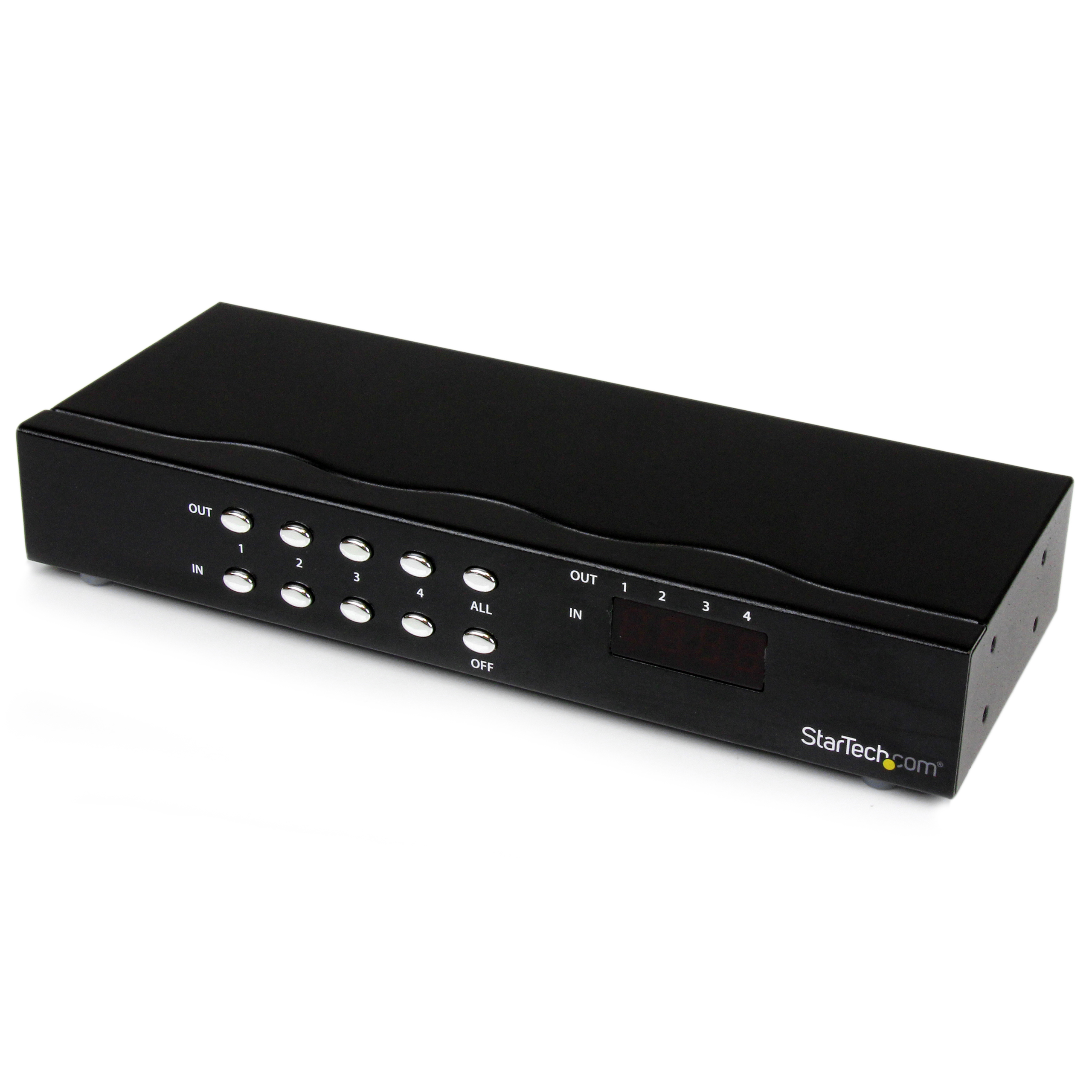

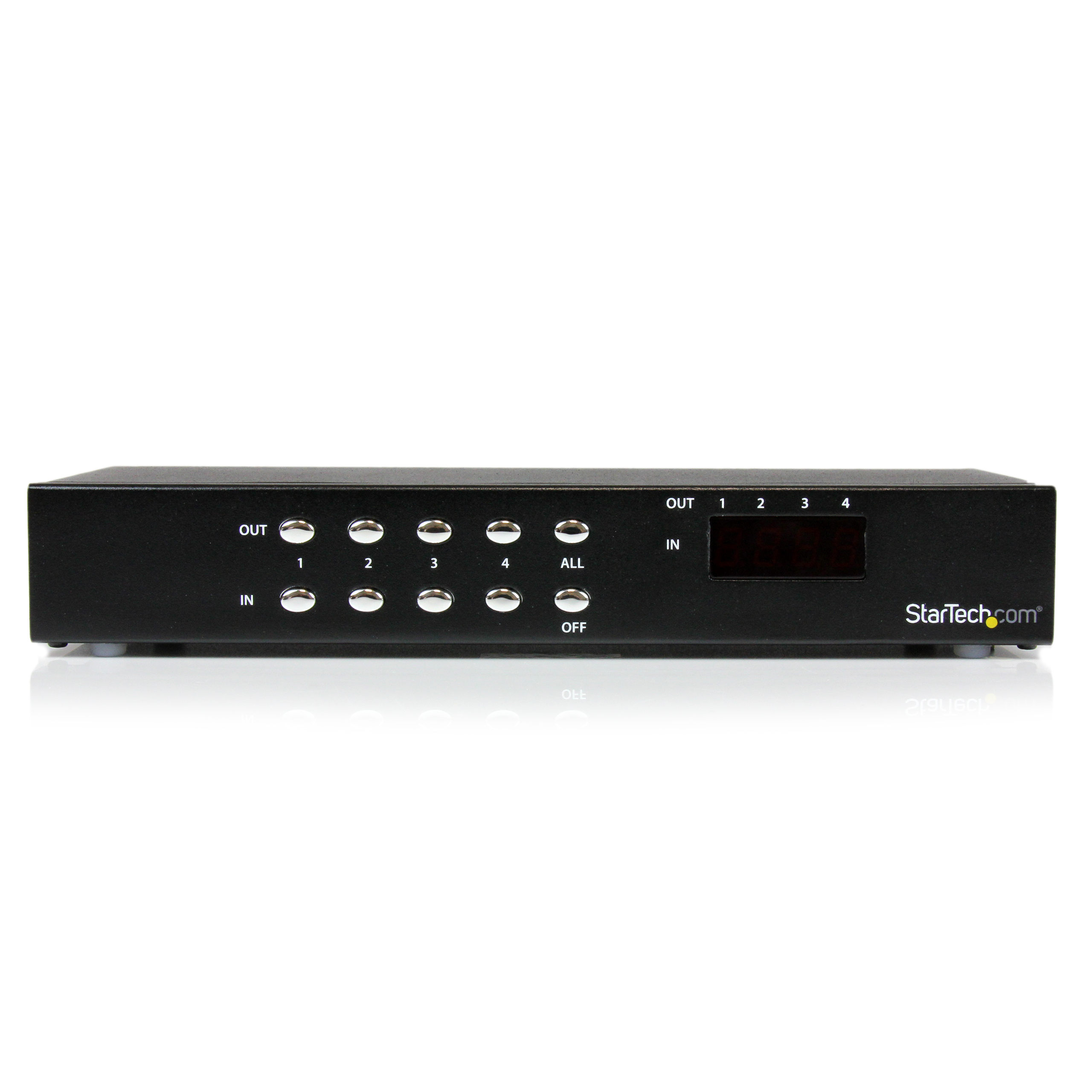

4x4 VGA Matrix Splitter/Switcher
Share up to four distinct VGA inputs and audio source signals between multiple monitors
Main Image
Product Images
Product Images
BOM Image
Product Name 4x4 VGA Matrix Splitter/Switcher Product Number ST424MX UPC 065030830980 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 VGA Matrix Family VGA Matrix with Audio Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX011X Product Title (Short) 4x4 VGA Matrix Video Switch Splitter Product Title (Standard) StarTech.com 4x4 VGA Video Matrix Switch Splitter with Audio Product Title (Long) 4x4 VGA Matrix Video Switch Splitter with Audio Product Title (AMZ) 4x4 VGA Matrix Video Switch Splitter with Audio - 4x4 VGA Matrix - VGA Video Switcher - Video matrix Switch (ST424MX) Title Ingram (Part 1) 4x4 VGA Matrix Video Switch Spli Title Ingram (Part 2) tter with Audio Website Product Headline Share up to four distinct VGA inputs and audio source signals between multiple monitors Bullet 1 Allows four PC's / Media Players to provide video to four displays / projectors Bullet 2 Supports cascading with additional units Bullet 3 Maximum resolution of up to 1920 x 1440 pixels Bullet 4 65m (213ft) Maximum cable length Bullet 5 Equipped with easy to use front panel selection buttons Bullets (Consolidated) Share up to four distinct VGA inputs and audio source signals between multiple monitors - 4x4 VGA Matrix Video Switch with Audio - Video/Audio Switch - VGA Matrix Switcher - VGA Matrix Splitter - Built-in Signal Amplifier - 1920x1440 - up to 210 feet Marketing Copy Applications - Take full control of your sources and displays/projectors - select any source on any display
- Run multimedia presentations with supporting data showing on another display in business conference rooms or at trade-shows
- Perfect for digital signage applications in retail environments requiring more than one media player or PC to be connected
- Allow trainees/students to see what is on your display and then switch them back to their own display after the demonstration completes
- Ideal for connecting/switching multiple sources in Test Bench Facilities, Data Centers, Help Desks and Video Broadcasting Facilities
Website Search Keyword - Matrix Video Switch
- Switch
- 4x4
- VGA
- Audio
- Video Selector
- Distribution Switch
- A/V Switch
- Video Router
- Video Switcher
- 350 MHz
- Rack Mountable
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
Accessory Products - MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- MU6MMS
- MU10MMS
- MU15MMS
- MU1MMRCA
- MU3MMRCA
- MU6MMRCA
- ST121UTP
- SVA12M2NEUA
- SVA12M5NA
Related Products - ST222MX
- ST228MX

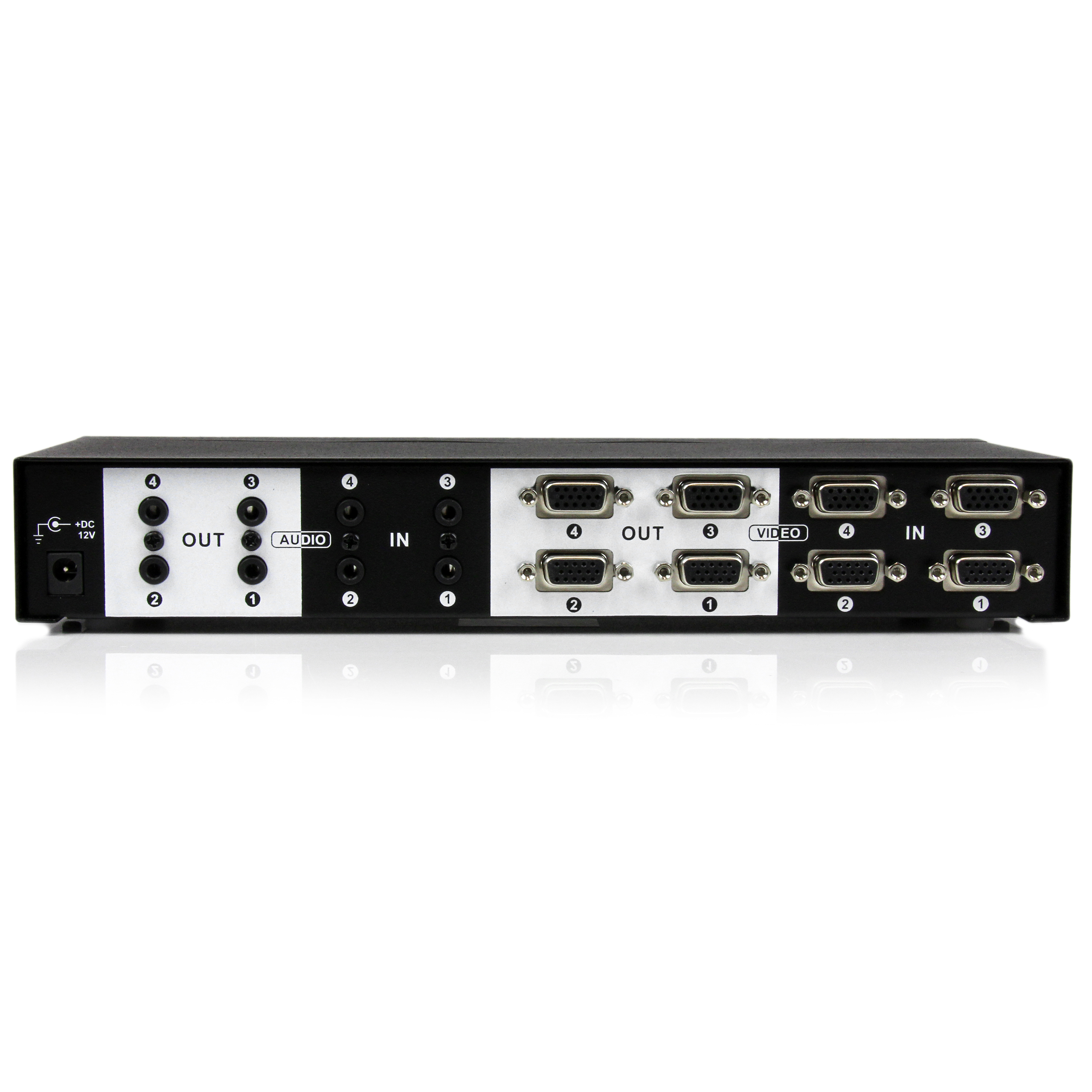

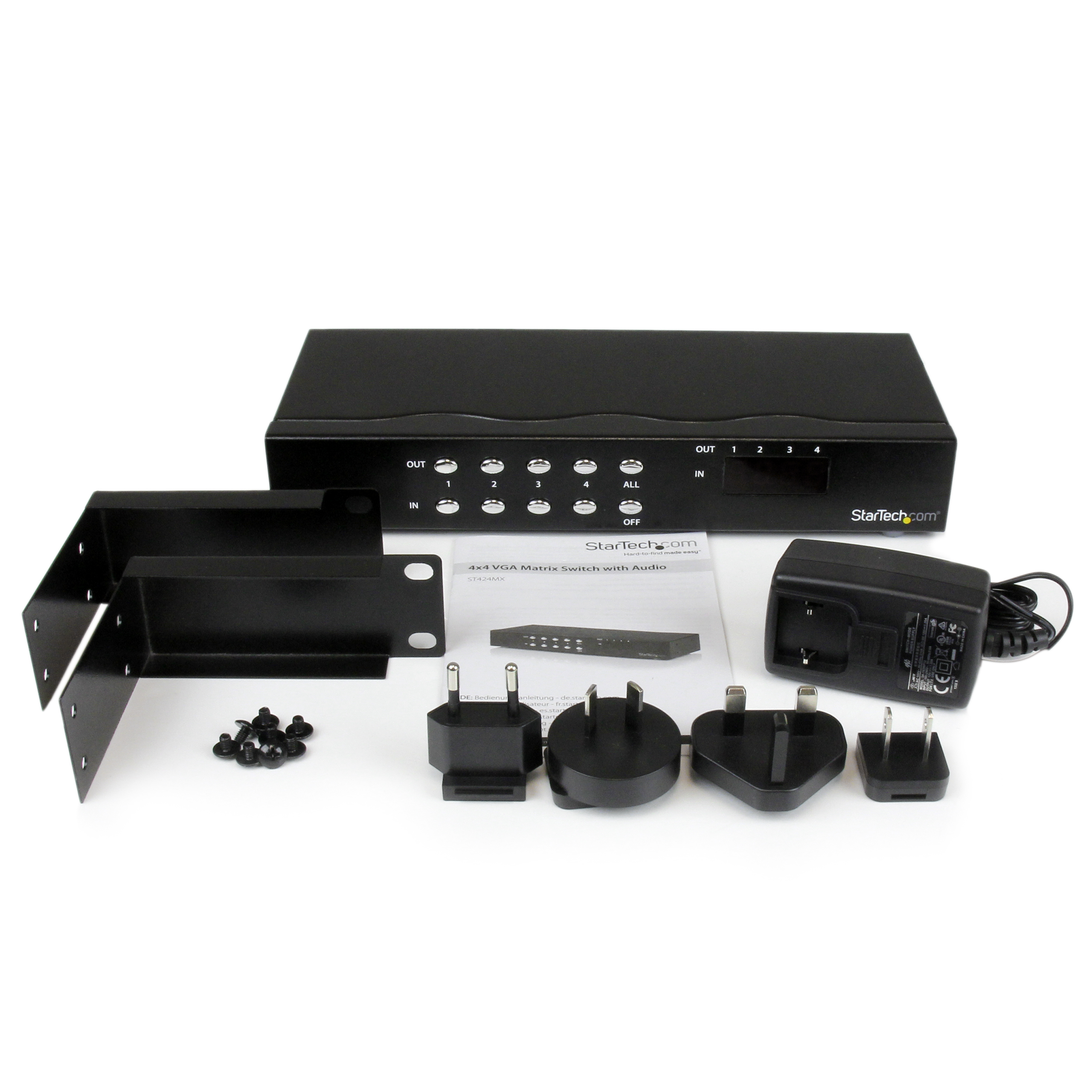

Input Current 0.3A Input Voltage 100 - 240 AC Output Current 1.25A Output Voltage (V) 12V DC Power Consumption (In Watts) 15 Power Source AC Adapter Included Center Tip Polarity Positive Color Black Material Steel Primary Material Steel Product Length (mm) 269.000 Product Width (mm) 108.000 Product Height (mm) 42.000 Product Weight (g) 1055.000 TAA Compliant Yes Bandwidth 350 MHz Maximum Analog Resolutions 1920x1440 @ 85Hz Maximum Cable Length (mm) 65000 Audio Yes AV Input VGA AV Output VGA Cascadable Yes Industry Standards DDC, DDC2, DDC2B Matrix Video Switch (Filter) Yes Rack-Mountable Yes Carton Depth (mm) 370 Carton Height (mm) 423 Carton Quantity 5 Carton Weight Gross (g) 7400 Included in Package - 1 - VGA 4x4 Matrix Switch
- 1 - Universal Power Adapter (US/UK/EU/AUS)
- 2 - Ear-mounts for rack-mounting
- 1 - Instruction Manual
- 1 - Bag of Screws
Package Depth (mm) 82 Package Height (mm) 279 Package Width (mm) 357 Package Quantity 1 Package Weight (g) 1779 Packaging Description 4x4 VGA Matrix Switch with Audio Packaging Description India 4x4 VGA Matrix Switch with Audio Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 4 Connector 2 3.5mm (3 Conductors, TRS) Connector 2 (Quantity) 4 Connector 3 VGA Connector 3 (Quantity) 4 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
