ST4300U3C1

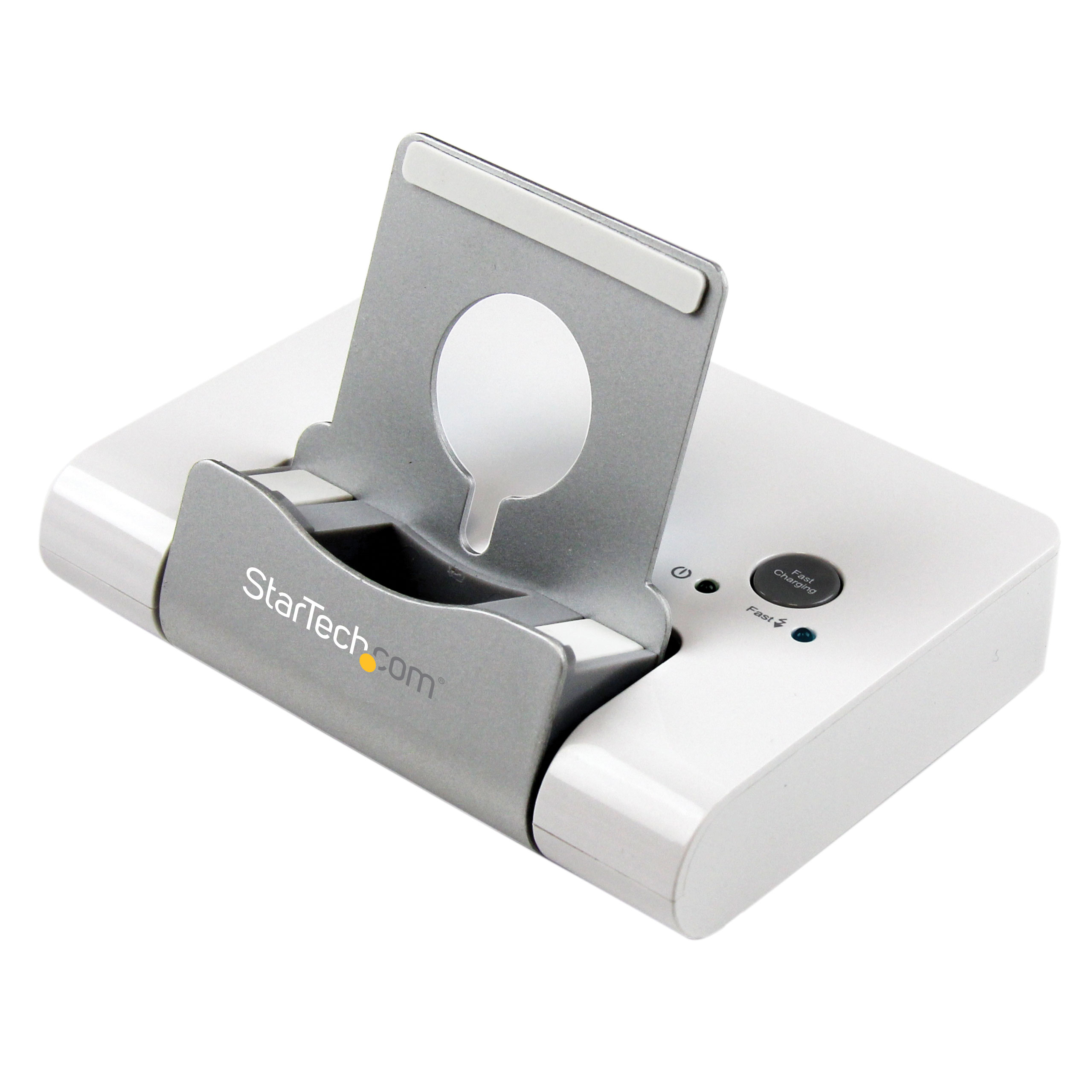

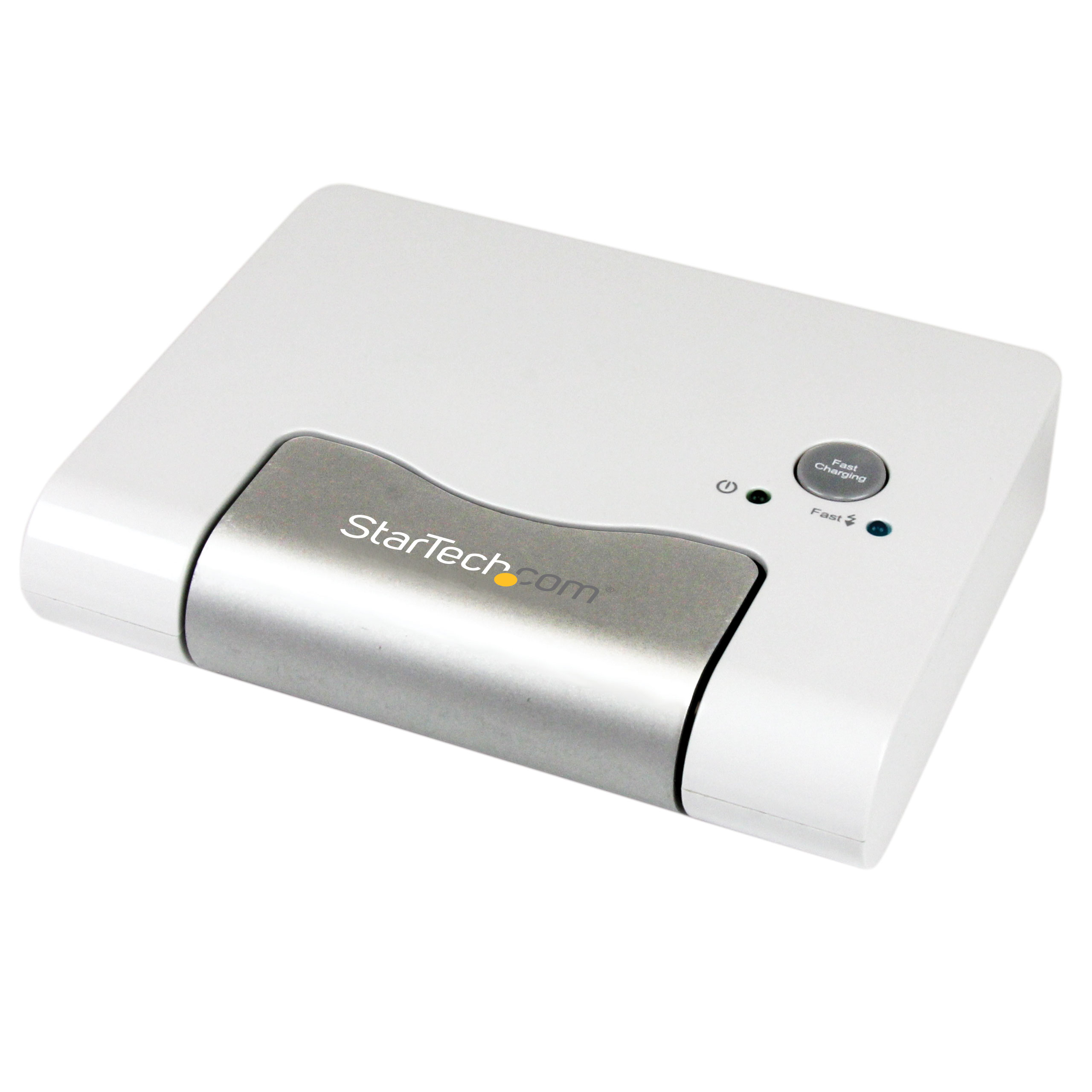

Smart USB 3.0/2.0 Combo Hub and Charging Station

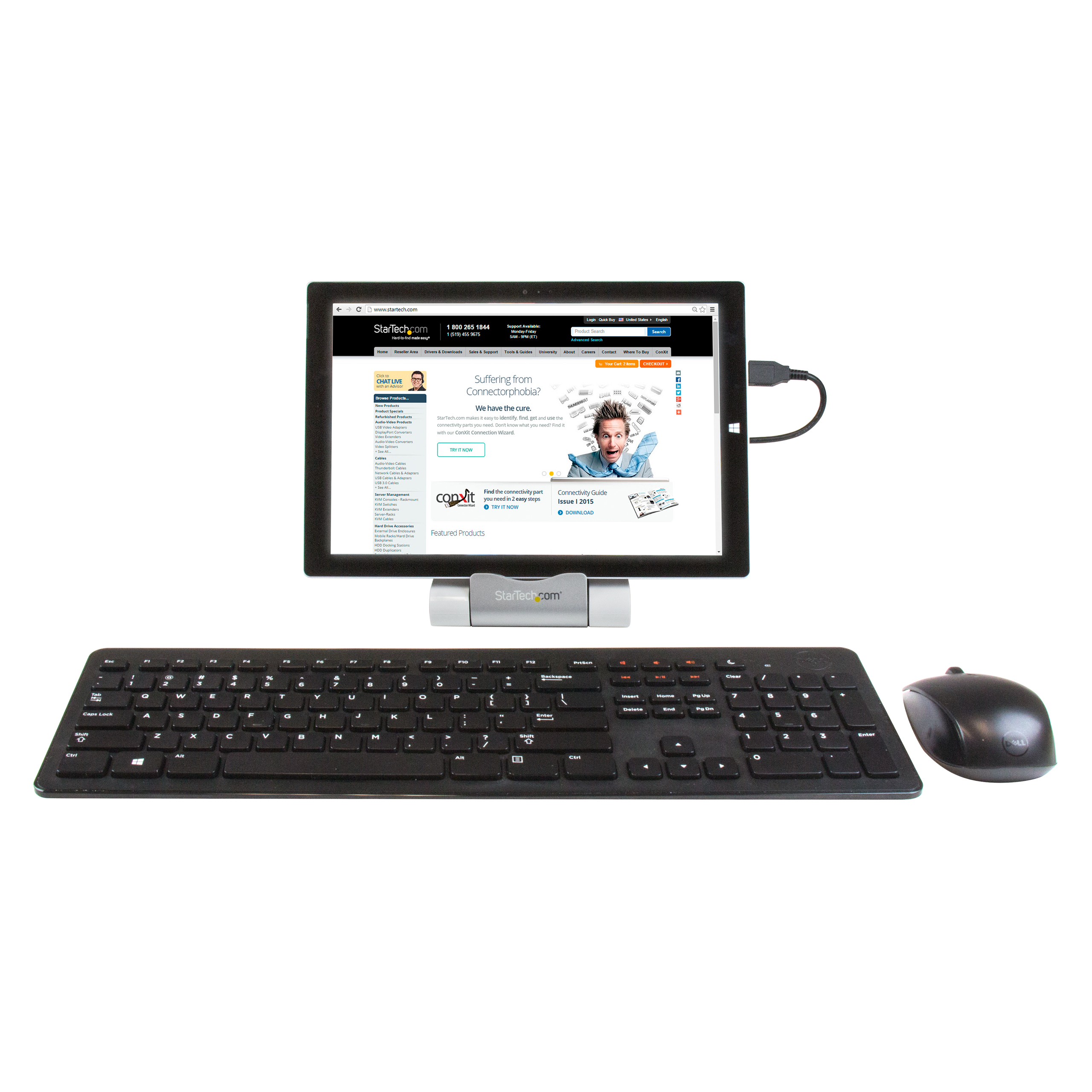

Add USB 3.0 ports to your Windows based tablet, or any laptop, plus add a separate fast-charge port through a single USB 3.0 connection
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Smart USB 3.0/2.0 Combo Hub and Charging Station Product Number ST4300U3C1 UPC 065030856768 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Hubs Category Level 2 USB-A Hubs Category Level 3 USB-A External Powered Hubs - 5Gbps Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX031X Product Title (Ultra-Short) USB 3 Hub w/ Chrg Pt Product Title (Short) 3 Port USB 3.0 Hub plus Fast Charge Port Product Title (Medium) 3 Port USB 3.0 Hub plus Combo Fast Charge Port with Smartphone / Tablet Stand Product Title (Standard) 3 Port USB 3.0 Hub for Laptops & Windows-based Tablets + Fast-Charge Port & Device Stand Product Title (Long) 3-Port USB 3.0 Hub for Laptops & Windows Based Tablets + Fast-Charge Port & Device Stand Product Title (AMZ) 3 Port USB 3.0 Hub for Laptops & Windows-based Tablets + Fast-Charge Port (2.1A) & Device Stand (ST4300U3C1) Title Ingram (Part 1) 3Port USB 3 Hub plus Charging Title Ingram (Part 2) Port w/ Smartphone/Tablet Stand Website Product Headline Add USB 3.0 ports to your Windows based tablet, or any laptop, plus add a separate fast-charge port through a single USB 3.0 connection Bullet 1 Add three USB 3.0 ports (5Gbps) to your computer using this heavy-duty hub that’s designed for stability and durability Bullet 2 Backward compatible with USB 2.0 and 1.x devices Bullet 3 Includes USB 3.0 A to Micro B host cable for connection to your desktop or laptop Bullet 4 Plug-and-Play and Hot-Swap compatible Bullet 5 Charge your mobile device faster using the USB fast-charge or data port (supports USB Battery Charging Specification 1.2) — port mode is toggled by an integrated button Bullets (Consolidated) Add USB 3.0 hub ports to your Windows-based tablet or any laptop plus add a separate fast-charge port through a single USB 3.0 connection - 3 Port USB 3.0 Hub for Laptops and Windows-based Tablets + Fast-Charge Port (2.1A) and Device Stand - Compatible with Microsoft Surface Pro 3 and 2 - Android OTG (On-the-Go) USB Hub USB 3 Hub with Charging Port/USB Hub w/ Charge Port and Stand - Support for USB Battery Charging Specification 1.2 Marketing Copy Marketing Copy (No HTML) Applications - Expand your computer system USB 3.0 capabilities with additional ports

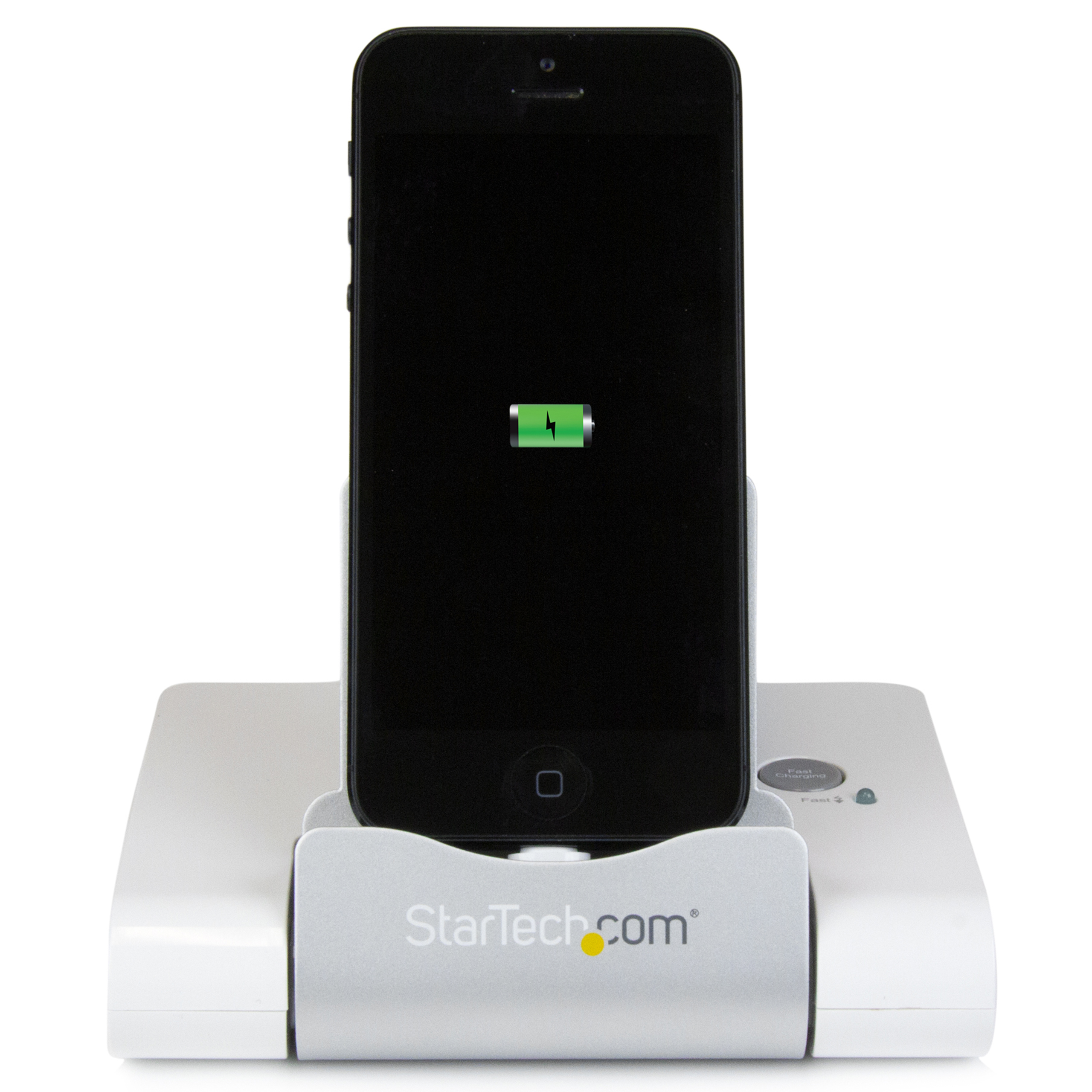

- Quickly cradle, connect, and fast-charge your mobile device in the home or the office
- Use as a smartphone or tablet stand, or as a space-saving charging station for mobile devices
- Deploy in hot desk environments to provide USB hub access for multiple devices, plus a Dedicated Charge Port (DCP) when in fast-charge mode

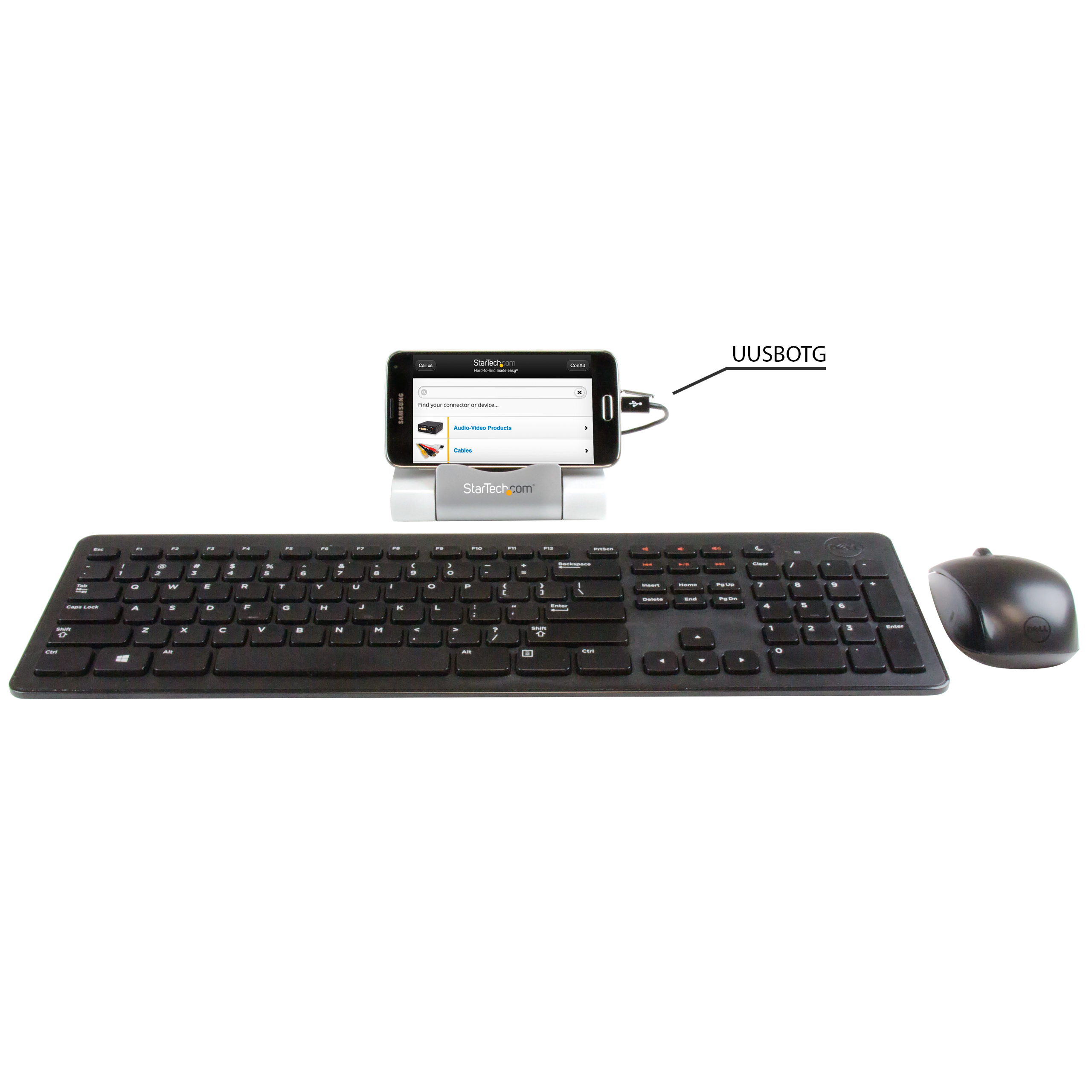

- Use with Windows-based tablets, or some OTG-enabled Android devices (with purchase of separate OTG adapter)
Website Search Keyword - usb 3 hub
- usb hub with charging
- usb charging port
- USB 3.0 hub with charging port
- usb 3.0 hub
- smartphone stand
- tablet stand
- device stand
- usb 3 hub with charge
- hub with stand
- usb 3 hub with stand
- smart phone stand
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes - The hub will only provide a trickle charge on the Samsung Galaxy Tab®, the Apple® iPad®, and the Apple® iPad mini™ while in fast charge mode
- If connected to a USB 2.0 host port, performance may be limited
System and Cable Requirements Available USB 3.0 port Accessory Products - PEXUSB3S25
- PEXUSB3S24
- ECUSB3S11
- ECUSB3S22
- USB3SAUB3
- USB3SAUB3BK
- USB3SAA6BK
- USB3AUB2MS
- UUSBOTG
- SVA5M4NEUA
Related Products - ST4300U3C3
- ST7320USBC
- ST7CU35122
- ST7300USB3B
- ST4300PBU3
- ST4300USBMS
- ST4300U3C1B
Replacement Product - ST4300USB3V2-NA
- ST4300USB3V2-UE
Constrained SKU Alternatives (Limited Stock) - ST4300USB3
- ST4300USB3GB
- ST4300USB3EU
Input Current 0.8 A Input Voltage 100 - 240 AC Output Current 4 A Output Voltage (V) 5 DC Power Consumption (In Watts) 20 Power Source AC Adapter Included Plug Type C Center Tip Polarity Positive Color White & Silver Humidity 10-90% RH Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 126.000 Product Width (mm) 97.000 Product Height (mm) 25.000 Product Weight (g) 393.000 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant No Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Fast Charge Ports (BC 1.2) Yes Maximum Data Transfer Rate USB 3.0 - 5 Gbit/s MTBF (hours) 61,766,523 hours OS Compatibility OS Independent USB Type and Rate - USB 3.0 (5Gbps)
- USB 2.0 (480Mbps)
Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID Genesys Logic - GL3520 Ethernet Port No Industry Standards USB Battery Charging Specification Rev. 1.2 Interface/Bridge - USB 3.2 Gen 1 (5Gbps)
- USB 2.0
Laptop Dock / USB Hub Fast-Charge Yes LED Indicators - 1 - Power
- 1 - Fast Charging

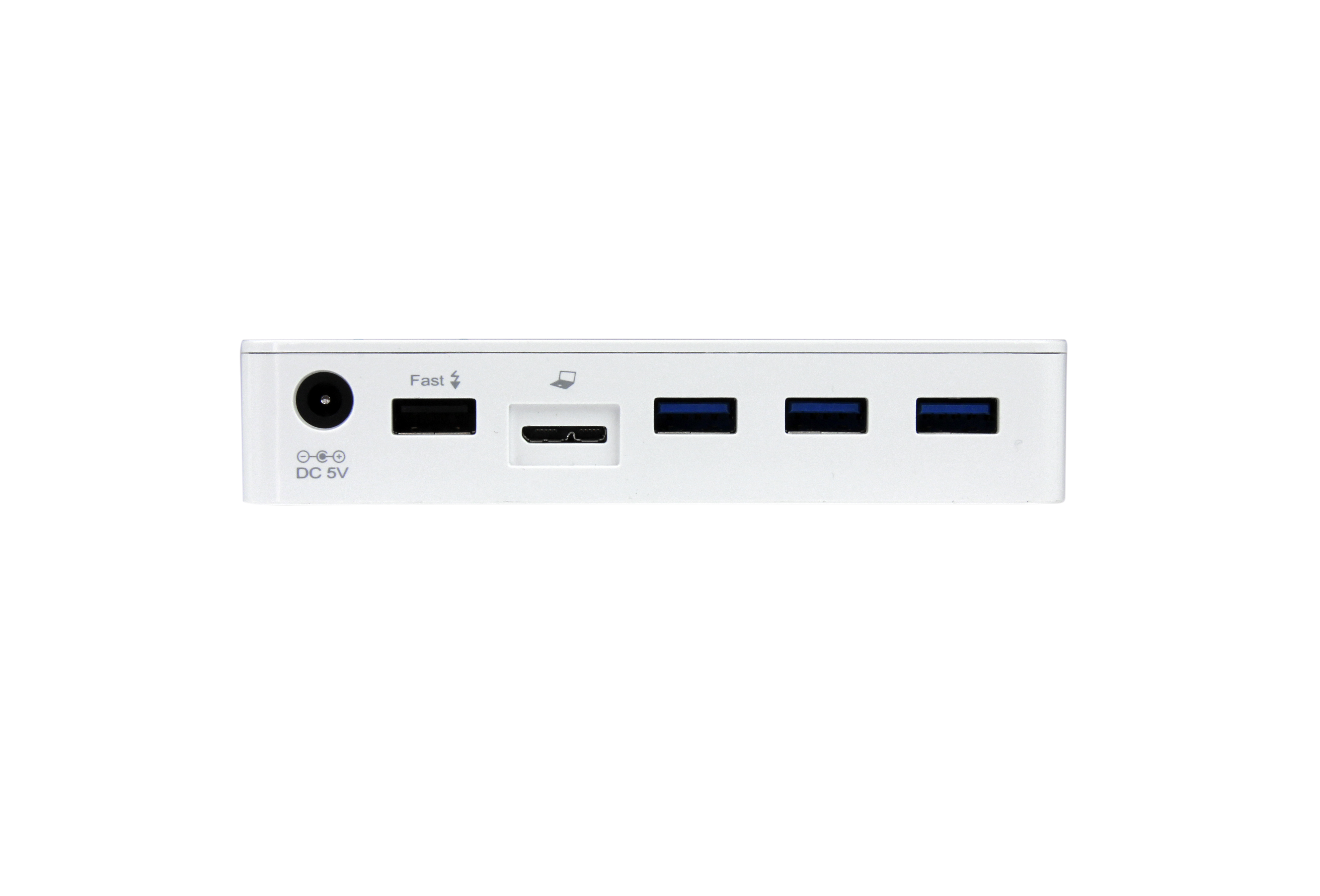

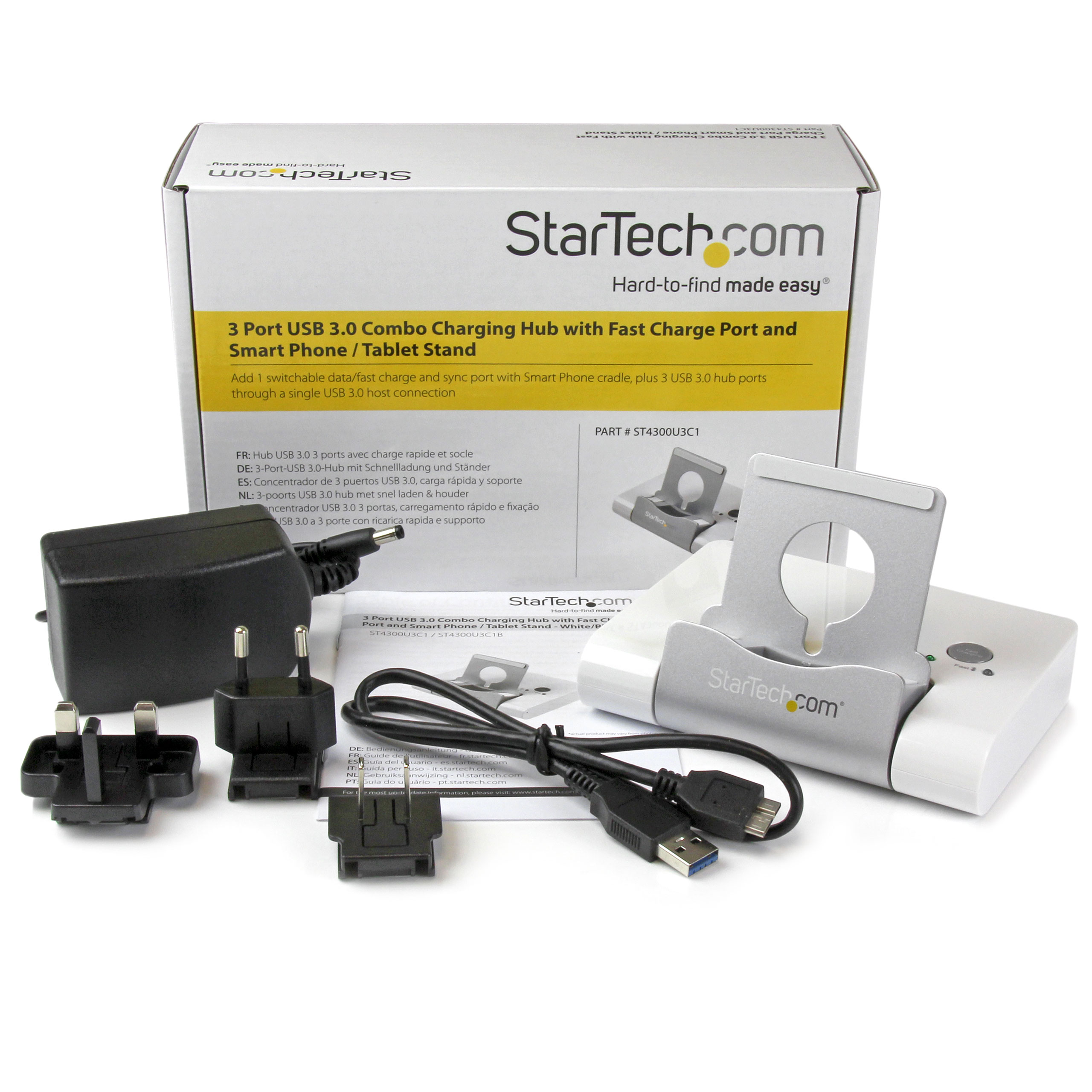

USB-C Device Port(s) No USB-C Host Connection No Carton Depth (mm) 310 Carton Height (mm) 170 Carton Quantity 8 Carton Weight Gross (g) 7066 Included in Package - 1 - USB 3.0 Hub with Charge Port
- 1 - Instruction Manual
- 1 - Universal Power Adapter (NA/UK/EU)
- 1 - USB 3.0 A - Micro B Cable
Package Depth (mm) 144 Package Height (mm) 75 Package Width (mm) 225 Package Quantity 1 Package Weight (g) 820 Packaging Description 3 Port USB 3.0 Hub w/ Fast-Charge & Stand Packaging Description India 3 Port USB 3.0 Hub w/ Fast-Charge & Stand Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 3 Connector 2 USB Micro-B (5Gbps, 4.5W) Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2014-01-03 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DE,DK,ES,EU,FR,IT,MX,NL,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Legacy
