ST4300U3C3

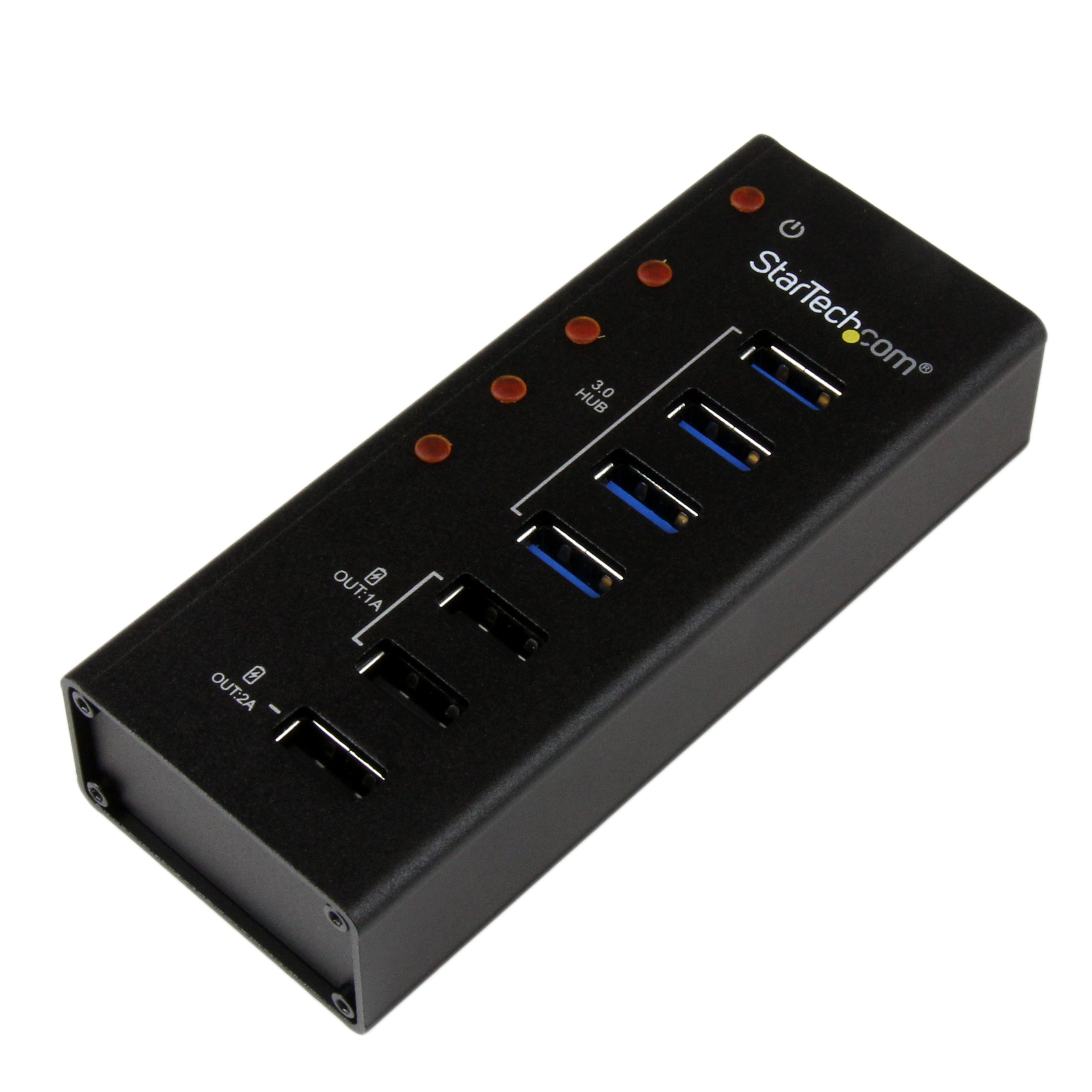

4 Port AC Powered USB 3 Hub plus 3 Charge Ports
Add 4 USB 3.2 Gen 1 hub ports, plus 3 dedicated USB charging ports (7 total) through a single USB 3.2 Gen 1 host connection
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 4 Port AC Powered USB 3 Hub plus 3 Charge Ports Product Number ST4300U3C3 UPC 065030854634 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 USB-A Hubs Category Level 3 USB-A External Powered Hubs - 5Gbps Family USB-A External Powered Hubs - 5Gbps - 4-Port - All A Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX157X Product Title (Ultra-Short) USB3 Hub w/ Chrg Pts Product Title (Short) 4 Port USB 3.0 Hub plus 3 Charging Ports Product Title (Medium) 4 Port USB 3.0 Hub plus 3 Dedicated USB Charging Ports (2 x 1A & 1 x 2A) - 5Gbps Product Title (Standard) 4 Port USB 3.0 Hub plus 3 Dedicated USB Charging Ports (2 x 1A & 1 x 2A) - 5Gbps - Wall Mountable Metal Enclosure Product Title (Long) 4 Port USB 3.0 Hub (5Gbps) plus 3 Dedicated USB Charging Ports (2 x 1A & 1 x 2A) - Wall Mountable Metal Enclosure Product Title (AMZ) 7 Port USB 3.0 Charging Hub - 5Gbps - 4 x USB-A, 3 x USB-A Dedicated Charging Ports - Powered Mountable USB Charging Station (ST4300U3C3) Title Ingram (Part 1) 4Port AC Powered USB 3 Hub plus Title Ingram (Part 2) 3 Dedicated Charge Ports Website Product Headline Add 4 USB 3.2 Gen 1 hub ports, plus 3 dedicated USB charging ports (7 total) through a single USB 3.2 Gen 1 host connection Bullet 1 Supports USB Battery Charging Specification 1.2, including Apple® and Samsung Galaxy™ devices Bullet 2 Compact, metal enclosure Bullet 3 Provides 4 USB 3.2 Gen 1 hub ports, and 3 dedicated USB charging ports (2 x 1A, 1 x 2A) Bullet 4 Backward compatible with USB 2.0 and 1.x devices Bullet 5 Compliant with SuperSpeed USB 3.2 Gen 1, with support for up to 5 Gbps Bullets (Consolidated) Add 4 USB 3.2 Gen 1 hub ports plus 3 dedicated USB charging ports (7 total) to your PC or server through a single USB 3.2 Gen 1 connection - Compatible with Lenovo Carbon X1/MacBook - 4 Port USB 3.2 Gen 1 Hub plus 3 Dedicated USB Charge Ports/USB 3.2 Gen 1 Hub w/ Charging Ports - Metal USB Hub/Portable USB 3.2 Gen 1 Hub - Wall Mountable USB 3.2 Gen 1 Hub for IT helpdesk or Tech Bench/Ideal for Ultrabook users with limited USB ports - USB 3.2 Gen 1 Hub for charging Smartphones and Tablets/USB Battery Charging Specification 1.2 Marketing Copy Applications - Use in IT helpdesk or tech bench environments to provide USB hub and charge ports for multiple devices

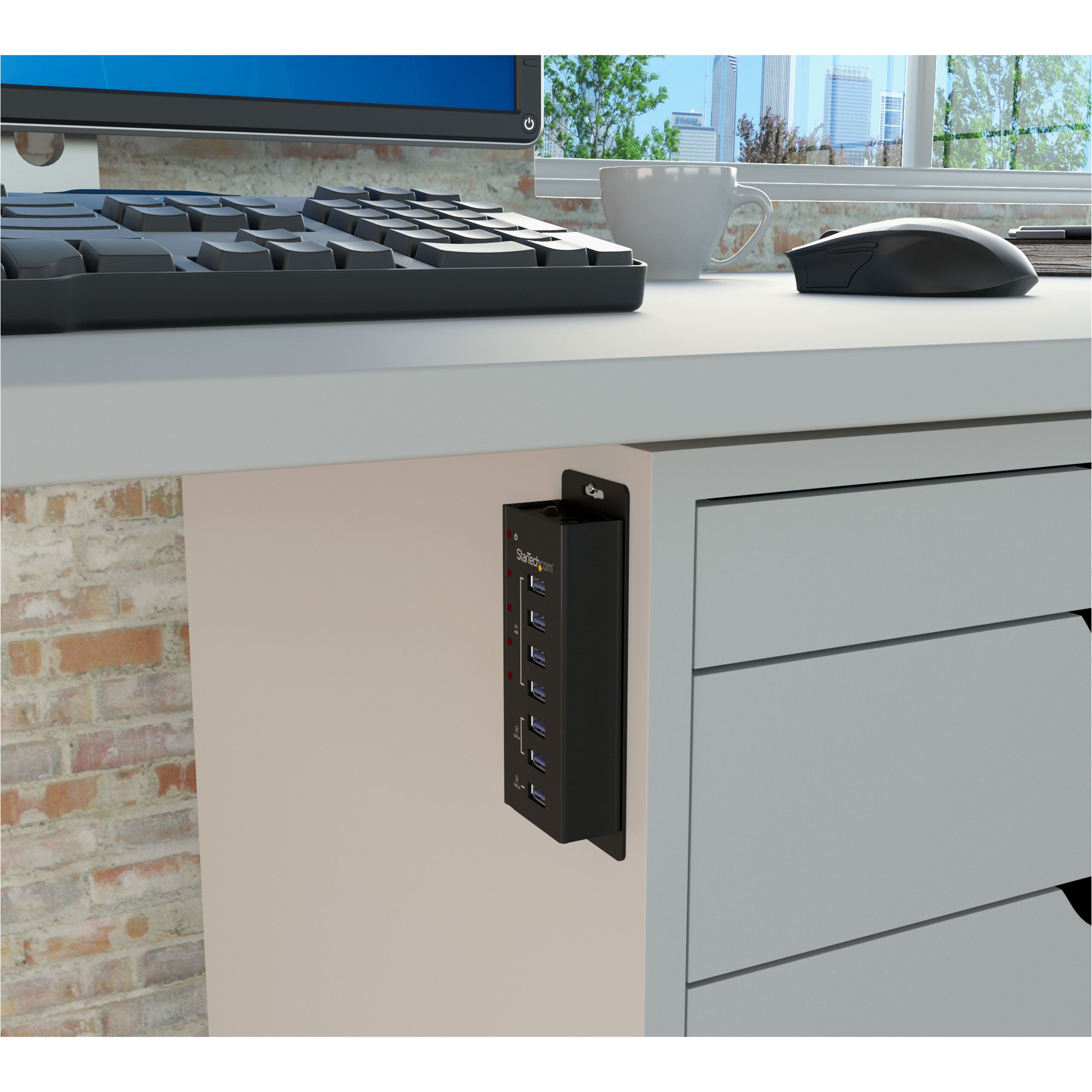

- Installation in locations where USB 3.2 Gen 1 ports need to be securely mounted to a surface, such as a wall or under a desk
- Expand your USB 3.2 Gen 1 capabilities at home or in the office
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes If connected to a USB 2.0 host port, performance may be limited System and Cable Requirements Available USB 3.0 port Accessory Products - PEXUSB3S42V
- USB3SAB1
- USB3SAB3BK
- USB3SAB6BK
- PEXUSB3S25
- USB3SAA6BK
- PEXUSB3S44V
- USB3SAB6
- USB3SAA6
- USB3SAB10
- ECUSB3S22
- SVA12M5NA
Related Products - ST7CU35122
- ST4300USB3
- ST7320USBC
- ST4300USBMS
- ST7300USBM
Input Current 1.5 A Input Voltage 100 - 240 AC Output Current 3 A Output Voltage (V) 12V DC Power Consumption (In Watts) 36 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 20~80% RH Material Aluminum Operating Temperature 5°C to 35°C (41°F to 95°F) Primary Material Aluminum Product Length (mm) 110.000 Product Width (mm) 45.000 Product Height (mm) 24.000 Product Weight (g) 131.000 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant No Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Fast Charge Ports (BC 1.2) No Maximum Data Transfer Rate 5 Gbps (USB 3.2 Gen 1) OS Compatibility OS Independent USB Type and Rate USB 5Gbps Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID VIA/VLI - VL812 Ethernet Port No Industry Standards USB Battery Charging Specification Rev. 1.2 Laptop Dock / USB Hub Fast-Charge Yes LED Indicators - 1 - Power
- 4 - Hub Port Connection LEDs

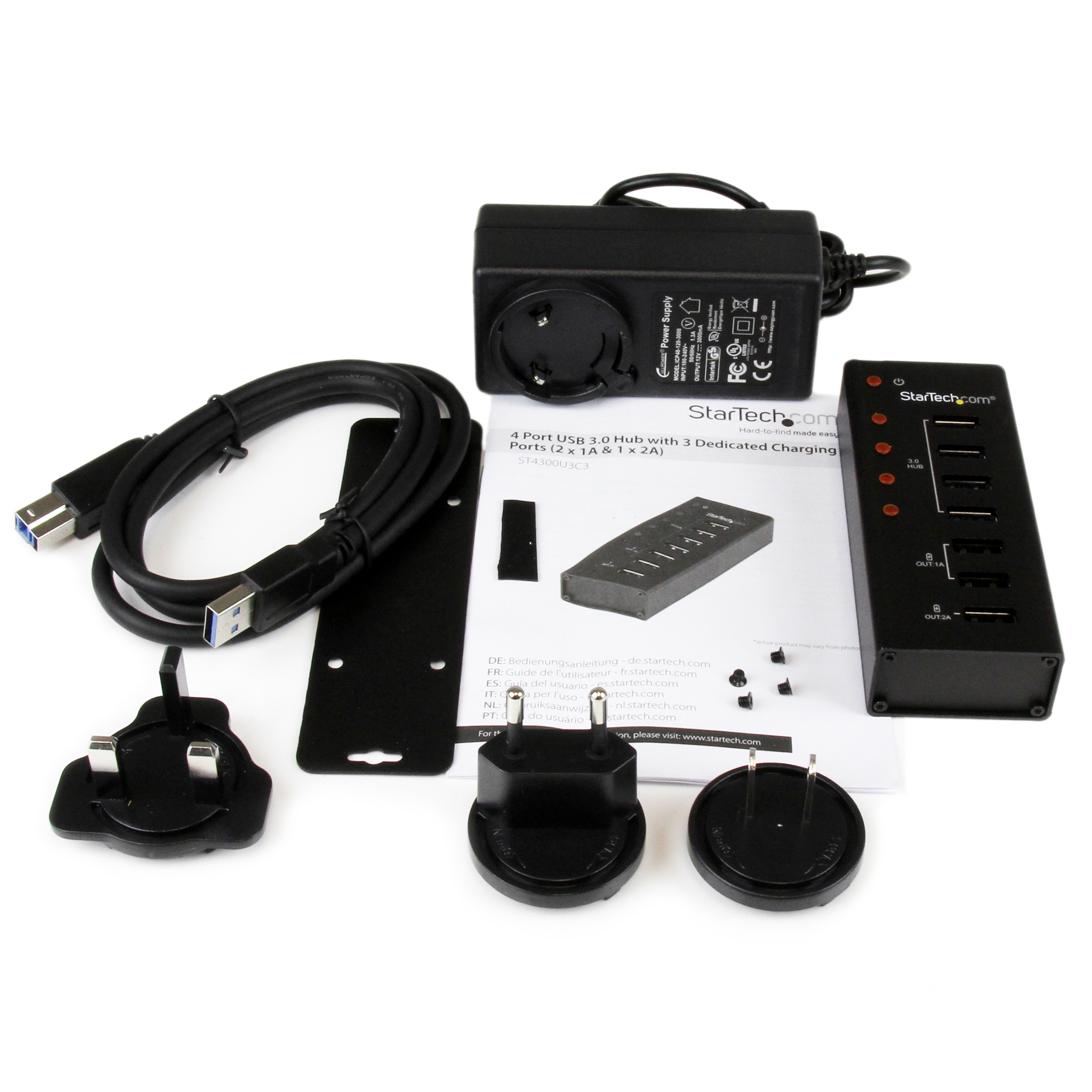

USB-C Device Port(s) No USB-C Host Connection No Carton Depth (mm) 360 Carton Height (mm) 362 Carton Quantity 30 Carton Weight Gross (g) 17524 Included in Package - 1 - USB Charging Hub
- 1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
- 1 - Instruction Manual
- 1 - Wall Mount Bracket (w/ Screws)
- 4 - Rubber Feet
- 1 - USB 3.0 Cable
Package Depth (mm) 105 Package Height (mm) 88 Package Width (mm) 171 Package Quantity 1 Package Weight (g) 546 Packaging Description 4 Port USB 3.0 Hub plus 3 Charging Ports Packaging Description India 4 Port USB 3.0 Hub plus 3 Charging Ports Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-B (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 4 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 3 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2013-11-27 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,IE,IT,JP,MX,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream
