ST4300USB3
4 port Black SuperSpeed USB 3 0 Hub
Add four external SuperSpeed USB 3.2 Gen 1 ports from a single USB connection
Main Image
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 4 port Black SuperSpeed USB 3 0 Hub Product Number ST4300USB3 UPC 065030841399 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 USB-A Hubs Category Level 3 USB-A External Powered Hubs - 5Gbps Family USB-A External Powered Hubs - 5Gbps - 4-Port - All A Country of Origin Europe & Japan Malaysia Country of Origin North America Malaysia Country of Origin History (1) Malaysia Country of Origin Revision (1) XXXXXX156X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX163X Product Title (Ultra-Short) Hub USB 3.0 4 Puerto Product Title (Short) 4 Port Black SuperSpeed USB 3.0 Hub Product Title (Standard) 4 Port Black SuperSpeed USB 3.0 Hub - 5Gbps Product Title (Long) 4 Port Black SuperSpeed USB 3.0 Hub - 5Gbps Product Title (AMZ) 4-Port USB 3.0 SuperSpeed Hub with Power Adapter - 5Gbps - Portable Multiport USB-A Dock IT Pro - USB Port Expansion Hub for PC/Mac (ST4300USB3) Title Ingram (Part 1) 4 Port Black SuperSpeed USB 3.0 Title Ingram (Part 2) Hub Website Product Headline Add four external SuperSpeed USB 3.2 Gen 1 ports from a single USB connection Bullet 1 VERSITILE USE: This powered USB splitter can be used with or without the included external power adapter, offering the best of versatility and portability; When used with the external power adapter, the USB extender provides up to 900mA of power per port Bullet 2 FAST SPEEDS: This IT-grade USB dock is small but mighty; It is SuperSpeed USB 3.0 compliant meaning it delivers data transfer speeds up to 5Gbps; For added convenience, the adapter is backward compatible with previous versions of USB (2.0 and 1.0/1.1) Bullet 3 USB HUB FOR THE IT PRO: Instantly add 4 SuperSpeed USB-A 3.0 ports from a single USB connection which will enable you to connect your USB peripherals (keyboard, mouse, flash drive) and use them simultaneously Bullet 4 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 4-port SuperSpeed USB 3.0 hub is backed for 2-Years, including free lifetime 24/5 multi-lingual technical assistance Bullet 5 PLUG-AND-PLAY: With no additional software or drivers required, this portable USB 3.0 laptop expander hub provides a true plug-and-play solution; It is designed to work with any operating system, ensuring compatibility across platforms Bullets (Consolidated) Add four external SuperSpeed USB 3.2 Gen 1 ports to your laptop Ultrabook or desktop from a single USB 3.2 Gen 1 connection - Works with virtually any USB 3.2 Gen 1 equipped computer - Ideal for Ultrabook and MacBook users with limited USB ports - Compact form factor/Includes optional power adapter - Add high speed USB 3.2 Gen 1 ports to your PC/Connect peripherals and external hard drives or flash drives in the home or office - 4 Port USB 3.2 Gen 1 Hub/Notebook and Laptop USB 3.2 Gen 1 Hub - Desktop USB3 Hub/External USB Hub Marketing Copy Marketing Copy (No HTML) Applications - Expand your system USB 3.2 Gen 1 capabilities with additional ports
- Make hard to access USB ports more accessible, by being able to position the hub anywhere the cable will reach
- Extend the range of a USB device by having the hub act as a mid-point repeater
Website Search Keyword - USB 3.0 hub
- usb hub
- sharing hub
- external USB hub
- U360004R
- U360-004-2F
- U360-004-MINI
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
System and Cable Requirements USB 3.0 or 2.0 or 1.x compliant host controller with available port. Accessory Products - USB3SAB3BK
- USB3SAB6BK
- USB3SAB10BK
- USB3SAB3
- USB3SAB6
- USB3SAB10
- USB3SAA6
- USB3SEXTAA6
- USB3SEXT6BK
- USBEXTAA3BK
- ECUSB3S2
- PEXUSB3S11
- PEXUSB3S2
- SVA5M3NEUA
Related Products - ST4200USBM
- ST4202USB
- ST7200USBM
- ST4200MINI
- ST7202USB

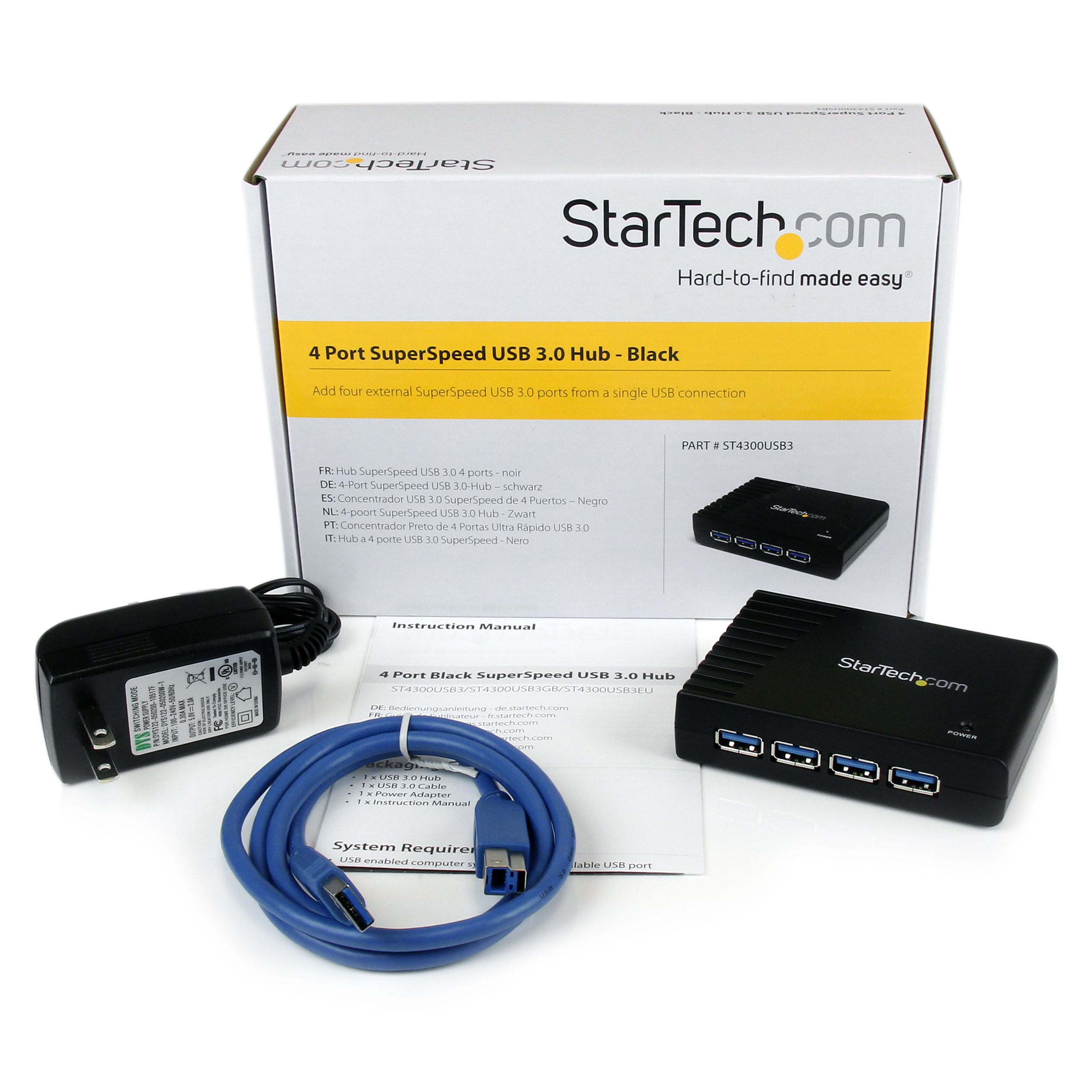

Equivalent Part Number in the EU ST4300USB3EU Equivalent Part Number in the UK ST4300USB3GB Input Current 0.35A Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 5~85% RH Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Plastic Product Length (mm) 96.4 Product Width (mm) 68.000 Product Height (mm) 23.000 Product Weight (g) 78 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Fast Charge Ports (BC 1.2) No Maximum Data Transfer Rate 5 Gbps (USB 3.2 Gen 1) MTBF (hours) 24,000 Hours OS Compatibility OS Independent Total USB Power Output 10W Chipset ID VIA/VLI - VL811+ Ethernet Port No Interface/Bridge USB 3.2 Gen 1 (5Gbps) Laptop Dock / USB Hub Fast-Charge No LED Indicators 1 - Power (Blue) USB-C Device Port(s) No USB-C Host Connection No Carton Depth (mm) 446 Carton Height (mm) 333 Carton Quantity 20 Carton Weight Gross (g) 8618 Included in Package - 1 - USB 3.0 Hub
- 1 - Power Adapter
- 1 - Instruction Manual
- 1 - 3 ft [0.91 m] USB 3.0 cable
Package Depth (mm) 214 Package Height (mm) 85 Package Width (mm) 153 Package Quantity 1 Package Weight (g) 384 Packaging Description 4 Port SuperSpeed USB 3.0 Hub-Black Packaging Description India 4 Port SuperSpeed USB 3.0 Hub-Black Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 4 Connector 2 USB-B (5Gbps, 4.5W) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,CL,CO,HK,JP,MX,NZ,PE,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream
