ST4300USB3EU
4 Port Black SuperSpeed USB 3 0 Hub
Add four external SuperSpeed USB 3.0 ports from a single USB connection
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 4 Port Black SuperSpeed USB 3 0 Hub Product Number ST4300USB3EU UPC 065030842594 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 USB-A Hubs Category Level 3 USB-A External Powered Hubs - 5Gbps Family USB-A External Powered Hubs - 5Gbps - 4-Port - All A Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Country of Origin History (2) Malaysia Country of Origin Revision (2) XXXXXX156X Product Title (Short) 4 Port Black SuperSpeed USB 3.0 Hub Product Title (Standard) 4 Port Black SuperSpeed USB 3.0 Hub Product Title (Long) 4 Port Black SuperSpeed USB 3.0 Hub Product Title (AMZ) 4 Port Black SuperSpeed USB 3.0 Hub (ST4300USB3EU) Title Ingram (Part 1) 4 Port Black SuperSpeed USB 3.0 Title Ingram (Part 2) Hub Website Product Headline Add four external SuperSpeed USB 3.0 ports from a single USB connection Bullet 1 Backward compatible with USB 2.0 and USB 1.0/1.1 devices Bullet 2 Compact, desktop-style form factor Bullet 3 Four USB type 'A' ports that can each be accessed simultaneously Bullet 4 Plug-and-Play and hot-swap compatible Bullet 5 SuperSpeed USB 3.0 compliant, with data transfer rates up to 5 Gbps Marketing Copy Applications - Expand your USB 3.0 capabilities with additional ports
- Extend the range of a USB device by having the hub act as a mid-point repeater
- Make hard to access USB ports more accessible by being able to position the hub anywhere the cable will reach
Website Search Keyword - external USB hub
- sharing hub
- USB 3.0 hub
- USB hub
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
System and Cable Requirements USB 3.0 or 2.0 or 1.x compliant host controller with available port. Accessory Products - ECUSB3S2
- PEXUSB3S11
- PEXUSB3S2
- USB3SAA6
- USB3SAB10
- USB3SAB10BK
- USB3SAB3
- USB3SAB3BK
- USB3SAB6
- USB3SAB6BK
- USB3SAUB3BK
- USB3SEXTAA6
- USBEXTAA3BK
- SVA5M3NEUA
Related Products - ST4200MINI
- ST4200USBM
- ST4202USB
- ST7200USBM
- ST7202USB

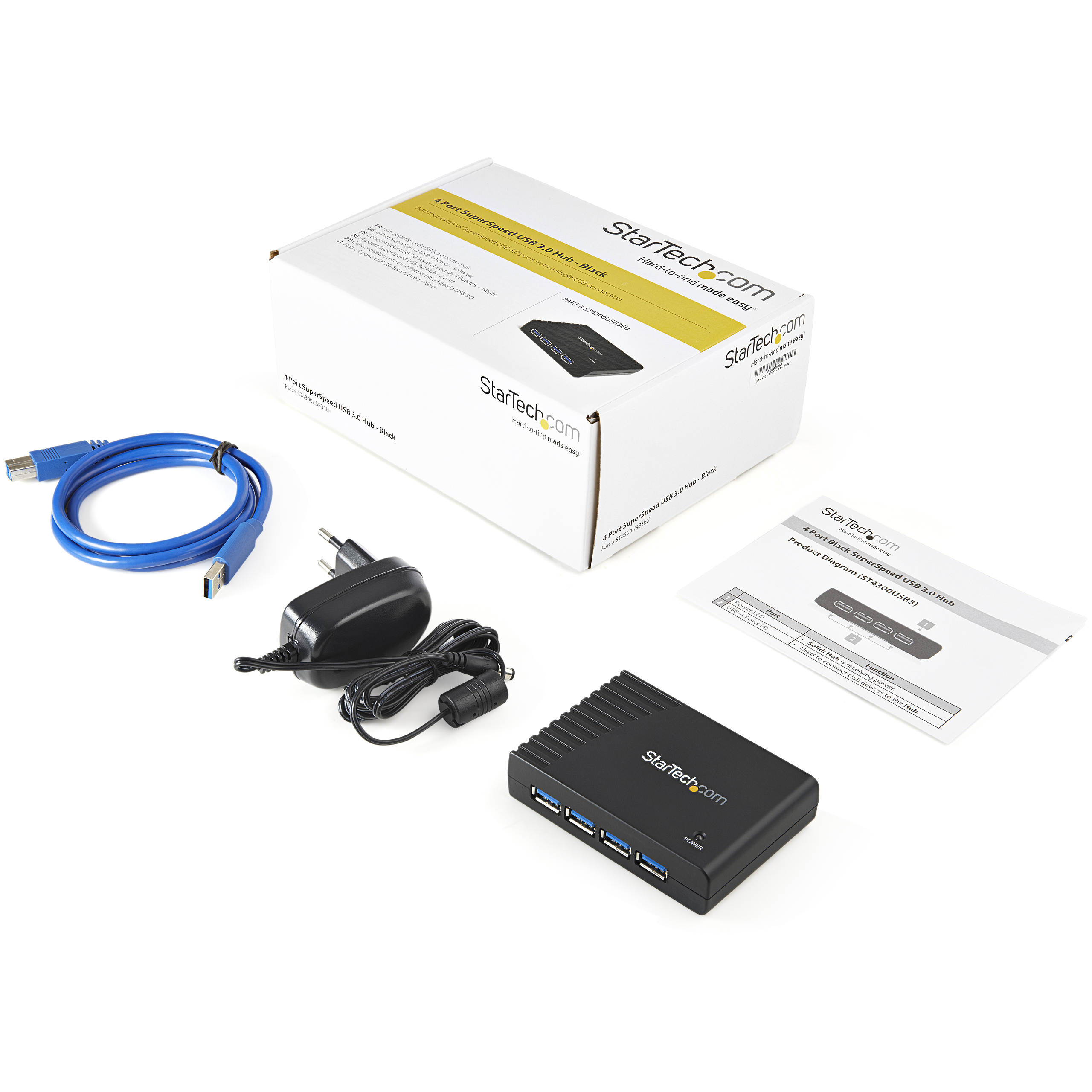

Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 5~85% RH Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Plastic Product Length (mm) 95.000 Product Width (mm) 68.000 Product Height (mm) 23.000 Product Weight (g) 55.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Fast Charge Ports (BC 1.2) No Maximum Data Transfer Rate 5 Gbps OS Compatibility OS Independent Total USB Power Output 10W Chipset ID VIA/VLI - VL811+ Ethernet Port No Interface/Bridge USB 3.2 Gen 1 (5Gbps) Laptop Dock / USB Hub Fast-Charge No LED Indicators 1 - Power (Blue) USB-C Device Port(s) No USB-C Host Connection No Carton Depth (mm) 436 Carton Height (mm) 328 Carton Quantity 20 Carton Weight Gross (g) 8974 Included in Package - 1 - Power Adapter
- 1 - 0.91 m [3 ft] USB 3.0 cable
- 1 - USB 3.0 Hub
- 1 - Instruction Manual
Package Depth (mm) 155 Package Height (mm) 83 Package Width (mm) 213 Package Quantity 1 Package Weight (g) 398 Packaging Description 4 Port Black SuperSpeed USB 3.0 Hub Packaging Description India 4 Port Black SuperSpeed USB 3.0 Hub Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 4 Connector 2 USB-B (5Gbps, 4.5W) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CH,CL,DE,DK,ES,FI,FR,HK,IE,IT,NL,PL,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream
