ST4300USB3GB
4 Port Black SuperSpeed USB 3 0 Hub
Add four external SuperSpeed USB 3.0 ports from a single USB connection
Main Image
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 4 Port Black SuperSpeed USB 3 0 Hub Product Number ST4300USB3GB UPC 065030841405 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 USB-A Hubs Category Level 3 USB-A External Powered Hubs - 5Gbps Family USB-A External Powered Hubs - 5Gbps - 4-Port - All A Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Country of Origin History (2) Malaysia Country of Origin Revision (2) XXXXXX156X Product Title (Short) 4 Port Black SuperSpeed USB 3.0 Hub Product Title (Standard) 4 Port Black SuperSpeed USB 3.0 Hub Product Title (Long) 4 Port Black SuperSpeed USB 3.0 Hub Product Title (AMZ) 4 Port Black SuperSpeed USB 3.0 Hub (ST4300USB3GB) Title Ingram (Part 1) 4 Port Black SuperSpeed USB 3.0 Title Ingram (Part 2) Hub Website Product Headline Add four external SuperSpeed USB 3.0 ports from a single USB connection Bullet 1 Four USB type 'A' ports that can each be accessed simultaneously Bullet 2 SuperSpeed USB 3.0 compliant, with data transfer rates up to 5 Gbps Bullet 3 Backward compatible with USB 2.0 and USB 1.0/1.1 devices Bullet 4 Supports USB 3.0/2.0/1.x devices simultaneously at full bandwidth Bullet 5 Compact, desktop-style form factor Bullets (Consolidated) Add four external SuperSpeed USB 3.0 ports to your Laptop or Ultrabook from a single USB connection - Compatible with Lenovo Carbon X1/HP ProBook 4540s/Dell Inspiron 15 - 4 Port USB 3.0 Hub/Notebook and Laptop USB 3.0 Hub - Desktop USB 3.0 Hub/External USB Hub - Ideal for Ultrabook and MacBook users with limited USB ports - Laptop accessory adding high speed USB 3.0 ports and make them more accessible - Connect peripherals and external hard drives or flash drives in the home or office Marketing Copy Applications - Expand your USB 3.0 capabilities with additional ports
- Make hard to access USB ports more accessible by being able to position the hub anywhere the cable will reach
- Extend the range of a USB device by having the hub act as a mid-point repeater
Website Search Keyword - USB 3.0 hub
- USB hub
- external USB hub
- sharing hub
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
System and Cable Requirements USB 3.0 or 2.0 or 1.x compliant host controller with available port. Accessory Products - ECUSB3S2
- PEXUSB3S11
- PEXUSB3S2
- USB3SAB3BK
- USB3SAB6BK
- USB3SAB10BK
- USB3SAB3
- USB3SAB6
- USB3SAB10
- USB3SAA6
- USB3SEXTAA6
- USB3SAUB3BK
- USBEXTAA3BK
- SVA5M3NEUA
Related Products - ST4200USBM
- ST4202USBGB
- ST7200USBM
- ST7202USBGB
- ST4200MINI

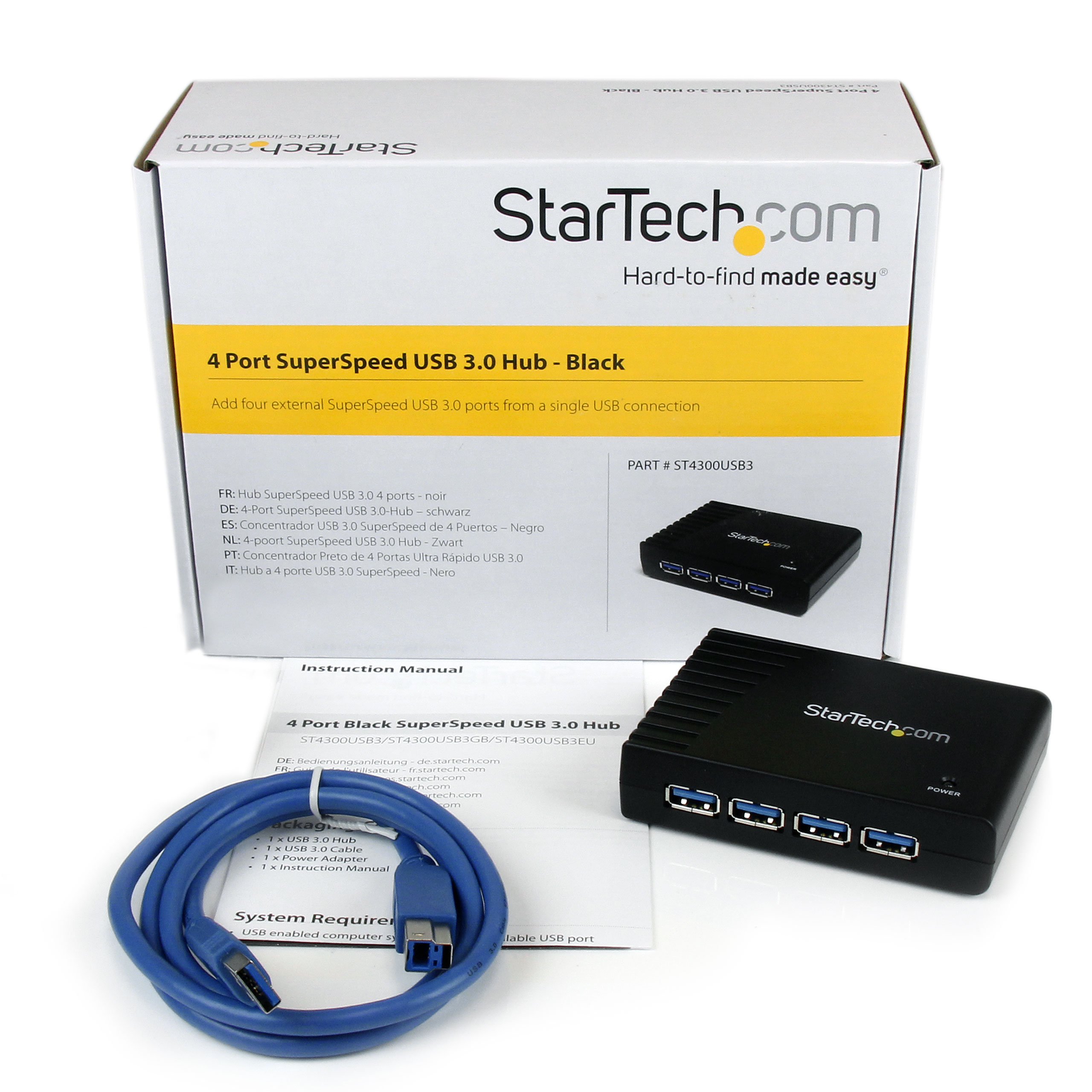

Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 5~85% RH Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Plastic Product Length (mm) 95 Product Width (mm) 68 Product Height (mm) 23 Product Weight (g) 55 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Fast Charge Ports (BC 1.2) No Maximum Data Transfer Rate 5 Gbps OS Compatibility OS Independent Total USB Power Output 10W Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID VIA/VLI - VL811+ Ethernet Port No Interface/Bridge USB 3.2 Gen 1 (5Gbps) Laptop Dock / USB Hub Fast-Charge No LED Indicators 1 - Power (Blue) USB-C Device Port(s) No USB-C Host Connection No Carton Depth (mm) 430 Carton Height (mm) 340 Carton Quantity 20 Carton Weight Gross (g) 10000 Included in Package - 1 - Power Adapter
- 1 - 0.91 m [3 ft] USB 3.0 cable
- 1 - USB 3.0 Hub
- 1 - Instruction Manual
Package Depth (mm) 150 Package Height (mm) 80 Package Width (mm) 210 Package Quantity 1 Package Weight (g) 440 Packaging Description 4 Port SuperSpeed USB 3.0 Hub-Black Packaging Description India 4 Port SuperSpeed USB 3.0 Hub-Black Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 4 Connector 2 USB-B (5Gbps, 4.5W) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) EU,IE,UK Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream
