ST4300USBM
Mountable 4 Port Black Metal USB 3 Hub
Industrial-grade | 8kV Air | 4kV Contact | Metal | Mountable | 5 Gbps
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Mountable 4 Port Black Metal USB 3 Hub Product Number ST4300USBM UPC 065030841603 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 Industrial USB Hubs Category Level 3 Industrial USB Hubs - 5Gbps Family Industrial USB Hubs - 5Gbps - 4-Port Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Short) Mountable 4 Port Rugged USB 3.0 Hub Product Title (Medium) x Product Title (Standard) 4 Port Industrial USB 3.0 Hub, 5Gbps, Mountable, Rugged USB Hub, TAA Product Title (Long) 4-Port USB 3.0 Hub - 5Gbps - Metal Industrial USB-A Hub - Wall or Desk Mountable USB Data Hub - TAA Compliant USB Expander Hub Product Title (AMZ) 4-Port USB 3.0 Hub - 5Gbps - Metal Industrial USB-A Hub - Wall or Desk Mountable USB Data Hub - TAA Compliant USB Expander Hub (ST4300USBM) Title Ingram (Part 1) Mountable 4 Port Rugged Industri Title Ingram (Part 2) al SuperSpeed USB 3.0 Hub Website Product Headline Industrial-grade | 8kV Air | 4kV Contact | Metal | Mountable | 5 Gbps Bullet 1 Adds four USB 3.2 Gen 1 ports from a single USB connection Bullet 2 Mount industrial USB 3.2 Gen 1 hub where required with built-in mounting brackets Bullet 3 Offers flexible, wide-range power inputs with a 7-24V DC terminal block Bullet 4 USB Battery Charging Specification 1.2 up to 2.4A on any port to a maximum of 20W total Bullet 5 Protects your connected devices with 8kV Air and 4kV Contact ESD protection Bullets (Consolidated) Protects your connected devices with 8kV Air and 4kV Contact ESD protection - Mount industrial USB hub where required with built-in mounting brackets - Offers flexible, wide-range power inputs with a 7-24V DC terminal block - USB Battery Charging Specification 1.2 up to 2.4A on any port to a maximum of 20W total - Adds four USB 3.2 Gen 1 ports from a single USB connection Marketing Copy Marketing Copy (No HTML) This TAA compliant 4-port USB 3.2 Gen 1 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. This industrial rackmount USB 3.2 Gen 1 hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the mountable USB hub as required, based on your own power input capabilities. The industrial USB hub also supports a wide operating temperature range (0°C to 55°C) and offers ESD protection to each USB port. Designed for a high volume of connections, this robust wall mount USB hub offers four connection ports. The USB expansion hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 20W total. With versatile installation options, you can install the multi-port USB hub where it's best suited for your environment. With built-in mounting brackets and an included 1.8-meter USB host cable, you can securely mount the USB charging hub to most surfaces. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com's line of industrial USB hubs. The rugged mountable USB hub supports the full 5 Gbps bandwidth of USB 3.2 Gen 1 and is backward compatible with previous USB devices. The heavy-duty USB hub is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Great for industrial and manufacturing environments where only terminal block connection is preferred
- Connect a variety of USB devices such as industrial printers or cameras, plus fast-charge your smartphone and tablet
- Ideal for tough conditions that are subject to large temperature variances, or where there’s a risk of physical damage

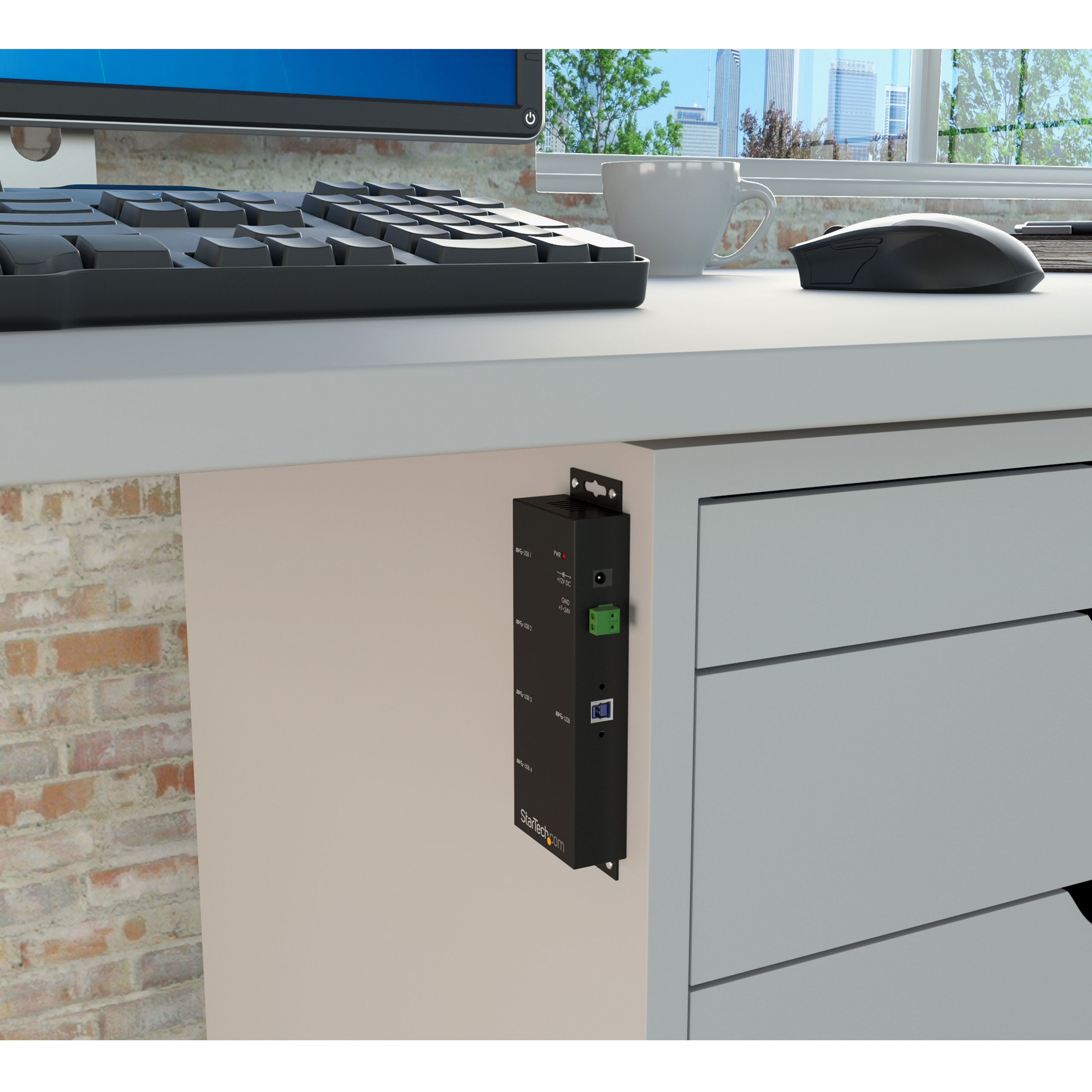

- Mount to a wall near or under a desk surface in a Lab, Service Repair area or office area connecting multiple USB peripherals
- Use in a conference or meeting room utilizing multiple USB peripherals or for charging several mobile devices
Website Search Keyword - USB 3.0 hub
- superspeed usb hub
- sharing hub
- external usb hub
- mountable hub
- metal usb hub
- ST4300USBMS
- U360-004-IND
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
System and Cable Requirements Available USB 3.0 port Accessory Products - USB3SAB3BK
- USB3SAB6BK
- USB3SAB10BK
- USB3SAB3
- USB3SAB10
- USB3SAB6
- ECUSB3S2
- PEXUSB3S11
- PEXUSB3S2
- ICUSB2321F
- USB3SEXTAA6
- SVA12M5NA
- ITB20D3250
Related Products - ST4200USBM
- ST4300USB3
- ST7200USBM
- ST7202USB
Output Current 3A Output Voltage (V) 12V DC Power Consumption (In Watts) 36 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Extended Temperature Range No Humidity 5~95% RH Material Steel Operating Temperature 0°C to 55°C (32°F to 131°F) Primary Material Steel Product Length (mm) 179 Product Width (mm) 59.600 Product Height (mm) 23.500 Product Weight (g) 282 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes Device Power Consumption (In Watts) 24 Watts Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) ESD Protection - +/-8kV (Air)
- +/-4kV (Contact)
Maximum Data Transfer Rate 5 Gbps (USB 3.2 Gen 1) MTBF (hours) 245,881 Hours OS Compatibility OS Independent Total Available Power Output (In Watts) 18 Watts USB Type and Rate USB 5Gbps Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID VIA/VLI - VL817 Interface/Bridge USB 3.2 Gen 1 (5Gbps) Laptop Dock / USB Hub Fast-Charge No LED Indicators - 1 - Power (Red)
- 4 - USB Device Connection (Green)

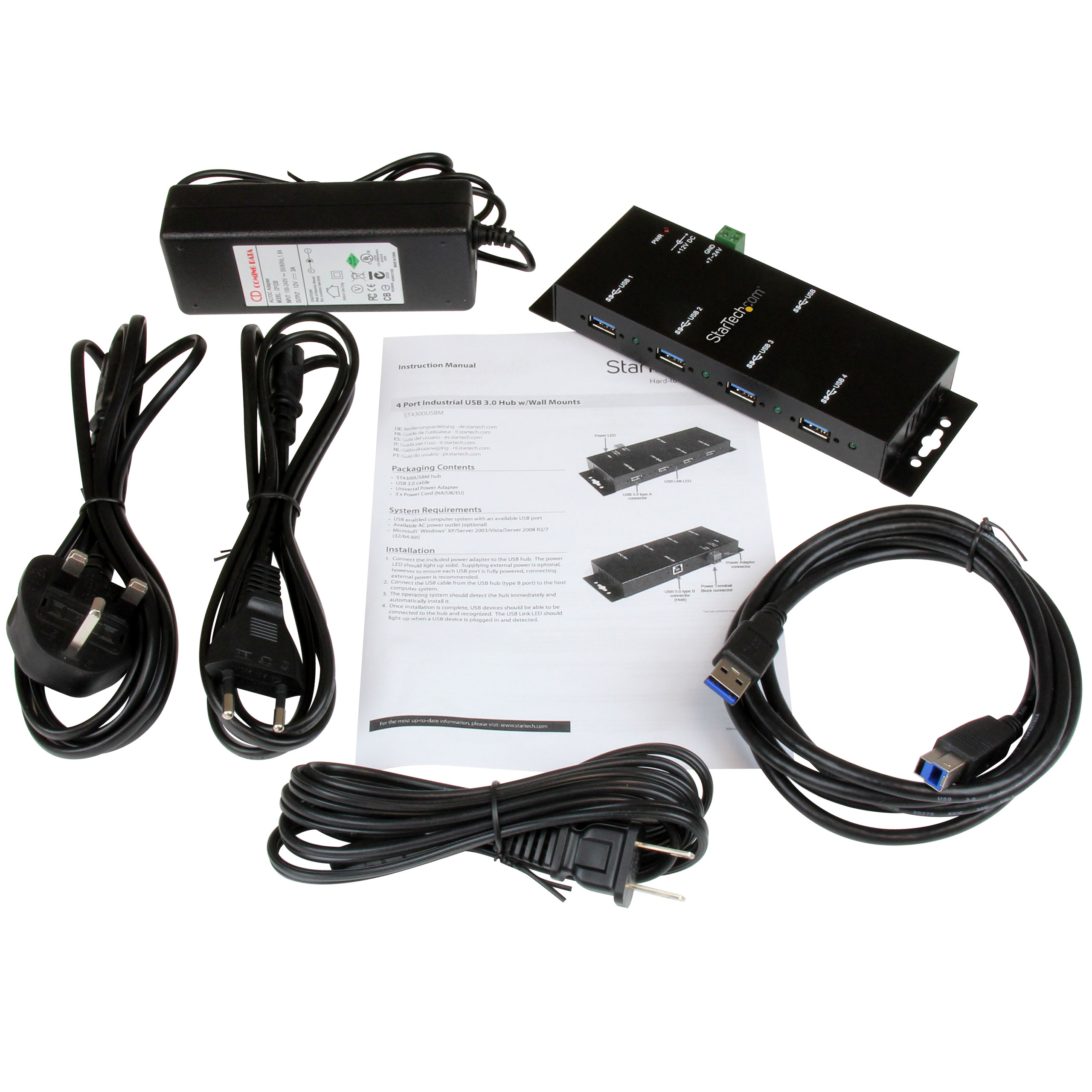

Mounting Options Surface Mount Number of Battery Charge 1.2 Ports 4 USB-C Device Port(s) No USB-C Host Connection No USB Port Type USB-A Carton Depth (mm) 555 Carton Height (mm) 343 Carton Quantity 14 Carton Weight Gross (g) 17350 Included in Package - 1 - Industrial USB 3.0 Hub
- 1 - 6 ft [1.8 m] USB 3.0 cable (non-locking)
- 1 - Universal Power Adapter (NA/JP, EU, UK, ANZ)
- 1 - Instruction Manual
- 1 - Terminal Block (2 Wire)
Package Depth (mm) 295 Package Height (mm) 72 Package Width (mm) 190 Package Quantity 1 Package Weight (g) 1176 Packaging Description 4 Port Industrial USB 3.0 Hub Packaging Description India 4 Port Industrial USB 3.0 Hub Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 4 Connector 2 USB-B (5Gbps, 4.5W) Connector 2 (Quantity) 1 Connector 3 Terminal Block (2 Wire) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine
