ST4300USBMS

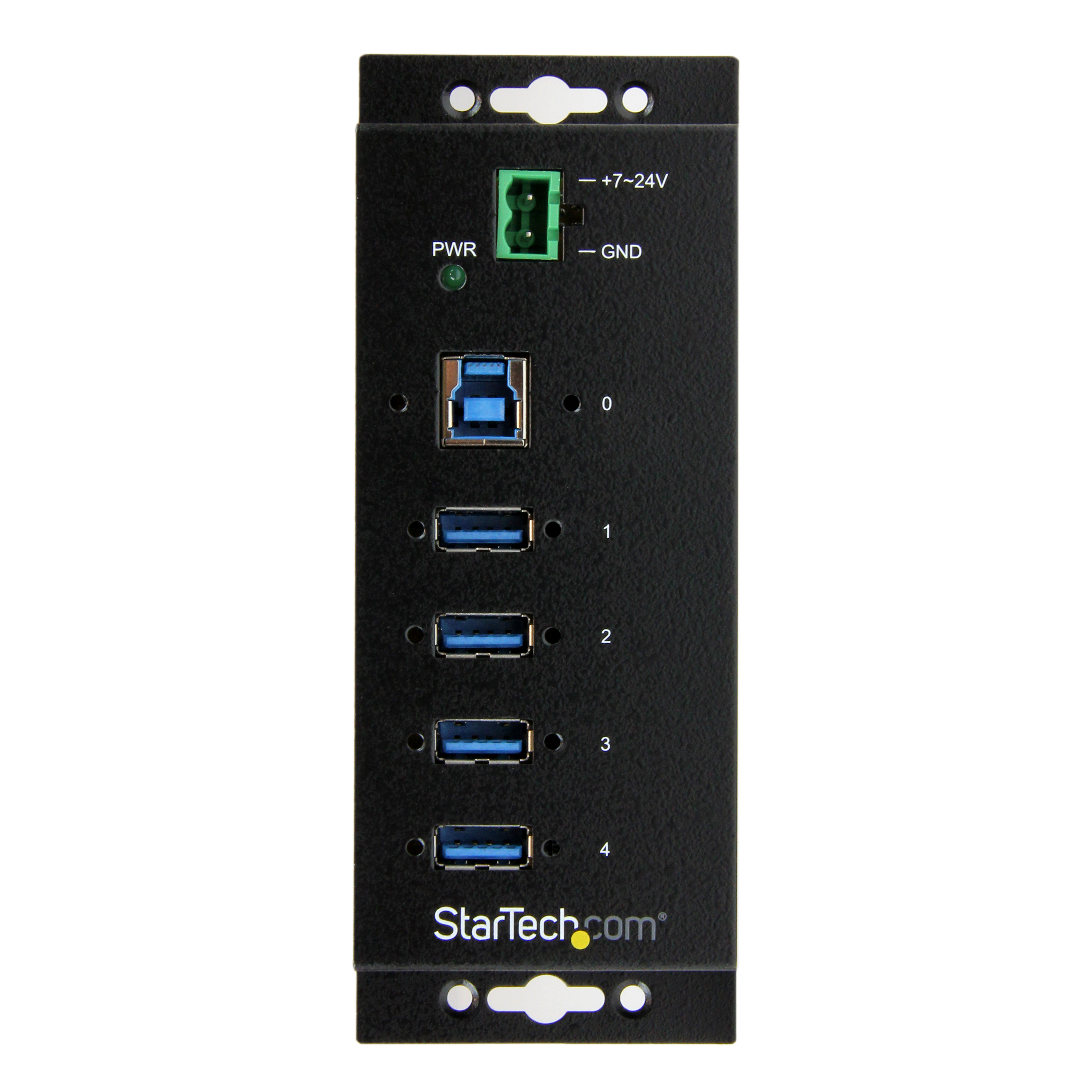

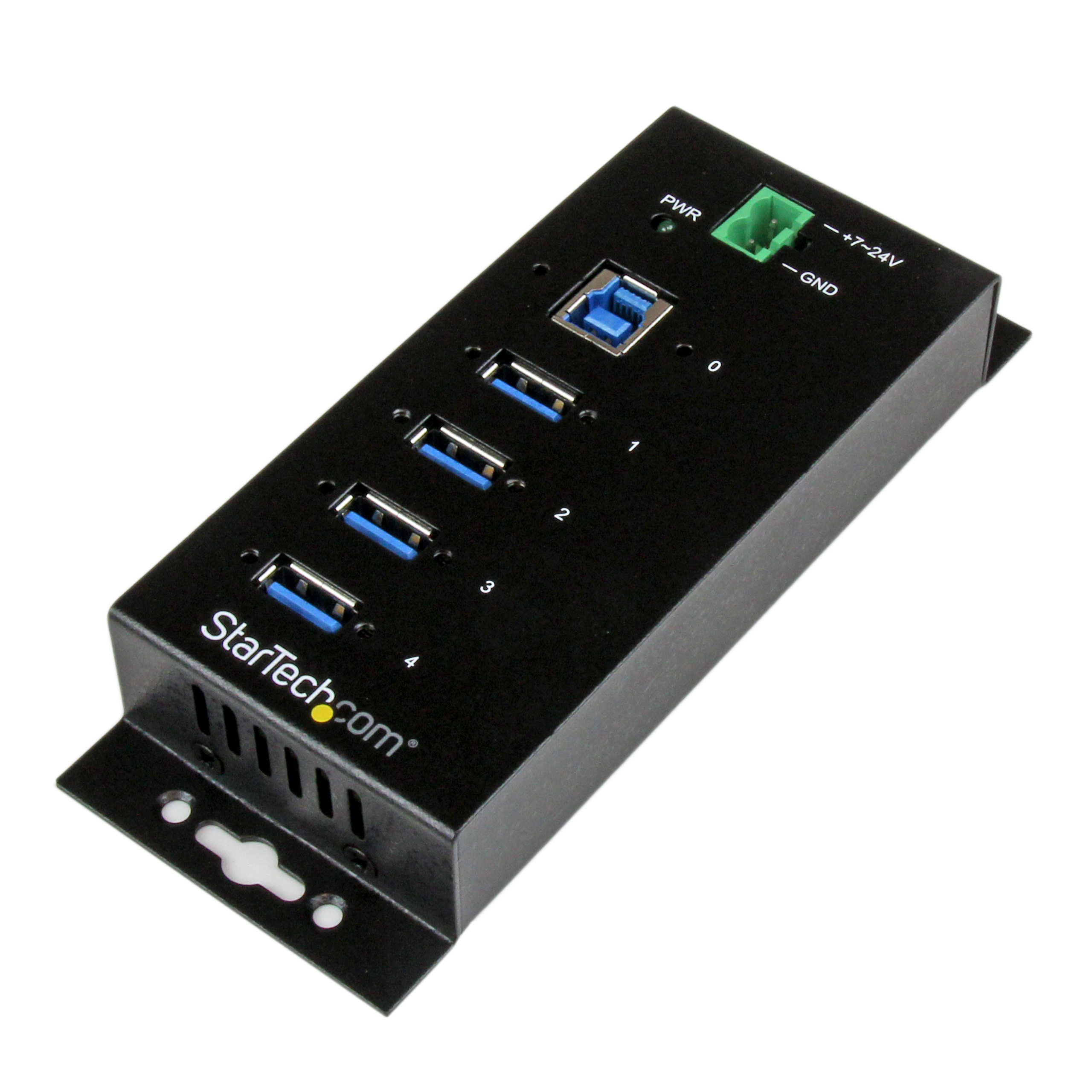

4Port USB 3 Hub-Metal USB Hub w/ Surge Protection
Add 4 surge protected USB 3.0 hub ports to your PC through a single USB 3.0 host connection - Din-Rail / Wall Mountable
Main Image
Product Images
BOM Image
Product Name 4Port USB 3 Hub-Metal USB Hub w/ Surge Protection Product Number ST4300USBMS UPC 065030854641 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Hubs Category Level 2 Industrial USB Hubs Category Level 3 Industrial USB Hubs - 5Gbps Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Ultra-Short) 4 Port USB 3.0 Hub Product Title (Short) 4 Port USB 3.0 Hub w Surge Protection Product Title (Medium) x Product Title (Standard) 4 Port Metal Industrial SuperSpeed USB 3.0 Hub with Surge Protection - Mountable Product Title (Long) 4 Port Metal Industrial SuperSpeed USB 3.0 Hub with Surge Protection - Mountable Product Title (AMZ) 4 Port Metal Industrial SuperSpeed USB 3.0 Hub with Surge Protection - DIN Rail Mountable - Rugged USB Hub w Terminal Block (ST4300USBMS) Title Ingram (Part 1) 4Port Mountable USB 3 Hub - Title Ingram (Part 2) Metal USB Hub w Surge Protection Website Product Headline Add 4 surge protected USB 3.0 hub ports to your PC through a single USB 3.0 host connection - Din-Rail / Wall Mountable Bullet 1 USB Specification Revision 3.0 compliant with data transfer rates up to 5Gbps Bullet 2 350 Watt surge protection on each port Bullet 3 Supports USB Battery Charging specification 1.2 Bullet 4 Built-in surface-mounting brackets and optional DIN rail clip Bullet 5 Add four, front-facing downstream USB 3.0 ports Bullets (Consolidated) Add 4 surge protected USB 3.0 hub ports to your PC or server through a single USB 3.0 connection - Compatible with HP Integrity/IBM BladeCenter - 4 Port Industrial USB 3.0 Hub w/ Surge Protection/Rugged USB 3.0 Hub/Metal USB Hub - Din Rail Mountable USB 3.0 Hub/Server/Network Room USB 3.0 Hub - Factory/Warehouse Mountable USB 3.0 Hub - Terminal Block USB 3.0 Hub w/ 350 w Surge Protection for industrial locations - Charges most devices with USB Battery Charging Specification 1.2 Marketing Copy Applications - Connecting industrial printers, cameras, sensors/monitoring equipment, touchscreens, CNC machines/controllers
- Mount on DIN rails, to a surface, or inside equipment racks
- Factory or warehouse environments subject to harsh conditions and large temperature variances
- Industrial locations where connected USB equipment requires protection from power surges
- Assembly lines where only terminal block power is available
Required Regulatory Compliance Marks RCM - EMC/EMI - Australia/New Zealand - RCM Mark Special Notes This product is intended for use with terminal block power only – Standard AC adapter not available System and Cable Requirements Available USB 3.0 port Accessory Products - PCIUSB3S2
- PEXUSB3S2
- ECUSB3S2
- USB3SAB10
- USB3SAB1
- USB3SAB3BK
- USB3SAB6BK
- USB3AAEXT3M
- USB3AAEXT5M
- USB3SAB6
- ECUSB3S254F
Related Products - ST4300USBM
- ST4300USB3
- ST4300MINU3W
- ST4300PBU3
- ST7320USBC
- ST7300USBM
- ST4300MINU3B

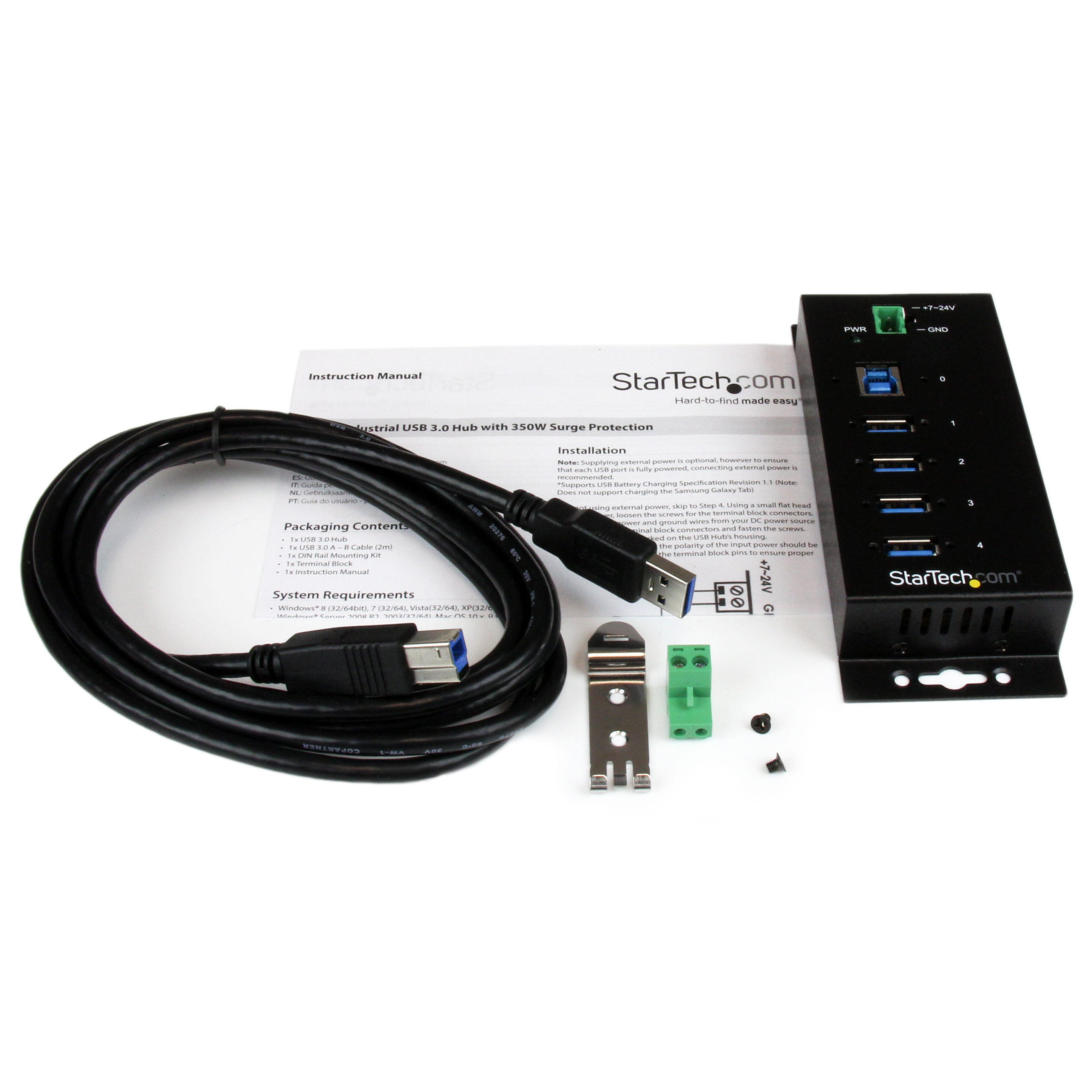

Replacement Product ST4300USBM Input Voltage 7 ~ 24 DC Power Source Terminal Block Color Black Extended Temperature Range No Humidity 5~95% RH Material Steel Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 143 Product Width (mm) 55 Product Height (mm) 24 Product Weight (g) 208 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant No Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Maximum Data Transfer Rate 5 Gbps OS Compatibility OS Independent USB Type and Rate USB 3.0 (5Gbps) Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID Genesys Logic - GL3520 Laptop Dock / USB Hub Fast-Charge No LED Indicators 1 - Power USB-C Device Port(s) No USB-C Host Connection No Carton Depth (mm) 435 Carton Height (mm) 330 Carton Quantity 40 Carton Weight Gross (g) 17617 Included in Package - 1 - Terminal block
- 1 - USB 3.0 Hub
- 1 - DIN Rail Mounting Kit
- 1 - USB 3.0 Cable (2m)
- 1 - Instruction Manual
Package Depth (mm) 160 Package Height (mm) 42 Package Width (mm) 228 Package Quantity 1 Package Weight (g) 408 Packaging Description 4 Port Industrial USB 3.0 Hub w/ Surge Protection Packaging Description India 4 Port Industrial USB 3.0 Hub w/ Surge Protection Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Terminal Block (2 Wire) Connector 1 (Quantity) 1 Connector 2 USB-B (5Gbps, 4.5W) Connector 2 (Quantity) 1 Connector 3 USB-A (5Gbps, 4.5W) Connector 3 (Quantity) 4 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2013-11-27 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle None
