ST4PTREP
Main Image

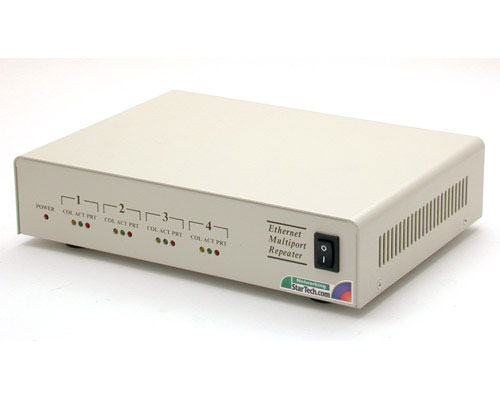

Product Name *D*4-Port Coaxial Ethernet Repeater Product Number ST4PTREP UPC 065030778688 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) *D*4-Port Coaxial Ethernet Repeater Bullet 1 Complies fully to IEEE 802.3 CSMA/CD ethernet repeater specification Bullet 2 Provides a reliable and easy-to-install network chain by linking several 10Base5/10Base2 LAN segments together Bullet 3 Supports (4) BNC connectors for thin Ethernet connectors and (4) 15-pin D-type connectors for standard Ethernet connectors Bullet 4 LED lights on front panel indicate power and port traffic Bullet 5 Provides automatic connect/disconnect functions Marketing Copy With the StarTech.com 4-Port Coaxial Ethernet Repeater, connecting your Network has never been easier. This product complies fully to IEEE 802.3 CSMA/CD ethernet repeater specifications and provides a reliable and easy-to-install network chain by linking several 10Base5/10Base2 LAN segments together. Supporting (4) BNC connectors for thin Ethernet connectors and (4) 15-pin D-type connectors for standard Ethernet connectors, this product is exactly what you’re looking for. LED lights on front panel indicate power and port traffic and aid in at-a-glance troubleshooting. In addition to these features, the ST4PTREP regenerates and retimes all data signals and includes an AC power cord, (4) BNC T-connectors, (4) BNC 50ohm terminators, and rackmounting hardware to help you get your Network up and running quickly. TAA Compliant No General Specifications - Standards: IEEE 802.3 10Base5/2
- Transfer Rate: 10Mbps
- AUI Ports: (4) AUI (DB-15 connectors)
- BNC Ports: (4) BNC for Thin Ethernet
- Reset: Power On and Switch
- LEDs: Power, Rx, Collision, Partition
- Dimensions: 430x110x45mm (17x4.3x1.7 in.)
- Weight: 2.5 kg (5.5 lb.) net
- Power Supply: AC 90~230V (50~60Hz)
- Operating Environment: 0~70 deg C, 10~80% relative humidity
Included in Package - 1 - ETHERNET REPEATER
- 1 - INSTRUCTION MANUAL
- 8 - MISC. CONNECTORS
- 1 - POWER ADAPTOR
