Main Image
ST5GPEXNB

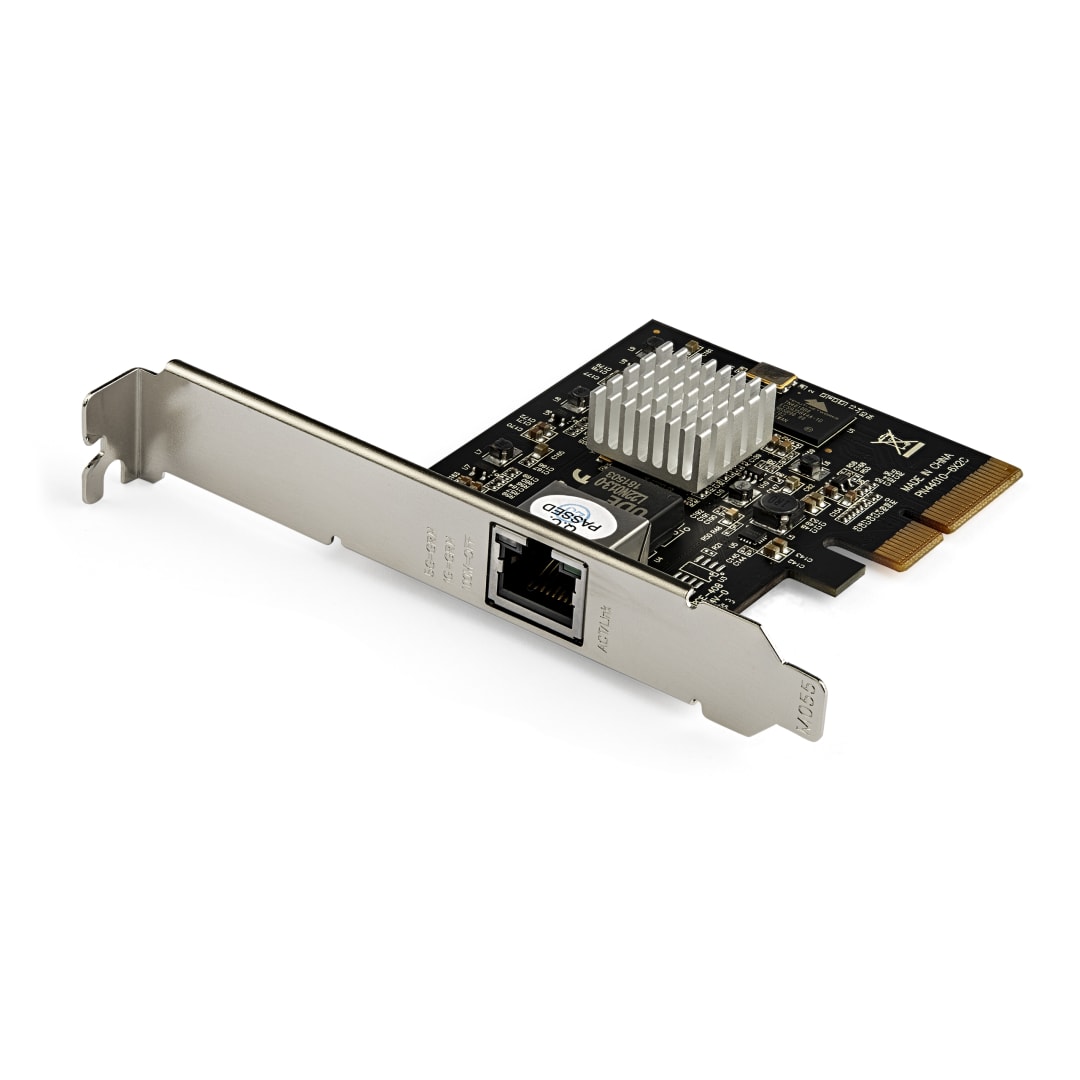

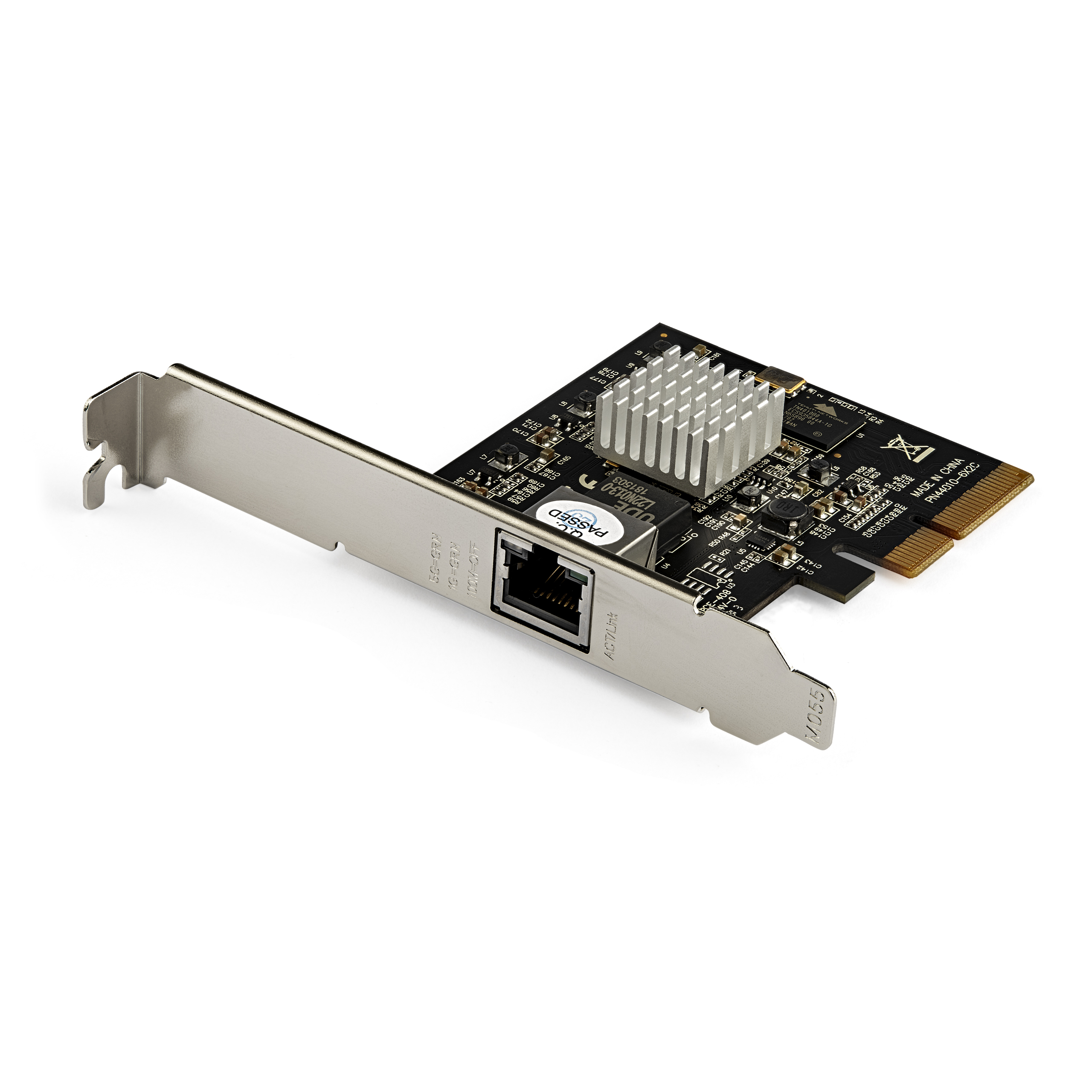

1 Port 5G NBase-T 4 speed PCI Express Network Card
Add an Ethernet port to a PC client, server or workstation supporting four network speeds: 5G/2.5G/1G/100Mbps
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name 1 Port 5G NBase-T 4 speed PCI Express Network Card Product Number ST5GPEXNB UPC 065030879194 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Cards & Adapters > Network Cards & Adapters Category Level 1 Networking Category Level 2 Desktop and Server Network Cards Category Level 3 Ethernet Cards Family No Family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Product Title (Ultra-Short) 4 Speed NBASET NIC Product Title (Short) 5GbE PCIe Network Adapter Card - NBASE-T Product Title (Medium) 1 Port PCIe 4 Speed 5GBASE T/NBASE T Ethernet Network Card Product Title (Standard) 5G PCIe Network Adapter Card - NBASE-T PCI Express Network Interface Adapter 5GbE Multi Gigabit Ethernet LAN 4 Speed NIC Product Title (Long) 5G PCIe Network Adapter Card - NBASE-T & 5GBASE-T 2.5BASE-T PCI Express Network Interface Adapter - 5GbE/2.5GbE/1GbE Multi Gigabit Ethernet Workstation NIC - 4 Speed LAN Card Product Title (AMZ) 5G PCIe Network Adapter Card - NBASE-T & 5GBASE-T 2.5BASE-T PCI Express Network Interface Adapter - 5GbE/2.5GbE/1GbE Multi Gigabit Ethernet Workstation NIC - 4 Speed LAN Card (ST5GPEXNB) Title Ingram (Part 1) 1 Port PCIe 4 Speed 5GBASE T Title Ingram (Part 2) /NBASE T Ethernet Network Card Website Product Headline Add an Ethernet port to a PC client, server or workstation supporting four network speeds: 5G/2.5G/1G/100Mbps Bullet 1 1 PORT 5GbE NETWORK CARD: Single port 5Gbps PCIe Network Adapter Card provides 5x speed of standard Gigabit Ethernet to desktop/server leveraging existing infrastructure of Cat5e, CAT6, or CAT6a cable Bullet 2 TECH SPECS: 5 Gbps Multi-Gigabit | 1x RJ45 | 5 / 2.5 / 1 Gbps | Tehuti - TN4010 | NBASE-T & 5GBASE-T | PCIe 2.0 x4 | 9K Jumbo Frame | VLAN | Link Aggregation | IEEE 802.3az | Full & Low Profile Bullet 3 WIDE OS COMPATIBILITY: Windows 7, 8, 8.1, 10, 11; Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019; Linux kernels 3.x + (LTS versions); MacOS (10.12 to 10.14) Bullet 4 MULTI-GIGABIT CONNECTIVITY: 4-Speed Workstation NIC auto negotiates based on network configuration: 5G, 2.5G, 1G, 100Mbps; supports auto-MDIX, Wake-on-LAN (WoL), link aggregation, & VLAN tagging Bullet 5 THE STARTECH.COM ADVANTAGE: StarTech.com offers a 2-year warranty and free lifetime 24/5 multilingual technical support based in North America on this PCI Express Network Interface Card Bullets (Compact) PCIe Network Adapter Card w/1 Port 5GbE NIC for performance - 4 Speed Multi-Gigabit Ethernet 5Gbps/2.5G/1G/1M - Tehuti TN4010 - NBASE-T / 5GBASE-T, PCI Express 2.0 x4, 9K Jumbo Frame, VLAN, IEEE 802.3az, Link Aggregation, Full/Low profile - 2 YR warr Bullets (Consolidated) PCIe Network Adapter Card w/ single 5GbE NIC copper port for performance - 5 Gbps Multi-Gigabit Ethernet | 1x RJ45 | 5/2.5/1 Gbps | Tehuti - TN4010 | NBASE-T and 5GBASE-T | PCIe 2.0 x4 | 9K Jumbo Frame | VLAN | Link Aggregation | IEEE 802.3az | Full and Low Profile - Windows 7/8/10; Server 2008 R2/2012/2016/2019; Linux kernels 3.x+; MacOS 10.12 to 10.14; - PCI Express Network Interface Card w/4-Speed negotiation: 5G/2.5G/1G/100M - Supports auto-MDIX Wake-on-LAN (WoL) Marketing Copy Applications - Ideal for enterprise, gaming and home networks that require rates beyond 1Gbps using existing cabling
- Designed for low-power, low-cost single port network applications that require more than Gigabit speeds
- Great for supporting multi-gigabit technology such as Cisco campus switches, including Catalyst 4500E, 3850 and 3560-CX
- Ideal for administrative and academic buildings such as university libraries, student centers and residence halls
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - C6ASPAT3BL
- C6ASPAT3GR
- C6ASPAT10BL
- C6ASPAT10GR
- M45PATCH6BK
- M45PATCH6BL
- M45PATCH10BK
- M45PATCH10BL
- WIRC5ECMR
- WIRC6CMRBL
Related Products - ST10GSPEXNB
- ST10000SPEX
- PEX10000SFP
- ST1000SPEXI
- ST2000SPEXI
- PEX1000SFP
- ST1000SPEX2
- ST4000SPEXI
- ST1000SPEX2L
Constrained SKU Alternatives (Limited Stock) - ST10000SPEXI
- ST10GSPEXNB2
Color Black Humidity 10% ~ 90% RH Material Steel Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Steel Product Length (mm) 80.000 Product Width (mm) 120.000 Product Height (mm) 20.000 Product Weight (g) 138.000 Storage Temperature -40°C to 85°C (-40°F to 185°F) TAA Compliant No Auto MDIX Yes Auto-Negotiation Yes Compatible Networks 5G/2.5G/1G/100 Mbps Full Duplex Support Yes Jumbo Frame Support 9K max. Maximum Data Transfer Rate 5 Gbps OS Compatibility - Windows 10
- Windows 8
- Windows 7
- Windows Server 2012
- Linux
- macOS Sierra (10.12)
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- Windows 11
- Windows Server 2022
- Windows Server 2016
Promiscuous Mode Yes PXE No Supported Protocols Wake-On-LAN (WOL) Yes Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Industry Standards Interface/Bridge RJ45 (Gigabit Ethernet) LED Indicators - 1 - Link speed
- 1 - Link/Activity

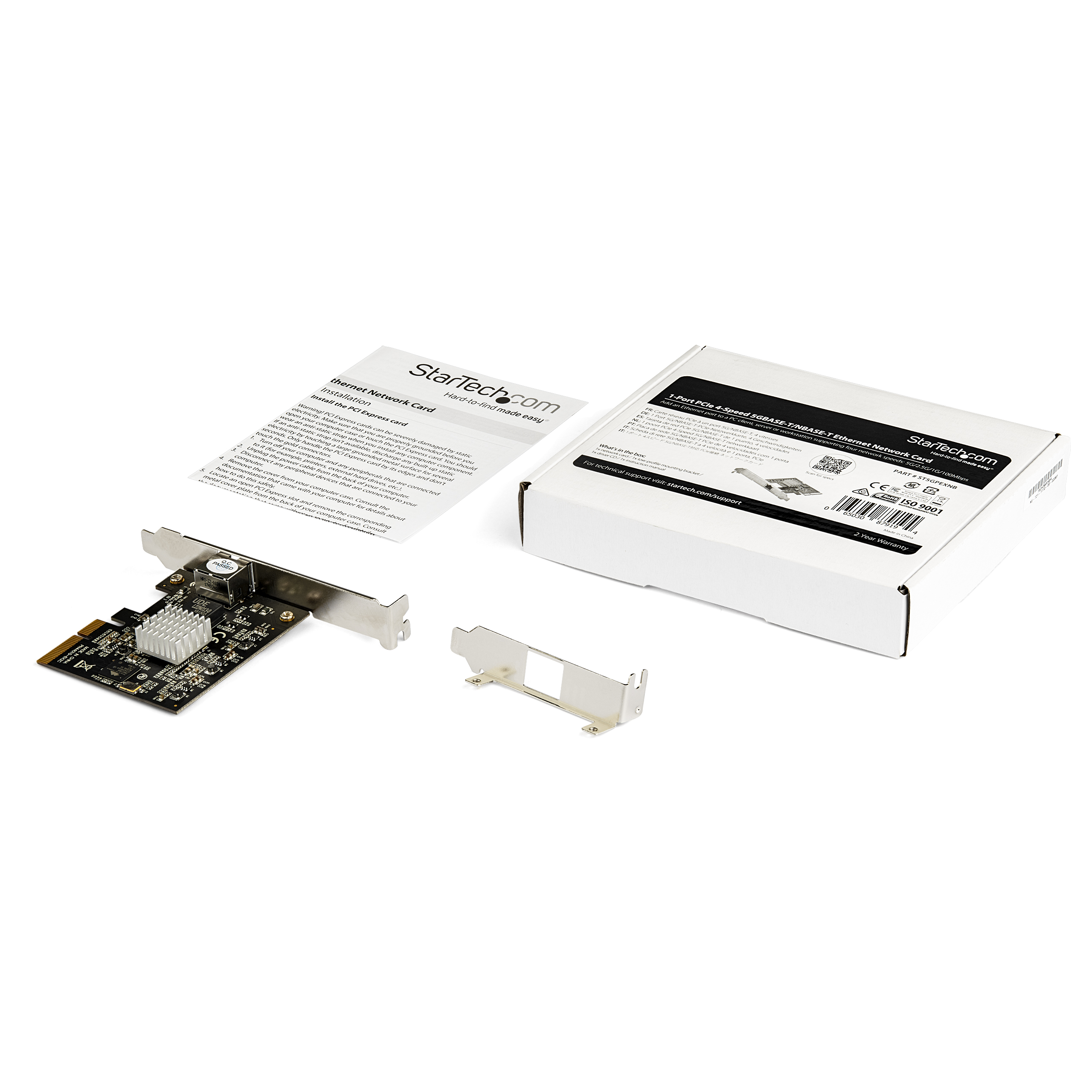

Carton Depth (mm) 306 Carton Height (mm) 364 Carton Quantity 80 Carton Weight Gross (g) 12148 Included in Package - 1 - network card
- 1 - low-profile mounting bracket
- 1 - instruction manual
- 1 - driver CD
Package Depth (mm) 144 Package Height (mm) 30 Package Width (mm) 166 Package Quantity 1 Package Weight (g) 138 Packaging Description 1-Port PCIe 4-Speed 5G/NBASE-T Network Card Packaging Description India 1-Port PCIe 4-Speed 5G/NBASE-T Network Card Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2018-03-02 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2018-03-16 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FI,FR,IE,IN,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2018-08-14 Target Production Release 2018-03-02 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
