ST7200USBM

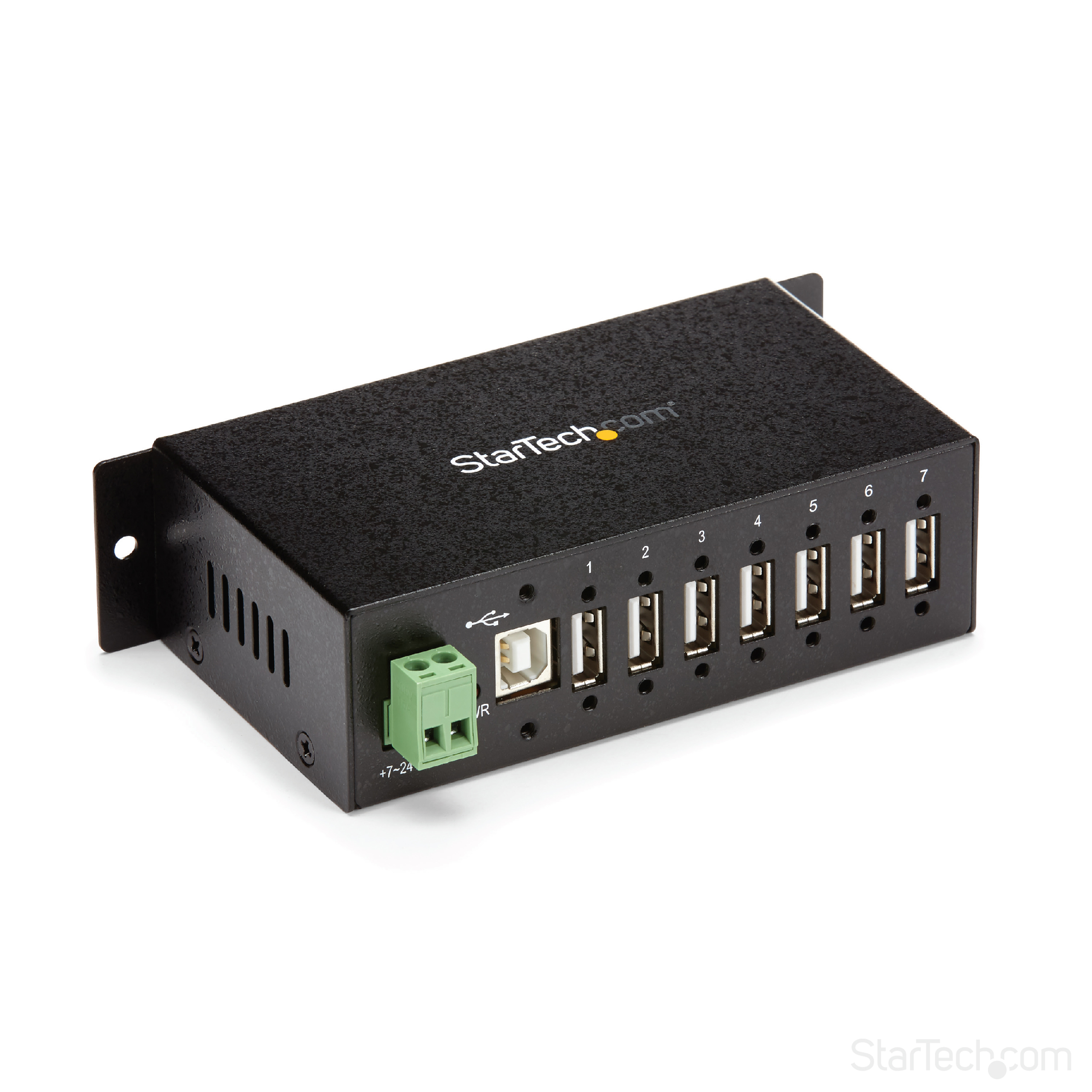

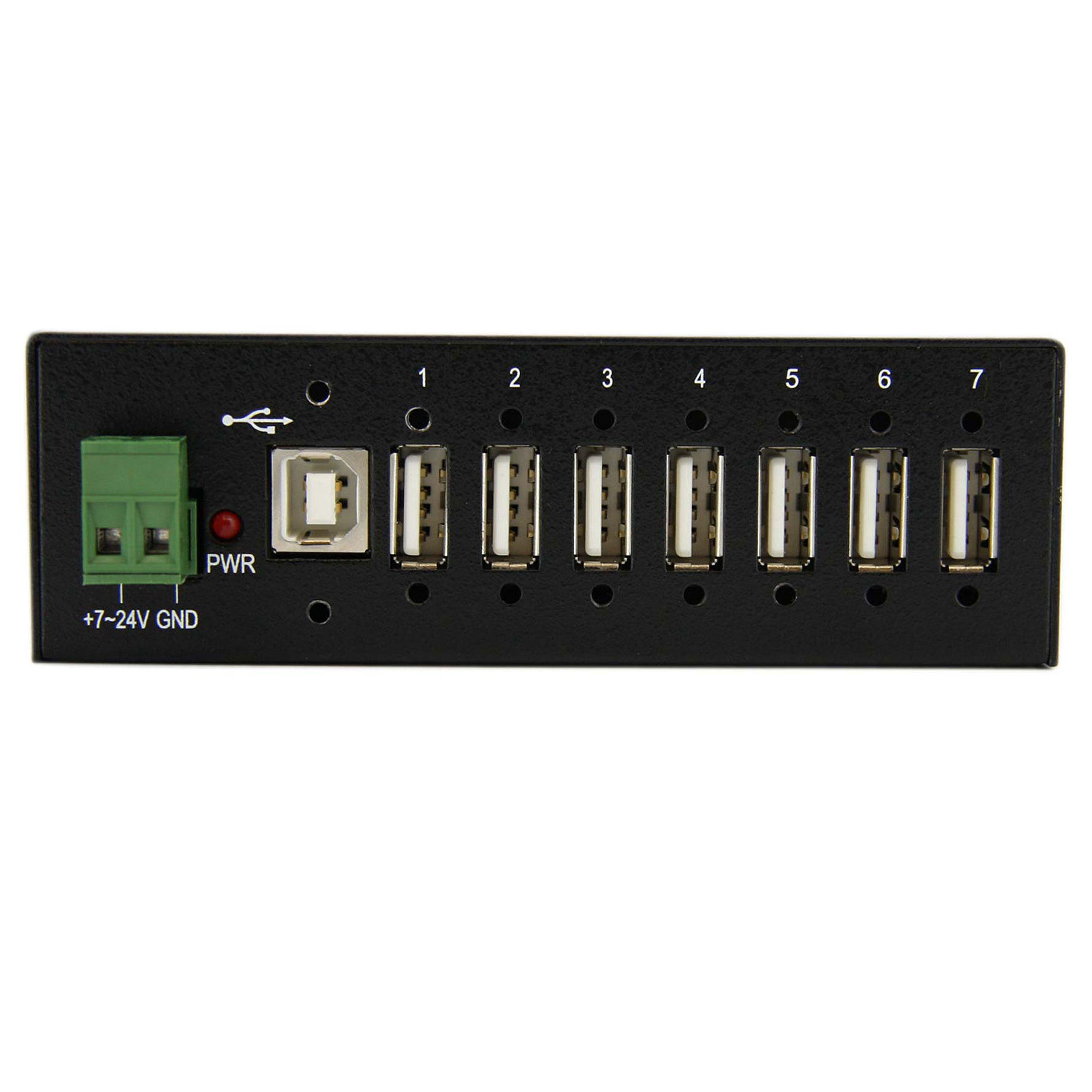

Mountable 7 Port Rugged Industrial USB Hub

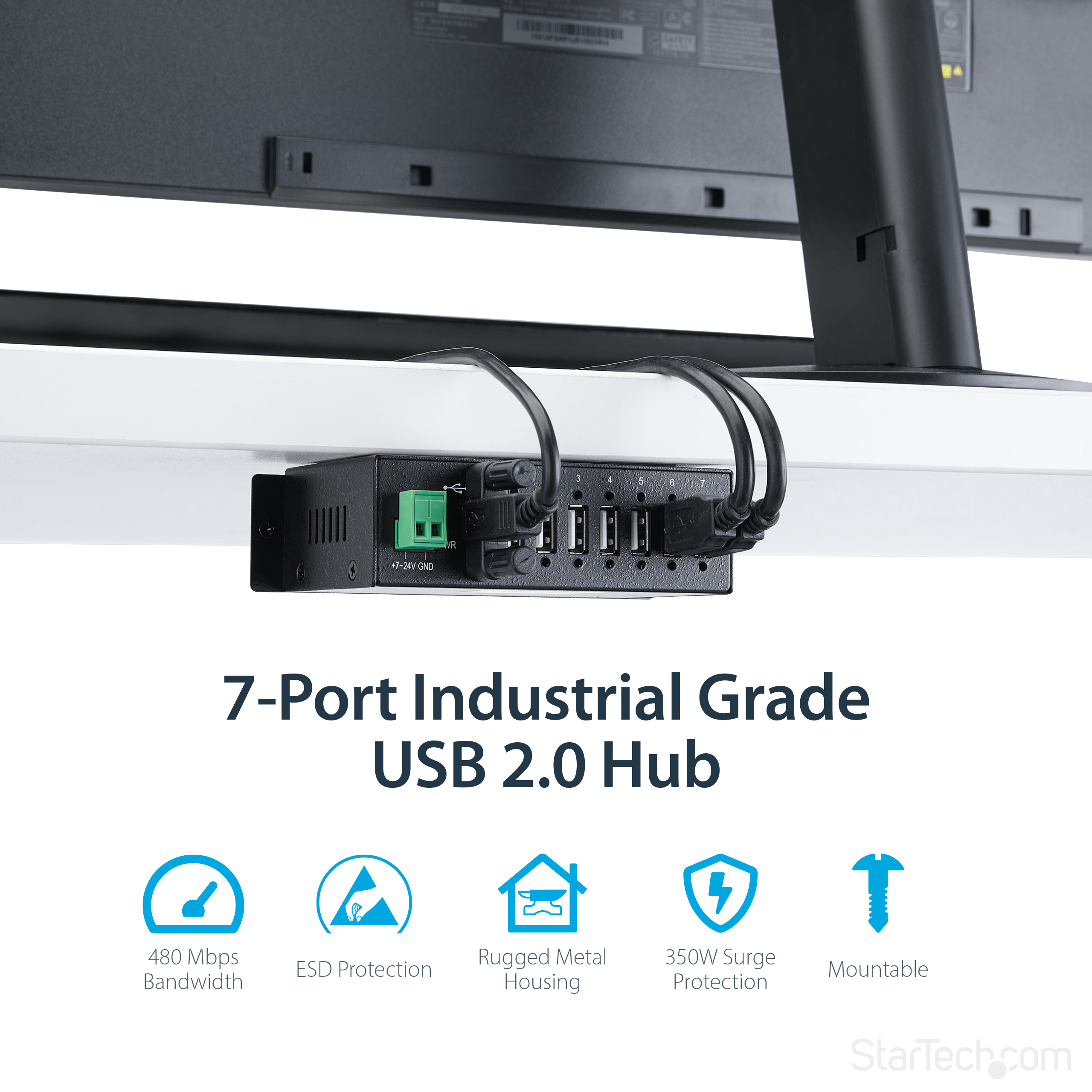

Industrial Grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 480 Mbps
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name Mountable 7 Port Rugged Industrial USB Hub Product Number ST7200USBM UPC 065030837910 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 Industrial USB Hubs Category Level 3 Industrial USB Hubs - USB 2.0 Family Industrial USB Hubs - USB 2.0 - 7-Port Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Short) Mountable Industrial 7 Port USB Hub Product Title (Medium) x Product Title (Standard) Mountable Rugged Industrial 7 Port USB 2.0 Hub, TAA Product Title (Long) 7-Port USB 2.0 Hub - Metal Industrial USB-A Hub with ESD Protection & 350W Surge Protection - Din Rail, Wall or Desk Mountable - TAA Compliant USB Expander Hub Product Title (AMZ) 7-Port USB 2.0 Hub - Metal Industrial USB-A Hub with ESD Protection & 350W Surge Protection - Din Rail, Wall or Desk Mountable - TAA Compliant USB Expander Hub (ST7200USBM) Title Ingram (Part 1) Mountable Rugged Industrial 7 Po Title Ingram (Part 2) rt USB Hub Website Product Headline Industrial Grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 480 Mbps Bullet 1 Surge protection of 350W on the downstream and upstream USB ports Bullet 2 Mount industrial USB 2.0 hub where required with built-in mounting brackets or included DIN rails Bullet 3 Offers flexible, wide-range power inputs with a 7-24V DC terminal block Bullet 4 Adds seven USB 2.0 ports from a single USB connection Bullet 5 Protects your connected devices with 15kV Air and 8kV Contact ESD protection Bullets (Compact) Add 7 external, wall and DIN rail mountable USB 2.0 ports to your computer, from a single USB connection - Seven USB 2.0 ports in an industrial metal housing - Terminal block power - DIN rail & surface mountable - Ideal for harsh industrial settings Bullets (Consolidated) Protects your connected devices with 15kV Air and 8kV Contact ESD protection - Surge protection of 350W on the downstream and upstream USB ports - Mount industrial USB hub where required with built-in mounting brackets or included DIN rails - Offers flexible, wide-range power inputs with a 7-24V DC terminal block - Adds seven USB 2.0 ports from a single USB connection Marketing Copy Marketing Copy (No HTML) Applications - Ideal for tough conditions that are subject to large temperature variances, or where there’s a risk of physical damage
- Great for industrial and manufacturing environments where only terminal block connection is preferred
- Connect a variety of USB devices such as industrial printers or cameras, plus fast-charge your smartphone and tablet

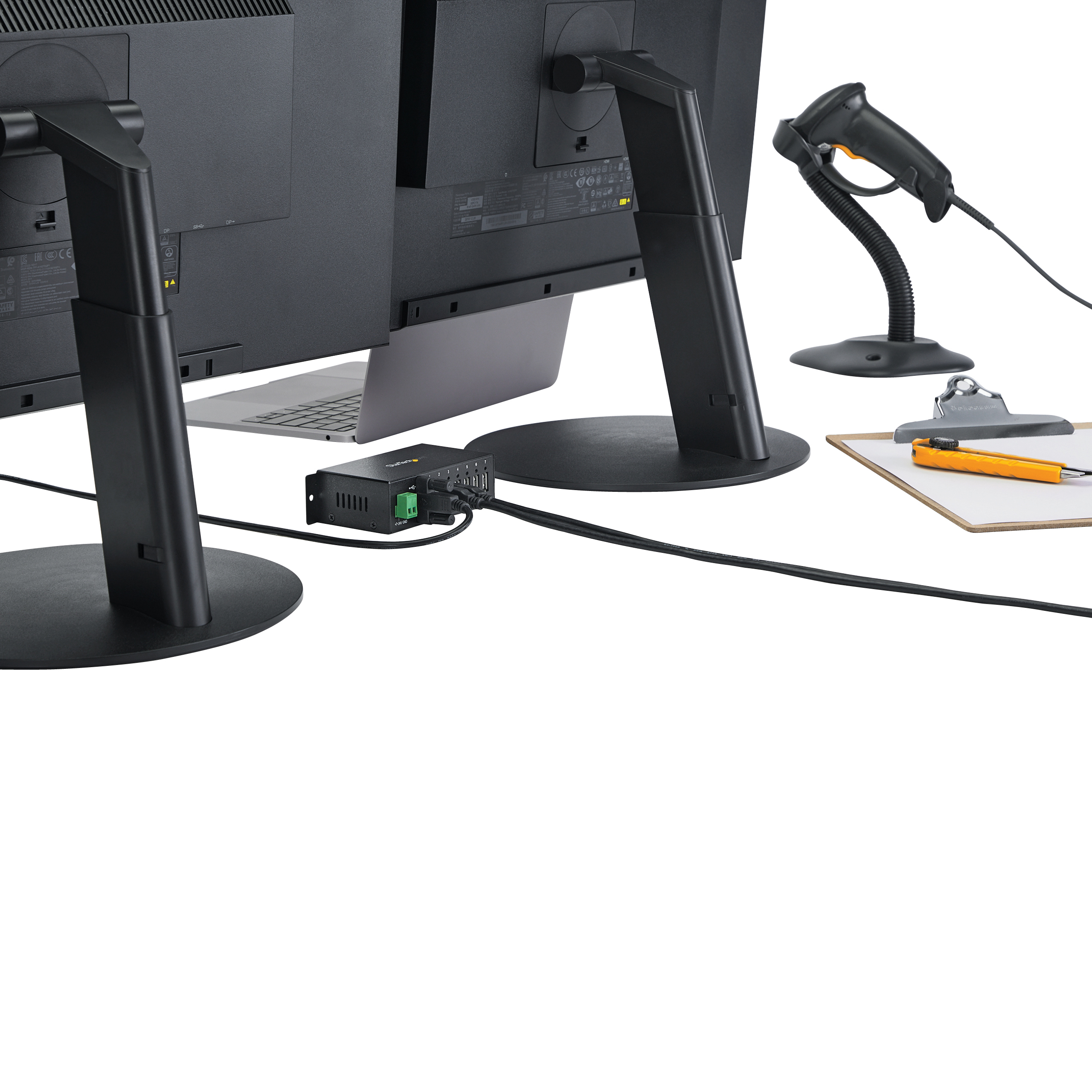

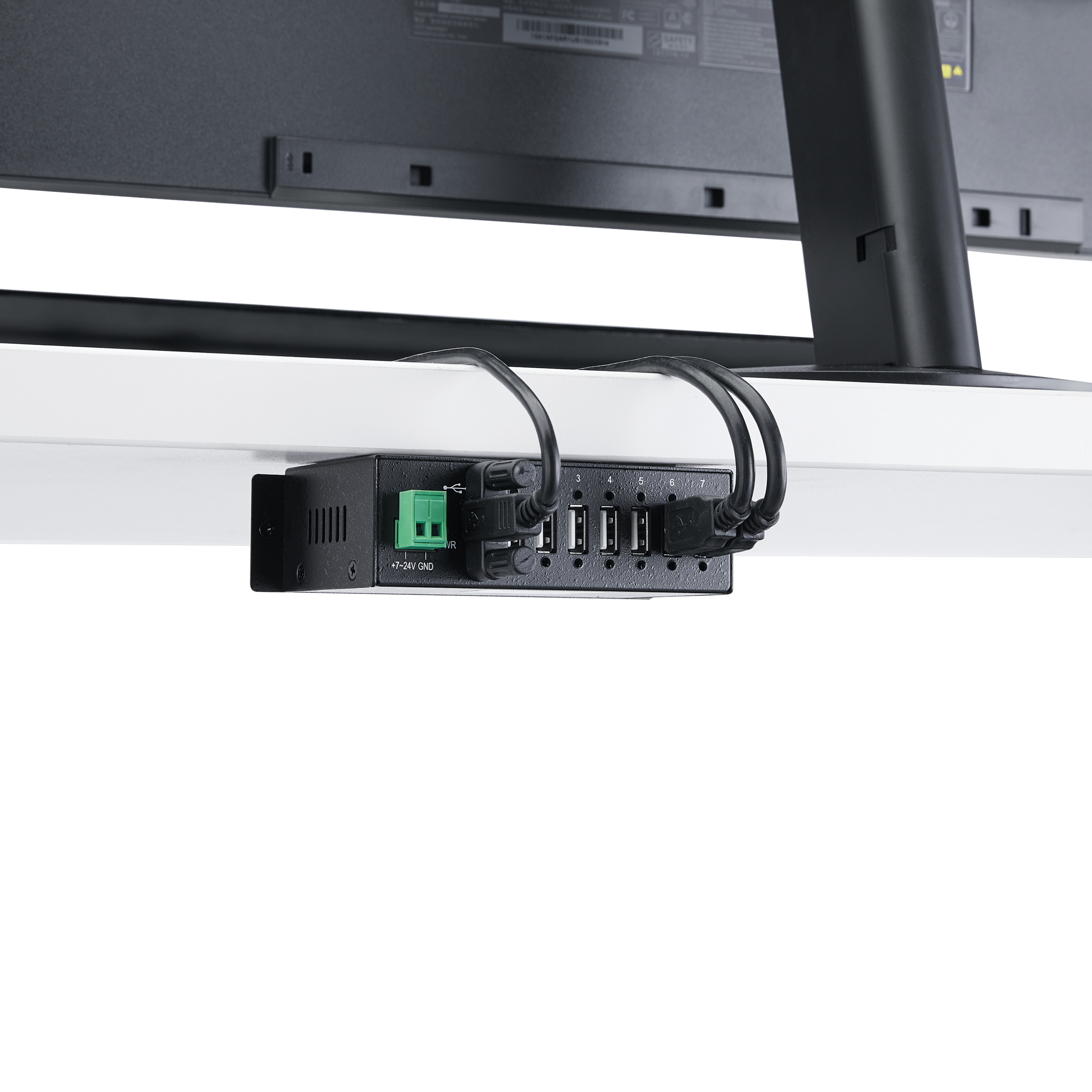

- Mount to a wall near or under a desk surface in a Lab, Service Repair area or office area connecting multiple USB peripherals
- Use in a conference or meeting room utilizing multiple USB peripherals or for charging several mobile devices
Website Search Keyword - 7 Port
- Mountable
- USB
- USB Hub
- Industrial USB Hub
- Rugged USB Hub
- Din Rail
- Metal USB Hub
- Steel USB Hub
- Multi-Voltage
- U223-007-IND-1
- U223-007-IND
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
System and Cable Requirements Any computer with a USB 2.0 port Accessory Products - ICUSB2321F
- USB2HAB10
- USB2HAB15
- USB2HAB6
- ITB20D3250
Related Products - ST4200USBM
- ST4202USB
- ST4205USB
- ST7202USB
- ITB20D3250

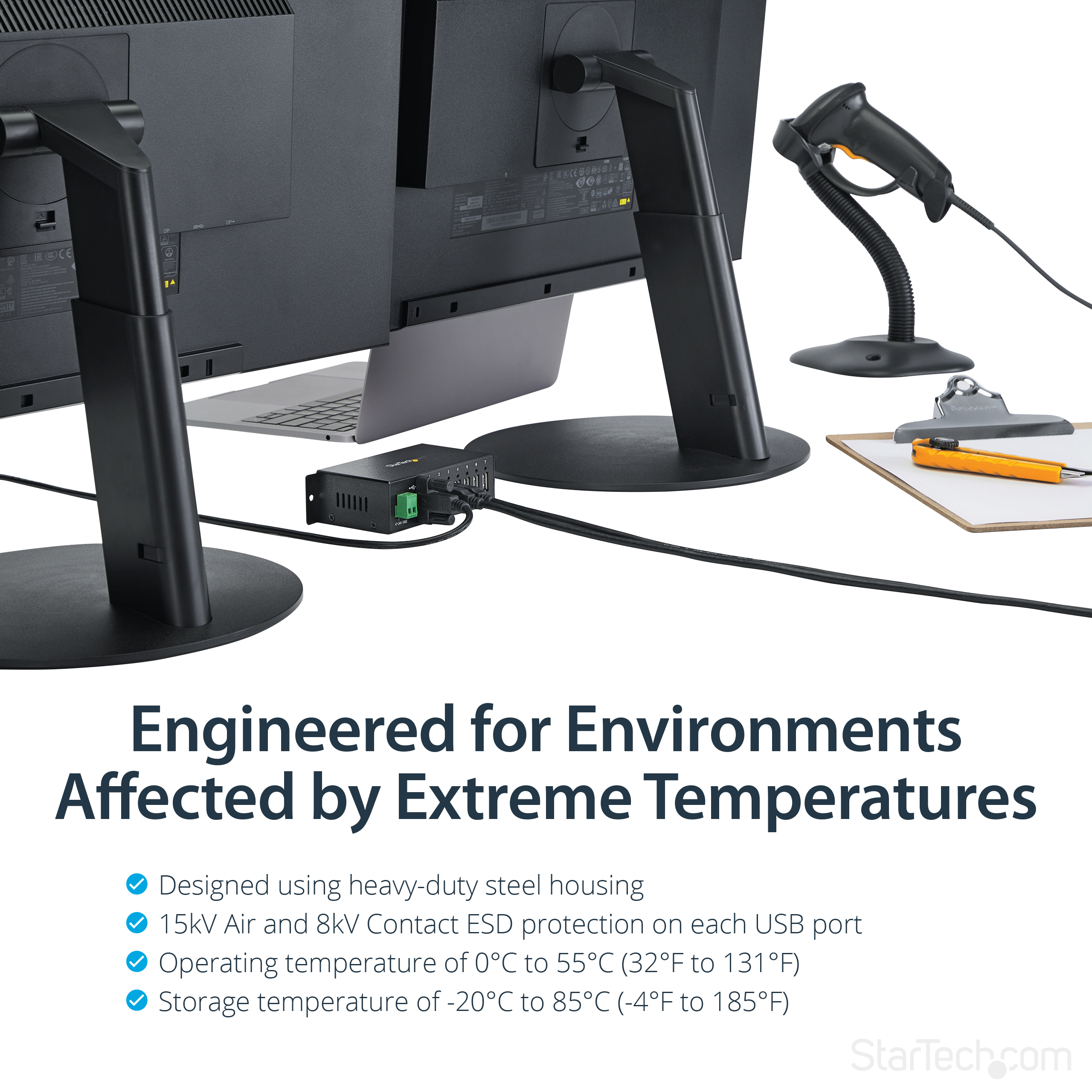

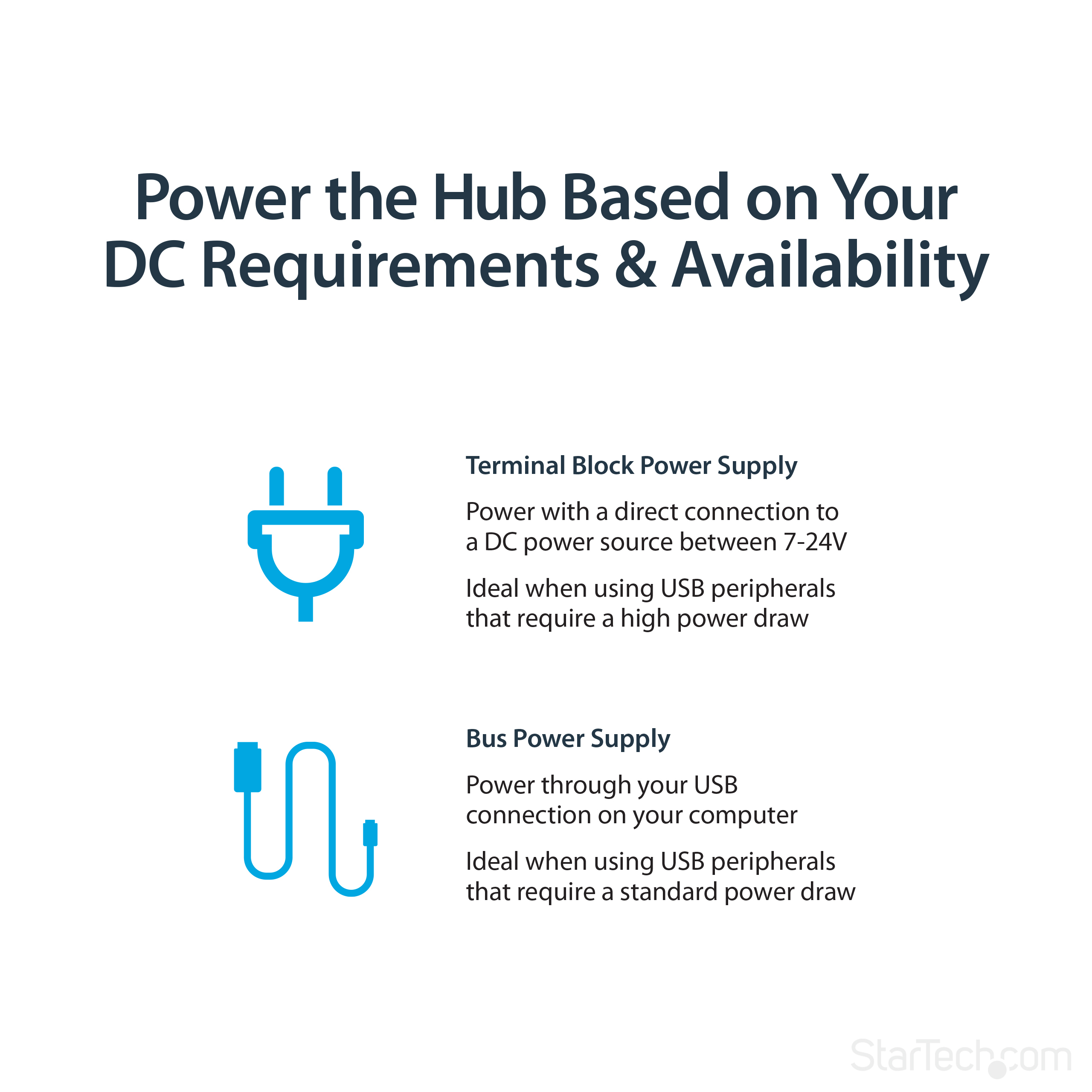

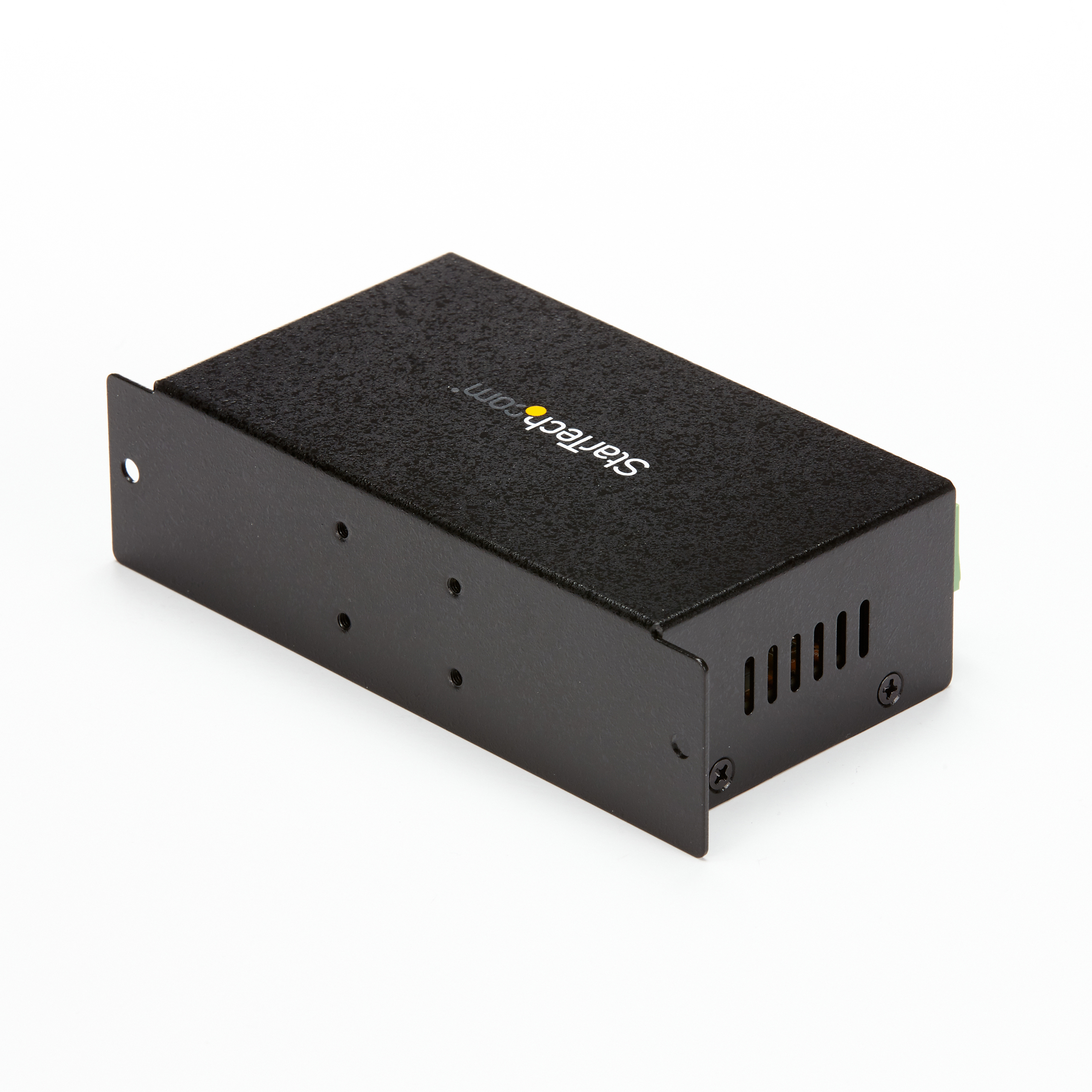

Power Source Terminal Block Color Black Extended Temperature Range No Humidity 5~95% RH Material Steel Operating Temperature 0°C to 55°C (32°F to 131°F) Primary Material Steel Product Length (mm) 133.000 Product Width (mm) 61.500 Product Height (mm) 36.300 Product Weight (g) 283.000 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes Device Power Consumption (In Watts) 12 Watts Downstream Maximum Data Transfer Rate USB 2.0 (480Mbps) ESD Protection - +/-15kV (Air)
- +/-8kV (Contact)

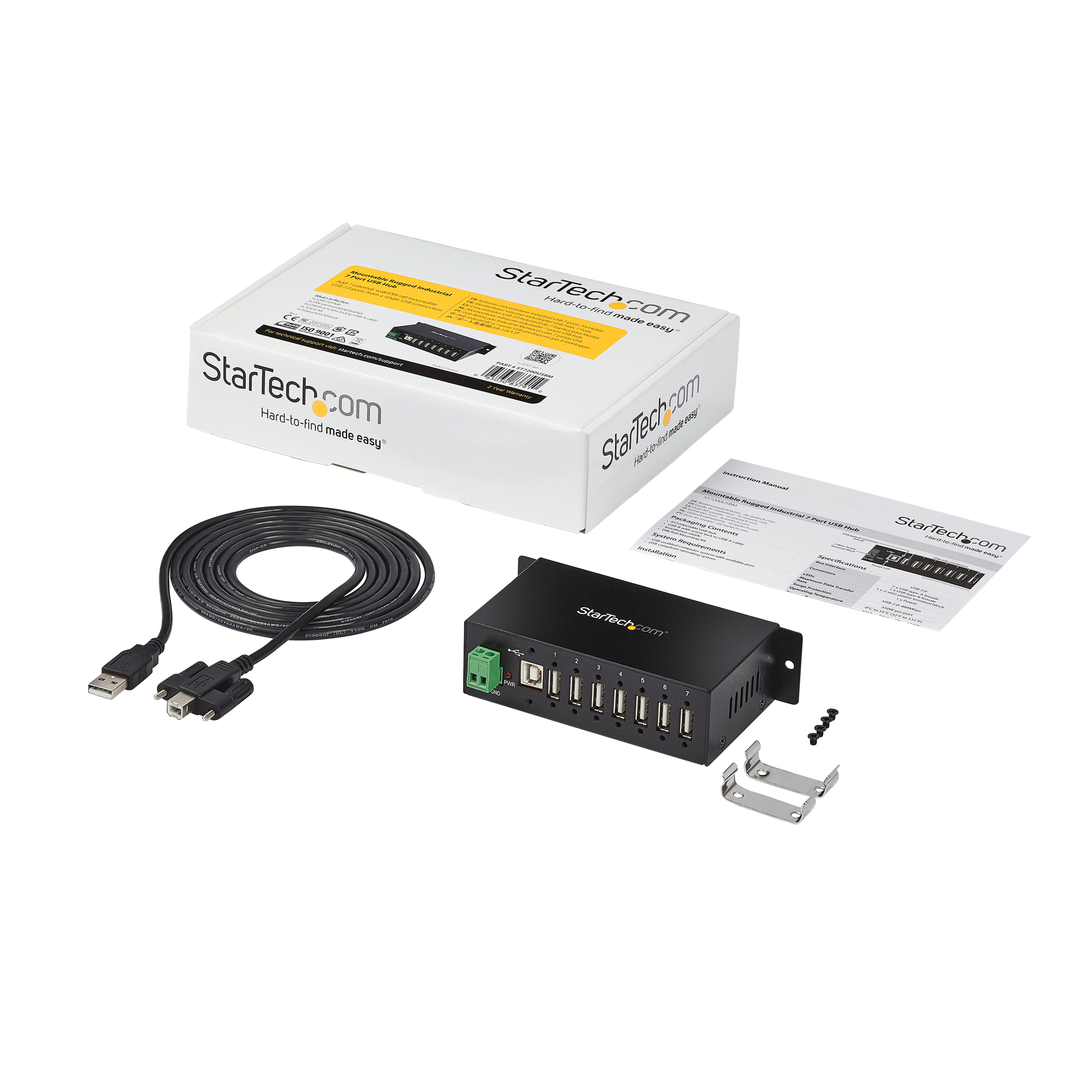

Maximum Data Transfer Rate Up to 480Mbps MTBF (hours) 170,227 Hours OS Compatibility OS Independent Surge Protection 350W on the DFP and UFP Total Available Power Output (In Watts) 17.5 Watts Bus Type USB 2.0 Chipset ID Terminus - FE2.1 Industry Standards USB 2.0 Interface/Bridge USB 2.0 LED Indicators 1 - Power Mounting Options Surface Mount Carton Depth (mm) 524 Carton Height (mm) 272 Carton Quantity 25 Carton Weight Gross (g) 12938 Included in Package - 1 - USB 2.0 Hub
- 1 - 6 ft [1.8 m] USB-B w/screw lock to USB-A cable
- 1 - Instruction Manual
- 2 - DIN rail mounting bracket
- 1 - Screw kit
Included In Package for Label - 1 - Screw Kit
- 2 - Din Rail Mounting Bracket
- 1 - USB 2.0 Hub
- 1 - 6 Ft [1.8 M] USB-B W/Screw Lock To USB-A Cable
- 1 - Instruction Manual

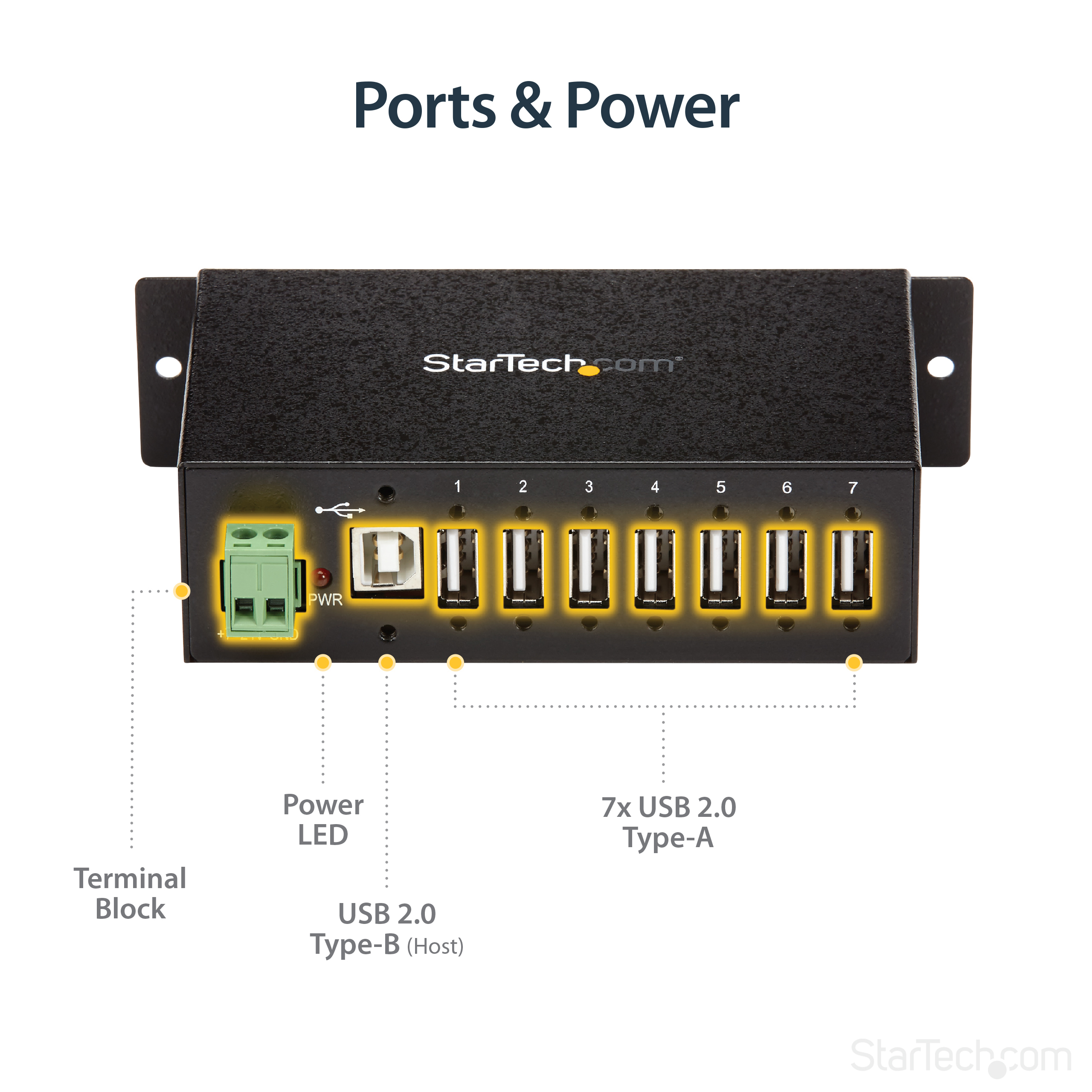

Package Depth (mm) 218 Package Height (mm) 54 Package Width (mm) 151 Package Quantity 1 Package Weight (g) 478 Packaging Description 7 Port Industrial USB 2.0 Hub Packaging Description India 7 Port Industrial USB 2.0 Hub Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 7 Connector 2 USB-B (480Mbps, 2.5W) Connector 2 (Quantity) 1 Connector 3 Terminal Block (2 Wire) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream
