ST7202USBGB
Main Image
Product Images
Product Images
Product Images

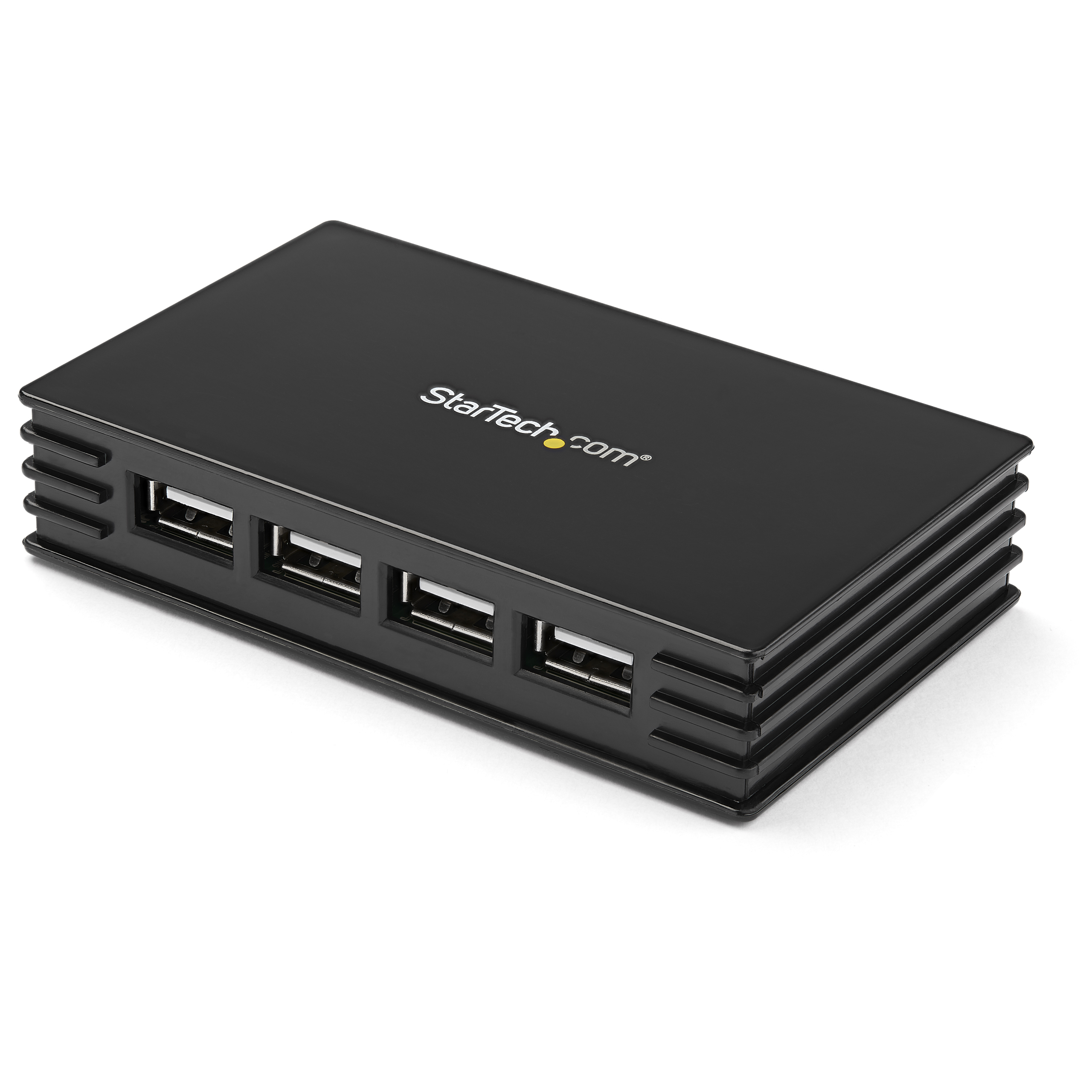

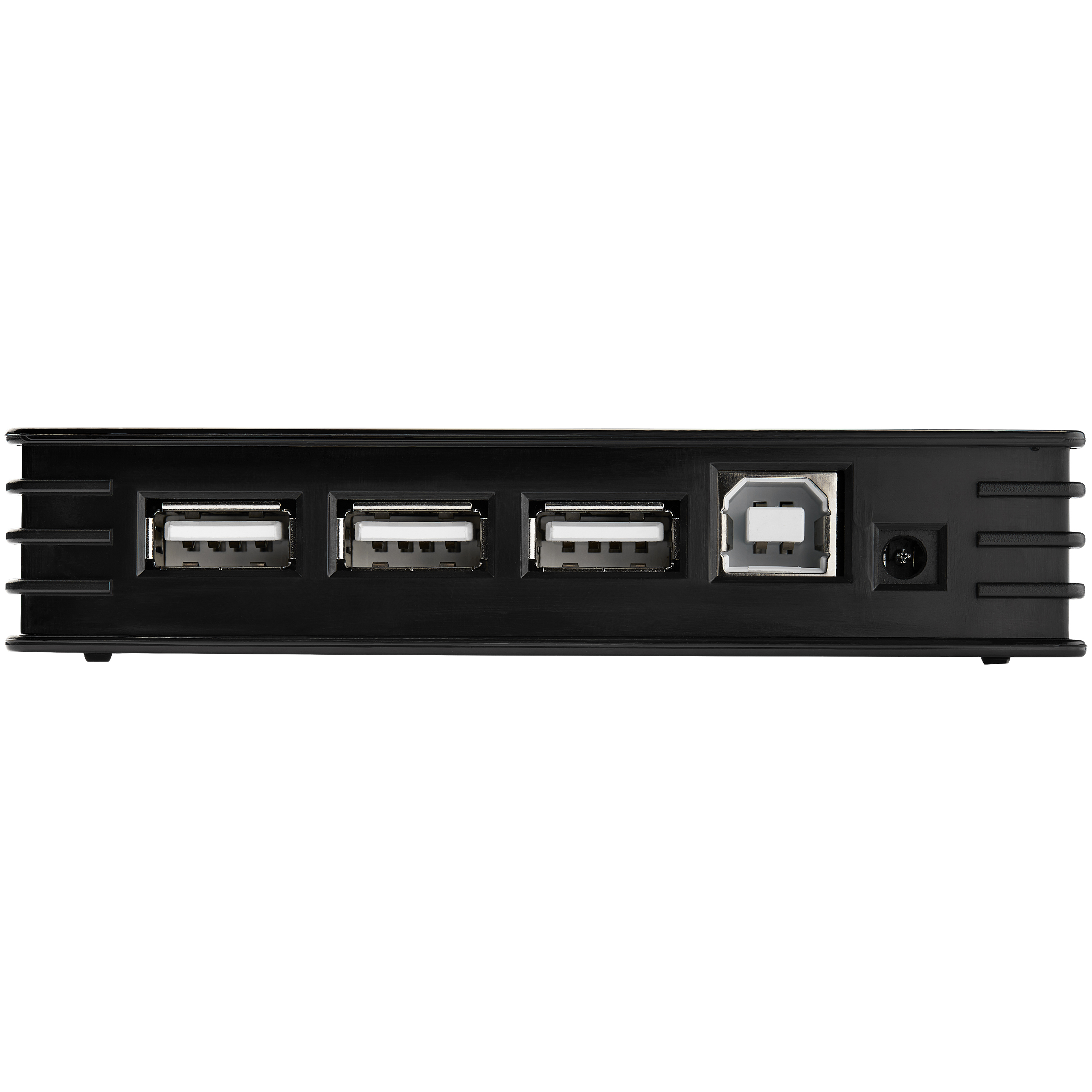

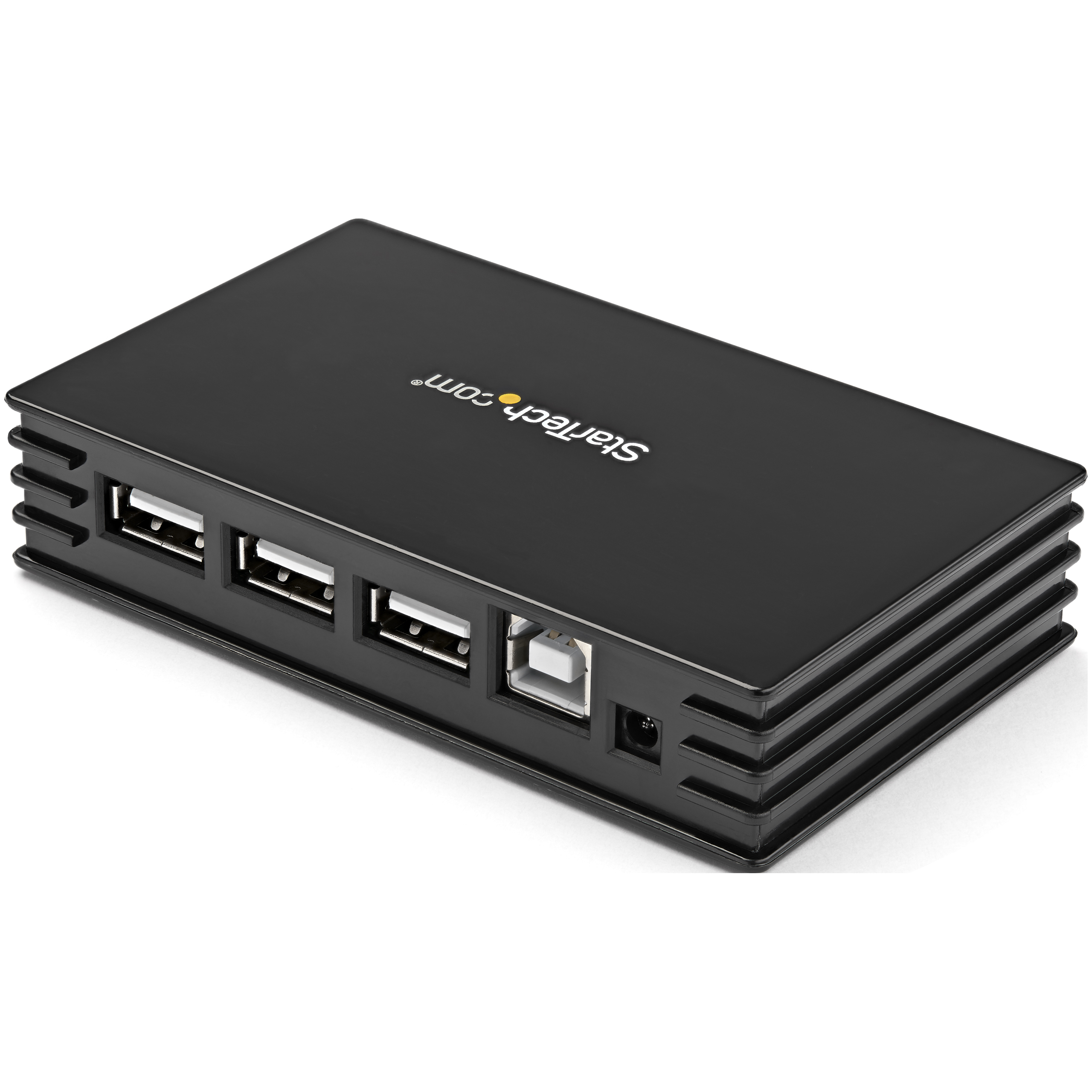

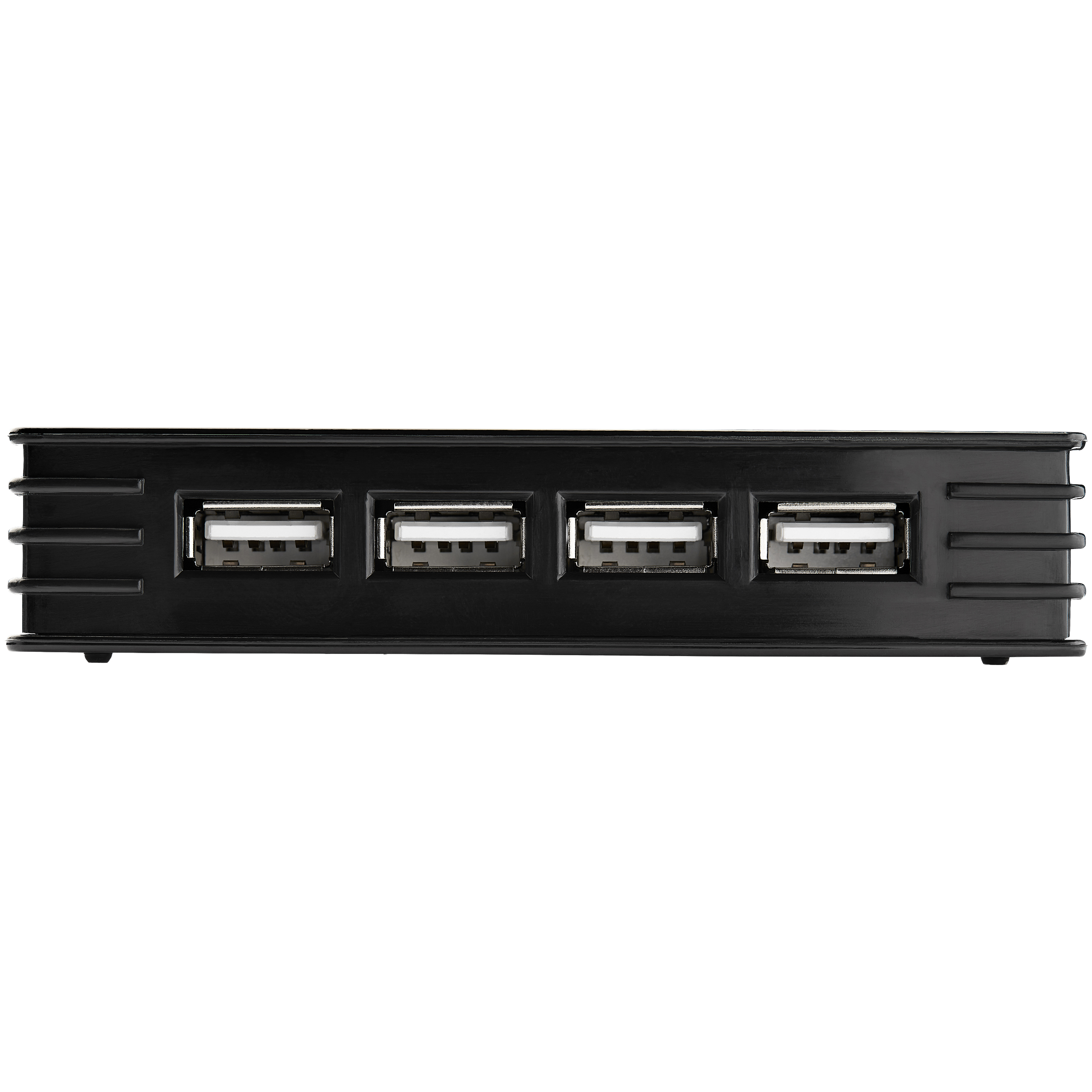

Product Name 7 Port Self Powered USB 2 0 Hub Product Number ST7202USBGB UPC 065030825078 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 USB-A Hubs Category Level 3 USB-A External Powered Hubs - 2.0 Family USB-A External Powered Hubs - 2.0 - 7-Port Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Short) 7 Port Black USB 2.0 Hub Product Title (Standard) 7 Port USB 2.0 Hub, Hub, 7 ports, Hi-Speed USB, TAA Product Title (Long) 7 Port Black USB 2.0 Hub - TAA Product Title (AMZ) Hub - 7 ports - USB 2.0 - Hi-Speed USB , TAA (ST7202USBGB) Title Ingram (Part 1) 7 Port Black USB 2.0 Hub Bullet 1 Backward compatible with USB 1.1 devices Bullet 2 High-speed data transfer rates of up to 480 Mbits/sec Bullet 3 Self-powered or bus-powered Bullet 4 TAA Compliant Marketing Copy Applications Connect digital cameras, keyboards, mice, MP3 players, scanners, printers, game pads, joysticks and more to your laptop or desktop system Website Search Keyword - 7 port USB 2.0 hub
- USB 2.0 Hub
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
System and Cable Requirements 1 x Free USB port Accessory Products - CBUSB220
- PCI420USB
- USB2HAB10
- USB2HAB15
- USB2HAB6
- SVA5H2NEUA
Related Products - ST4200MINI
- ST4200USB
Input Current 0.35 A Input Voltage 100 - 240 AC Output Current 2A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Plug Type H Center Tip Polarity Positive Color Black Material Plastic Operating Temperature 0° C to 70° C Primary Material Plastic Product Length (mm) 100.000 Product Width (mm) 60.000 Product Height (mm) 20.000 Product Weight (g) 290.000 TAA Compliant Yes Downstream Maximum Data Transfer Rate USB 2.0 (480Mbps) Fast Charge Ports (BC 1.2) No Maximum Data Transfer Rate 480 Mbps OS Compatibility OS Independent Ethernet Port No Interface/Bridge USB 2.0 LED Indicators 1 - Power Carton Depth (mm) 326 Carton Height (mm) 240 Carton Quantity 8 Carton Weight Gross (g) 3440 Included in Package - 1 - USB 2.0 Cable
- 1 - 7 Port USB 2.0 Hub
- 1 - Instruction Manual
- 1 - Power Adapter
Package Depth (mm) 87.3 Package Height (mm) 52 Package Width (mm) 215 Package Quantity 1 Package Weight (g) 315 Packaging Description 7 Port USB 2.0 Hub - Black Packaging Description India 7 Port USB 2.0 Hub - Black Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 7 Connector 2 USB-B (480Mbps, 2.5W) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) BE,EU,IE,NL,UK Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream
