ST7300U3M

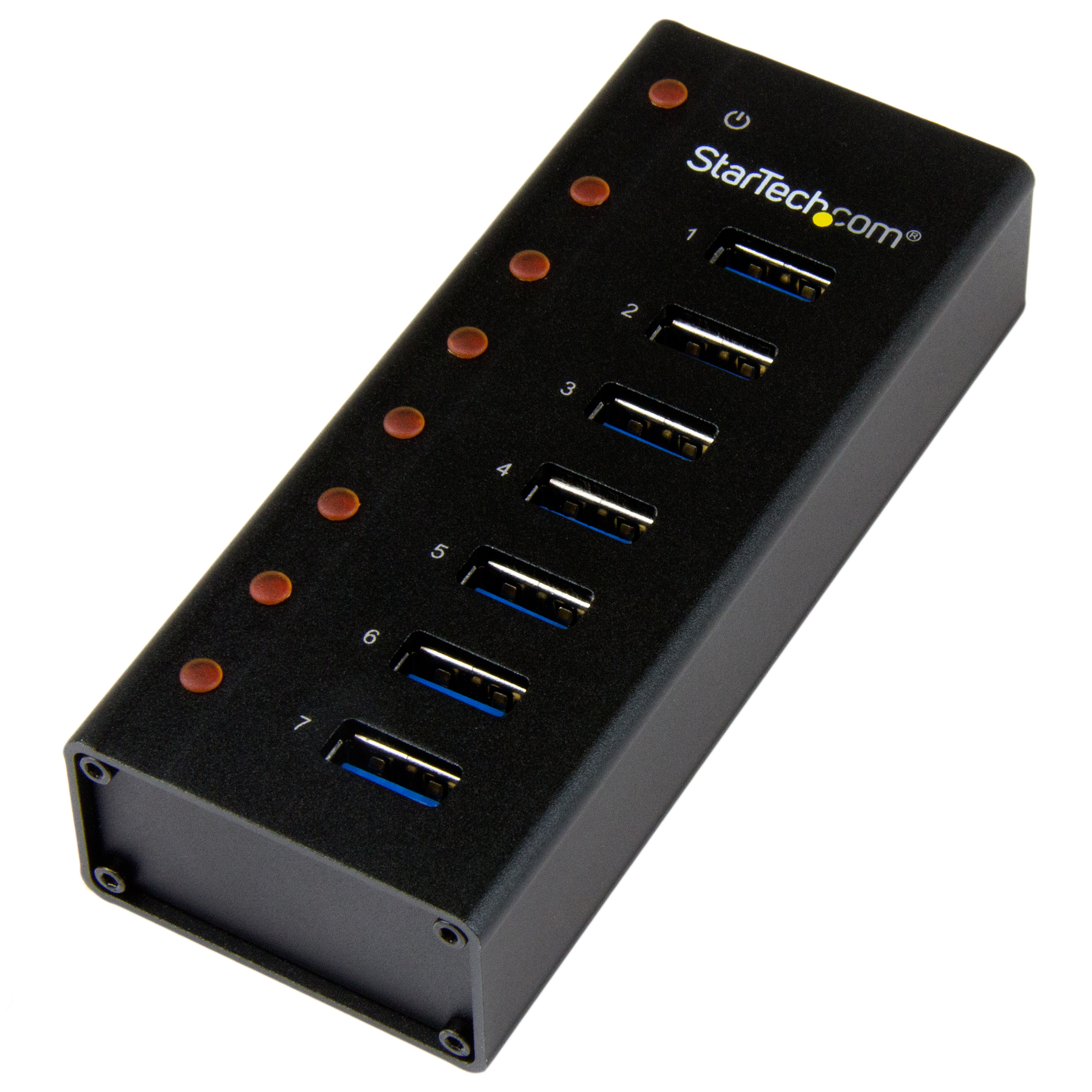

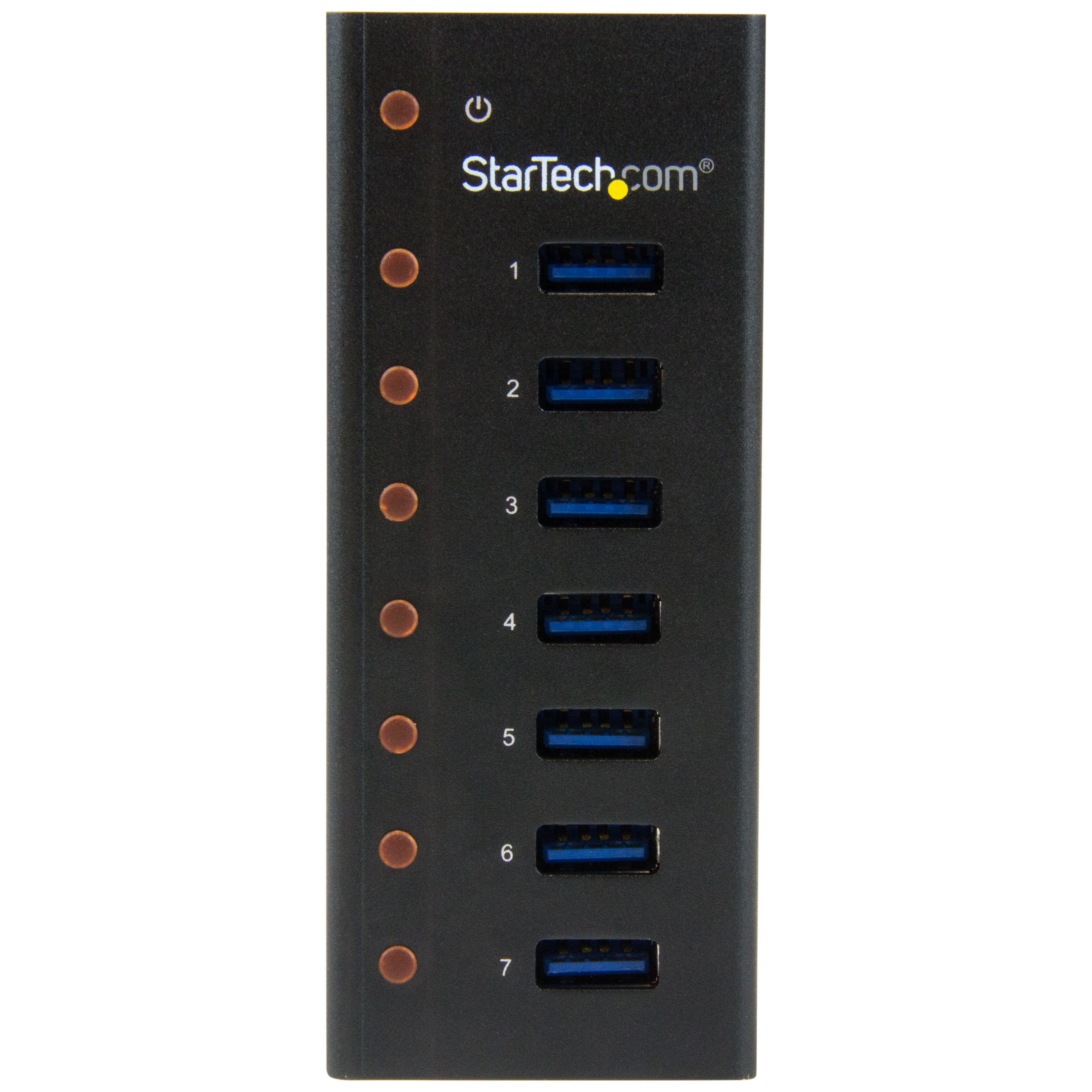

7 Port USB 3 0 Hub
Connect 7 high-performance devices to your computer or Mac with this compact and rugged hub
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 7 Port USB 3 0 Hub Product Number ST7300U3M UPC 065030859776 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 USB-A Hubs Category Level 3 USB-A External Powered Hubs - 5Gbps Family USB-A External Powered Hubs - 5Gbps - 7-Port Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX157X Product Title (Ultra-Short) 7 Port USB 3.0 Hub Product Title (Short) 7 Port USB 3.0 Hub - Desktop /Wall-Mount Product Title (Medium) 7 Port USB 3.0 Hub – Desktop or Wall-Mountable Metal Enclosure Product Title (Standard) 7 Port USB 3.0 Hub - 5Gbps - Desktop or Wall-mountable Metal Enclosure Product Title (Long) 7-Port USB 3.0 Hub (5Gbps) - Desktop or Wall-Mountable Metal Enclosure Product Title (AMZ) 7 Port USB 3.0 Hub (5 Gbps) - Metal Enclosure - Desktop or Wall Mountable - Rugged & industrial Powered USB Expander and Splitter Hub (ST7300U3M) Title Ingram (Part 1) 7Port USB 3 Hub - Desk / Wall - Title Ingram (Part 2) Compact and Durable for Travel Website Product Headline Connect 7 high-performance devices to your computer or Mac with this compact and rugged hub Bullet 1 Plug-and-play and hot-swap compatible Bullet 2 Travel friendly, with a compact and rugged metal enclosure Bullet 3 Flexible mounting options, with the included desktop or wall-mount bracket Bullet 4 Transfer large files at lightning speed, with throughput support up to 5 Gbps Bullet 5 Upright port configuration makes plug-in easy, even for oversized USB connectors Bullets (Consolidated) Connect 7 high-performance devices to your computer or Mac with this compact and rugged hub - 7-Port USB 3 Hub for desktop or travel - Compact durable metal housing - Ideal for MacBook Ultrabook - Transfer large files like movies and photos with up to 5 Gbps - USB hub with upright ports makes plug-in easy - Backward compatible with 2.0 and 1.x devices Marketing Copy Marketing Copy (No HTML) Ideal for the Office or On the Go This 7-port USB 3.2 Gen 1 hub is perfect for a permanent setup with a desktop computer, with a rugged metal housing that can withstand the wear and tear of daily use. There's also an included wall-mount bracket so you can mount the multi-port hub to your desktop or wall. The rugged metal housing and compact size of this hub make it great for on the go as well. Connect Devices Quickly and Easily The ports on this small USB port expander are upright, which makes it perfect for IT professionals or anyone who needs to plug and unplug their USB devices regularly. You have lots of room to grip the connectors, without the worry of oversized plugs taking up too much space and reducing the number of available ports. Compatible with New and Older Devices This powered mini USB hub supports the latest USB 3.2 Gen 1 products including UASP-enabled storage devices, and data transfer speeds of up to 5 Gb per second using SuperSpeed USB 3.2 Gen 1 technology. You can also use the USB port splitter with older peripherals and computers, with support for USB 2.0 and 1.x devices and no additional drivers or software required for installation. The ST7300U3M is backed by a StarTech.com 2-year warranty and free lifetime multilingual technical support. Applications - Deploy in hot desk environments to provide USB hub access for multiple devices
- Connect a wide variety of peripherals at home or in the office, all from a single USB 3.2 Gen 1 connection
Website Search Keyword - 7 port usb 3.0 hub
- metal usb 3.0 hub
- USB hubs
- USB 3 hub
- 7port USB 3.0 hub
- Seven Port USB Hub
- portable usb hub
- mobile usb hub
- travel usb hub
- compact usb hub
- usb hub
- USB 3.0 hub
- desktop usb hub
- wall mountable usb hub
- wall mountable hub
- 7 port usb hub
- usb 3.0 hub 7 port
- portable USB 3.0 hub
- 7 port usb 3 hub
- superspeed usb hub
- superspeed usb 3.0 hub
- U360-007
- U360-007-AL
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes If connected to a USB 2.0 host port, performance may be limited System and Cable Requirements Available USB 3.0 port Accessory Products - PEXUSB3S25
- PEXUSB3S24
- PEXUSB3S44V
- ECUSB3S11
- ECUSB3S22
- USB3SEXT1MBK
- USB3SEXT6BK
- USB3SAA6BK
- USB3AAEXT5M
- USB3SAB10BK
- SVA12M5NA
Related Products - ST7300USB3B
- ST7300USBM
- ST4300U3C3
- USB221SS
- ST4300PBU3
- ST4300U3C1
- ST4300U3C1B
- ST7320USBC
Input Current 1.5 A Input Voltage 100 - 240 AC Output Current 3.0 A Output Voltage (V) 12V DC Power Consumption (In Watts) 36 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Cable Length (mm) 1219 Color Black Humidity 20~80% RH Material Aluminum Operating Temperature 5°C to 35°C (41°F to 95°F) Primary Material Aluminum Product Length (mm) 110.000 Product Width (mm) 44.000 Product Height (mm) 24.000 Product Weight (g) 133.000 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant No Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Fast Charge Ports (BC 1.2) No Maximum Data Transfer Rate 5 Gbps (USB 3.2 Gen 1) MTBF (hours) 1,689,464 Hours OS Compatibility OS Independent USB Type and Rate USB 5Gbps Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID ASMedia - ASM1074 Ethernet Port No Interface/Bridge USB 3.2 Gen 1 (5Gbps) Laptop Dock / USB Hub Fast-Charge No LED Indicators - 1 - Power
- 7 - Hub Port Connection

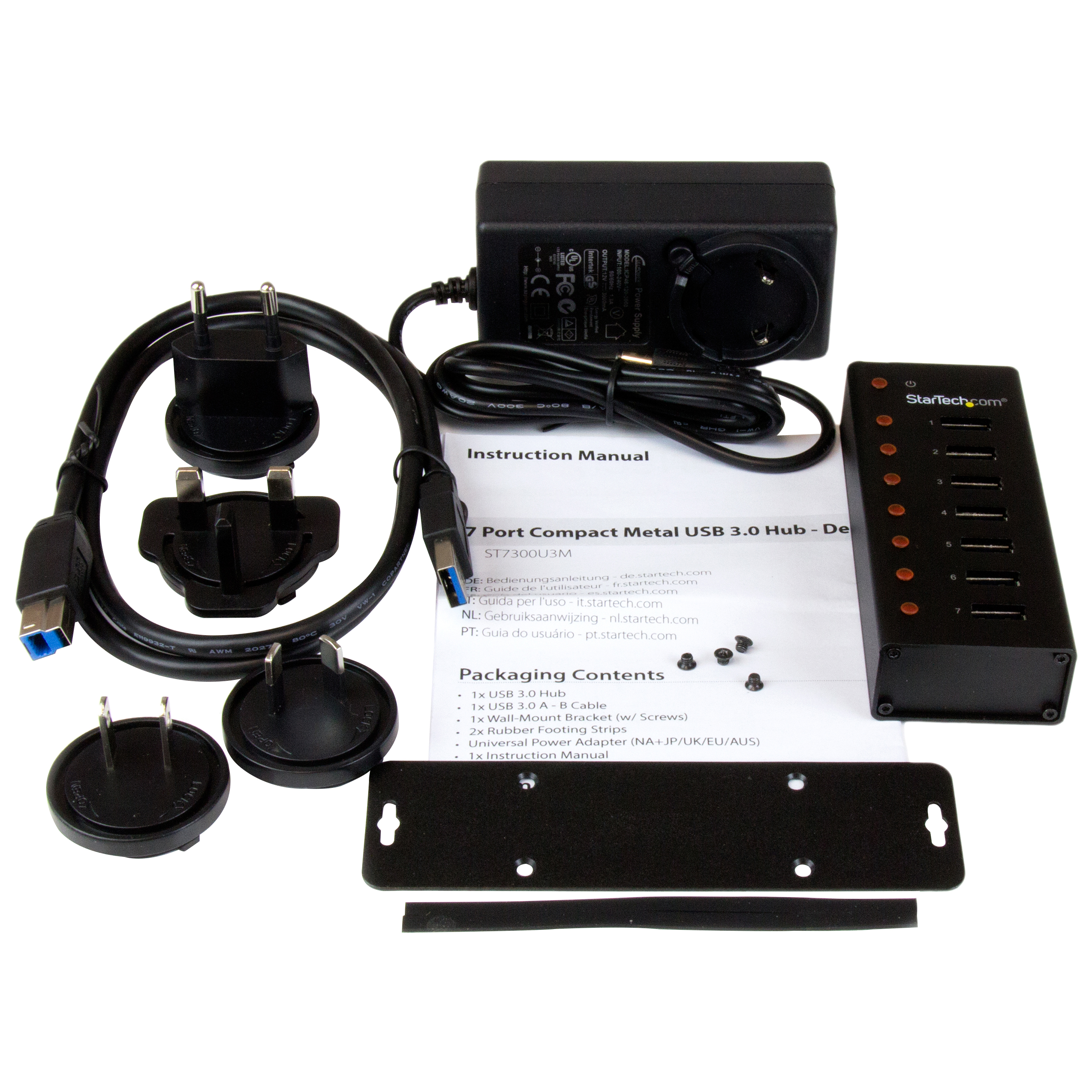

USB-C Device Port(s) No USB-C Host Connection No Carton Depth (mm) 471 Carton Height (mm) 356 Carton Quantity 30 Carton Weight Gross (g) 17450 Included in Package - 1 - USB 3.0 Hub
- 1 - Universal Power Adapter (NA/JP, EU, UK, ANZ)
- 1 - Instruction Manual
- 1 - Wall-Mount Bracket (w/ Screws)
- 2 - Rubber Footing Strips
- 1 - USB 3.0 A - B Cable - 3.3 ft.
Package Depth (mm) 171 Package Height (mm) 91 Package Width (mm) 105 Package Quantity 1 Package Weight (g) 544 Packaging Description 7 Port Compact USB 3.0 Hub - Wall-Mountable Packaging Description India 7 Port Compact USB 3.0 Hub - Wall-Mountable Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 7 Connector 2 USB-B (5Gbps, 4.5W) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2014-02-07 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Production Release 2014-10-31 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream
