Main Image
ST7300USB3B
7 port USB 3 0 hub black
Add 7 external, USB 3.2 Gen 1 ports to a computer from a single USB connection
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name 7 port USB 3 0 hub black Product Number ST7300USB3B UPC 065030855594 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 USB-A Hubs Category Level 3 USB-A External Powered Hubs - 5Gbps Family USB-A External Powered Hubs - 5Gbps - 7-Port Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX057X Product Title (Ultra-Short) 7 Port USB 3.0 Hub Product Title (Short) 7 Port SuperSpeed USB 3.0 Hub w/ Adapter Product Title (Medium) 7 Port SuperSpeed USB 3.0 Hub - 5Gbps - Desktop USB Hub w/ Power Adapter – Black Product Title (Standard) 7 Port SuperSpeed USB 3.0 Hub - 5Gbps - Desktop USB Hub with Power Adapter – Black Product Title (Long) 7-Port USB 3.0 Hub (5Gbps) - Desktop Product Title (AMZ) 7 Port USB 3.0 Hub – Up To 5 Gbps – 7 x USB – Universal Multi Port USB Extender for Your Desktop – USB Powered (ST7300USB3B) Title Ingram (Part 1) 7Port USB 3.0 Hub with Power Title Ingram (Part 2) Adapter - Seven Port USB 3.0 Hub Website Product Headline Add 7 external, USB 3.2 Gen 1 ports to a computer from a single USB connection Bullet 1 Backward compatible with USB 2.0 and 1.x devices Bullet 2 Plug-and-Play and Hot-Swap compatible Bullet 3 Universal, multi-platform compatibility, with no additional drivers required Bullet 4 Seven downstream USB 3.2 Gen 1 ports accessible from one side of the hub, with support for up to 5Gbps Bullet 5 Includes USB 3.2 Gen 1 A to B cable Bullets (Consolidated) Add seven external USB 3.2 Gen 1 ports to a computer from a single USB connection - 7-Port Desktop USB 3.2 Gen 1 Hub - Easily connect and disconnect USB 3.2 Gen 1 devices with accessible one-sided port orientation - Multi-platform compatibility with no additional drivers required - USB bus powered and includes optional external power adapter for high-power USB devices - Plug-and-Play and Hot-Swap compatible/Backward compatible with USB 2.0 and 1.x devices - USB 3.2 Gen 1 Hub with cable/USB 3.2 Gen 1 Desktop Hub/USB 3 Hub Marketing Copy Marketing Copy (No HTML) Applications - Extend the range of USB devices by having the hub act as a mid-point repeater
- Expand your system USB 3.2 Gen 1 capabilities with additional ports
- Make USB ports more accessible by positioning the hub anywhere within cable reach
- Separate tightly packed USB ports, to better accommodate larger USB plugs or prevent overcrowding
Website Search Keyword - USB hubs
- USB 3 hub
- 7port USB 3.0 hub
- Seven Port USB Hub
- U360007INT
- U360-007
- U360-007-INT
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes If connected to a USB 2.0 host port, performance may be limited System and Cable Requirements Available USB 3.0 port Accessory Products - PEXUSB3S24
- ECUSB3S11
- ECUSB3S22
- ECUSB3S254F
- MPEXUSB3S2
- USB3SAB10
- USB3SAB6
- USB3SAB1
- USB3SAB3BK
- USB3SAB6BK
- USB3AAEXT3M
- USB3AAEXT5M
- PCIUSB3S22
- SVA12M5NA
Related Products - ST7300USBM
- ST4300USBMS
- ST7320USBC
- ST4300USBM
- ST4300U3C3
- ST2300CUSB3
- ST4300USB3
- ST4300MINU3W
- ST4300MINU3B
- ST4300PBU3
Input Current 1.5 A Input Voltage 100 - 240 AC Output Current 3 A Output Voltage (V) 12V DC Power Consumption (In Watts) 36 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 5-95% RH Material Plastic Operating Temperature -2°C to 52°C (29°F to 125°F) Primary Material Plastic Product Length (mm) 172 Product Width (mm) 70 Product Height (mm) 23 Product Weight (g) 148 Storage Temperature -20°C to 56°C (-4°F to 132°F) TAA Compliant No Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Fast Charge Ports (BC 1.2) No Maximum Data Transfer Rate 5 Gbps (USB 3.2 Gen 1) MTBF (hours) 43977.72 hours OS Compatibility OS Independent USB Type and Rate USB 5Gbps Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID VIA/VLI - VL817 Ethernet Port No Laptop Dock / USB Hub Fast-Charge No LED Indicators 7 - Hub Port Connection LEDs USB-C Device Port(s) No USB-C Host Connection No Carton Depth (mm) 437 Carton Height (mm) 328 Carton Quantity 20 Carton Weight Gross (g) 11214 Included in Package - 1 - Instruction Manual

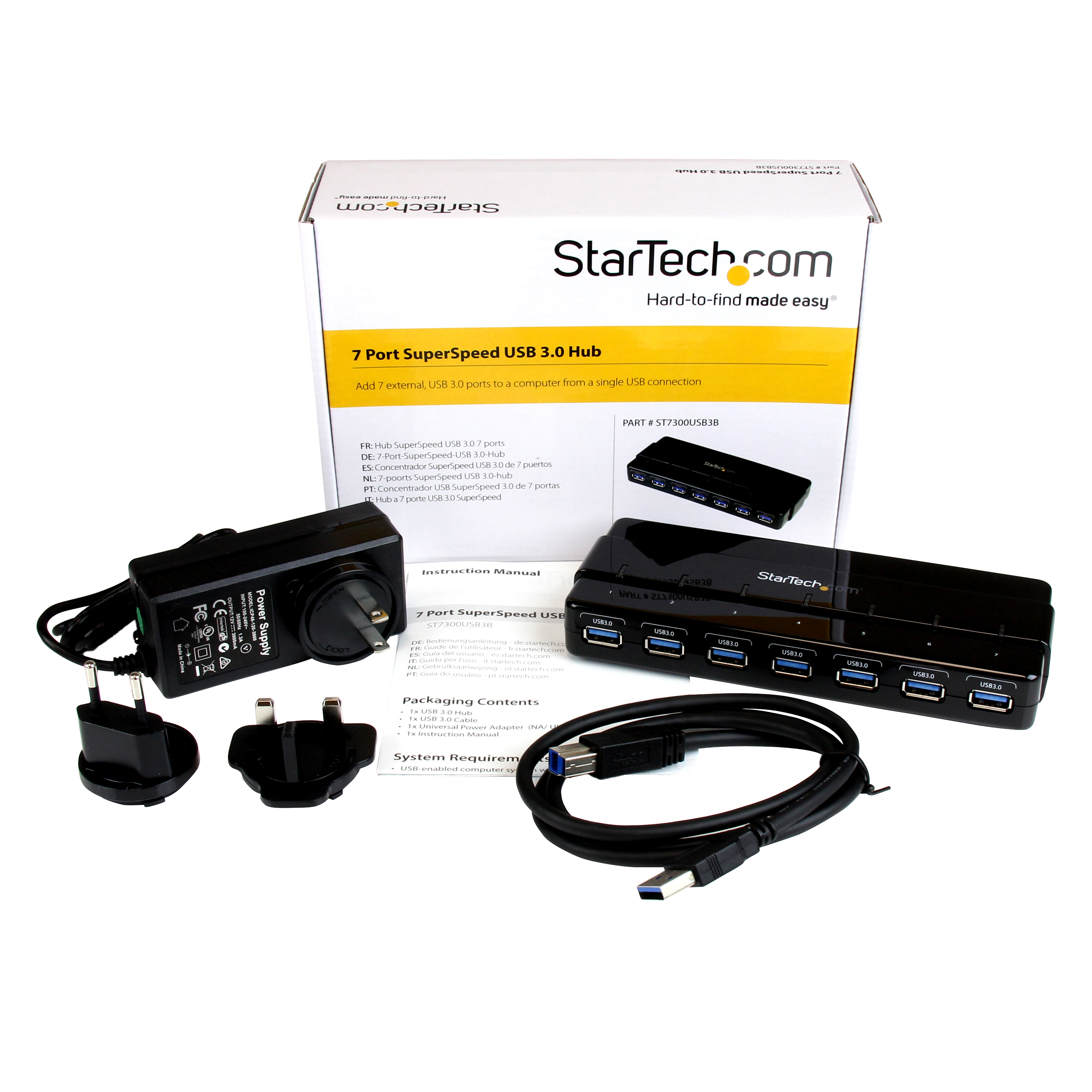

- 1 - USB 3.0 Hub
- 1 - Universal Power Adapter (NA/JP, EU, UK, ANZ)
- 1 - 3.3 ft [1 m] USB 3.0 Cable
Package Depth (mm) 211 Package Height (mm) 63 Package Width (mm) 150 Package Quantity 1 Package Weight (g) 530 Packaging Description 7 Port SuperSpeed USB 3.0 Hub Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-B (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 7 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2013-12-05 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FI,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream
