ST7300USBM
7 Port Din Rail Mountable SuperSpeed USB 3 Hub
Add 7 external, wall/DIN rail mountable USB 3.0 ports to a computer from a single USB connection
Main Image
Product Images
BOM Image
Product Name 7 Port Din Rail Mountable SuperSpeed USB 3 Hub Product Number ST7300USBM UPC 065030848756 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Hubs Category Level 2 Industrial USB Hubs Category Level 3 Industrial USB Hubs - 5Gbps Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Short) 7 Port Metal USB 3.0 Hub – Mountable Product Title (Standard) 7 Port Metal Industrial SuperSpeed USB 3.0 Hub – Mountable Product Title (Long) 7 Port Metal Industrial SuperSpeed USB 3.0 Hub – Mountable Product Title (AMZ) 7 Port Metal Industrial SuperSpeed USB 3.0 Hub - Din Rail Mountable - 7x USB 3.0 A (F) 1x USB 3.0 B (F) (ST7300USBM) Title Ingram (Part 1) 7Port SuperSpeed USB 3 Hub Metal Title Ingram (Part 2) Din Rail Mountable USB 3.0 Hub Website Product Headline Add 7 external, wall/DIN rail mountable USB 3.0 ports to a computer from a single USB connection Bullet 1 SuperSpeed USB 3.0 compliant, supporting full 5Gbps bandwidth Bullet 2 Backward compatible with USB 2.0 and 1.x specifications and devices Bullet 3 Support for screw-locking USB cables (sold separately) Bullet 4 All-metal chassis Bullet 5 Built-in surface-mounting brackets and optional DIN rail mounts Bullets (Consolidated) Add 7 external wall/DIN rail mountable USB 3.0 ports to a PC or server from a single USB 3.0 connection - Compatible with IBM BladeCenter/HP ProLiant - 7 Port Industrial USB 3.0 Hub w/ Surge Protection/Rugged USB 3.0 Hub w/ Terminal Block/Metal USB Hub - Din Rail Mountable USB 3.0 Hub/Heavy Duty USB Hub - Wall/Rack Mountable USB 3.0 Hub/Server and Network Room USB Hub - Factory/Warehouse USB 3.0 Hub - Terminal Block USB 3.0 Hub w/ 350 Watt Surge Protection for industrial locations Marketing Copy Applications - Installation in locations where multiple USB 3.0 ports need to be securely mounted to a surface, such as a wall or under a desk, or in an equipment rack
- Expanding USB 3.0 capability to areas that are subject to large temperature variances, or where physical damage may occur (e.g. Industrial settings such as within a factory)
- Adding USB 3.0 connections to heavy traffic areas, where there is a concern for the USB cables becoming unplugged
- Connecting industrial printers, cameras, sensors/monitoring equipment, touchscreens, CNC machines/controllers
Special Notes This product is intended for use with terminal block power only – Standard AC adapter not available System and Cable Requirements Available USB 3.0 port Accessory Products - PEXUSB3S2
- USB3SAB10
- USB3SAB6
- USB3SAB1
- USB3SAB3BK
- USB3SAB6BK
- ECUSB3S2
- USB3AAEXT5M
- PCIUSB3S2
- USB3AAEXT3M
- ECUSB3S254F
- MPEXUSB3S2
- ECUSB3S1
Related Products - ST4300USB3
- ST4300USBM
- 35BAYUSB3S4
- ST7320USBC
- USB3SEXT5DSK
- ST2300CUSB3
- ST4300USBMS

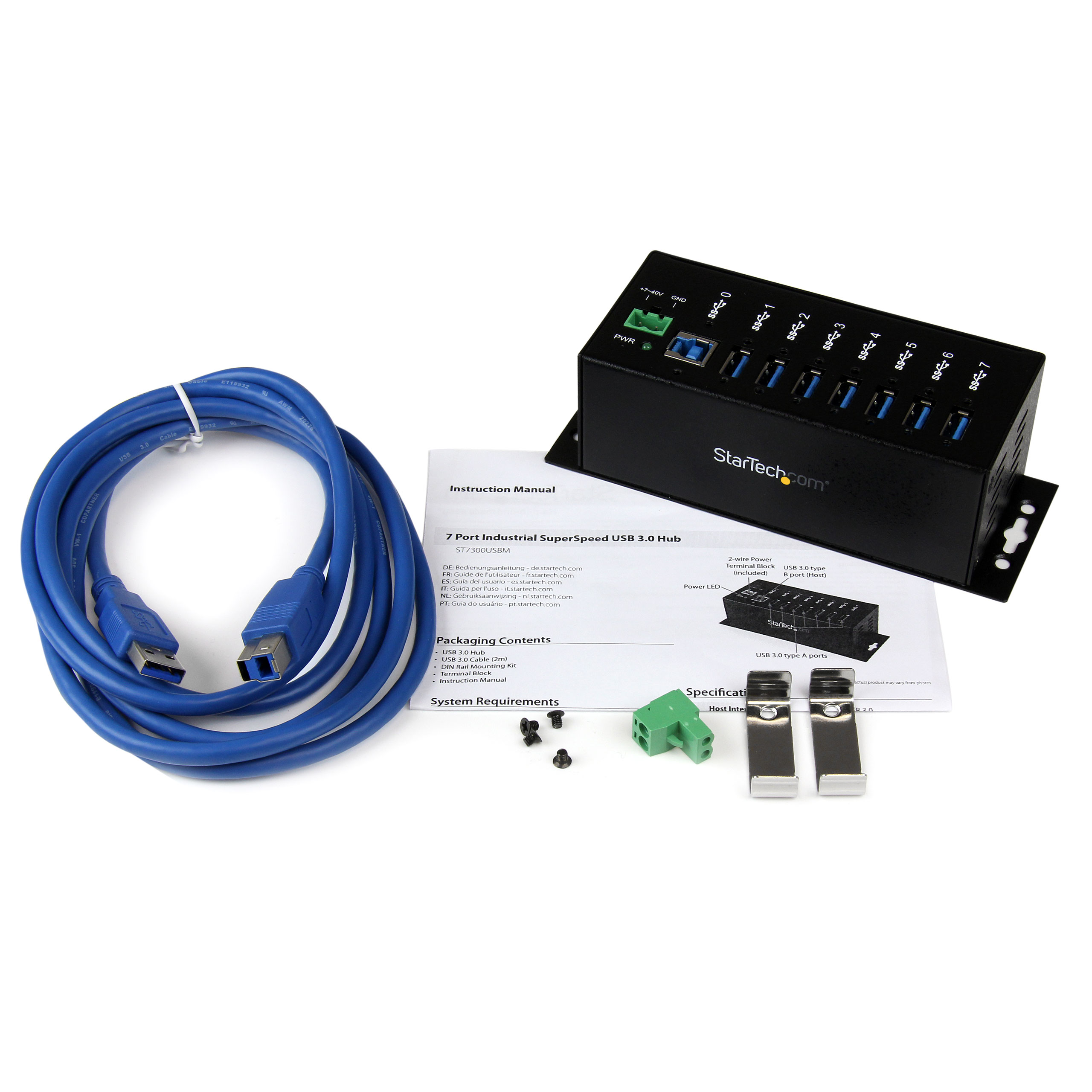

Replacement Product ST7300USBME Power Source Terminal Block Color Black Extended Temperature Range No Humidity 5% ~ 95% RH Material Steel Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 145 Product Width (mm) 55 Product Height (mm) 43.5 Product Weight (g) 343 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant No Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) MTBF (hours) 111,589 Hours OS Compatibility OS Independent Surge Protection 350W per port USB Type and Rate USB 3.0 (5Gbps) Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID Genesys Logic - GL3520 Interface/Bridge USB 3.2 Gen 1 (5Gbps) LED Indicators 1 - Power (green) Mounting Options DIN Rail Carton Depth (mm) 425 Carton Height (mm) 330 Carton Quantity 14 Carton Weight Gross (g) 10000 Included in Package - 1 - USB 3.0 Hub
- 1 - USB 3.0 Cable (2m)
- 1 - DIN Rail Mounting Kit
- 1 - Instruction Manual
- 1 - Terminal block
Package Depth (mm) 190 Package Height (mm) 67 Package Width (mm) 293 Package Quantity 1 Package Weight (g) 634 Packaging Description 7 Port Industrial SuperSpeed USB 3.0 Hub Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 7 Connector 2 USB-B (5Gbps, 4.5W) Connector 2 (Quantity) 1 Connector 3 Terminal Block (2 Wire) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DE,ES,EU,FR,IT,JP,NL,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
