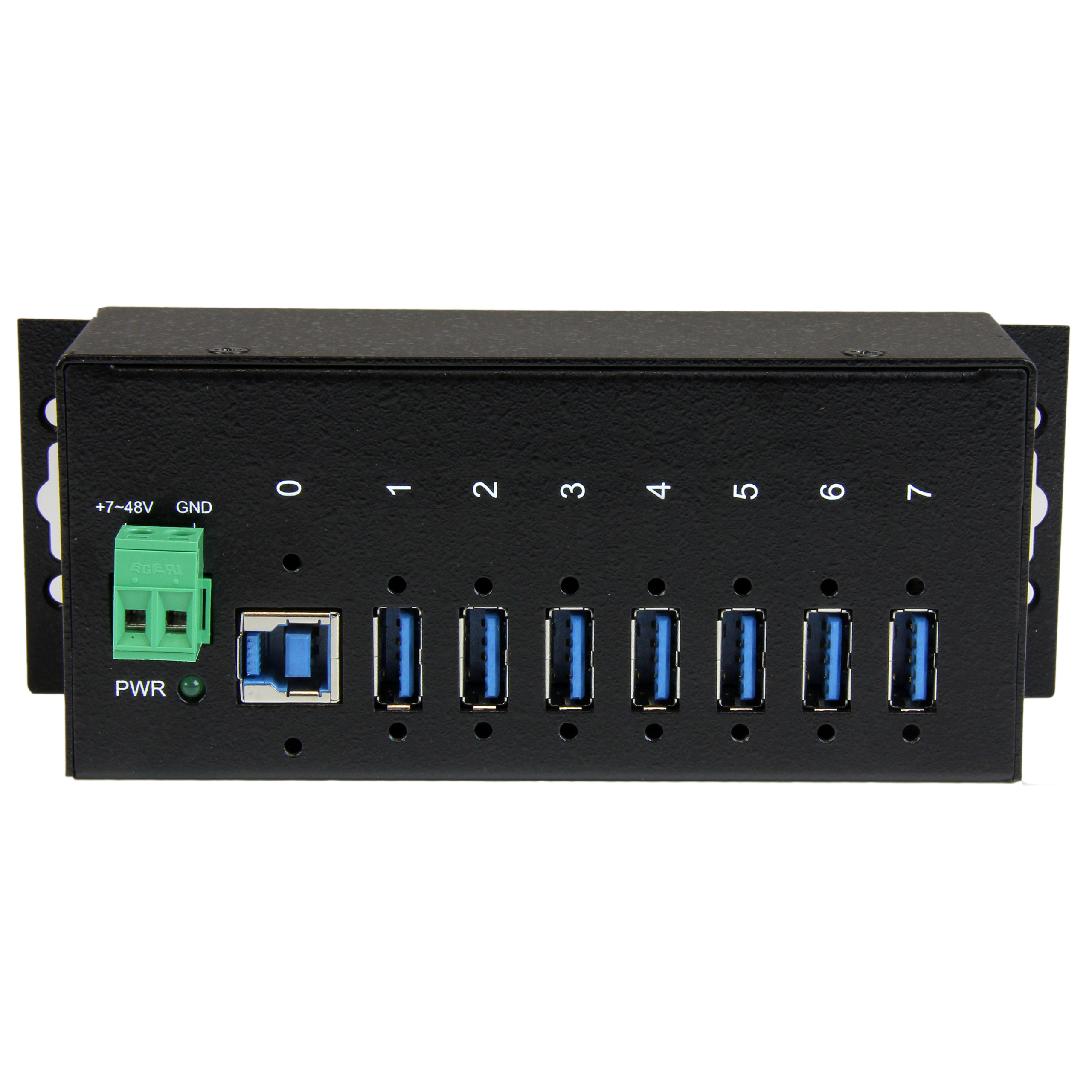

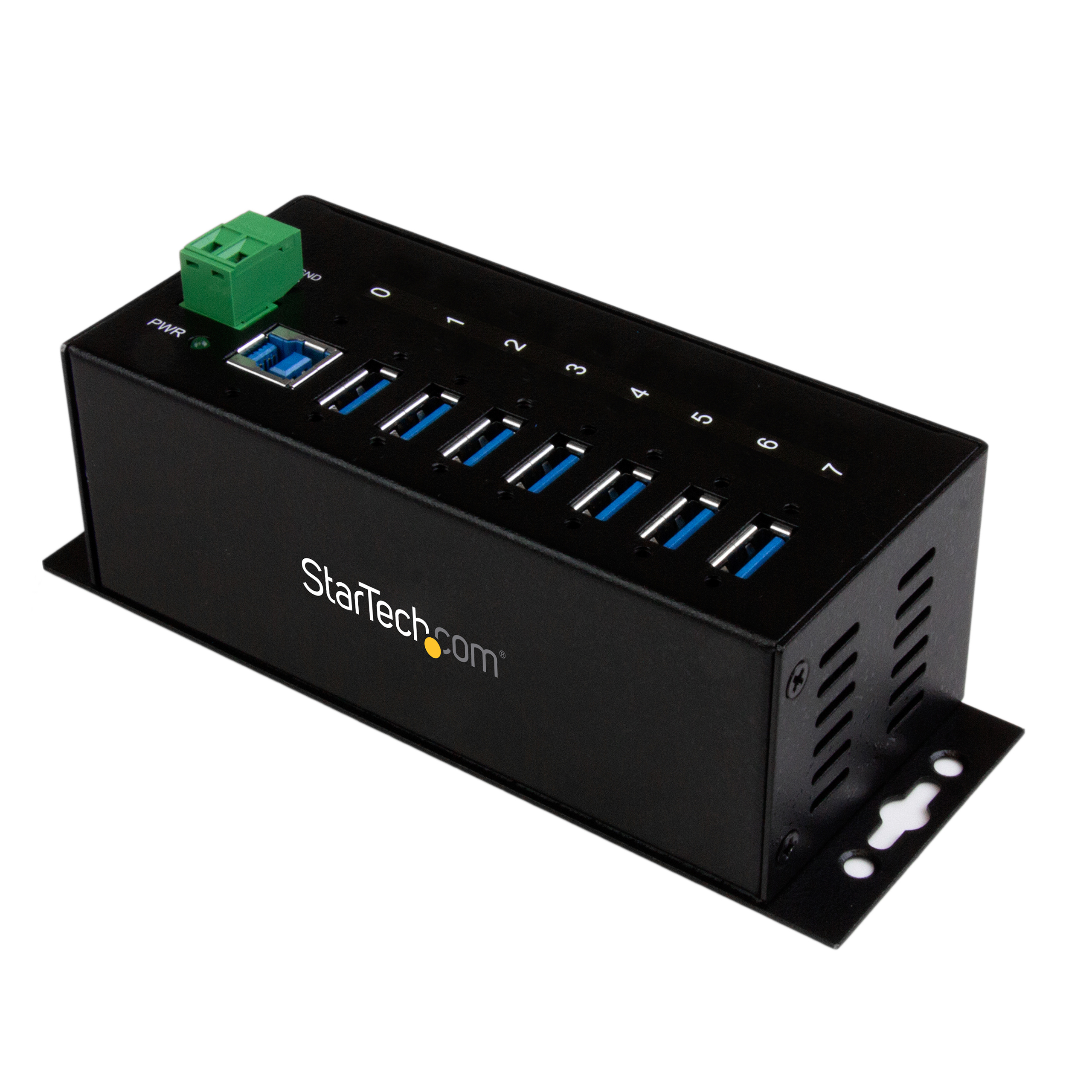

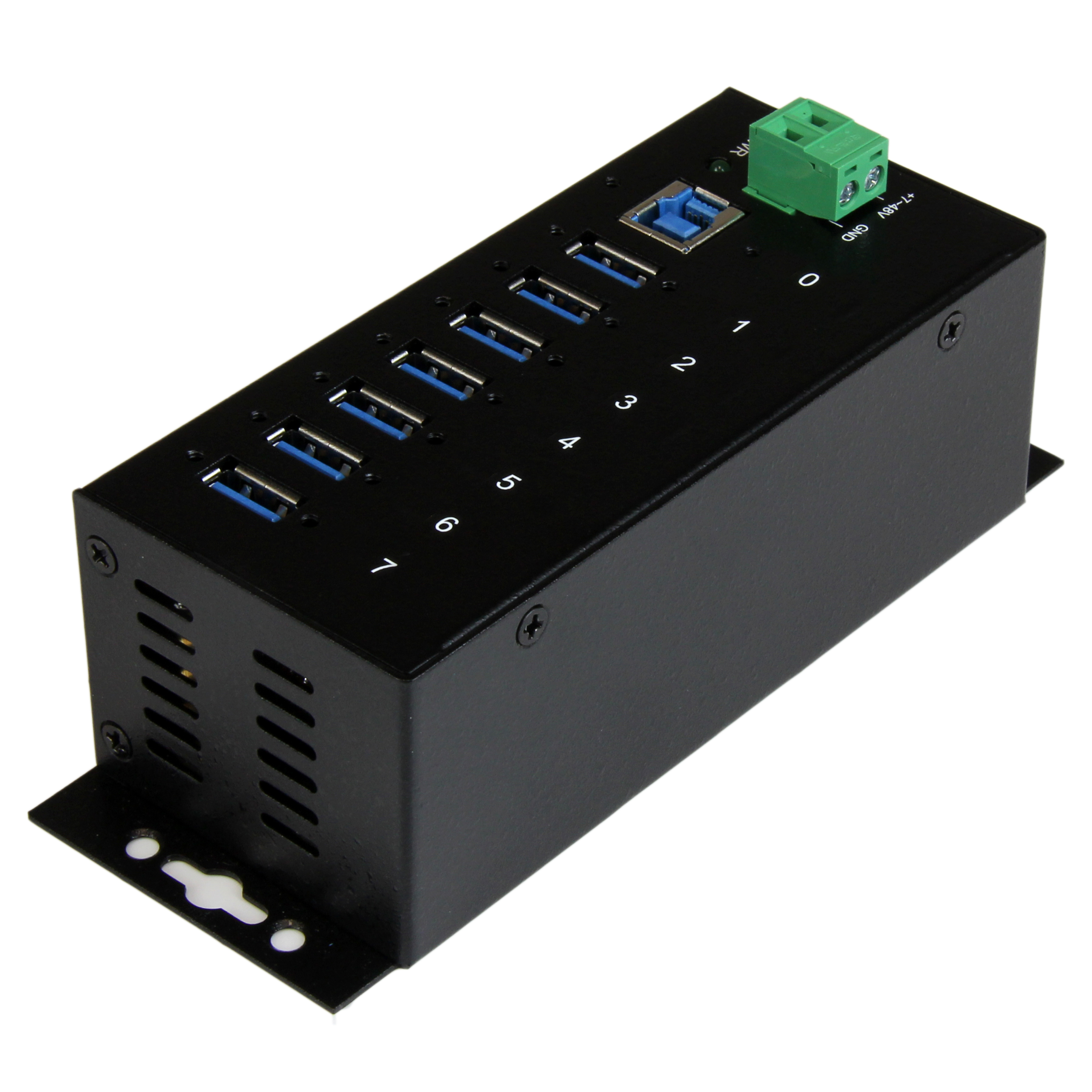

ST7300USBME
7 Port Industrial USB 5Gbps Hub w ESD Protection
Industrial-grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 5 Gbps
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 7 Port Industrial USB 5Gbps Hub w ESD Protection Product Number ST7300USBME UPC 065030860352 Lifecycle status Active Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 Industrial USB Hubs Category Level 3 Industrial USB Hubs - 5Gbps Family Industrial USB Hubs - 5Gbps - 7-Port Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Ultra-Short) 7 Port USB 3.0 Hub Product Title (Short) 7 Port Industrial USB 3.0 Hub - Metal Product Title (Medium) 7 Port Industrial USB 3.0 Hub - 5Gbps - 15kV ESD Protection - Mountable Product Title (Standard) 7 Port Industrial USB 3.0 Hub with ESD, 5Gbps, TAA Product Title (Long) 7-Port USB 3.0 Hub (5Gbps) - Metal Industrial USB-A Hub with ESD Protection & 350W Surge Protection - Din Rail, Wall or Desk Mountable - TAA Compliant USB Expander Hub Product Title (AMZ) 7-Port USB 3.0 Hub - 5Gbps - Metal Industrial USB-A Hub with ESD Protection & 350W Surge Protection - Din Rail, Wall or Desk Mountable - TAA Compliant USB Expander Hub (ST7300USBME) Title Ingram (Part 1) Rugged Metal 7Port USB 3.0 Hub Title Ingram (Part 2) - DIN Rail & Wall-mountable Hub Website Product Headline Industrial-grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 5 Gbps Bullet 1 Surge protection of 350W on the downstream and upstream USB ports Bullet 2 Mount industrial USB 3.2 Gen 1 hub where required with built-in mounting brackets or included DIN rails Bullet 3 Offers flexible, wide-range power inputs with a 7-48V DC terminal block Bullet 4 USB Battery Charging Specification 1.2 up to 2.4A on any port to a maximum of 35W total Bullet 5 Protects your connected devices with 15kV Air and 8kV Contact ESD protection Bullets (Consolidated) Protects your connected devices with 15kV Air and 8kV Contact ESD protection - Surge protection of 350W on the downstream and upstream USB ports - Mount industrial USB hub where required with built-in mounting brackets or included DIN rails - Offers flexible, wide-range power inputs with a 7-48V DC terminal block - USB Battery Charging Specification 1.2 up to 2.4A on any port to a maximum of 35W total Marketing Copy Marketing Copy (No HTML) This TAA compliant 7-port industrial USB 3.2 Gen 1 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-48V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities. Perfect for factory environments, the industrial-grade hub also supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port. Designed for a high volume of connections, this robust USB 3.2 Gen 1 hub offers 7 connection ports, for connecting more USB devices and peripherals. The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 35W total. With versatile installation options, you can install the hub where it's best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.2 Gen 1 hub to most surfaces such as a wall, under a desk or rack. This mountable USB hub supports the full 5Gbps bandwidth of USB 3.2 Gen 1 and is backward compatible with previous USB devices. You can connect your legacy peripherals alongside your newer USB 3.2 Gen 1 devices without any disruptions. The 7-port industrial USB 3.2 Gen 1 hub is backed by a StarTech.com 2-year warranty and free lifetime technical support. Applications - Ideal for tough conditions that are subject to large temperature variances, or where there’s a risk of physical damage
- Great for industrial and manufacturing environments where only terminal block connection is preferred
- Connect a variety of USB devices such as industrial printers or cameras, plus fast-charge your smartphone and tablet

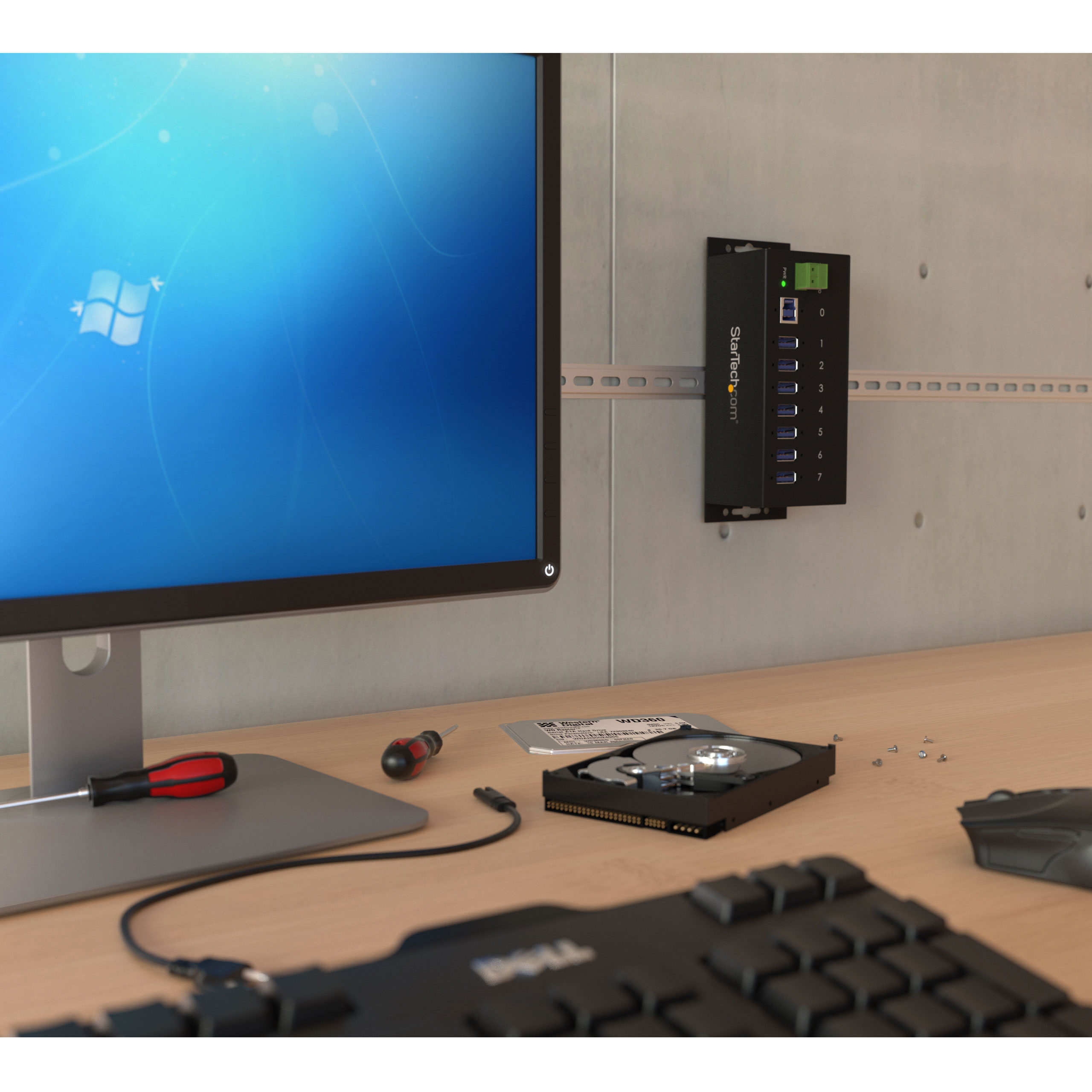

- Mount to a wall near or under a desk surface in a Lab, Service Repair area or office area connecting multiple USB peripherals
- Use in a conference or meeting room utilizing multiple USB peripherals or for charging several mobile devices
Website Search Keyword - 7 port usb 3.0 hub
- USB hubs
- USB 3 hub
- 7port USB 3.0 hub
- Seven Port USB Hub
- metal usb 3.0 hub
- USB 3.0 hub
- wall mountable usb hub
- wall mountable hub
- 7 port usb hub
- usb 3.0 hub 7 port
- superspeed usb hub
- superspeed usb 3.0 hub
- 7 port industrial rugged usb 3.0 hub
- 7 port metal industrial usb 3.0 hub
- factory usb 3.0 hub
- usb 3.0 hub with terminal block
- 7 port mountable usb 3.0 hub
- mountable usb 3.0 hub
- industrial usb hub
- 7 port industrial metal usb 3.0 hub
- 7 port rugged industrial usb 3.0 hub
- usb 3.0 hub with esd
- usb 3.0 hub with surge
- 7 port metal usb 3.0 hub
- 7 port rugged usb 3.0 hub
- 7 port industrial usb 3.0 hub
- usb hub
- metal usb hub
- rugged usb hub
- U360-007-IND
- U360007IND
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes - If connected to a USB 2.0 host port, performance may be limited
- This product is intended for use with terminal block power only – Standard AC adapter not available
System and Cable Requirements Host computer with an available USB 3.0 port Accessory Products - PEXUSB3S7
- PEXUSB3S2EI
- PEXUSB3S24
- ICUSB2321F
- USB3SAB3BK
- USB2HAB6
- USB3SAB10BK
- SAT3510BU3
- ECUSB3S22
- USB3SAA6BK
- ITB20D3250
Related Products - ST7300U3M
- ST4300USBMS
- ST7300USBM
- ST4300USBM
- ST7300USB3B
Input Voltage 7 ~ 48 DC Power Source Terminal Block Color Black Extended Temperature Range Yes Humidity 5%~95% RH (Non-condensing) Material Steel Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Steel Product Length (mm) 145 Product Width (mm) 54 Product Height (mm) 45 Product Weight (g) 325 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes Device Power Consumption (In Watts) 41 Watts Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) ESD Protection - +/-15kV (Air)
- +/-8kV (Contact)

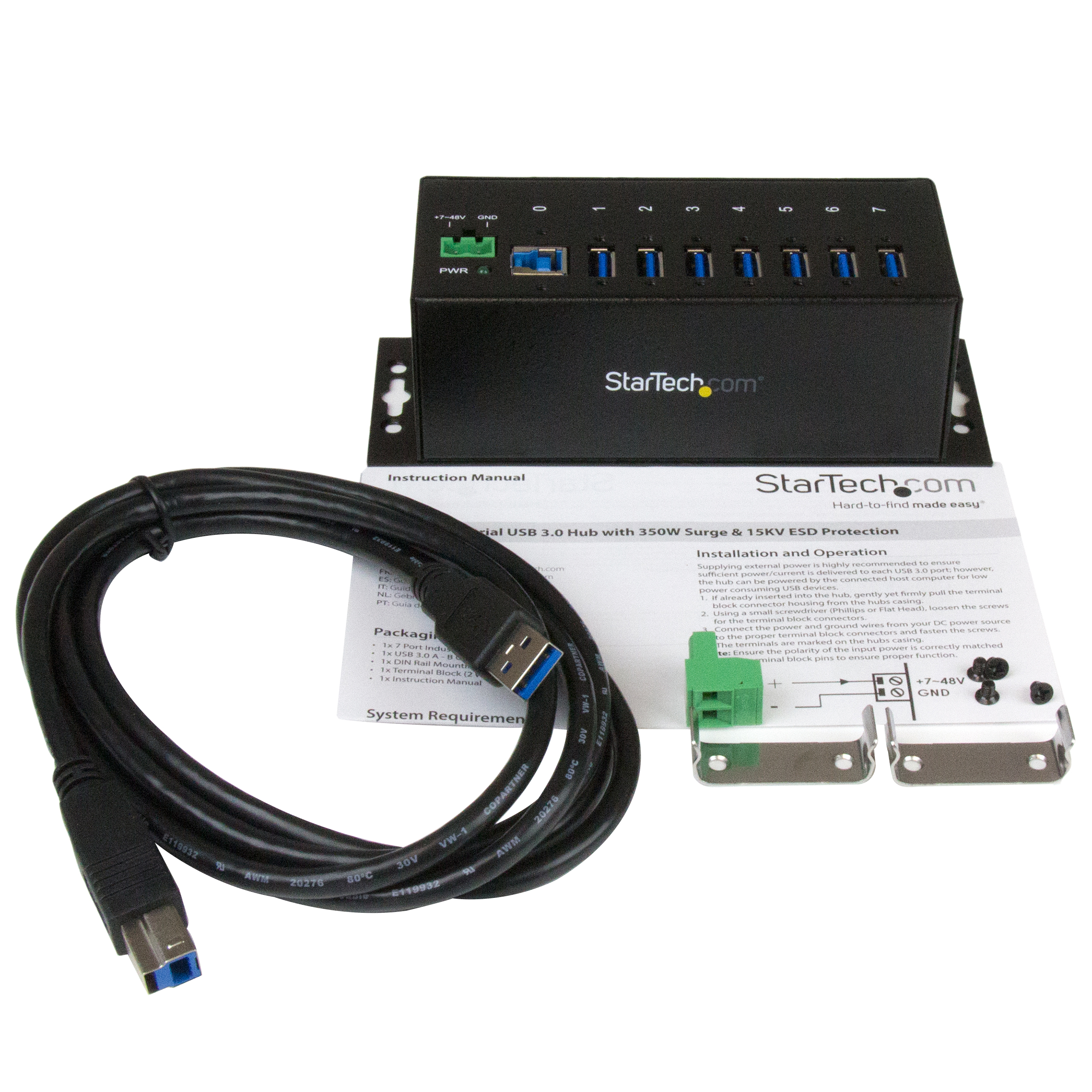

Maximum Data Transfer Rate 5 Gbps (USB 3.2 Gen 1) MTBF (hours) 126,106 Hours OS Compatibility OS Independent Surge Protection 350W on the DFP and UFP Total Available Power Output (In Watts) 31.5 Watts USB Type and Rate USB 5Gbps Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID Genesys Logic - GL3520 Industry Standards Interface/Bridge USB 3.2 Gen 1 (5Gbps) Laptop Dock / USB Hub Fast-Charge Yes LED Indicators 1 - Power (Green) Mounting Options Surface Mount USB-C Device Port(s) No USB-C Host Connection No Carton Depth (mm) 515 Carton Height (mm) 325 Carton Quantity 14 Carton Weight Gross (g) 9714 Included in Package - 1 - 7 Port Industrial USB 3.0 Hub
- 1 - Instruction Manual
- 1 - Terminal Block (2 Wire)
- 1 - USB 3.0 A - B Cable
- 1 - DIN Rail Mounting Kit
Included In Package for Label - 1 - 7 Port Industrial USB 3.0 Hub
- 1 - Instruction Manual
- 1 - Terminal Block (2 Wire)
- 1 - USB 3.0 A - B Cable
- 1 - DIN Rail Mounting Kit
Package Depth (mm) 190 Package Height (mm) 71 Package Width (mm) 294 Package Quantity 1 Package Weight (g) 632 Packaging Description 7 Port Industrial USB 3.0 Hub w/ ESD Protection Packaging Description India 7-Port Industrial USB 5Gbps Hub w/ ESD Protection Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 7 Connector 2 USB-B (5Gbps, 4.5W) Connector 2 (Quantity) 1 Connector 3 Terminal Block (2 Wire) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2014-09-17 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,HK,IE,IN,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Production Release 2015-01-23 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine
