ST7320USBC
7 Port USB 3 0 2 0 Hub with Charger
Add 2x USB 3.2 Gen 1 and 4x USB 2.0 ports to a computer, externally through a single USB 3.2 Gen 1 connection
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 7 Port USB 3 0 2 0 Hub with Charger Product Number ST7320USBC UPC 065030847865 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 USB-A Hubs Category Level 3 USB-A External Powered Hubs - 5Gbps Family USB-A External Powered Hubs - 5Gbps - 7-Port Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX080X Product Title (Short) 6 Port USB 3.0 / USB 2.0 Combo Hub Product Title (Standard) 6 Port USB 3.0 / USB 2.0 Combo Hub with 2A Charging Port – 2x USB 3.0 & 4x USB 2.0 Product Title (Long) 6 Port USB 3.0 / USB 2.0 Combo Hub with 2A Charging Port – 2x USB 3.0 & 4x USB 2.0 Product Title (AMZ) 7 Port USB Hub - 2 x USB 3A, 4 x USB 2A, 1 x Dedicated Charging Port - USB 3.0 - 5Gbps - Multi Port Powered USB Hub with 20W Power Adapter (ST7320USBC) Title Ingram (Part 1) 6Port USB Combo Hub - 2x USB 3.0 Title Ingram (Part 2) & 4x USB 2.0 - 2A Charging Hub Website Product Headline Add 2x USB 3.2 Gen 1 and 4x USB 2.0 ports to a computer, externally through a single USB 3.2 Gen 1 connection Bullet 1 2x USB 3.2 Gen 1 and 4x USB 2.0 ports that can be all accessed simultaneously Bullet 2 2 Amp high output USB Dedicated Charging Port (DCP) Bullet 3 SuperSpeed USB 3.2 Gen 1 compliant host interface, with support for up to 5 Gbps of data bandwidth Bullet 4 Includes 20 watt power adapter and host USB 3.2 Gen 1 cable Bullet 5 Universal, multi-platform compatible, with no additional drivers or software required Bullets (Consolidated) Add two USB 3.2 Gen 1 and four USB 2.0 ports to your computer through a single USB 3.2 Gen 1 connection plus add a Dedicated Charging Port (DCP) - 6 Port USB 3.2 Gen 1/USB 2.0 Combo Hub Plus 2 Amp Charging Port - Special high-output dedicated charging port enables fast charging of mobile devices such as smartphones and tablets - Includes 20 watt power adapter and host USB 3.2 Gen 1 cable - Works with virtually any USB 3.2 Gen 1 equipped computer - OS independent USB 3.2 Gen 1 Hub w/ Charge Port/Notebook/Laptop/Desktop USB Hub Marketing Copy Applications - Add multiple USB 3.0 and USB 2.0 to a computer system to support more device connections
- Extend the range of a USB device by having the hub act as a mid-point repeater
- Charge a Smartphone
- Make USB ports that are hard to access more accessible, by being positioning the hub in a convenient location (within cable reach)
- Charging high-powered portable devices (such as tablets) which require special high output USB ports for charging
Website Search Keyword - iphone charging
- usb 3.0 hub
- superspeed usb 3.0
- ipad charging
- usb charging port
- usb 2.0 hub
- smartphone usb charging
- tablet charging
- ipod charging
- U360-412
- U360-007C-2X3
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement

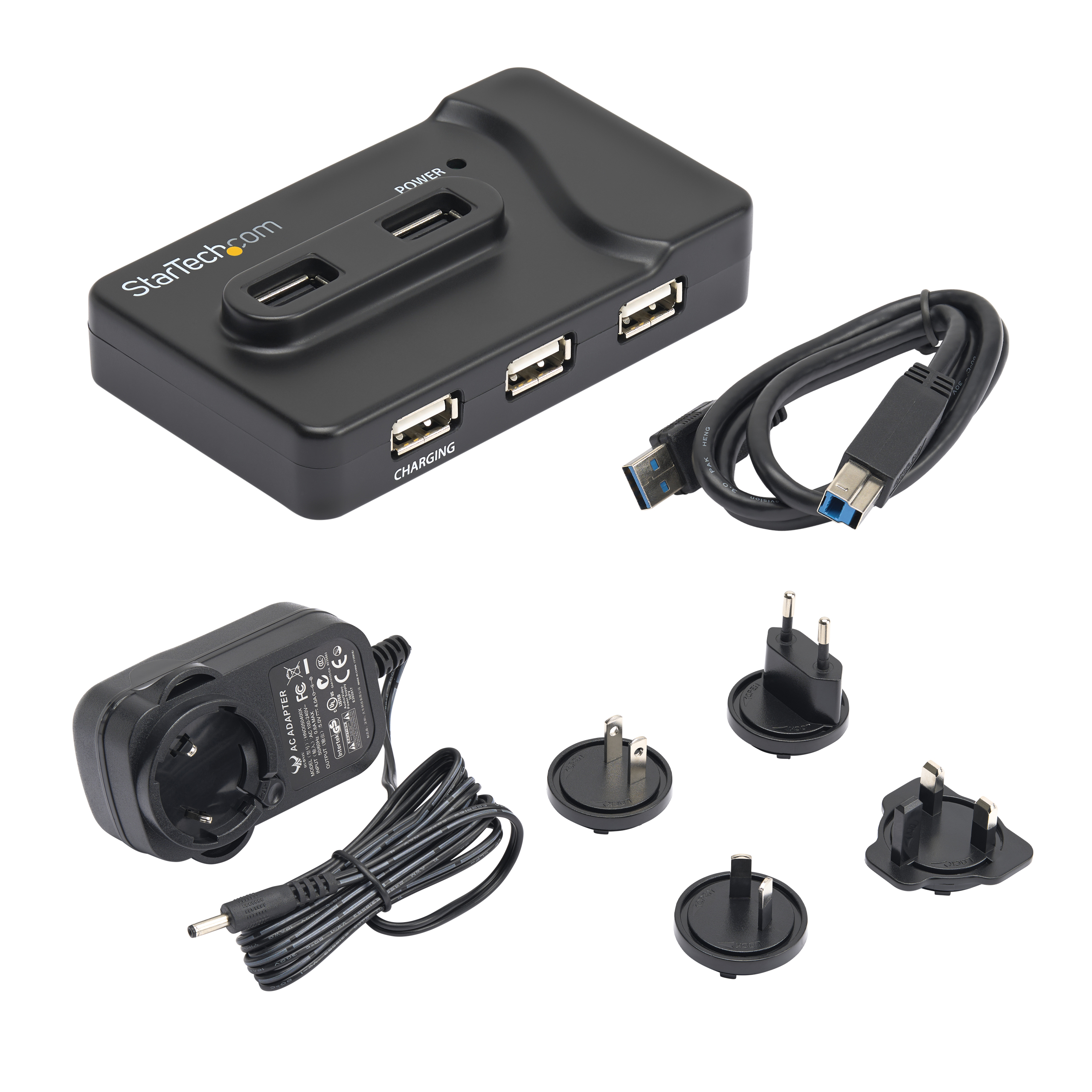

System and Cable Requirements Available USB 3.0 or 2.0 port Input Current 1.5 A Input Voltage 100 - 240 AC Output Current 4 A Output Voltage (V) 5 DC Power Consumption (In Watts) 20 Power Source AC Adapter Included Plug Type H Color Black Humidity 5~90% RH Material Plastic Operating Temperature 0°C to 85°C (32°F to 185°F) Primary Material Plastic Product Length (mm) 99.000 Product Width (mm) 60.000 Product Height (mm) 20.000 Product Weight (g) 74.000 Storage Temperature -10°C to 95°C (14°F to 203°F) TAA Compliant No Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Fast Charge Ports (BC 1.2) Yes OS Compatibility OS Independent USB Type and Rate USB 5Gbps Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID VIA/VLI - VL817 Ethernet Port No Interface/Bridge USB 3.2 Gen 1 (5Gbps) Laptop Dock / USB Hub Fast-Charge Yes LED Indicators 1 - Power USB-C Device Port(s) No USB-C Host Connection No Carton Depth (mm) 536 Carton Height (mm) 274 Carton Quantity 20 Carton Weight Gross (g) 10116 Included in Package - 1 - USB 3.0 Cable
- 4 - Universal Power Adapter (NA/JP, EU, UK, ANZ)
- 1 - Instruction Manual
- 1 - 6 Port USB Hub
Package Depth (mm) 139 Package Height (mm) 104 Package Width (mm) 121 Package Quantity 1 Package Weight (g) 464 Packaging Description 6 Port USB 3.0/2.0 Hub with Charging Port Packaging Description India 6 Port USB 3.0/2.0 Hub with Charging Port Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-B (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 2 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 4 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2013-02-25 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,JP,MX,NL,PE,SE,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream
