ST7CU35122

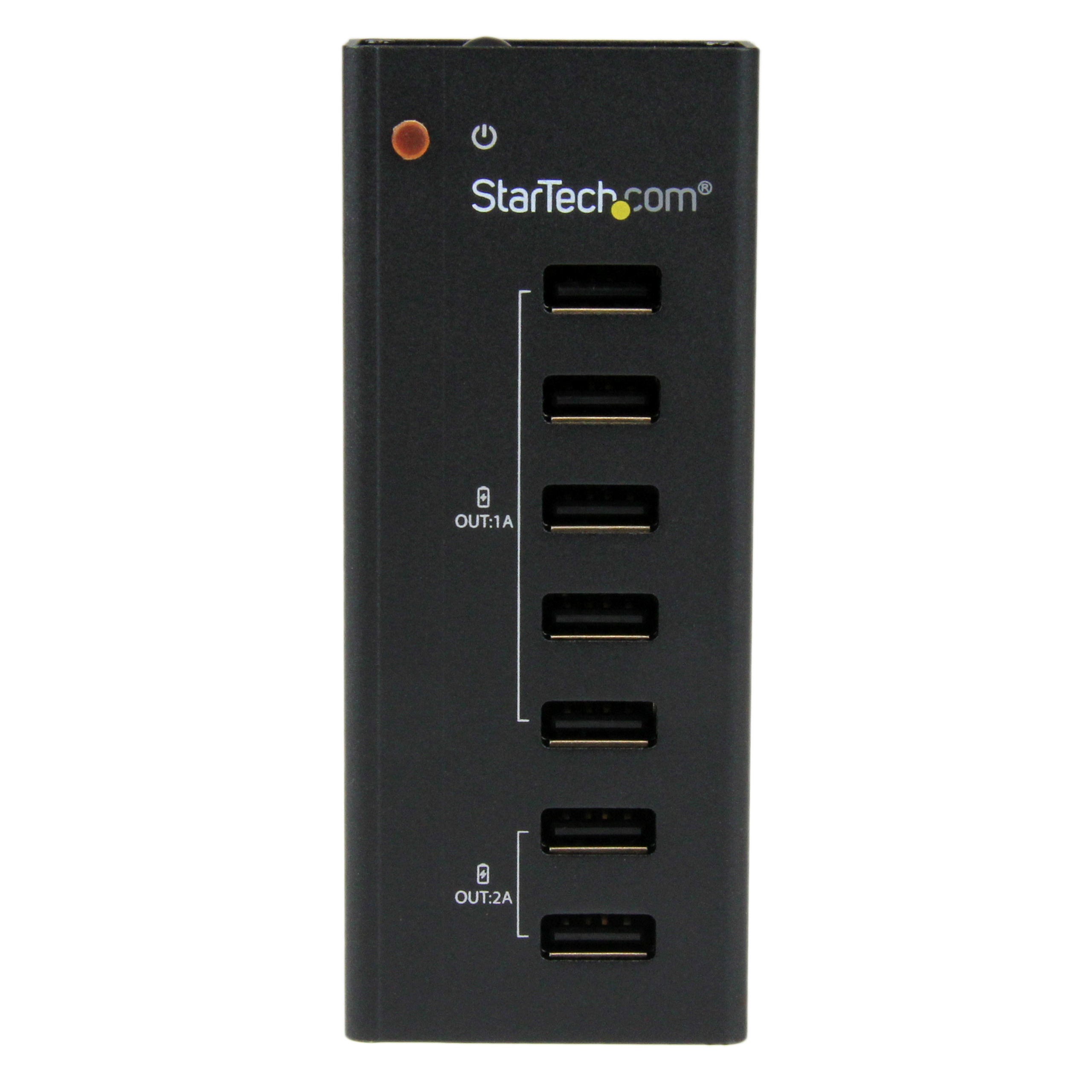

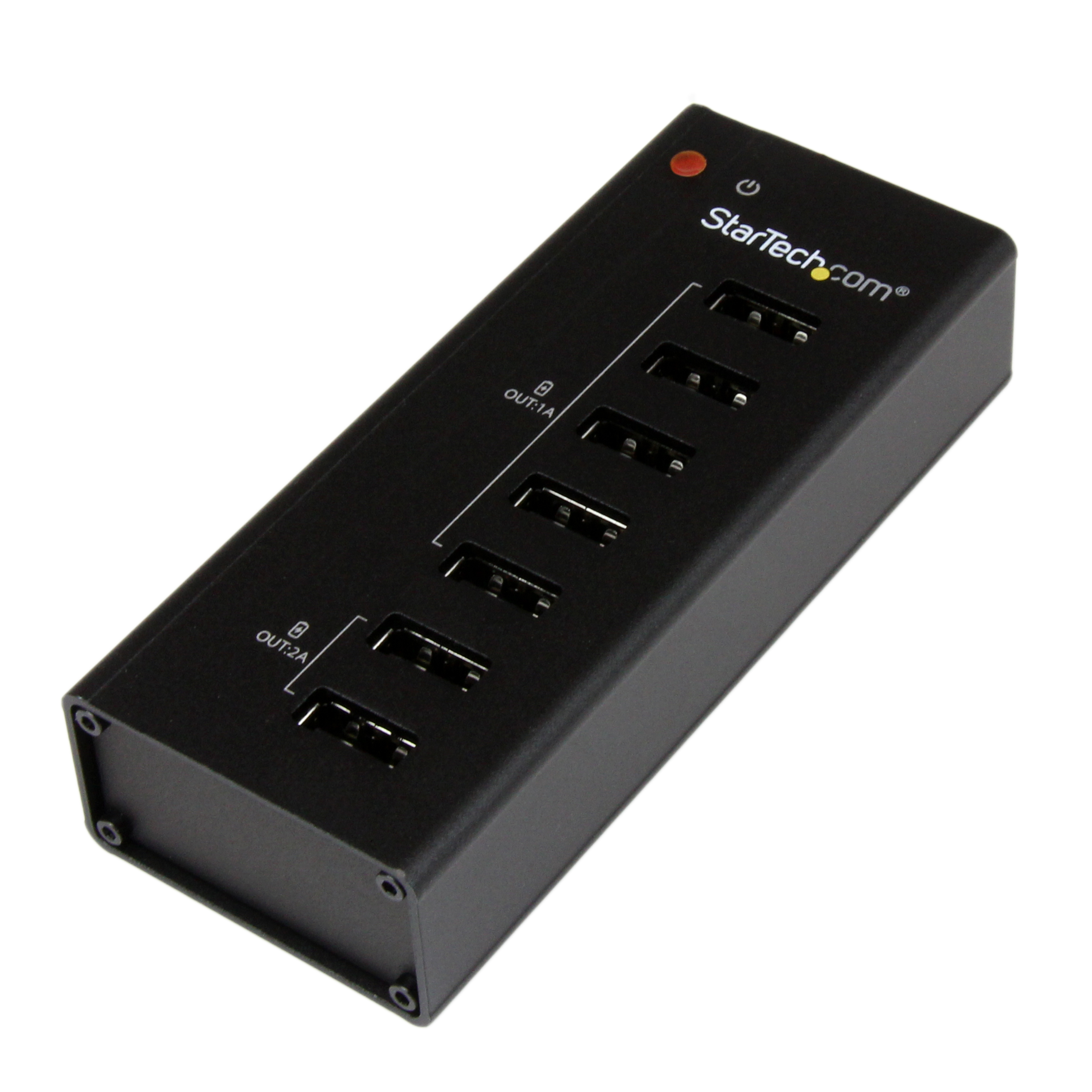

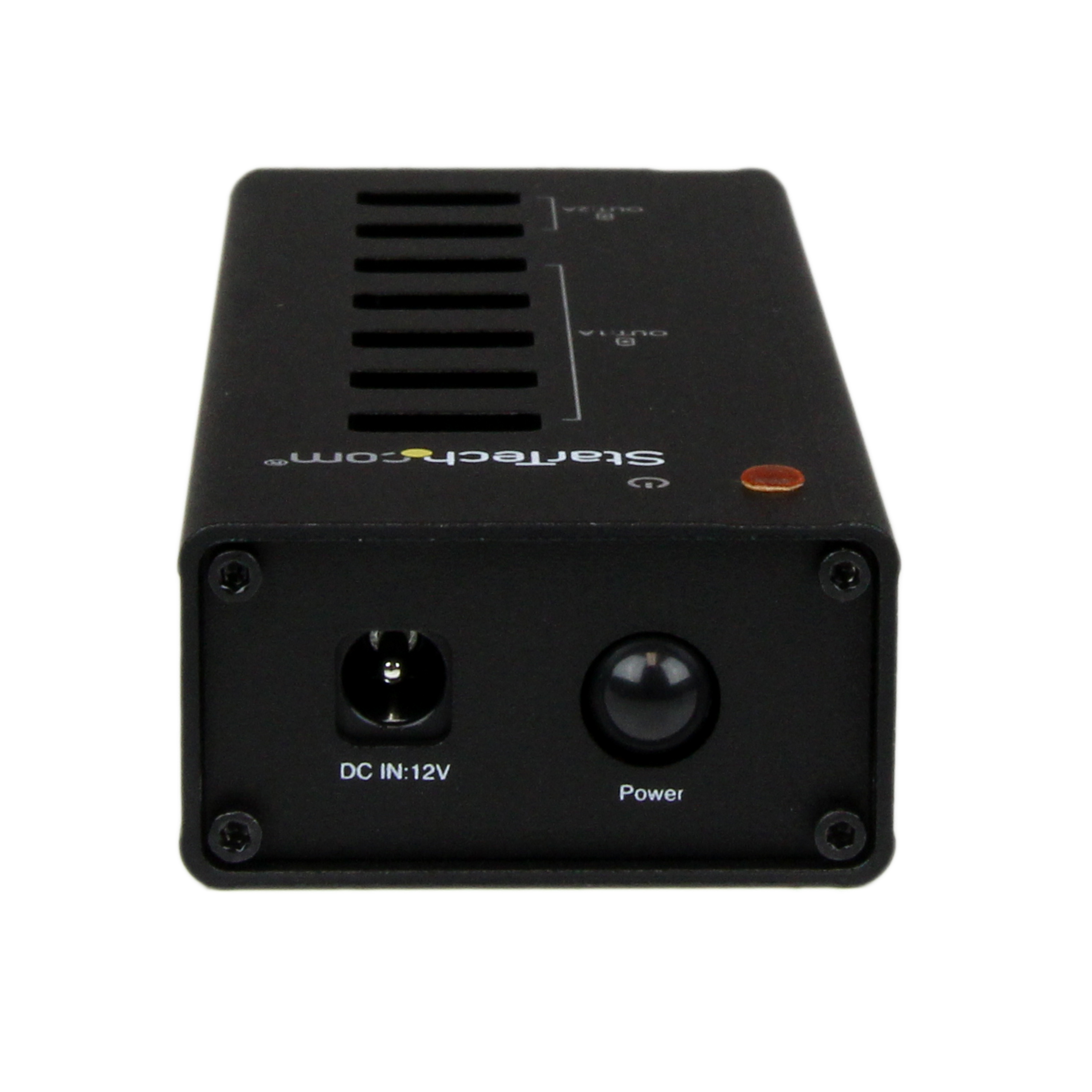

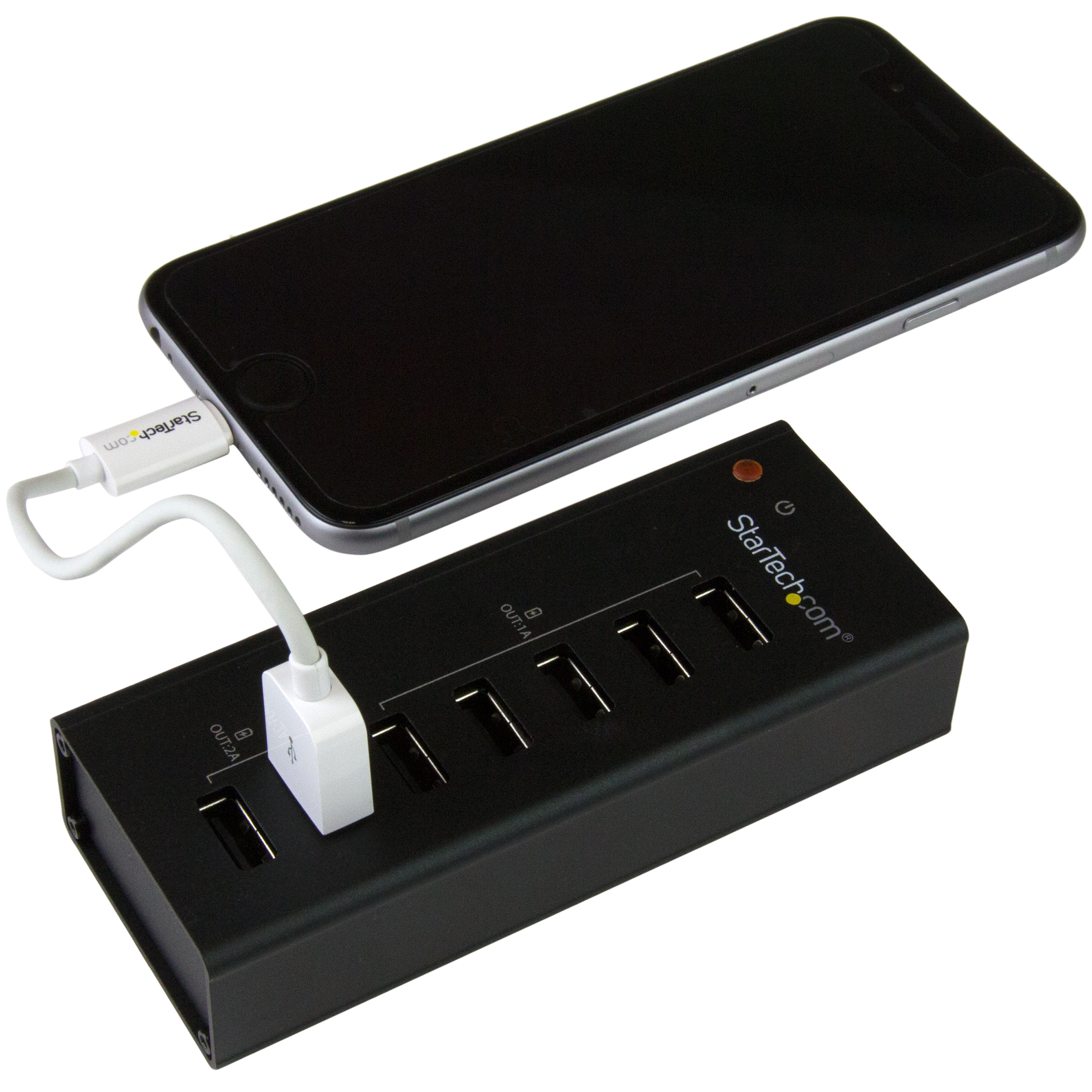

7Port USB Charge Station - USB Charging Strip
Set up an external 7 port USB charging station for your tablets, smartphones and other mobile devices
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 7Port USB Charge Station - USB Charging Strip Product Number ST7CU35122 UPC 065030854658 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Workstation Accessories Category Level 2 Mobile Device Chargers Category Level 3 Charging Hubs Family USB-A Charge Hubs Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX073X Product Title (Ultra-Short) USB Charging Station Product Title (Short) 7 Port USB Charging Station (5x1A, 2x2A) Product Title (Standard) 7 Port Dedicated USB Charging Station (5 x 1A, 2 x 2A) - Standalone Multi-Port USB Charger Product Title (Long) 7-Port Charging Station for USB Devices Product Title (AMZ) 7 Port Dedicated USB Charging Station (5 x 1A, 2 x 2A) - Standalone Multi-Port USB Charger - USB Charge Station (ST7CU35122) Title Ingram (Part 1) 7Port USB Charge Station - Title Ingram (Part 2) Multi-Port USB Charging Strip Website Product Headline Set up an external 7 port USB charging station for your tablets, smartphones and other mobile devices Bullet 1 No PC connection required Bullet 2 Charge multiple devices with dedicated charging ports - 5 x 1A, 2 x 2A Bullet 3 Integrated physical On/Off power button Bullet 4 Supports USB Battery Charging Specification 1.2, including Apple® and Samsung Galaxy™ devices Bullet 5 Compact, metal enclosure Bullets (Consolidated) Set up a portable seven port USB charging station for tablets smartphones and other mobile devices - 7 Port Dedicated USB Charging Station (5x 1A, 2x 2A)/Standalone Multi-Port USB Charger - Use in IT helpdesk or tech bench environments to charge multiple tablets smartphones or other USB device - Charge multiple devices/Fast-charges most mobile devices - Includes bracket for surface or wall-mount - USB Battery Charging Specification 1.2 Charge Hub -7 Port USB Hub/USB Port Expander Marketing Copy Applications - Use in IT helpdesk or tech bench environments to charge multiple tablets, smartphones or other USB devices
- Setup a USB charging station at home for the whole family

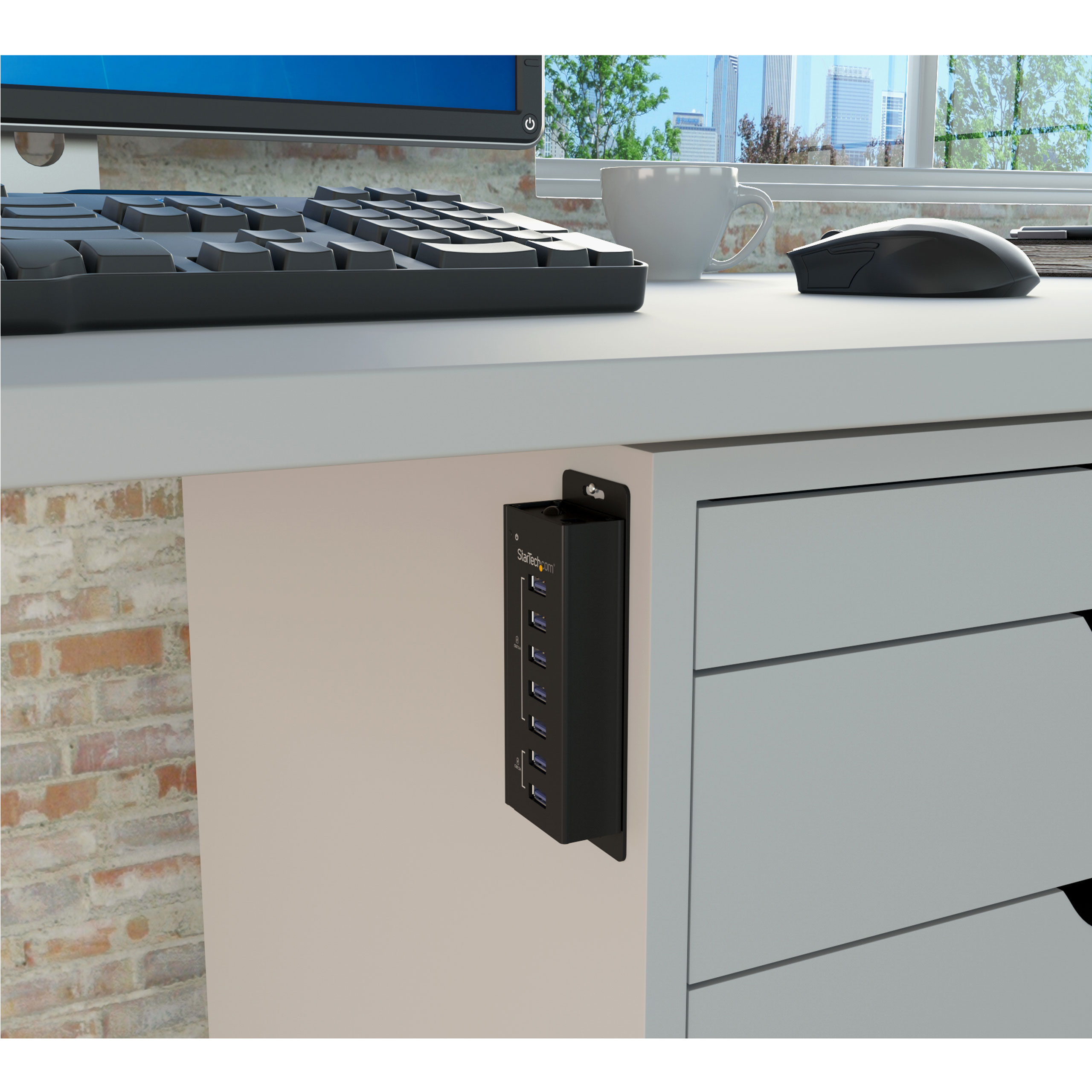

- Installation in locations where USB-A ports need to be securely mounted to a surface, such as a wall or on a desk
Website Search Keyword - USB Charging Station
- Standalone USB Charger
- USB Charge Station
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Special Notes The ST7CU35122 supports a maximum of 36 watts, which allows a maximum of up to four high-powered devices to be connected and charging at any one time (2x 1A and 2x 2A). Accessory Products - USB2UBSDC
- UUSBHAUB1
- USB2HABM3RA
- USBLT1MW
- USBLT1MB
- USB2ADC1MUL
- USB2ADC1MB
- USB3CAUB1M
- SVA12M5NA

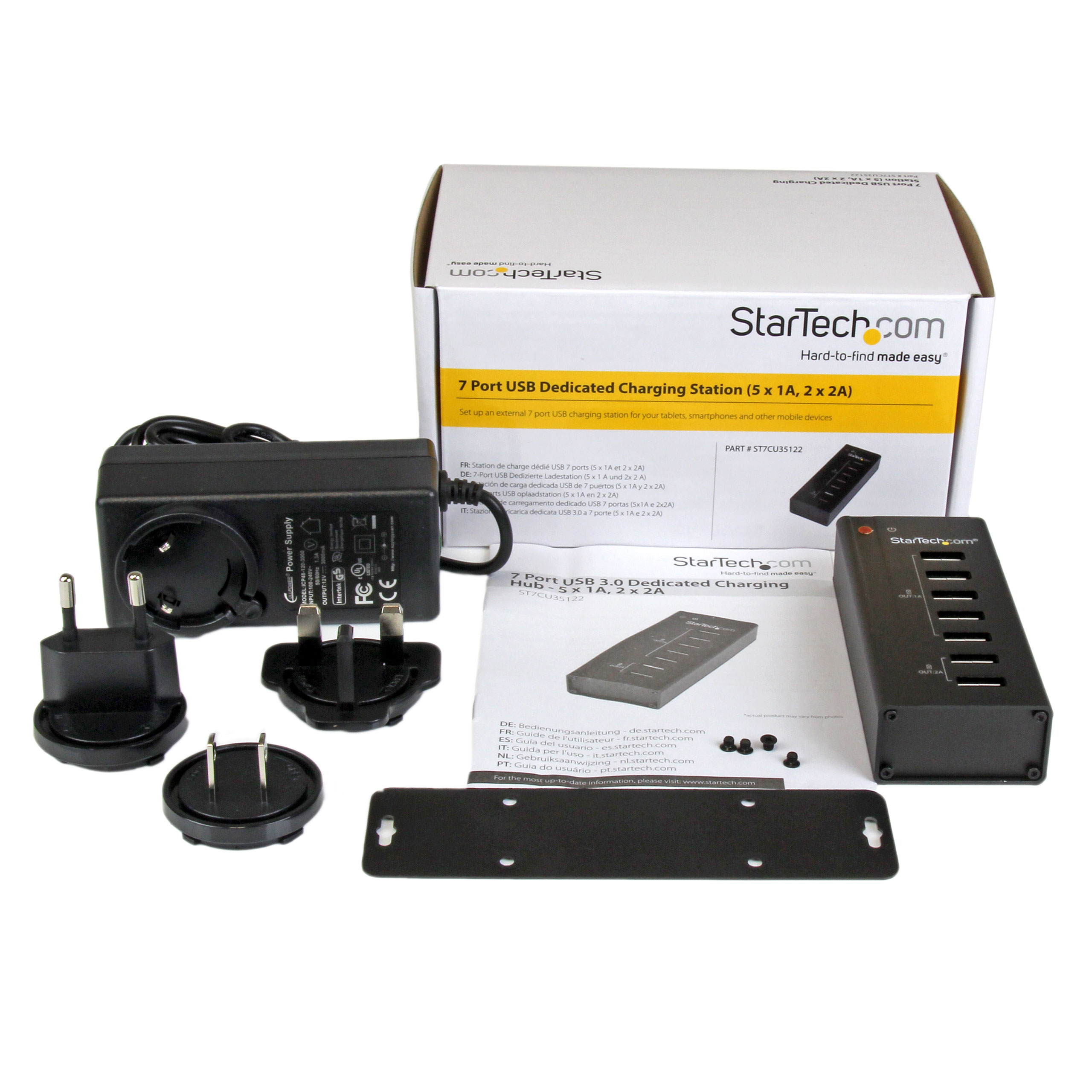

Related Products ST7320USBC Input Current 1.5 A Input Voltage 100 - 240 AC Output Current 3 A Output Voltage (V) 12V DC Power Consumption (In Watts) 36 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 20~80% RH Material Aluminum Operating Temperature 5°C to 35°C (41°F to 95°F) Product Length (mm) 110.000 Product Width (mm) 45.000 Product Height (mm) 24.000 Product Weight (g) 126.000 Storage Temperature -20°C to 50°C (-4°F to 122°F) TAA Compliant No Industry Standards USB Battery Charging Specification Rev. 1.2 LED Indicators 1 - Power Carton Depth (mm) 362 Carton Height (mm) 357 Carton Quantity 30 Carton Weight Gross (g) 17540 Included in Package - 1 - USB Charging Station
- 1 - Instruction Manual
- 1 - Universal Power Adapter (NA/JP, EU, UK, ANZ)
- 1 - Wall-Mount Bracket (w/ Screws)
- 4 - Rubber Feet
Package Depth (mm) 105 Package Height (mm) 88 Package Width (mm) 167 Package Quantity 1 Package Weight (g) 545 Packaging Description 7 Port USB Dedicated Charging Station (5 x 1A, 2 x 2A) Packaging Description India 7 Port USB Dedicated Charging Station (5 x 1A, 2 x 2A) Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (480Mbps, 2.5W) Connector 1 (Quantity) 7 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2013-10-30 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,EU,HK,JP,NZ,UK,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Alex Garcia Product Manager Tony Parackal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Alex Garcia Technology Lifecycle Legacy
