ST810BT
Main Image

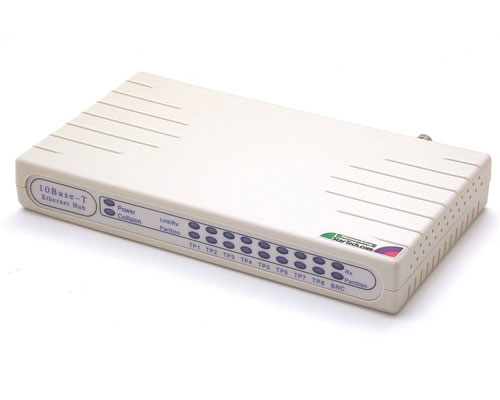

Product Name *D*Compact 8-port 10BaseT Hub Product Number ST810BT UPC 065030772976 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) *D*Compact 8-port 10BaseT Hub Bullet 1 Complies with IEEE 802.3 10Base2, 10Base5, and 10BaseT standards Bullet 2 Amplifies and regenerates signals to and from attached host devices and repeaters Bullet 3 Allows data recovery without signal distortion Bullet 4 Automatic bad port partitioning isolates problem-causing workstations Bullet 5 LEDs indicate Link/Rx and Partition for each STP port, Collision, and Power Marketing Copy The StarTech.com 8-port 10Mbps network hub is an IEEE 802.3 compliant, wall-mountable hub that offers 8 STP ports, 1 BNC port and 1 uplink port. The internal power adapter is capable of operating at voltages between 100VAC and 240VAC, at frequencies between 50-60 Hz. This high-performance hub with its status indicating LED's, is a flexible and expandible cost-effective solution. Applications - UTP/STP network connections, BNC network connections
- Perfect for creating a fast small business network
- Great for adding small workgroups to an existing network
TAA Compliant No General Specifications - Standards: IEEE 802.3 10Base2, 10Base5, and 10BaseT
- STP Ports: (8) RJ-45
- Uplink Ports: (1) RJ-45
- BNC Ports: (1) BNC (thin Ethernet)
- LEDs: Link/Receive, Partition, Collision, Power
- Dimensions: 197x132x33mm
- Weight: 316g (0.697 lb.)
- Operating Environment: 5~65 deg C, 90% max. relative humidity non-condensing
- Power: 6VDC, 0.7A
- Safety: UL, CSA, TUV Certified
- Certifications: FCC Part 15 Class A, CE Mark
Included in Package - 1 - ETHERNET HUB
- 1 - ADAPTOR
- 1 - INSTRUCTION MANUAL
- 1 - SET OF SCREWS (METAL and PLASTIC)
- 1 - CONNECTOR
