STDHVHDBT

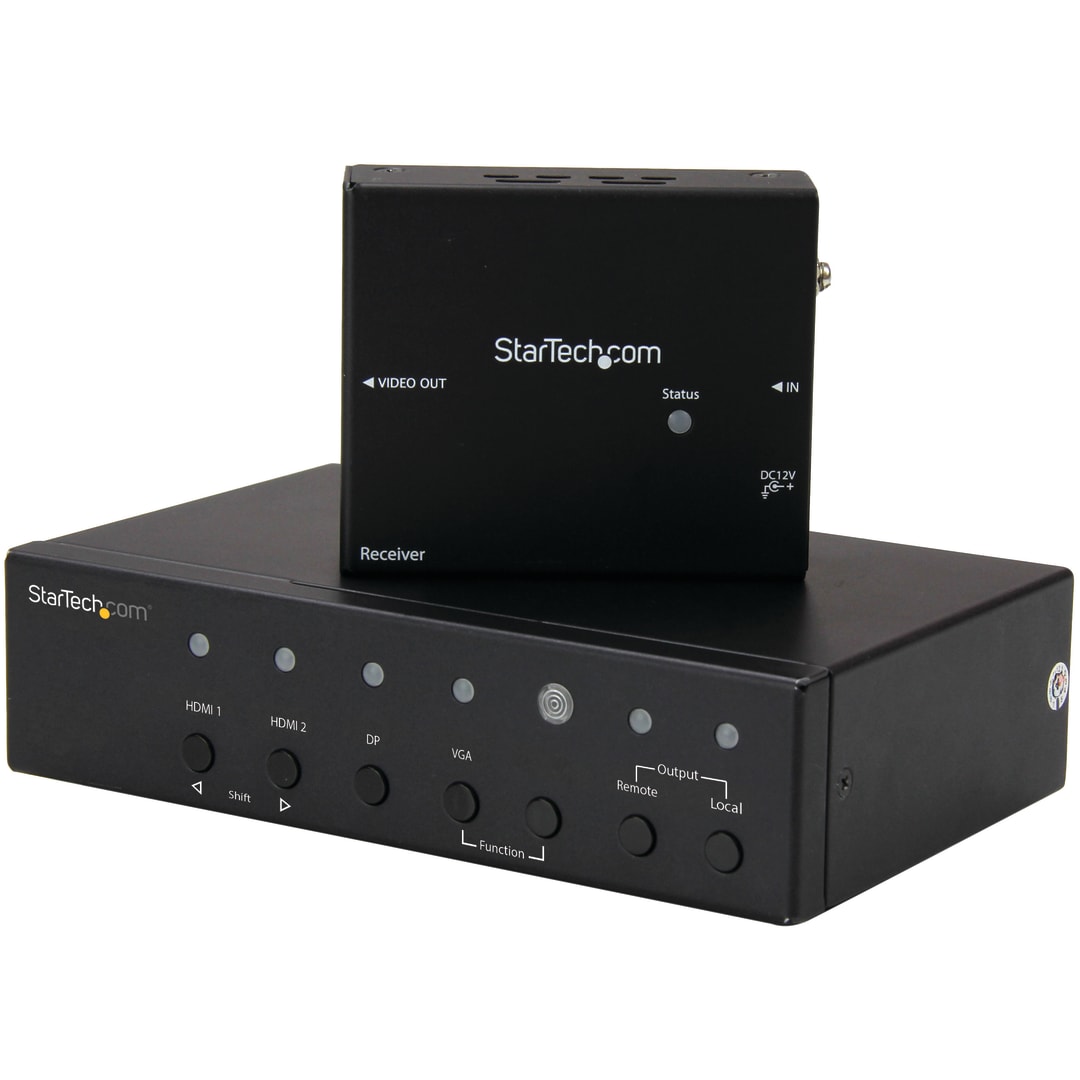

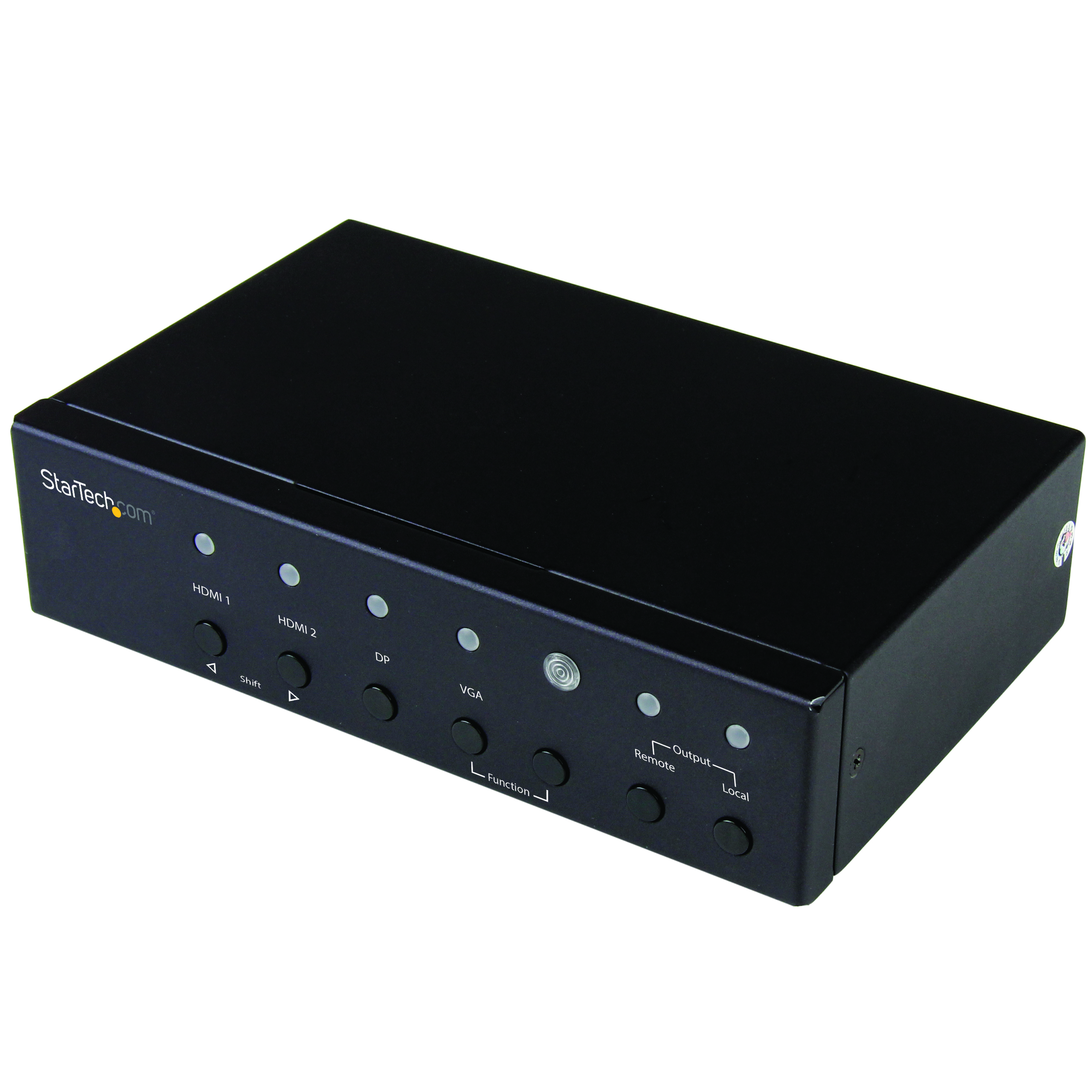

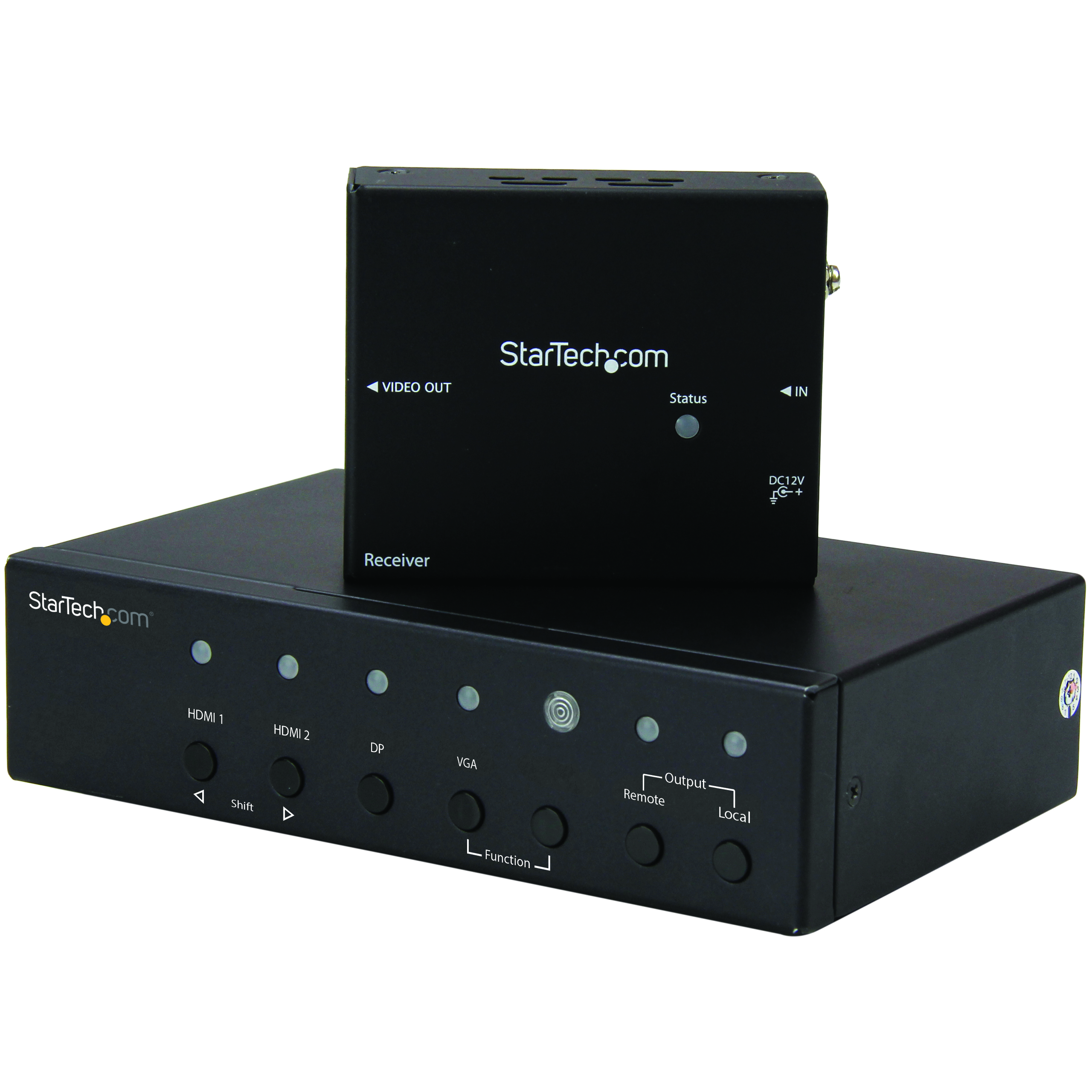

Multi-Input HDBaseT Transmitter
Connect your laptop to a remote display over standard CAT5e or CAT6 cabling, and easily swap between HDMI, DP or VGA video sources
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name Multi-Input HDBaseT Transmitter Product Number STDHVHDBT UPC 065030864572 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > Video Extenders Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDBaseT Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) HDBaseT Switch - 4K Product Title (Short) Extender VGA/DP/HDMI Over Cat5e HDBaseT Product Title (Medium) Multi-Input HDBaseT Extender Switch - DisplayPort, VGA and HDMI Over CAT5e - 4K Product Title (Standard) Multi-Input HDBaseT Extender with Built-in Switch, DisplayPort VGA and HDMI Over CAT5e or CAT6, Up to 4K, up to 230 ft, TAA Product Title (Long) Multi-Input HDBaseT Extender with Built-in Switch - DisplayPort, VGA and HDMI Over CAT5e or CAT6 - Up to 4K - TAA Product Title (AMZ) Multi-Input HDBaseT Extender with Built-in Switch - DisplayPort VGA and HDMI Over CAT5e or CAT6 - Up to 4K - up to 230 ft , TAA (STDHVHDBT) Title Ingram (Part 1) VGA/DisplayPort/HDMI Over CAT5e Title Ingram (Part 2) HDBaseT Extender Switch - 4K Website Product Headline Connect your laptop to a remote display over standard CAT5e or CAT6 cabling, and easily swap between HDMI, DP or VGA video sources Bullet 1 Save the hassle and expense of using multiple hardware devices, with a switch and extender in one device that accommodates VGA, DP and HDMI inputs Bullet 2 Maintain astonishing picture quality up to 130 feet away, with support for UltraHD 4K over non-proprietary CAT5e or CAT6 cabling Bullet 3 Supports HD video resolutions such as 1920x1200 or 1080p at distances up to 230 ft. (70 m) Bullet 4 Tidy, professional installation with included mounting brackets Bullet 5 No software or drivers required with plug-and-play installation Bullets (Compact) Connect your laptop to a remote display over standard CAT5e or CAT6 cabling, and easily swap between HDMI, DP or VGA video sources - HDBaseT extender and switch - Maintain 4K picture quality up to 130 ft. away - Supports 1080p HD up to 230 ft. away Bullets (Consolidated) Connect your laptop to a remote display over standard CAT5e or CAT6 cabling and easily swap between HDMI DP or VGA video sources - Works with HDMI DP and VGA sources and HDMI displays monitors and projectors - HDBaseT Extender - 4K resolutions - HDMI over CAT5e or CAT6 - HDMI VGA DisplayPort to HDMI over CAT6 or CAT5e - Save the hassle and expense with a VGA DP and HDMI switch and extender in one device - Maintain astonishing 4K picture quality up to 130 ft - Supports 1080p HD up to 230 ft. Marketing Copy Marketing Copy (No HTML) Applications - Use in your classroom or boardroom display, to enable presenters to connect a wide range of devices
- Automatically switch between your set-top box or computer, for remote entertainment displays, in hospitality settings, such as restaurants, bars or hotels
- Create brilliant digital signage displays in large commercial settings such as hospitals, shopping centers or stadiums
Website Search Keyword - 1080p
- 3 in 1 hdbaset extender
- 4k
- 70m range
- automatic switching
- displayport output
- DisplayPort over CAT6
- DisplayPort over CAT6a
- DisplayPort over HDBaseT
- edid
- extend displayport with HDbaset
- hdbaset
- HDbaseT displayport extender
- hdbaset dp extender
- hdbaset extender
- hdbaset hdmi extender
- HDBaseT Sender
- HDBaseT Transmitter
- hdbaset vga extender
- hdmi output
- HDMI over CAT6
- HDMI over CAT6a
- HDMI over HDBaseT
- Multi-Input HDBaseT Transmitter
- priority switching
- triple output hdbaset extender
- vga output
- VGA over CAT6
- VGA over CAT6a
- VGA over HDBaseT
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - IM12D1500P
- MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- HDMM6
- HDMM10
- HDMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- DISPLPORT6L
- DISPLPORT10L
- DISPLPORT15L
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
- MU6MMS
- MU10MMS
- MU15MMS
- MU1MMRCA
- MU3MMRCA
- MU6MMRCA
Related Products - ST121HDBTPW
- ST121HDBTE
- ST121UTPHD2
- ST121HDBTU
- ST121HDBTSC
Input Current 0.6 A Input Voltage 100 - 240 AC Output Current 1.5 A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0% - 80 % RH (non-condensing) Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Aluminum Product Length (mm) 100 Product Width (mm) 160 Product Height (mm) 40 Product Weight (g) 918 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes Max Distance 70m [230ft] Maximum Cable Length (mm) 70000 Maximum Digital Resolutions Supported Resolutions Wide Screen Supported Yes Audio Yes Cabling Cat 5e UTP or better Cascadable No LED Indicators - 4 - port selection LEDs
- 2 - status LEDs (local)
- 1 - Status LED (remote)

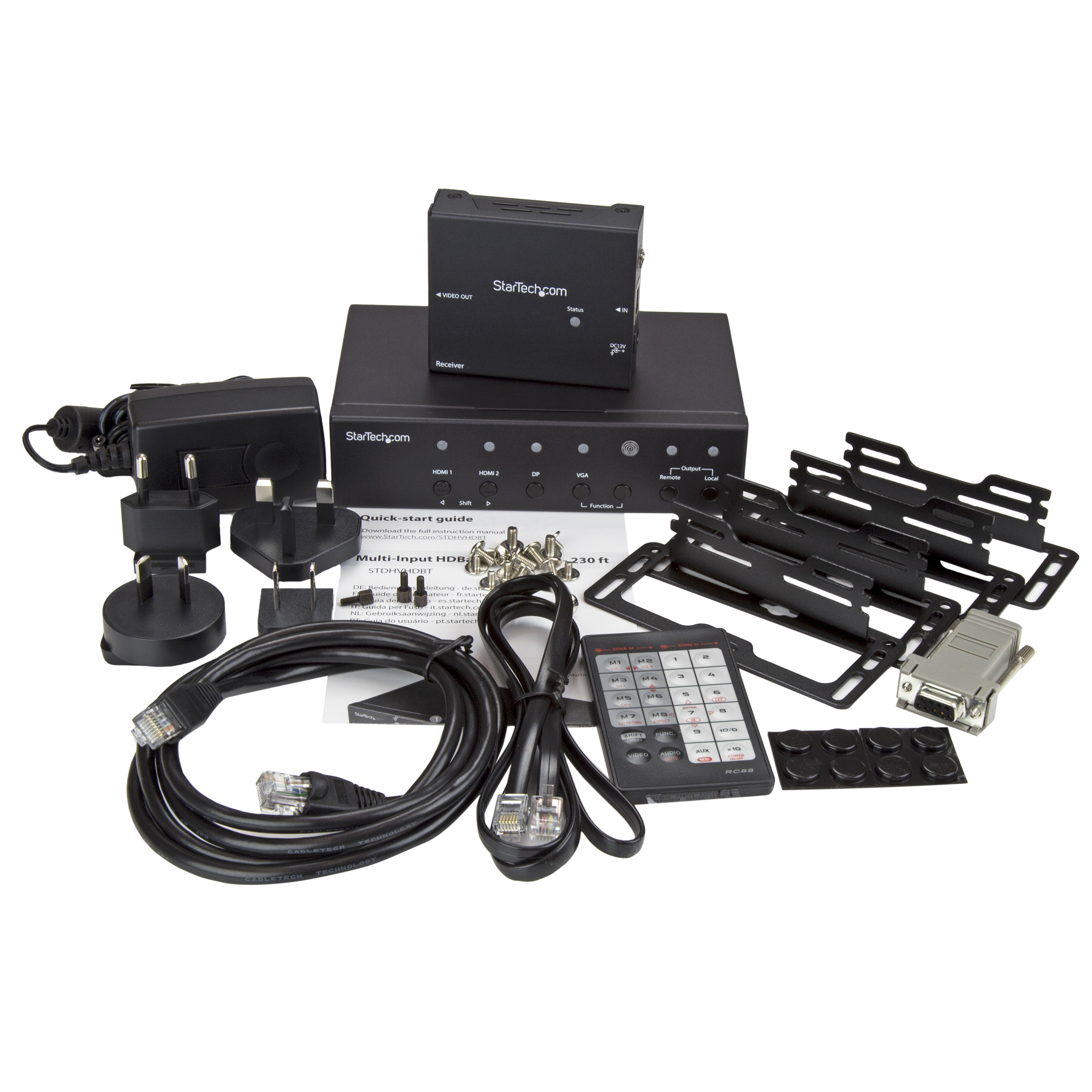

Rack-Mountable Yes Carton Depth (mm) 324 Carton Height (mm) 262 Carton Quantity 6 Carton Weight Gross (g) 10914 Included in Package - 1 - multi-input HDBaseT extender
- 1 - IR remote control
- 2 - mounting brackets
- 1 - universal power adapter (NA, EU, UK, ANZ)
- 1 - 5 ft [1.5m] RJ11 cable
- 8 - foot pads
- 1 - screw kit
- 1 - quick-start guide
- 1 - RJ11-to-RS232 converter

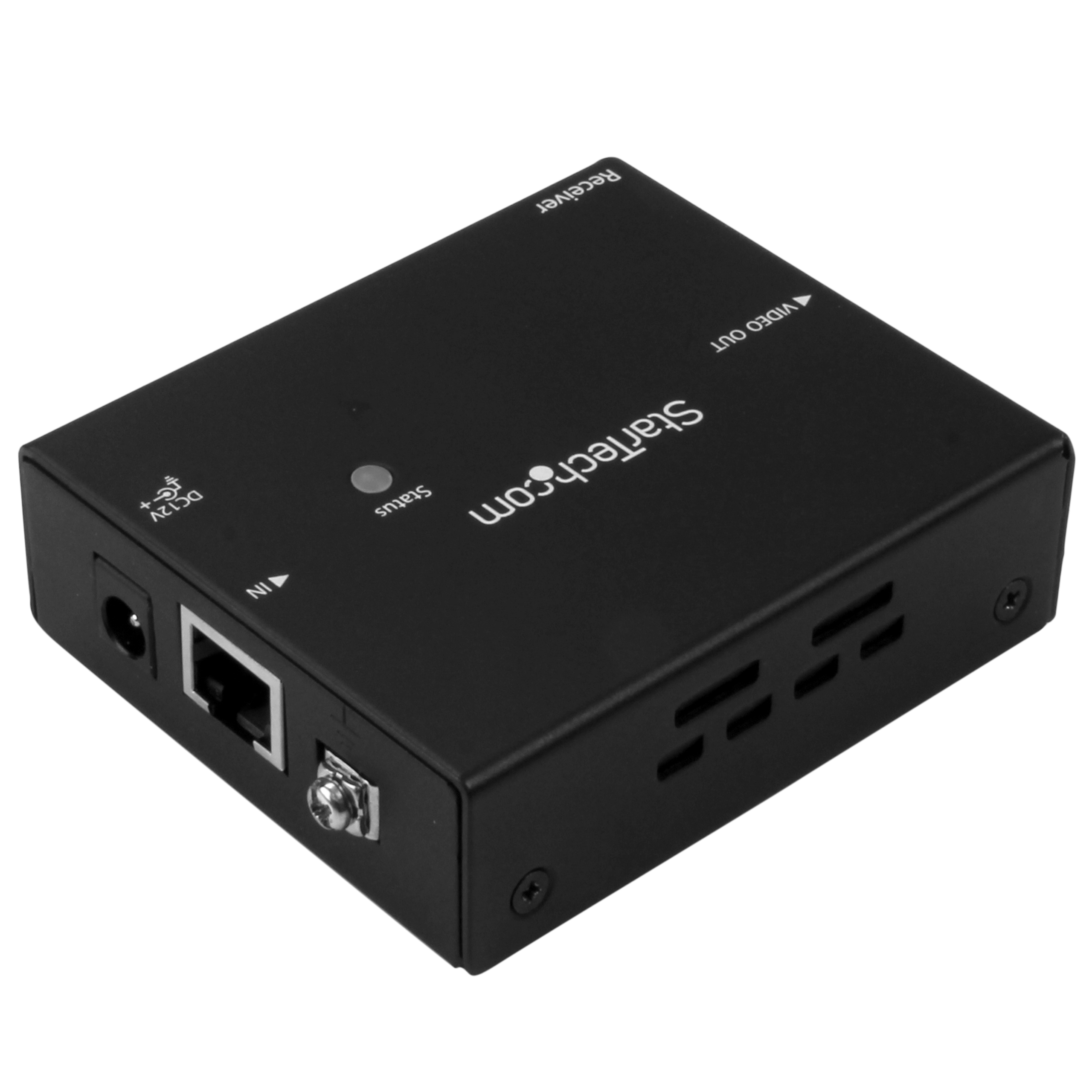

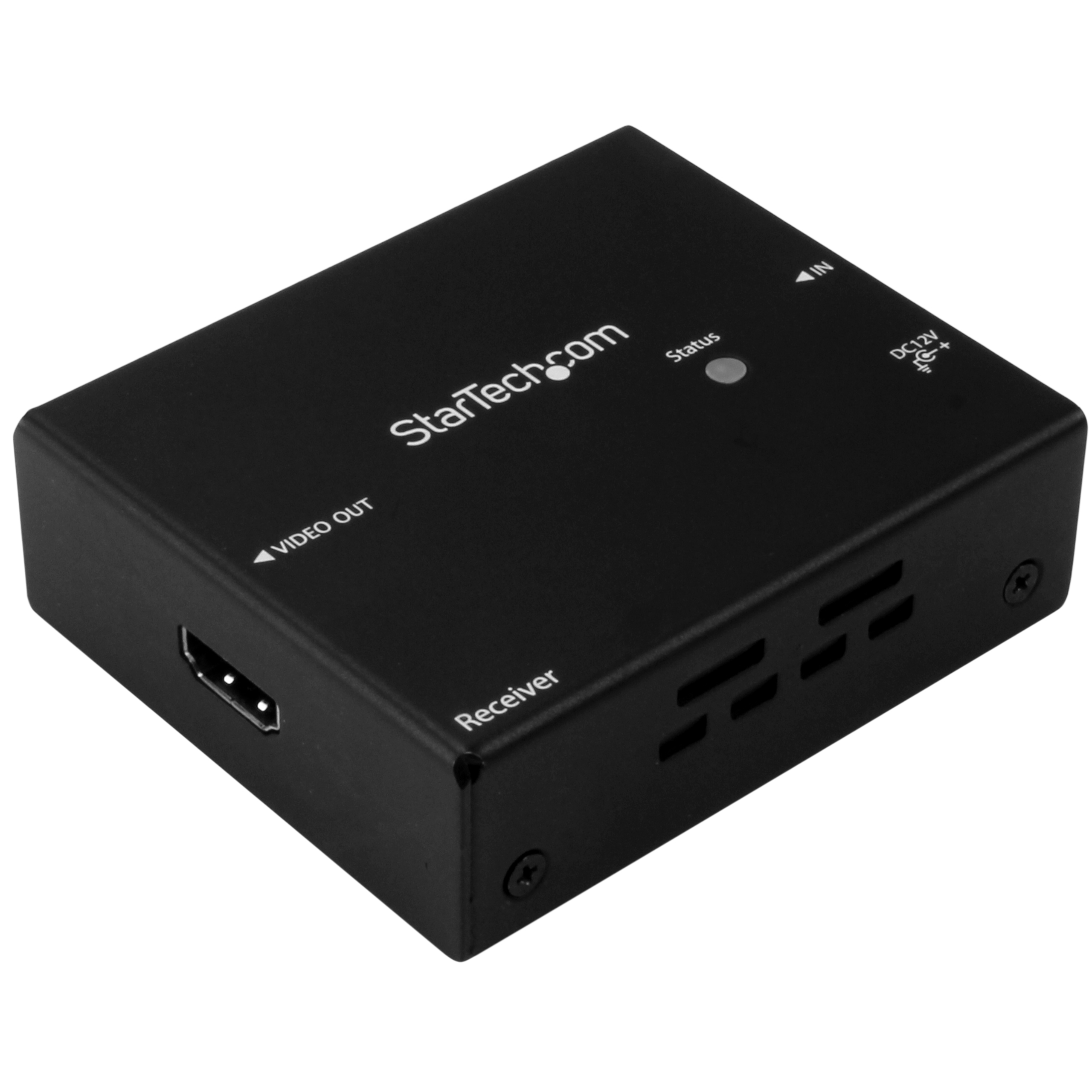

- 1 - HDBaseT receiver

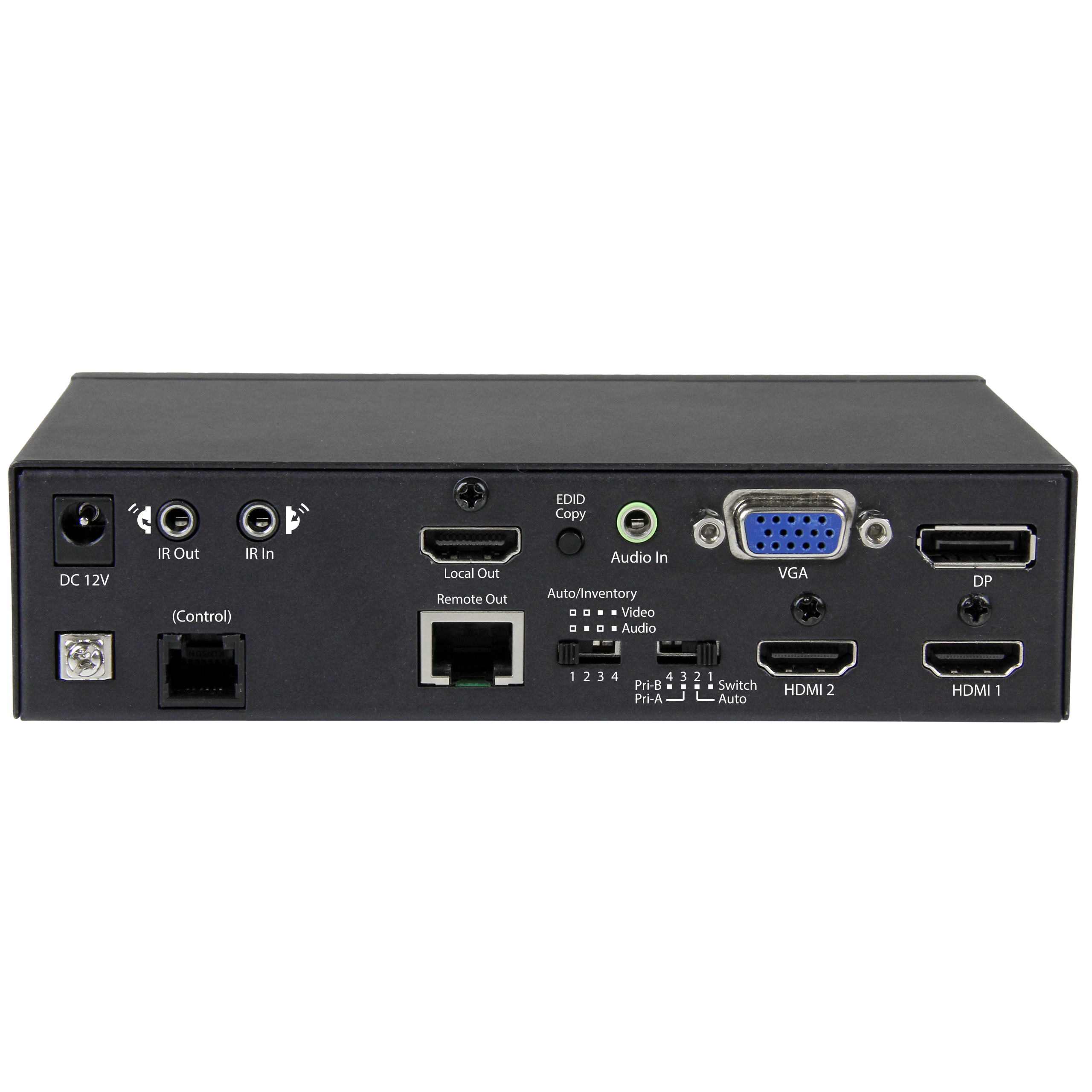

Package Depth (mm) 220 Package Height (mm) 85 Package Width (mm) 311 Package Quantity 1 Package Weight (g) 1676 Packaging Description Multi-Input HDBaseT Extender - 230 ft Packaging Description India Multi-Input HDBaseT Extender - 230 ft Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 Host Connector 1 HDMI Host Connector 1 (Quantity) 2 Host Connector 2 DisplayPort Host Connector 2 (Quantity) 1 Host Connector 3 VGA Host Connector 3 (Quantity) 1 Host Connector 4 HDMI Host Connector 4 (Quantity) 1 Host Connector 5 Infrared (IrDA) Host Connector 5 (Quantity) 2 Host Connector 6 RJ-45 Host Connector 6 (Quantity) 1 Host Connector 7 3.5mm (3 Conductors, TRS) Host Connector 7 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2015-12-15 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2016-08-17 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CO,DE,DK,ES,EU,FR,IE,IT,JP,MX,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2016-02-26 Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
