STHDBTRX
HDBaseT Receiver with IR for ST424HDBT
Extend the HDMI signal from your ST424HDBT* Matrix switch over Cat5e/Cat6 cable, with IR control
Main Image
Product Images
Product Images
BOM Image
Product Name HDBaseT Receiver with IR for ST424HDBT Product Number STHDBTRX UPC 065030855013 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDBaseT Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX033X Product Title (Ultra-Short) HDMI Receiver for ST424HDBT Product Title (Short) HDMI over CAT5e/6 Receiver for ST424HDBT Product Title (Standard) HDBaseT over CAT5e HDMI Receiver for ST424HDBT - 230ft (70m) - 1080p Product Title (Long) HDBaseT over CAT5e HDMI Receiver for ST424HDBT - 230ft (70m) - 1080p Product Title (AMZ) HDBaseT over CAT5e / CAT6 HDMI Receiver for ST424HDBT - 230ft (70m) - 1080p (STHDBTRX) Title Ingram (Part 1) HDMI over CAT5e CAT6 Receiver Title Ingram (Part 2) for ST424HDBT Matrix Switch - 70m Website Product Headline Extend the HDMI signal from your ST424HDBT* Matrix switch over Cat5e/Cat6 cable, with IR control Bullet 1 230ft (70m) HDMI extension over Cat5/6 Cabling Bullet 2 IR extender/receiver cables included Bullet 3 Mounting brackets included Bullet 4 Support for video resolution up to 1920x1200/1080p Bullets (Consolidated) Extend the HDMI signal from your ST424HDBT Matrix switch over Cat5e/Cat6 cable, with IR control - Works with any HDBaseT source - HDMI Extender/HDMI Cat5 Extender/HDMI CAT 5e Receiver for ST424HDBT - 4x4 Matrix Receiver - Switcher Cat5e Cat 6 Extender with IR Extension and Serial and IP Control - Use with the ST424HDBT to connect 4 different HDMI sources to 4 different displays, in different locations around a large building such as a shopping center, school, or hospital Marketing Copy Applications - Connect 4 different HDMI sources to 4 different displays, in different locations around a large building such as a shopping center, school, or hospital
- Choose which video sources are displayed and switch between sources at any time
- Place the displays in a convenient viewing area, while the HDMI source equipment is placed elsewhere in a separate, secured environment
Required Regulatory Compliance Marks - REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
Accessory Products - HDMM6
- HDMM10
- HDMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
- ST424HDBT
- SVA5M3NEUA
Related Products - ST121SHD50
- ST121HDT4P
- ST121HDBTE
- ST12MHDLAN
- ST121UTPHDMI
- ST121UTPHD2
- ST12MHDDC
- ST121HD25
- VS410HDMIE
- VS123HD
- VS721MULTI
- VS122HDMIU
- VS440HDMI
Input Current 0.5 A Input Voltage 100 - 240 AC Output Current 2 A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Color Black Humidity 5 to 90 % RH Material Aluminum Operating Temperature -5 to 35°C (-41 to 95 °F) Primary Material Aluminum Product Length (mm) 110.000 Product Width (mm) 75.000 Product Height (mm) 22.000 Product Weight (g) 215.000 Storage Temperature -5 to 35°C (-41 to +95 °F) TAA Compliant No Max Distance 70m [230ft] Maximum Digital Resolutions 1920x1200/1080p Audio Yes AV Input Ethernet AV Output HDMI Cabling Cat 5 UTP or better Cascadable Yes Chipset ID Valens - VS010 LED Indicators - 1 - Power
- 1 - Mode
- 1 - HDCP
- 1 - Link

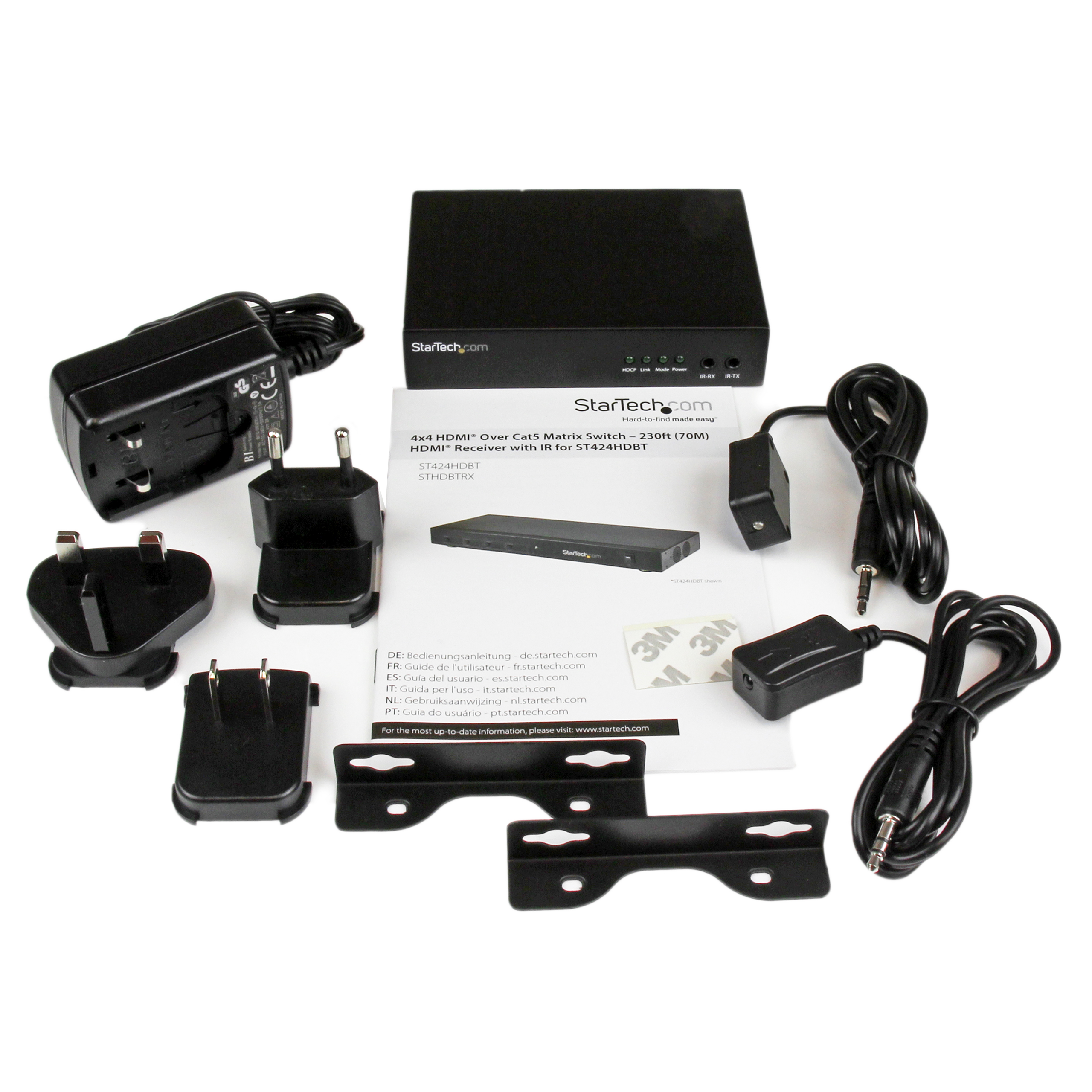

Carton Depth (mm) 336 Carton Height (mm) 313 Carton Quantity 16 Carton Weight Gross (g) 9730 Included in Package - 1 - HDMI Receiver unit
- 1 - Universal Power Adapter (NA/UK/EU/AUS)
- 1 - Mounting brackets
- 1 - IR kit (transmitter/receiver)
- 1 - Quick Install Guide
Package Depth (mm) 147 Package Height (mm) 74 Package Width (mm) 210 Package Quantity 1 Package Weight (g) 576 Packaging Description HDMI Receiver with IR for ST424HDBT Packaging Description India HDMI Receiver with IR for ST424HDBT Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 Connector 3 Infrared (IrDA) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-10-03 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Greg Visser Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
