Main Image
STUTPRXLGB
UTP/VGA Video Splitter Remote Receiver
Extend and Distribute a VGA Signal to a Remote Display over Cat5 Cabling (Receiver Only)
Main Image
Product Images
Product Images
Product Images
Product Name UTP/VGA Video Splitter Remote Receiver Product Number STUTPRXLGB UPC 065030845175 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 VGA Extenders Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX011X Product Title (Short) VGA over Cat 5 Extender Receiver Product Title (Standard) VGA over Cat 5 Extender Remote Receiver (UTPE Series) Product Title (Long) VGA over Cat 5 Extender Remote Receiver (UTPE Series) Product Title (AMZ) VGA over Cat 5 Extender Remote Receiver (UTPE Series) - VGA over Cat5 Receiver - VGA over utp receiver (STUTPRXLGB) Title Ingram (Part 1) VGA over Cat 5 Extender Remote R Title Ingram (Part 2) eceiver (UTPE Series) Website Product Headline Extend and Distribute a VGA Signal to a Remote Display over Cat5 Cabling (Receiver Only) Bullet 1 Maximum Distance up to 950ft / 300m Bullet 2 Supports a maximum resolution of 1920x1200 (resolution varies by distance) Bullet 3 Works with ST124UTPE and ST128UTPE UTPE Series Transmitters Bullet 4 Includes mounting bracket Marketing Copy Applications - Use digital signage to catch the attention of your audience and deliver up to date content the way you want it to be seen and heard.

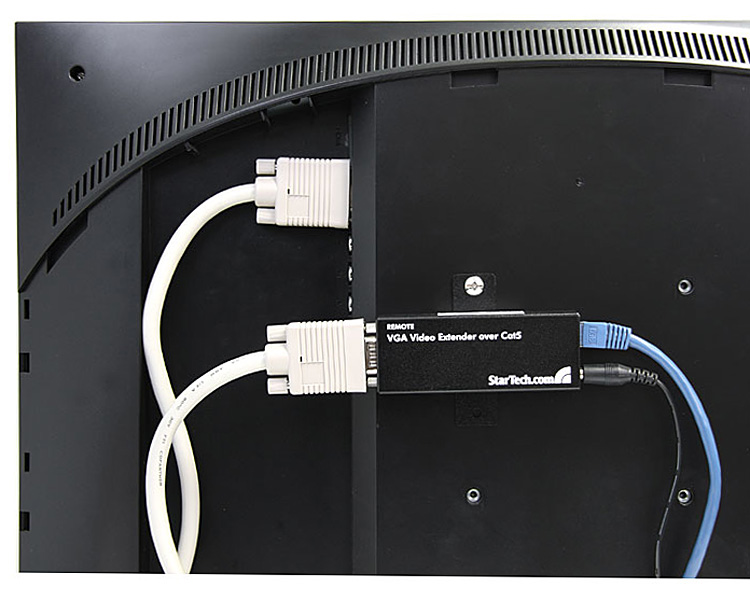

- Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
- Ideal for digital signage applications in financial, educational, and business sectors
Website Search Keyword - UTP Video Reciever
- Cat5 video reciever
- vga extender reciever
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - M45PATCH100B
- M45PATCH50BL
- M45PATCH75BL
- MXT101HQ
- MXT101MMHQ
- MXT105HQ
- ST124UTPE
- ST128UTPE
- STUTPTXWAL
- UTPRXLMOUNT
- SVA12M2NEUA
- SVA12M5NA
Related Products - ST124UTPEA
- ST128UTPEA
- STUTPEALR
- STUTPEA4X
- STUTPRXWAL
Output Current 0.6A Output Voltage (V) 12V DC Power Consumption (In Watts) 7.2 Power Source AC Adapter Included Color Black Material Steel Product Length (mm) 10 Product Width (mm) 138 Product Height (mm) 25 Product Weight (g) 476.3 TAA Compliant Yes Max Distance 300m [984ft] Maximum Cable Length (mm) 300000 Supported Resolutions Audio No Cabling Cat 5 UTP or better Cascadable No Carton Depth (mm) 335 Carton Height (mm) 63 Carton Quantity 50 Carton Weight Gross (g) 11292 Included in Package - 1 - Instruction Manual
- 1 - Long Range UTP Receiver
- 1 - Power Adapter
- 1 - Mounting Bracket (w/ Screws)
Package Depth (mm) 152 Package Height (mm) 63 Package Width (mm) 330 Package Quantity 1 Package Weight (g) 532 Packaging Description 1 Port VGA Extender Receiver over Cat 5 Packaging Description India 1 Port VGA Extender Receiver over Cat 5 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) UK Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
