STUTPTXWAL
VGA Wall Mount Cat5 Video Extender HD15 to RJ45 Tx
Receive a VGA video signal over Cat5 cabling from a StarTech.com STUTP series VGA extender
Main Image
Product Images
Product Images
BOM Image
Product Name VGA Wall Mount Cat5 Video Extender HD15 to RJ45 Tx Product Number STUTPTXWAL UPC 065030835008 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX011X Product Title (Short) VGA Wall Plate Cat 5 Video Extender Tx Product Title (Standard) StarTech.com VGA Wall Plate Video Extender - Transmitter - over Cat 5 - HD15 (F) - RJ45 (F) Product Title (Long) VGA Wall Plate Video Extender Transmitter over Cat 5 Title Ingram (Part 1) VGA Wall Plate Video Extender Tr Title Ingram (Part 2) ansmitter over Cat 5 Website Product Headline Receive a VGA video signal over Cat5 cabling from a StarTech.com STUTP series VGA extender Bullet 1 Compatible with the UTPE series VGA video extender receiver (STUTPRXL). Also works with the wall plate VGA video extender receiver (STUTPRXWAL). Bullet 2 Extend a VGA video signal to a maximum distance of 300m / 950ft. See specification for resolutions supported at various distances. Bullet 3 Integrators and installers now have the choice of bulk rolls for custom length on field termination or using set lengths for quicker installs. Bullet 4 Powering the STUTPTXWAL uses a terminal block for a more secure connection. Bullet 5 The STUTPTXWAL uses Cat5 cabling because it is lightweight, flexible, fits through small conduits. Marketing Copy Applications - Ideal for Pro A/V installers and integrators looking for an easy solution to extend VGA video using Cat5 cabling.
Website Search Keyword - cable wall plates
- Cat5
- Distribution
- Extender
- Transmitter
- VGA
- VGA over Cat5
- vga wall plates
- Video
- Wall Mount
- Wall Plate
- Sender
- wallplate
- wall-plate
Accessory Products - M45PATCH100B
- M45PATCH100W
- MXT101MMHQ
- MXT101MMHQ10
- WIRRJ45BLRL
- WIRRJ45WHRL
- STUTPRXWAL
- STUTPRXL
Related Products - ST124UTPE
- ST128UTPE
- STUTPWALL

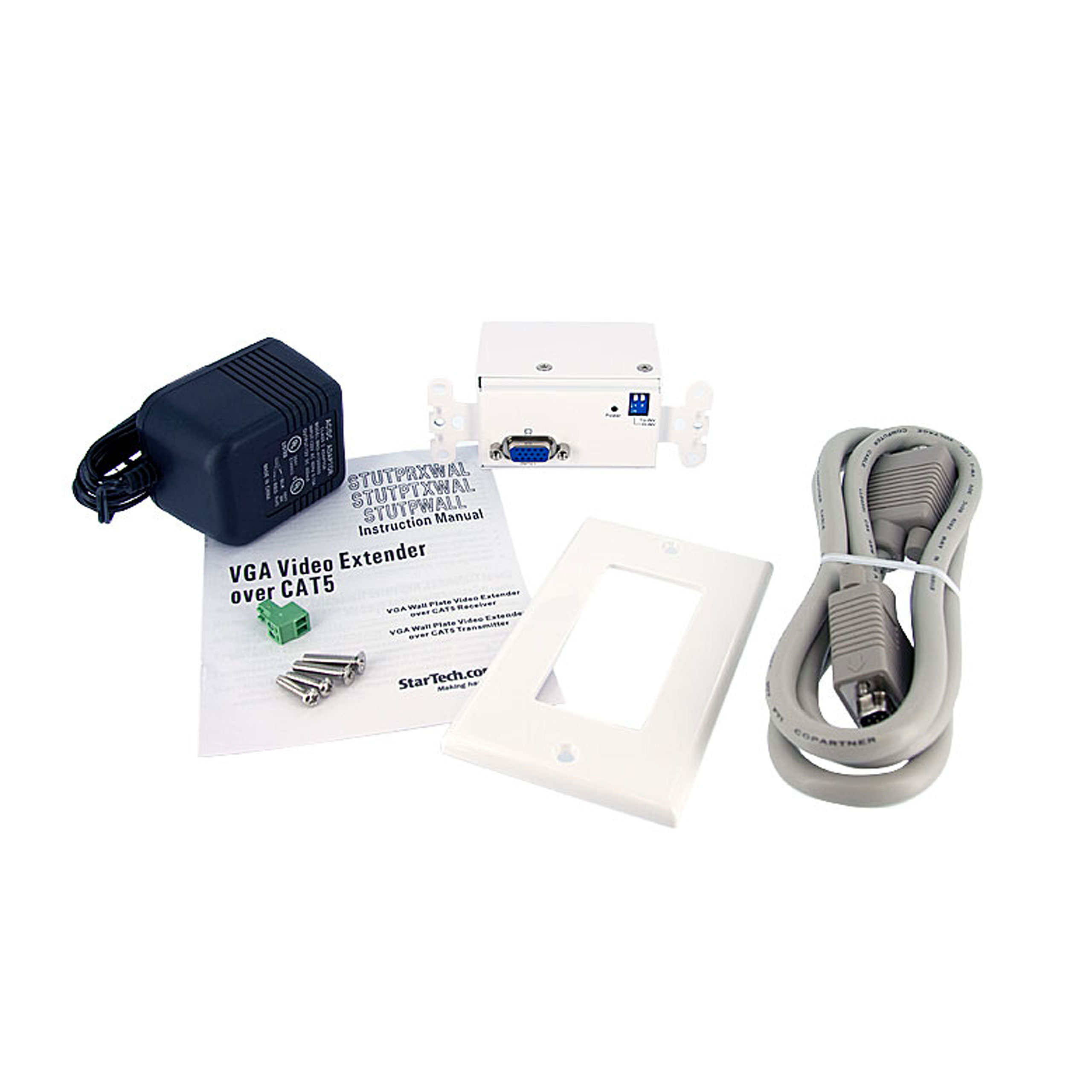

Output Current 0.6A Output Voltage (V) 12V DC Power Source AC Adapter Included Color White Material Steel Product Length (mm) 105 Product Width (mm) 42 Product Height (mm) 38 Product Weight (g) 136 TAA Compliant No Max Distance 300m [984ft] Supported Resolutions Cabling Cat 5 UTP Cascadable No LED Indicators 1 - Power LED Carton Depth (mm) 382 Carton Height (mm) 392 Carton Quantity 10 Carton Weight Gross (g) 6800 Included in Package - 1 - Instruction Manual
- 1 - Power Adapter
- 1 - Terminal Block for Power Adapter
- 1 - VGA Video Extender Wall Plate Receiver
Package Depth (mm) 72 Package Height (mm) 180 Package Width (mm) 217 Package Weight (g) 560 Packaging Description VGA Wall Plate Cat5 Extender Transmitter Packaging Description India VGA Wall Plate Cat5 Extender Transmitter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 Terminal Block (2 Wire) Connector 3 (Quantity) 1 en-US Content Approved Yes Product Manager Eric Roth
