Main Image
STUTPTXWLA

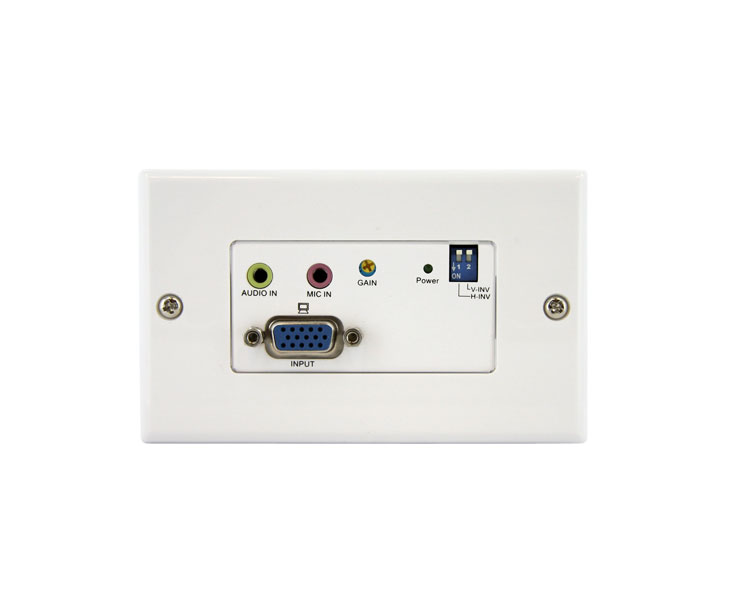

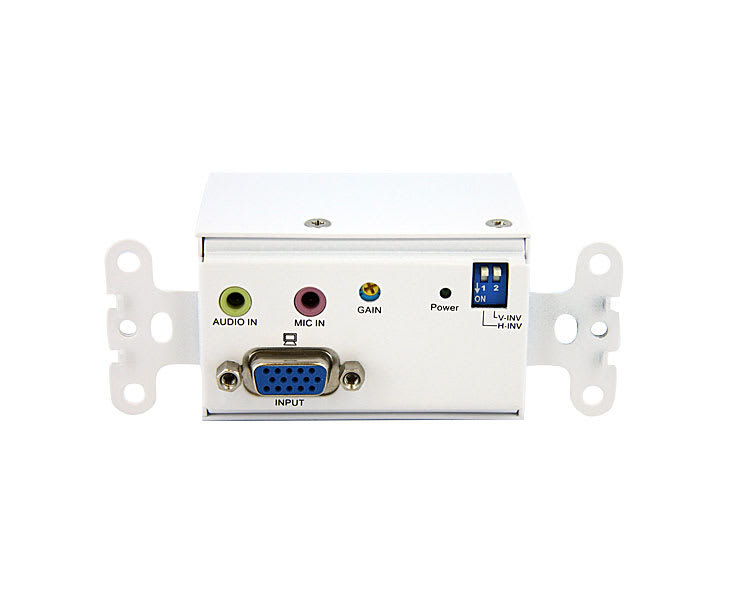

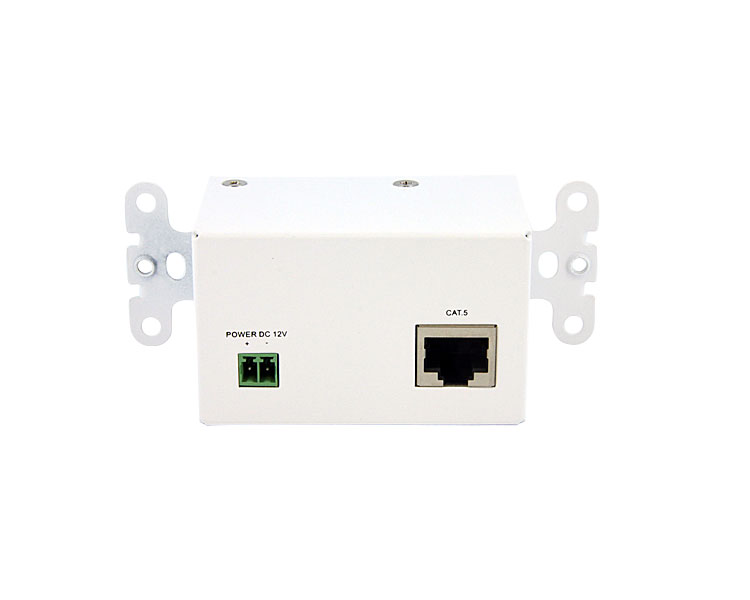

VGA Wall Mount Cat5 Video Extender Kit
Mount in-wall connections from Cat 5/6 to VGA video and audio source to a remote location up to 300m (950ft) away
Main Image
Product Images
Product Images
Product Images
Product Name VGA Wall Mount Cat5 Video Extender Kit Product Number STUTPTXWLA UPC 065030836159 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX011X Product Title (Short) VGA Wall Plate Cat5 Video Extender Kit Product Title (Standard) VGA Wall Plate Video Extender over Cat5 Product Title (Long) VGA Wall Plate Video Extender Transmitter over Cat 5 with Audio Title Ingram (Part 1) VGA Wall Plate Video Extender Tr Title Ingram (Part 2) ansmitter over Cat5 w/ Audio Website Product Headline Mount in-wall connections from Cat 5/6 to VGA video and audio source to a remote location up to 300m (950ft) away Bullet 1 Compatible with the UTPEA series VGA video extender receiver (STUTPEALR), also works with the wall plate VGA video extender receiver (STUTPRXWLA) Bullet 2 Maximum VGA video and audio extension up to 300m/950ft (See Specifications for resolutions supported at various distances) Bullet 3 Powered by terminal block connection Bullet 4 Uses cost-effective Cat5 cable to extend VGA video and audio Marketing Copy Applications - Ideal for Pro A/V installers and integrators looking for an easy solution to extend VGA video using Cat5 cabling.
Website Search Keyword - cable wall plates
- Cat5
- Distribution
- Extender
- Sender
- Transmitter
- VGA
- VGA over Cat5
- vga wall plates
- Video
- Wall Mount
- Wall Plate
Accessory Products - M45PATCH100B
- M45PATCH100W
- MXT101MMHQ
- MXT101MMHQ10
- WIRRJ45BLRL
- WIRRJ45WHRL
- STUTPRXWLA
- STUTPEALR
- MU6MM
- MU6MMRCA
Related Products - STUTPRXL
- STUTPTXWAL
- STUTPWALL

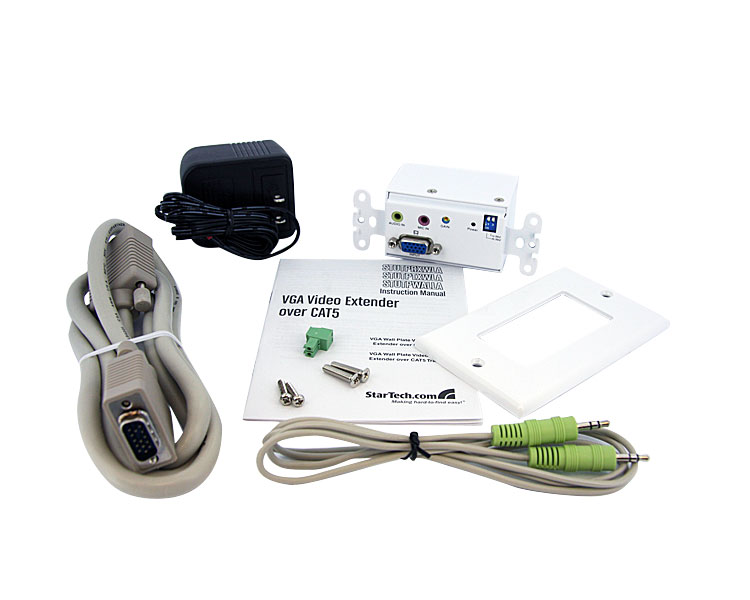

Output Current 0.6A Output Voltage (V) 12V DC Power Source AC Adapter Included Color White Material Steel Product Length (mm) 105 Product Width (mm) 42 Product Height (mm) 38 Product Weight (g) 136 TAA Compliant No Max Distance 300m [984ft] Supported Resolutions Cabling Cat 5 UTP Cascadable No LED Indicators 1 - Power LED Carton Depth (mm) 388 Carton Height (mm) 380 Carton Quantity 10 Carton Weight Gross (g) 9800 Included in Package - 1 - Instruction Manual
- 1 - Power Adapter
- 1 - Terminal Block for Power Adapter
- 1 - VGA Video Extender Wall Plate Receiver
Package Depth (mm) 71 Package Height (mm) 178 Package Width (mm) 218 Package Weight (g) 860 Packaging Description VGA Wall Plate Video Extender over Cat 5 Packaging Description India VGA Wall Plate Video Extender over Cat 5 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 VGA Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 Host Connector 3 3.5mm (3 Conductors, TRS) Host Connector 3 (Quantity) 2 Host Connector 4 Terminal Block (2 Wire) Host Connector 4 (Quantity) 1 en-US Content Approved Yes Product Manager Eric Roth
