STUTPWALL

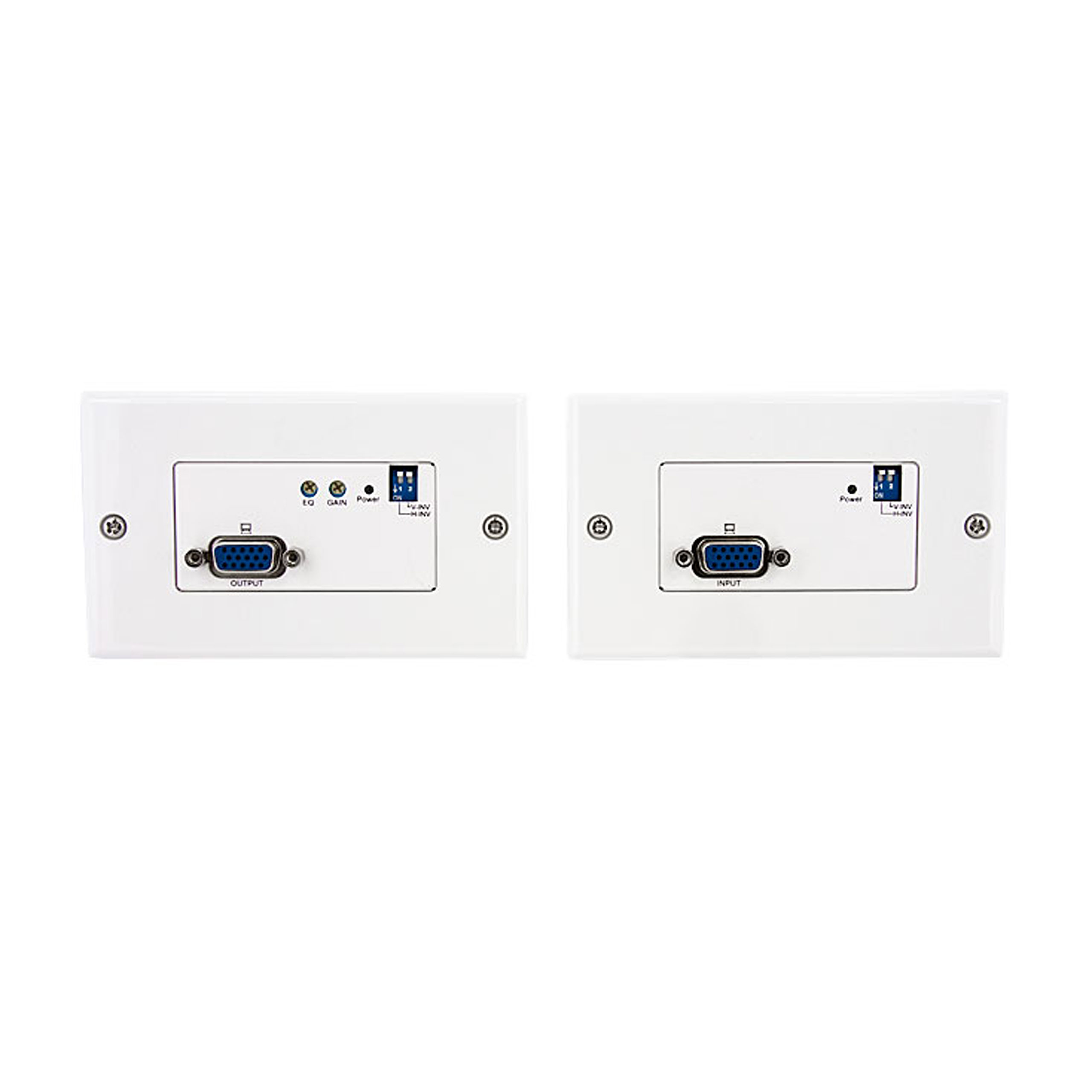

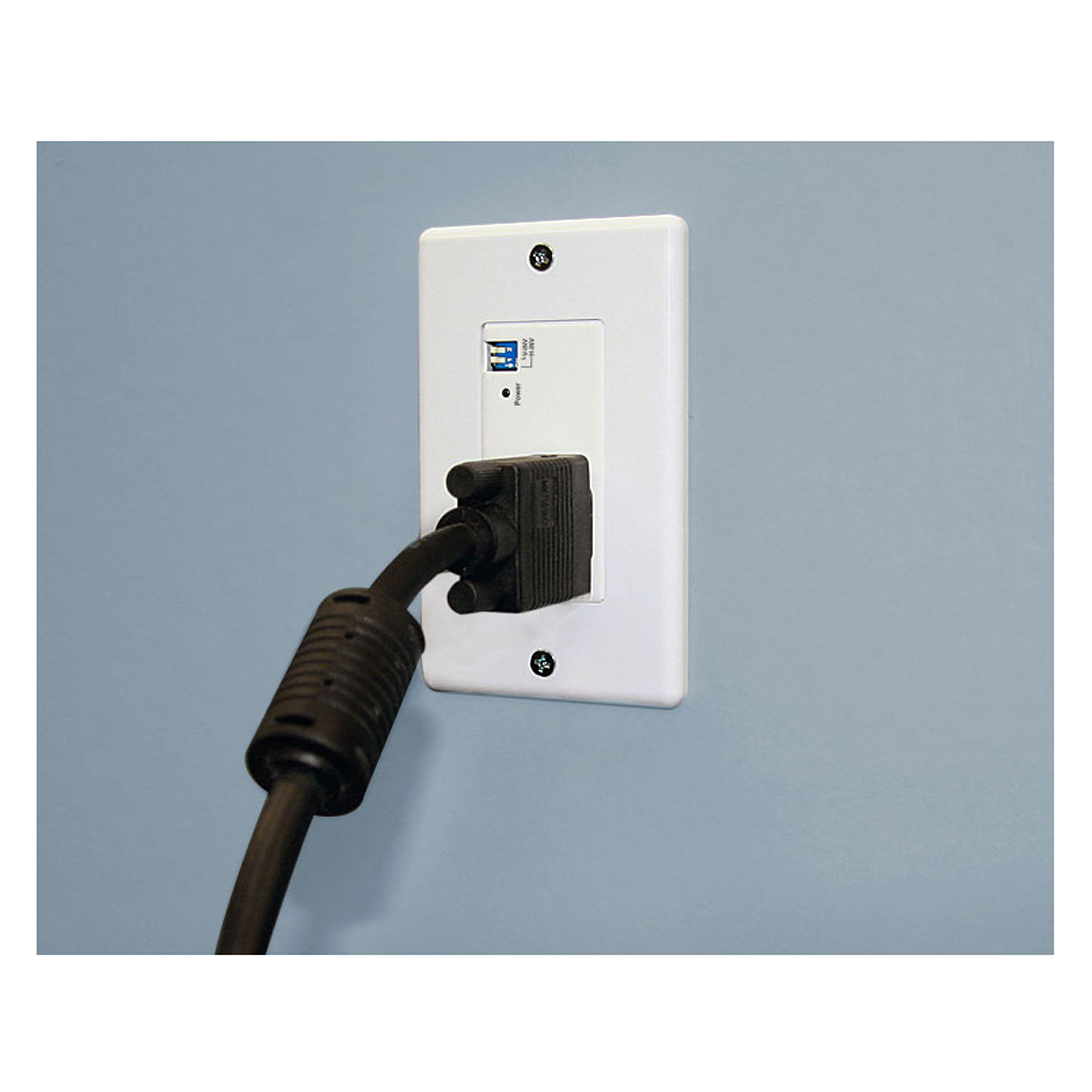

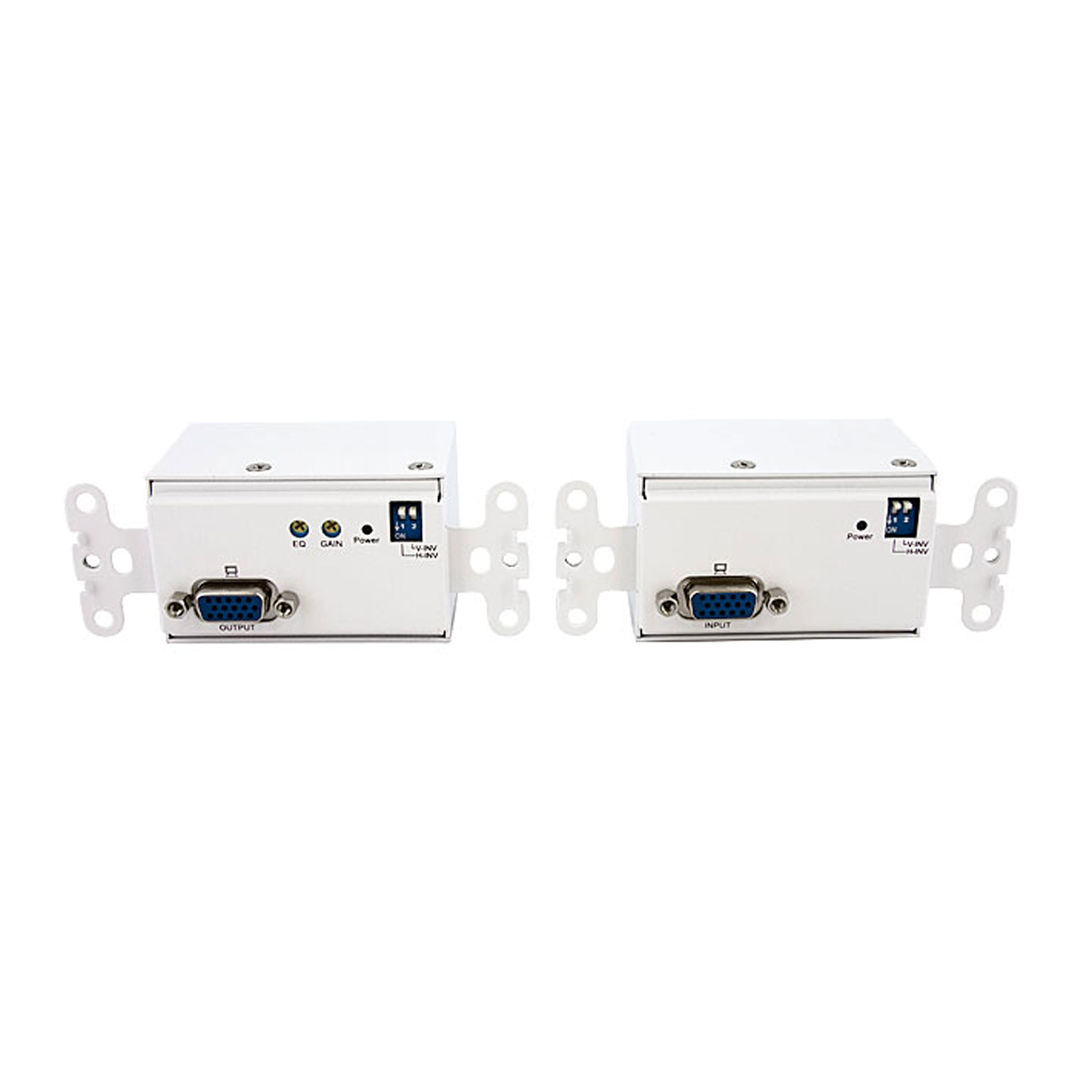

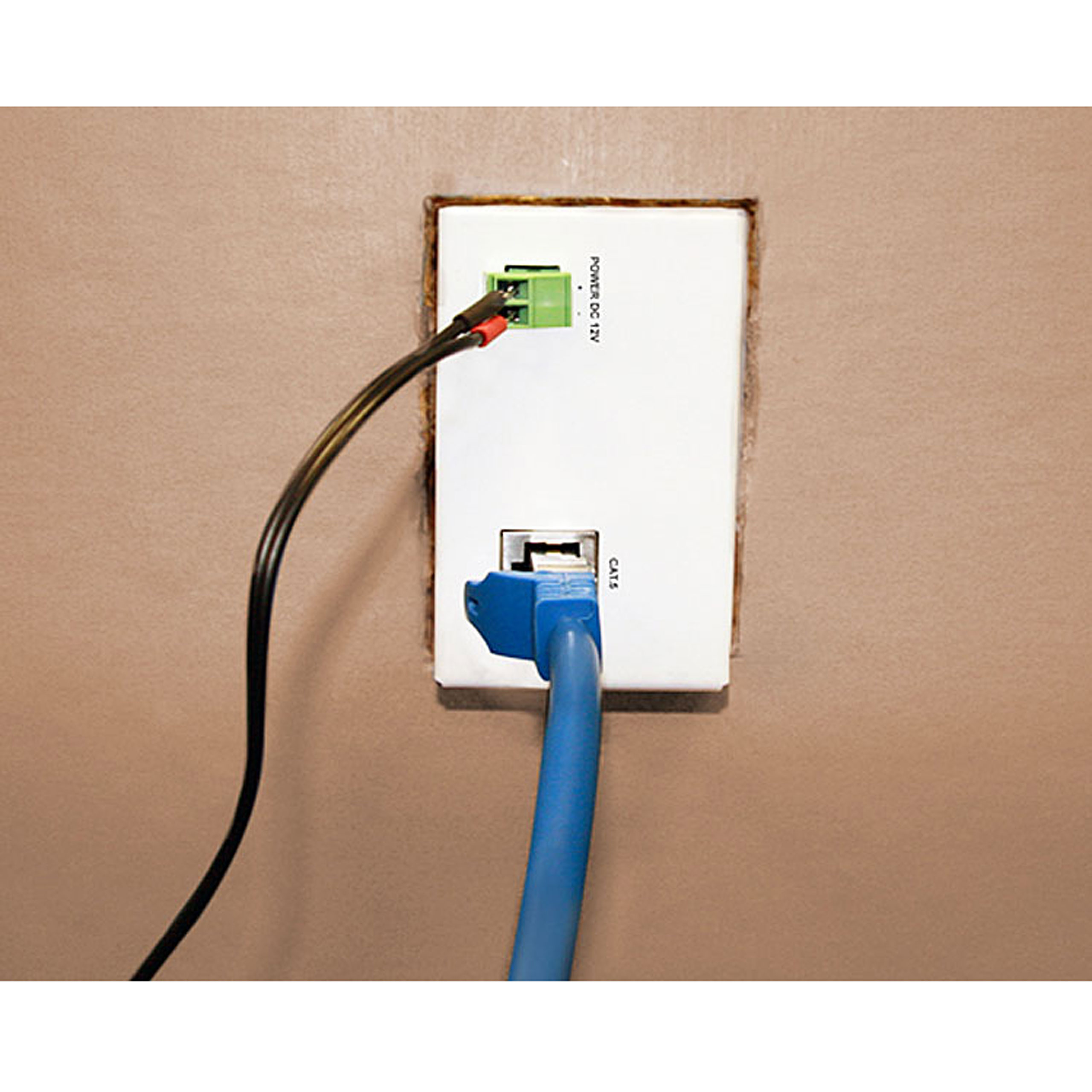

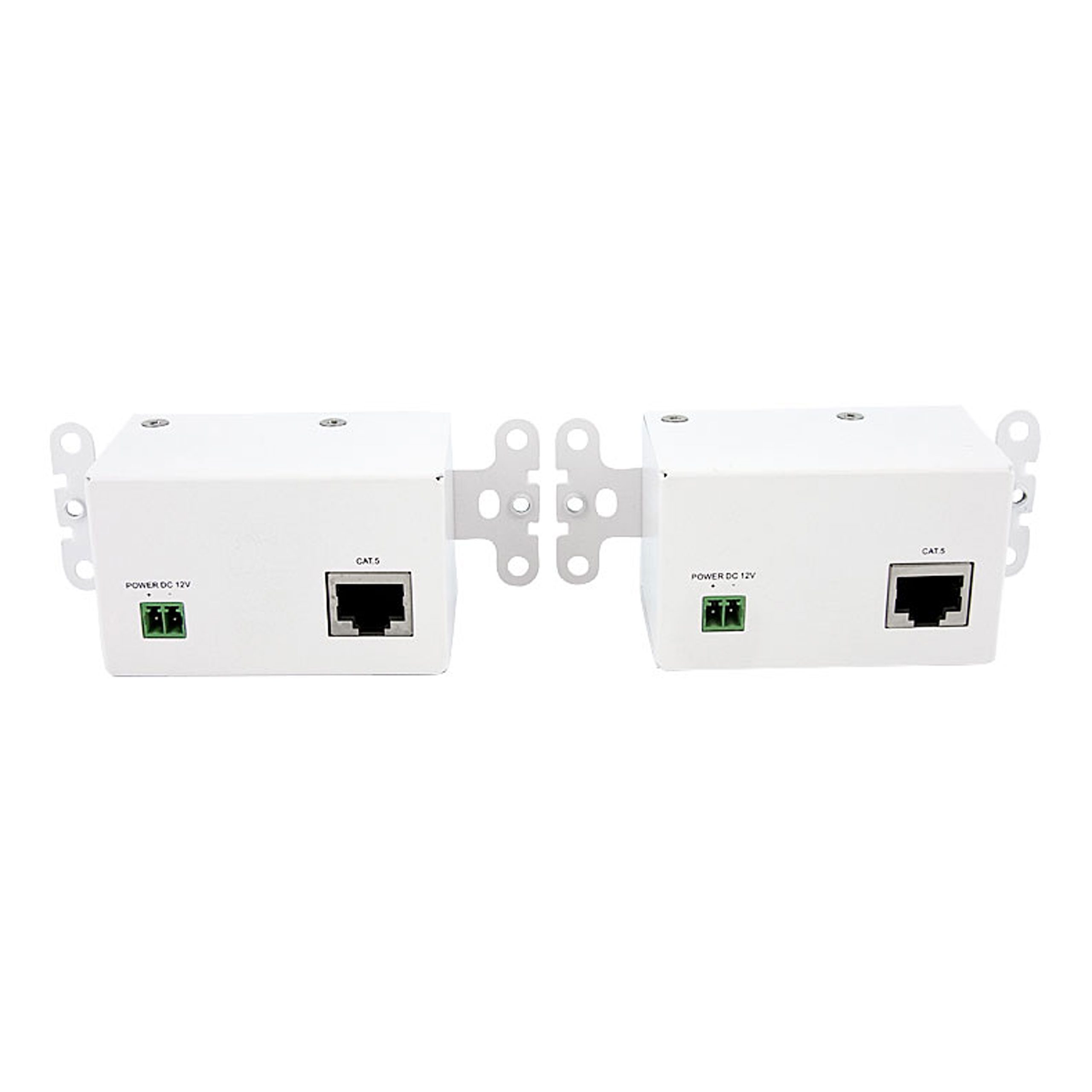

VGA Wall Plate Video Extender System over Cat 5
Extend a VGA signal to a remote display over Cat 5 cabling with this in-wall extender kit
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name VGA Wall Plate Video Extender System over Cat 5 Product Number STUTPWALL UPC 065030835022 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX011X Product Title (Short) VGA Wall Plate Cat5 Video Extender Kit Product Title (Standard) StarTech.com VGA Wall Plate Video Extender - Transmitter - Receiver - over Cat 5 - HD15 (F) - RJ45 (F) Product Title (Long) VGA Wall Plate Video Extender Transmitter and Receiver over Cat5 Title Ingram (Part 1) VGA Wall Plate Cat 5 Video Exten Title Ingram (Part 2) der Transmitter & Receiver Website Product Headline Extend a VGA signal to a remote display over Cat 5 cabling with this in-wall extender kit Bullet 1 Extend a VGA video signal to a maximum distance of 300m / 950ft Bullet 2 Supports resolutions up to 1920x1200 at 50m (150ft) Bullet 3 Extend using Cat5 or better UTP cabling, flexible and fits through small conduits Bullet 4 Powered by a terminal block for a more secure, concealed connection Marketing Copy Applications - Ideal for Pro A/V installers and integrators looking for an easy solution to extend VGA video using Cat 5 cabling
- Ideal for Pro A/V installers and integrators looking for an easy solution to extend VGA video using Cat5 cabling.
- Perfect for tight spaces or when a boxed VGA extender is not convenient for the installation
- Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
- Perfect for video conferencing solutions in boardrooms and office settings
- Optimize placement of your demo stations in auditoriums and houses of worship
- Use digital signage to catch the attention of your audience and deliver up to date content
Website Search Keyword - cable wall plates
- Cat5
- Distribution
- Extender
- Receiver
- VGA
- VGA over Cat5
- vga wall plates
- Video
- Wall Mount
- Wall Plate
- Transmitter
- Sender
- Kit
- wallplate
- wall-plate
Accessory Products - MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- WIRC5ECMR
- WIRC5ECMRGRY
- CRJ45SOL50PK
Related Products - ST124UTPE
- ST128UTPE
- STUTPTXWAL

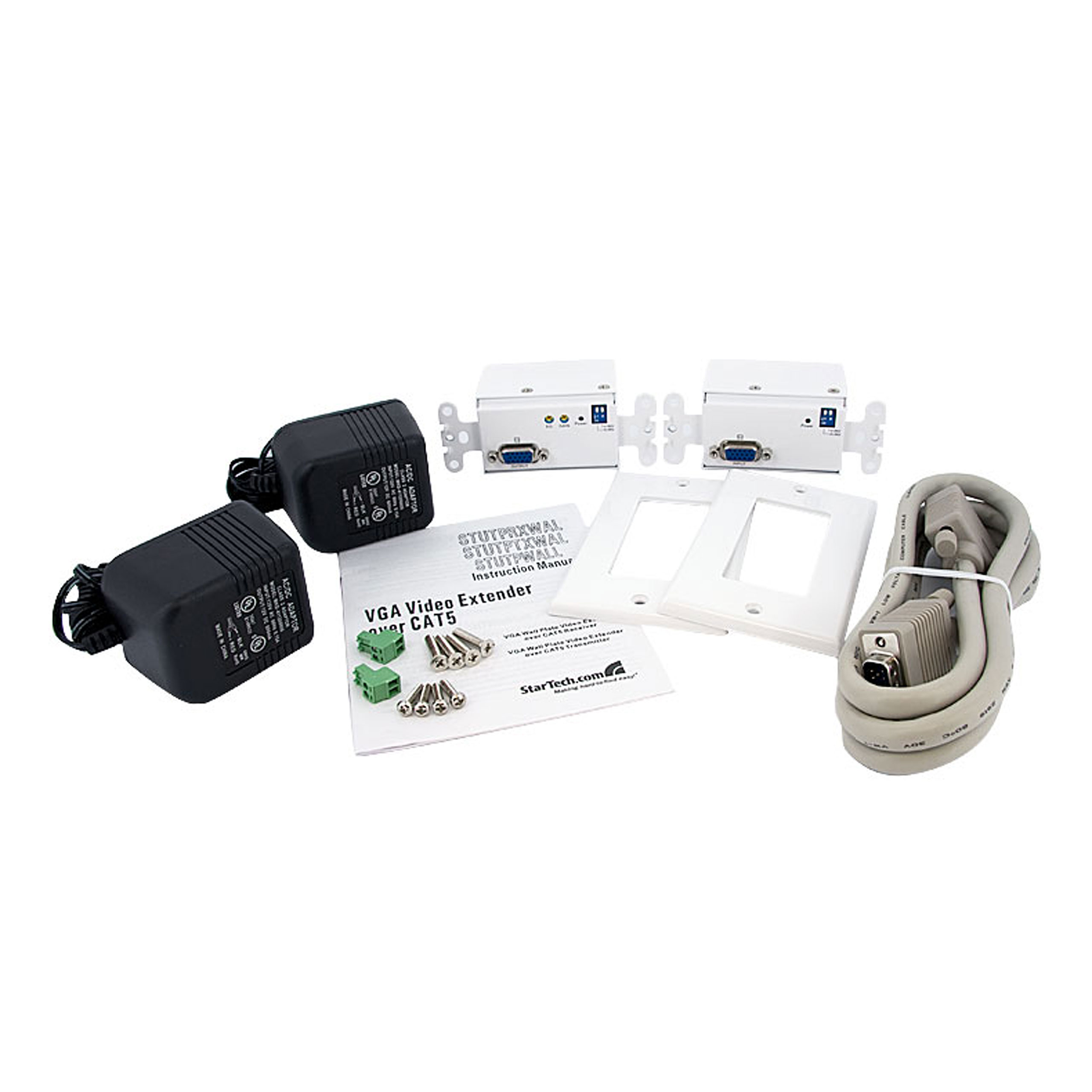

Output Current 0.6A Output Voltage (V) 12V DC Power Source AC Adapter Included Color White Material Steel Product Length (mm) 105.000 Product Width (mm) 42.000 Product Height (mm) 38.000 Product Weight (g) 136.000 TAA Compliant Yes Max Distance 300m [984ft] Supported Resolutions Audio No Cabling Cat 5 UTP Cascadable No LED Indicators 1 - Power LED Carton Depth (mm) 340 Carton Height (mm) 326 Carton Quantity 10 Carton Weight Gross (g) 8800 Included in Package - 1 - Instruction Manual
- 1 - Power Adapter
- 1 - Terminal Block for Power Adapter
- 1 - VGA Video Extender Wall Plate Receiver
Package Depth (mm) 63 Package Height (mm) 144 Package Width (mm) 301 Package Weight (g) 760 Packaging Description VGA Wall Plate Over CAT5e/6 Extender Kit Packaging Description India VGA Wall Plate Over CAT5e/6 Extender Kit Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 Terminal Block (2 Wire) Connector 3 (Quantity) 1 Host Connector 1 VGA Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 Host Connector 3 Terminal Block (2 Wire) Host Connector 3 (Quantity) 1 en-US Content Approved Yes Product Manager David Muzinic
