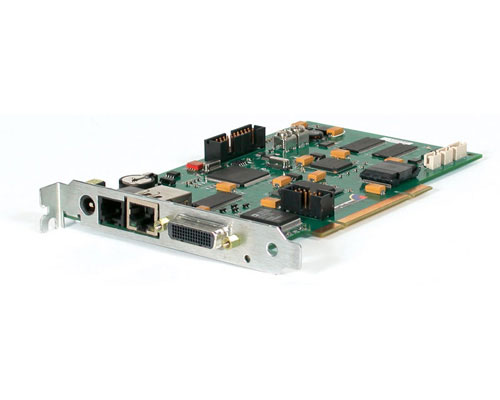

PCI Card for Remote Server Management over IP

Main Image

Product Name	PCI Card for Remote Server Management over IP
Product Number	SV1105IPPCI
UPC	065030796736
Warranty	2 Years
Taxonomy	Product > Legacy Discontinued
Country of Origin Europe & Japan	United States
Country of Origin North America	United States
Country of Origin History (1)	United States
Country of Origin Revision (1)	1

Manual https://images.salsify.com/image/upload/s--AW0Y_Nhm--/76f4aaa07a744dc5dca5b21f542b0b9f63ac28d3.pdf

Product Title (Long)	PCI Card for Remote Server Management over IP
Bullet 1	Users can re-boot the hardware, access the BIOS, have full keyboard and mouse control - as if they are on location
Bullet 2	Web-Based control allows the server(s) to be controlled from any browser, eliminating licensing costs and making the product easier to use
Bullet 3	Advanced video detection algorithms provide excellent remote video quality and industry-leading performance
Bullet 4
Bullet 5	128-Bit SSL encryption provides a secure remote connection
Marketing Copy
Applications	Ideal solution to manage a server located in any branch office and control that server remotely over the network or the Internet Allows users to diagnose, restart, access or change BIOS level settings of a server from a remote location Ideal for enterprise, data center environments, Data Warehousing and Financial Services industries

Accessory Products
PS23N1THIN2
PS23N1THIN4
PS23N1THIN10
PS23N1THIN15
PS23N1THIN25
PS23N1THIN6
PS23N1THIN35
PS23N1THIN50
Power Consumption (In Watts) 0.6W
Product Length (mm) 198
Product Width (mm) 115
Product Weight (g) 612
TAA Compliant No

General Specifications

Login Security: MD5 and DAA encryption protocols
Web Interface Security: SSL2, SSL3 and TLS1.0 protocols
Traffic Encryption: 128-bit encrypted using RC-4 based encryption algorithms and 1024-bit keys
Maximum Supported Resolution: 1280x1024 pixels at 60Hz
Connectors: 1 x RJ45 10/100 Ethernet, 1 x RJ11 Serial, 2 x HD-DB15 VGA Video (In/Out), 2 x PS/2 Keyboard/Mouse (In/Out) & USB (In)
Slot Type: PCI full-height
Dimensions:
Length: 95 mm
Width: 123 mm
Weight: 0.30 Lbs
Safety Approvals: FCC
Package Contents:
KVM Cable: 1 x DB15 (M&F), 1 x PS/2 (M&F)
Device Reset Cable: Black & red braided cable
Device Power Control cable: Black & red braided cable

Maximum Analog Resolutions

1280 x 1024 @ 60 Hz
