SV1107IPEXT
Entry Level 1 User 1 PC Server Remote Control
Full remote IP control of a USB server or PC, with virtual media remote file copying and installation
Main Image
Product Images
Product Images
BOM Image
Product Name Entry Level 1 User 1 PC Server Remote Control Product Number SV1107IPEXT UPC 065030830430 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX006X Product Title (Short) 1 Port Server Remote Control IP KVM Product Title (Standard) StarTech.com 1 Port Server Remote Control IP KVM w/Virtual Media Product Title (Long) 1 Port Server Remote Control IP KVM w/Virtual Media Title Ingram (Part 1) 1 Port Server Remote Control IP Title Ingram (Part 2) KVM w/Virtual Media Website Product Headline Full remote IP control of a USB server or PC, with virtual media remote file copying and installation Bullet 1 Users can reboot the system, access the BIOS, and have full control over the keyboard and mouse - as if they are on site Bullet 2 USB virtual media port for disk emulation and file transfers, including complete remote application and operating system installations Bullet 3 SSL 128bit encryption Bullet 4 Flash upgradeable Marketing Copy Applications - BIOS level remote access to servers at co-location, ISP and MSP locations
- Enables remote access to existing KVM switches via TCP/IP
- Remote access to mission-critical servers
- Small to Medium businesses that require access to individual servers without breaching security to others
Website Search Keyword - IP KVM Switch
- KVM over IP
- server remote control
- 1 Port

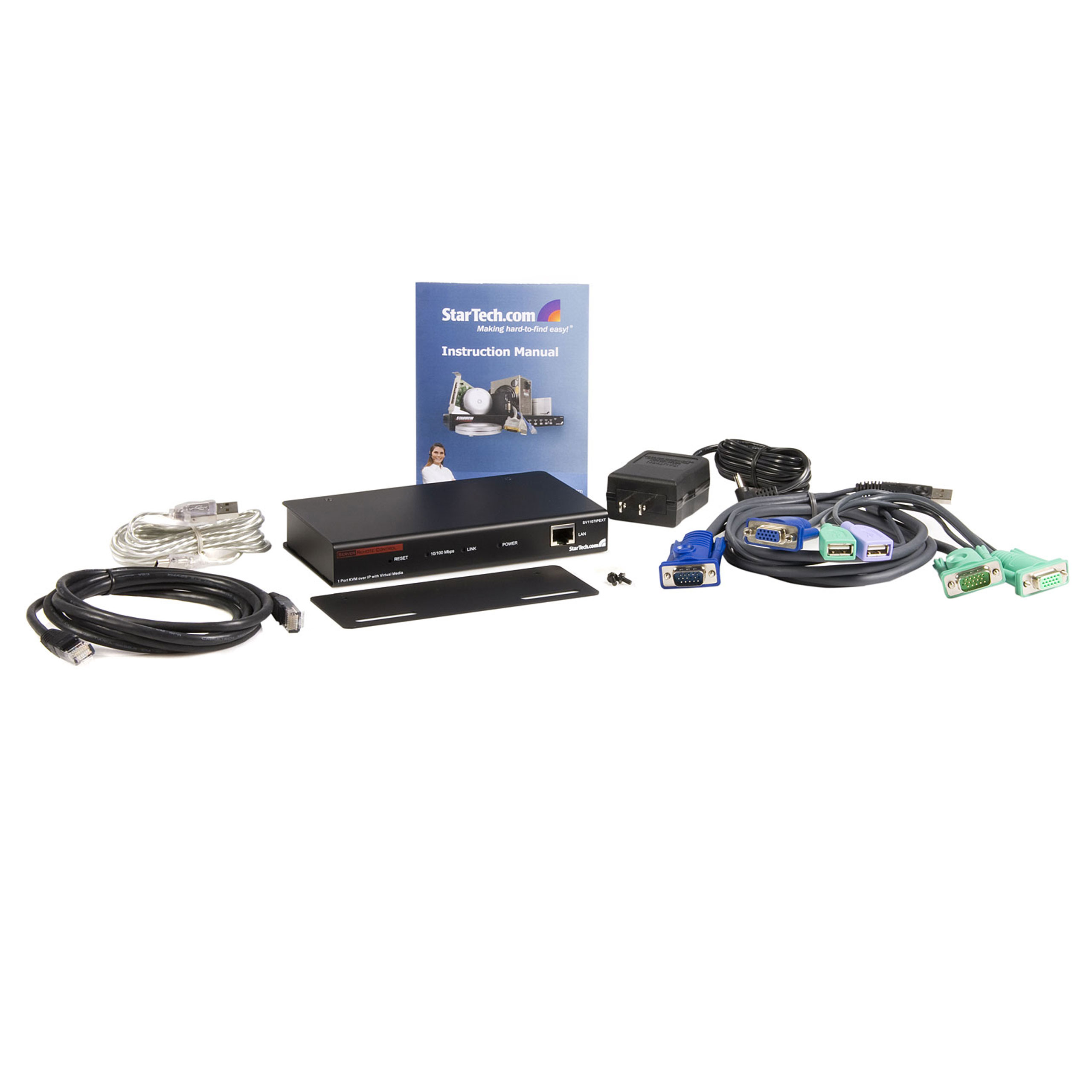

Related Products SV1115IPEXT Equivalent Part Number in the EU SV1107IPEXEU Equivalent Part Number in the UK SV1107IPEXGB Input Current 0.5A Input Voltage 110V-240V AC Output Current 2.6A Output Voltage (V) 5 DC Power Source AC Adapter Included Plug Type B Center Tip Polarity Positive Color Black Humidity 80% RH Material Steel Operating Temperature 0-50°C Product Length (mm) 92 Product Width (mm) 168 Product Height (mm) 26 Product Weight (g) 544 Storage Temperature -20-60°C TAA Compliant No Hot-Key Selection No KVM IP Control Yes Maximum Analog Resolutions 1280x1024 Maximum Number of Users 1 active user plus 1 viewer MTBF (hours) 312,242.7 Hours OS Compatibility OS Independent Security Features 128-bit SSL Encryption Audio No Cables Included Yes Cascadable Yes Number of KVM Ports 1 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB Carton Depth (mm) 460 Carton Height (mm) 290 Carton Quantity 6 Carton Weight Gross (g) 9900 Included in Package - 1 - SV1107IPEXT
- 1 - User manual
- 1 - Power adapter
- 1 - USB KVM cable set
- 1 - USB console cable
- 1 - virtual media USB cable (mini B to A)
- 1 - 6' Cat5 cable
- 1 - Mounting Bracket
Package Depth (mm) 101 Package Height (mm) 226 Package Width (mm) 267 Package Weight (g) 1450 Packaging Description 1 Port USB VGA IP KVM with Virtual Media Packaging Description India 1 Port USB VGA IP KVM with Virtual Media Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 USB-A (480Mbps, 2.5W) Connector 3 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 1 Host Connector 2 USB-A (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
