SV1108IPEXT
Single Port Remote KVM Switch over IP w/ Cables
Control a server or PC remotely over the Internet, with virtual media remote file copying and installation
Main Image
Product Images
Product Images
BOM Image
Product Name Single Port Remote KVM Switch over IP w/ Cables Product Number SV1108IPEXT UPC 065030849784 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 Single Port IP KVMs Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX006X Product Title (Ultra-Short) 1Pt IP KVM Switch Product Title (Short) 1 Port Remote Control IP KVM Switch Product Title (Standard) 1 Port USB PS/2 Server Remote Control IP KVM Switch with Virtual Media Product Title (Long) 1 Port USB PS/2 Server Remote Control IP KVM Switch with Virtual Media Product Title (AMZ) 1 Port USB PS/2 Server Remote Control IP KVM Switch with Virtual Media - Remote KVM Switch - Single Port KVM over IP (SV1108IPEXT) Title Ingram (Part 1) Single Port USB PS/2 Remote KVM Title Ingram (Part 2) Switch over IP with KVM Cables Website Product Headline Control a server or PC remotely over the Internet, with virtual media remote file copying and installation Bullet 1 Full, BIOS-level control of a remote system over the internet Bullet 2 Supports USB or PS/2 keyboard and mouse Bullet 3 Supports resolutions up to 1600x1200 Bullet 4 USB virtual media port for disk emulation and file transfers, including complete remote application and operating system installations Bullet 5 RS-232 console support for Telnet or SSH terminal access Bullets (Consolidated) Control a server or PC remotely over the Internet - with virtual media remote file copying and installation - USB PS/2 Remote KVM Switch with RS232 - Single Port KVM over IP - KVM Cables Included - KVM with Virtual Media for remote installation Marketing Copy Applications - Remote access to a mission-critical server
- BIOS level remote access to servers at co-location, ISP and MSP locations
- Small to Medium businesses that require access to individual servers without breaching security to others
System and Cable Requirements - Connected server and remote user computers can be using any operating systems capable of running Sun Java Runtime Environment (JRE) 6, Update 3 or higher
- Browsers supported for remote login include: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla and Netscape. Please refer to product manual for compatible version numbers
Accessory Products - MC6MF
- C6PATCH6BK
- C6PATCH6BL
- MXT1002MBK
Related Products - SV1108IPPOW
- SV841HDIE
- SV1641HDIE
- SV841DUSBI
Equivalent Part Number in the EU SV1108IPEXEU Equivalent Part Number in the UK SV1108IPEXGB Input Current 0.5 A Input Voltage 100 - 240 AC Output Current 2.6 A Output Voltage (V) 5 DC Power Consumption (In Watts) 6.3 W Power Source AC Adapter Included Plug Type B Center Tip Polarity Positive Color Black Humidity 0~80% RH (Non-Condensing) Material Steel Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 200 Product Width (mm) 80 Product Height (mm) 25 Product Weight (g) 495 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No DVI Support No Hot-Key Selection Yes KVM IP Control Yes Maximum Analog Resolutions 1600x1200 @ 60Hz On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Hotkeys and OSD (On Screen Display) Security Features - 128-bit SSL Encryption
- AES
- DES
- 3DES
- RC4
- IP Filtering
- MAC Address Filtering
Supported Protocols - TCP/IP, HTTP, HTTPS, UDP, DHCP, SSL, ARP, DNS, ICMP, CHAP, PPP
- RADIUS, LDAP, LDAPS, Active Directory
Supported Resolutions 1600x1200, 1280x1024, 1280x720, 1152x864, 1024x768, 800x600, 720x400, 640x480 Audio No Cables Included Yes Cascadable No LED Indicators - 1 - Power
- 1 - Link
- 1 - 10/100 Mbps (Orange/Green)

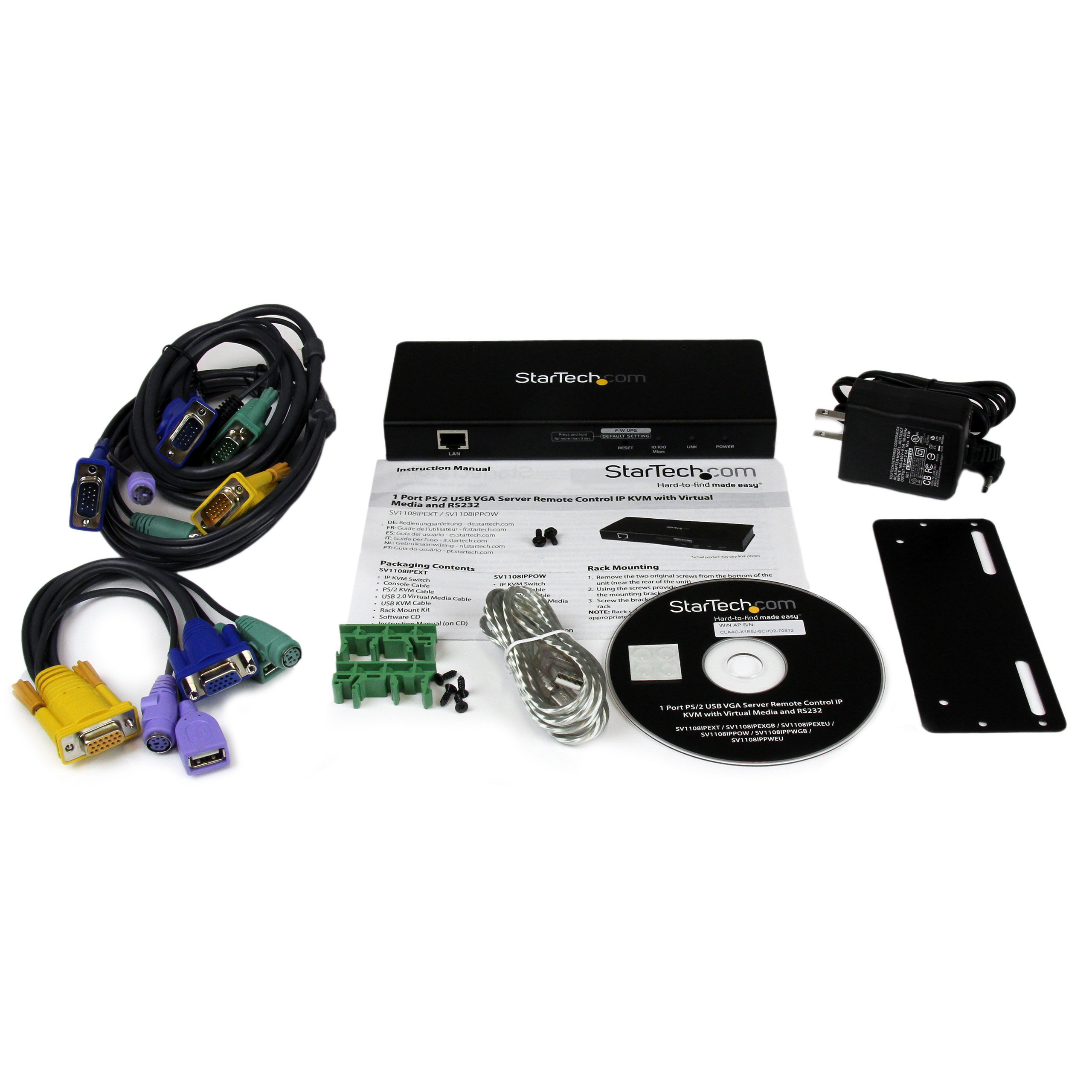

Number of KVM Ports 1 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 Carton Depth (mm) 240 Carton Height (mm) 285 Carton Quantity 5 Carton Weight Gross (g) 7652 Included in Package - 1 - IP KVM Switch
- 1 - Console Cable
- 1 - PS/2 KVM Cable
- 1 - USB 2.0 Virtual Media Cable
- 1 - Rack Mount Kit
- 1 - Instruction Manual (on CD)
- 1 - USB KVM Cable
- 1 - Software CD
- 1 - Quick Start Guide
- 1 - Power Adapter
Package Depth (mm) 220 Package Height (mm) 95 Package Width (mm) 265 Package Quantity 1 Package Weight (g) 1431 Packaging Description 1 Port PS/2 USB VGA IP KVM with Virtual Media Packaging Description India 1 Port PS/2 USB VGA IP KVM with Virtual Media Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 USB Mini-B (480Mbps, 2.5W) Connector 2 (Quantity) 1 Connector 3 DB-9 Serial Connector 3 (Quantity) 1 Connector 4 VGA Connector 4 (Quantity) 1 Connector 5 USB-A (480Mbps, 2.5W) Connector 5 (Quantity) 2 Connector 6 PS/2 Connector 6 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 1 Host Connector 2 USB-A (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 Host Connector 3 PS/2 Host Connector 3 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-03-29 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
