SV1108IPPOW
Single Port KVM over IP with Remote Power Control
Control a server or PC remotely over the Internet, with built-in remote power management and RS232
Main Image
Product Images
Product Images
BOM Image
Product Name Single Port KVM over IP with Remote Power Control Product Number SV1108IPPOW UPC 065030849791 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 Single Port IP KVMs Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX006X Product Title (Ultra-Short) 1Pt IP KVM w/ Power Product Title (Short) 1 Port Remote IP KVM Switch w/ IP Power Product Title (Standard) 1 Port Server Remote Control IP KVM Switch w/ IP Power Control and Virtual Media Product Title (Long) 1 Port Server Remote Control IP KVM Switch w/ IP Power Control and Virtual Media Product Title (AMZ) 1 Port Server Remote Control IP KVM Switch w/ IP Power Control and Virtual Media - Single Port KVM over IP - Remote KVM (SV1108IPPOW) Title Ingram (Part 1) Single Port KVM over IP with Title Ingram (Part 2) Remote Power Control Website Product Headline Control a server or PC remotely over the Internet, with built-in remote power management and RS232 Bullet 1 Full, BIOS-level control of a remote system over the internet Bullet 2 Supports USB or PS/2 keyboard and mouse Bullet 3 Supports resolutions up to 1600x1200 Bullet 4 USB virtual media port for disk emulation and file transfers, including complete remote application and operating system installations Bullet 5 Security features include: SSL Encrypted Login, IP/MAC filtering, Password Protection, Encryption (56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4) and External Authentication (RADIUS, LDAP, LDAPS, Active Directory) Bullets (Consolidated) Control a USB server or PC remotely over the Internet with built-in remote power management and RS232 - 1 Port KVM over IP - Remote KVM Switch - Server Remote Control - Single Port IP KVM with Virtual Media file transfer/install - IP Power Control - Remote Control IP KVM Switch - 1 Port KVM over IP - Supports both USB and PS/2 Marketing Copy Applications - Remote access to a mission-critical server
- BIOS level remote access to servers at co-location, ISP and MSP locations
- Small to Medium businesses that require access to individual servers without breaching security to others
Special Notes This device is OS independent, and no software or drivers are required. Optional Windows only software is included to facilitate additional features. System and Cable Requirements - Connected server and remote user computers can be using any operating systems capable of running Sun Java Runtime Environment (JRE) 6, Update 3 or higher
- Browsers supported for remote login include: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla and Netscape. Please refer to product manual for compatible version numbers
Accessory Products - MC6MF
- C6PATCH6BK
- C6PATCH6BL
- MXT1002MBK
Related Products - SV841HDIE
- SV1641HDIE
- SV841DUSBI
- SV1108IPEXT
Equivalent Part Number in the EU SV1108IPPWEU Equivalent Part Number in the UK SV1108IPPWGB Input Current 0.5 A Input Voltage 100 - 240 AC Output Current 2.6 A Output Voltage (V) 5 DC Power Consumption (In Watts) 6.3 Power Source AC Adapter Included Plug Type B Center Tip Polarity Positive Color Black Humidity 0~80% RH (Non-Condensing) Material Steel Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 310 Product Width (mm) 82 Product Height (mm) 42 Product Weight (g) 860 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No DVI Support No Hot-Key Selection Yes KVM IP Control Yes Maximum Analog Resolutions 1600x1200 @ 60Hz On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Hotkeys and OSD (On Screen Display) Security Features - 128-bit SSL Encryption
- AES
- DES
- 3DES
- RC4
- IP Filtering
- MAC Address Filtering
Supported Protocols - TCP/IP, HTTP, HTTPS, UDP, DHCP, SSL, ARP, DNS, ICMP, CHAP, PPP
- RADIUS, LDAP, LDAPS, Active Directory
Supported Resolutions 1600x1200, 1280x1024, 1280x720, 1152x864, 1024x768, 800x600, 720x400, 640x480 Audio No Cables Included Yes Cascadable No LED Indicators - 1 - Power
- 1 - Link
- 1 - 10/100 Mbps (Orange/Green)

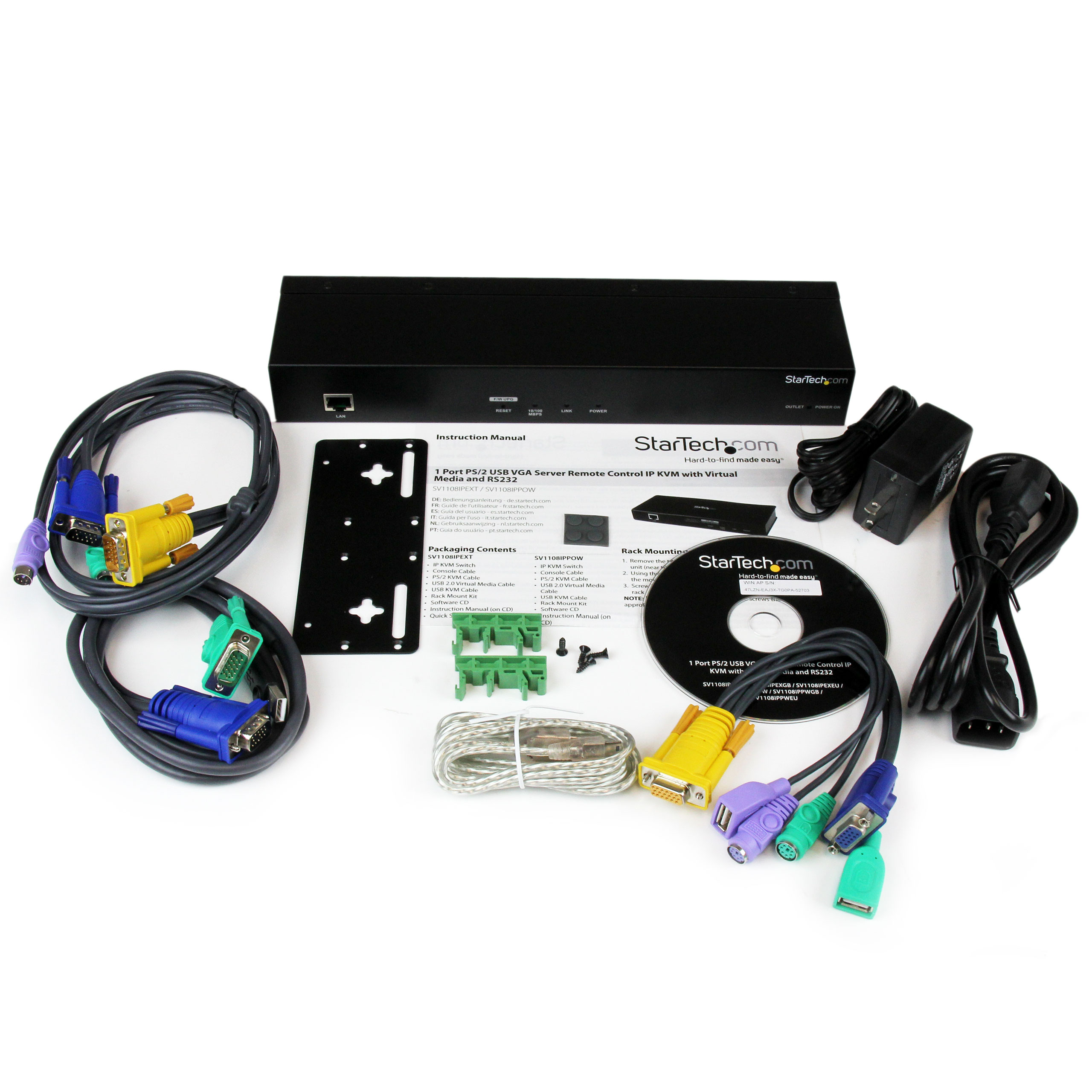

Number of KVM Ports 1 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 Carton Depth (mm) 375 Carton Height (mm) 235 Carton Quantity 3 Carton Weight Gross (g) 7192 Included in Package - 1 - IP KVM Switch w/ remote power
- 1 - Console Cable
- 1 - PS/2 KVM Cable
- 1 - USB 2.0 Virtual Media Cable
- 1 - USB KVM Cable
- 1 - Rack Mount Kit
- 1 - Software CD
- 1 - Instruction Manual (on CD)
- 1 - Quick Start Guide
- 1 - Power Adapter
Package Depth (mm) 205 Package Height (mm) 115 Package Width (mm) 410 Package Quantity 1 Package Weight (g) 2198 Packaging Description 1 Port PS/2 USB VGA IP KVM with IP Power Control Packaging Description India 1 Port PS/2 USB VGA IP KVM with IP Power Control Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 USB Mini-B (480Mbps, 2.5W) Connector 2 (Quantity) 1 Connector 3 DB-9 Serial Connector 3 (Quantity) 1 Connector 4 VGA Connector 4 (Quantity) 1 Connector 5 USB-A (480Mbps, 2.5W) Connector 5 (Quantity) 2 Connector 6 PS/2 Connector 6 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 1 Host Connector 2 USB-A (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 Host Connector 3 PS/2 Host Connector 3 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-04-05 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
