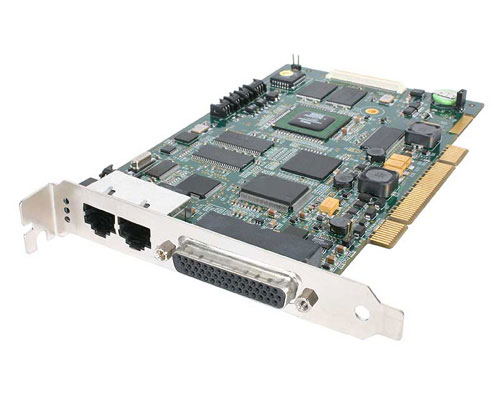

Server Remote Control Internal KVM

Main Image

Product Name	Server Remote Control Internal KVM
Product Number	SV1110IPCIEU
UPC	065030817424
Warranty	2 Years
Taxonomy	Product > Legacy Discontinued
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan
Country of Origin History (1)	Taiwan
Country of Origin Revision (1)	1

Product Title (Long)	Server Remote Control Internal KVM
Bullet 1	Users can re-boot the hardware, access the BIOS, have full keyboard and mouse control - as if they are on location
Bullet 2	Web-Based control allows the server(s) to be controlled from any browser, eliminating licensing costs and making the product easier to use
Bullet 3	Advanced video detection algorithms provide excellent remote video quality and industry-leading performance
Bullet 4	Flash upgradeable
Bullet 5	Low Bandwidth Consumption - usable over a 56k dial-up connection
Marketing Copy
Applications	Ideal solution for managing a server located in a remote branch office via the Internet. Allows users to diagnose, restart, access or change BIOS level settings of a server from a remote location Ideal for enterprise, data center environments, Data Warehousing and Financial Services industries

General Specifications

Supported Operating Systems: Windows NT, 95, 98, 2000, ME, XP, MS-DOS, CPM, Linux, FreeBSD, UNIX and more
Connectors: WAN LAN Multifunction breakout cable port (connects to system Video, USB, Keyboard, Mouse & Video) External Power Adapter
Network Protocols:SSH, HTTP, SNMP, HTTPS, VNC, VNCS
Package Contents: SV1110IPPCI Card, Breakout cable, manual, Power Adapter
LED indicators: USB, WAN/LAN
Max Video Mode: 1600 x 1200 @ 85Hz
Power Supply: External 15 watts (12 VDC, 1.2Amps)
Ethernet LAN: 10/100 Base TX
Secondary WAN ethernet: 10/100 Base TX
