SV1110IPCIGB
Main Image
Product Name Server Remote Control Internal KVM Product Number SV1110IPCIGB UPC 065030810890 Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) 1 Product Title (Long) Server Remote Control Internal KVM Bullet 1 Users can re-boot the hardware, access the BIOS, have full keyboard and mouse control - as if they are on location Bullet 2 Web-Based control allows the server(s) to be controlled from any browser, eliminating licensing costs and making the product easier to use Bullet 3 Advanced video detection algorithms provide excellent remote video quality and industry-leading performance Bullet 4 Flash upgradeable Bullet 5 Low Bandwidth Consumption - usable over a 56k dial-up connection Marketing Copy Applications - Ideal solution for managing a server located in a remote branch office via the Internet.
- Allows users to diagnose, restart, access or change BIOS level settings of a server from a remote location
- Ideal for enterprise, data center environments, Data Warehousing and Financial Services industries
Power Consumption (In Watts) 1.2W Color Black Product Length (mm) 198 Product Width (mm) 168 Product Weight (g) 680 TAA Compliant No General Specifications - Supported Operating Systems: Windows NT, 95, 98, 2000, ME, XP, MS-DOS, CPM, Linux, FreeBSD, UNIX and more
- Connectors: WAN LAN Multifunction breakout cable port (connects to system Video, USB, Keyboard, Mouse & Video) External Power Adapter
- Network Protocols:SSH, HTTP, SNMP, HTTPS, VNC, VNCS

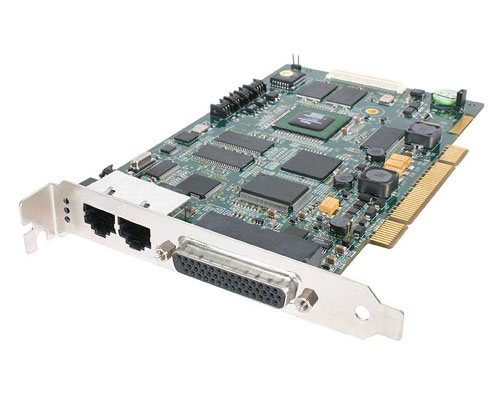

- Package Contents: SV1110IPPCI Card, Breakout cable, manual, Power Adapter
- LED indicators: USB, WAN/LAN
- Max Video Mode: 1600 x 1200 @ 85Hz
- Power Supply: External 15 watts (12 VDC, 1.2Amps)
- Ethernet LAN: 10/100 Base TX
- Secondary WAN ethernet: 10/100 Base TX
Maximum Analog Resolutions 1600 x 1200 @ 85 Hz On-Screen Display Yes en-US Content Approved Yes
