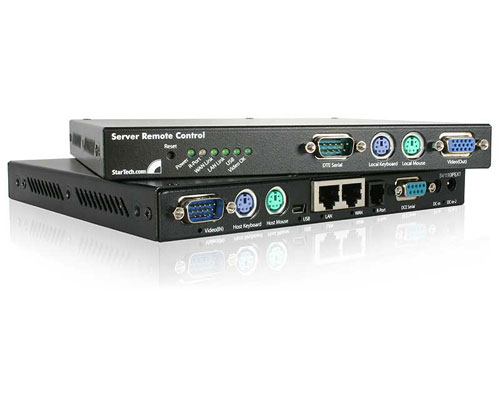

Server Remote Control External KVM control over IP

Main Image

Product Name	Server Remote Control External KVM control over IP
Product Number	SV1110IPEXGB
UPC	065030809832
Warranty	2 Years
Taxonomy	Product > Legacy Discontinued
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan
Country of Origin History (1)	Taiwan
Country of Origin Revision (1)	1

Manual https://images.salsify.com/image/upload/s--fhS-KNZJ--/08f46b1f5e2721840b93ab100f1469e08d251c6c.pdf

Product Title (Long)	Server Remote Control External KVM control over IP
Bullet 1	Includes an onboard Web Server, providing browser-based configuration and administration. Access is controlled via user ID and SSL password encryption. 16 discrete user accounts are supported.
Bullet 2	Access to the web console is user ID and SSL password secure. The Remote Server Management over IP device supports 32 user accounts and incorporates SSL encryption of session data, and SSL web communication encryption.
Bullet 3	Obtains an IP address using DHCP or manual configuration
Bullet 4	Flash upgradeable
Bullet 5	Low bandwidth - usable even over a dialup connection
Marketing Copy
Applications	Application Service Providers (ASPs) BIOS level remote access to servers at co-location facilities and ISPs Enables access to existing KVM switches via TCP/IP Remote access for outsourced server / IT hardware management Remote access to mission-critical corporate datacenter servers

General Specifications

Supported Operating Systems: Windows NT, 95, 98, 2000, ME, XP, MS-DOS, CPM, Linux, FreeBSD, UNIX and more
Connectors: Video In, PS/2 Keyboard, PS/2 Mouse, USB LAN Ethernet: 10/100 Base TX, WAN Ethernet: 10/100 Base TX, R-Port (RJ11, DCE Serial & DC in (x2 - dual redundant)
Network Protocols: SSH, HTTP, SNMP, HTTPS, VNC & VNCS
Dimensions:
Length: 7.8 in
Width: 6.6 in
Height: 0.84 in
Weight: 1.5 Lbs
LED indicators: Power, R-Port, WANLink, LAN link, USB, Video
Max Video Mode: 1600 x 1200 @ 85Hz
Compatible with most enterprise-class OSD equipped KVM switches
Security: 128-bit SSL Encryption
Ethernet LAN: 10/100 Base TX
Secondary WAN ethernet: 10/100 Base TX
Safety Certification: FCC
Package Content:
External KVM Switch
KVM Cable
Power Supply: External 15 watts (12 VDC, 1.2Amps)
User Manual
