SV1110IPEXT
Main Image

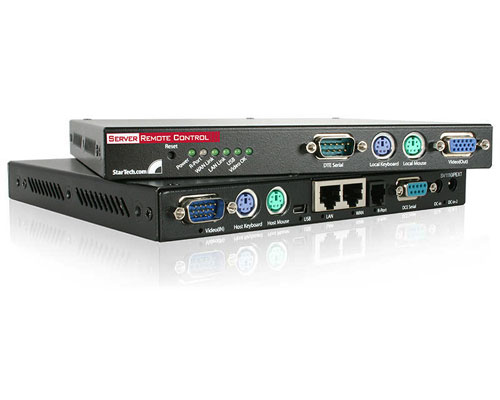

Product Name Server Remote Control External KVM control over IP Product Number SV1110IPEXT UPC 065030804226 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Long) Server Remote Control External KVM over IP Bullet 1 Includes an onboard Web Server, providing browser-based configuration and administration. Access is controlled via user ID and SSL password encryption. 32 discrete user accounts are supported. Bullet 2 Access to the web console is user ID and SSL password secure. The Remote Server Management over IP card supports 32 user accounts and incorporates SSL encryption of session data, and SSL web communication encryption. Bullet 3 Obtains an IP address using DHCP or manual configuration Bullet 4 Flash upgradeable Bullet 5 Low bandwidth - usable even over a dialup connection Marketing Copy Applications - Application Service Providers (ASPs)
- BIOS level remote access to servers at co-location facilities and ISPs
- Enables access to existing KVM switches via TCP/IP
- Remote access for outsourced server / IT hardware management
- Remote access to mission-critical corporate datacenter servers
Accessory Products - SV832DS
- SV1632DS
- SV831
- USB2PS2
- MXT100
- SV831HD
- SV1631HD
- RPORT
- PCM815SHNA
- NM9FF
- NM9MF
- NM9MM
- 1110EXTRACK
Related Products - SV1110IPPCI
- SV441HDI
- SV841HDI
- SV1641HDI
Center Tip Polarity Positive Color Black TAA Compliant No DVI Support No General Specifications - Connectors: Video In, PS/2 Keyboard, PS/2 Mouse, USB LAN Ethernet: 10/100 Base TX, WAN Ethernet: 10/100 Base TX, R-Port (RJ11, DCE Serial & DC in (x2 - dual redundant)
- Network Protocols: SSH, HTTP, SNMP, HTTPS, VNC & VNCS
- Dimensions:
- Length: 7.8 in
- Width: 6.6 in
- Height: 0.84 in
- Weight: 1.5 Lbs
- LED indicators: Power, R-Port, WANLink, LAN link, USB, Video
- Compatible with most enterprise-class OSD equipped KVM switches
- Security: 128-bit SSL Encryption
- Ethernet LAN: 10/100 Base TX
- Secondary WAN ethernet: 10/100 Base TX
- Package Content:
- External KVM Switch
- KVM Cable
- Power Supply: External 15 watts
- User Manual
KVM IP Control Yes Maximum Analog Resolutions 1600 x 1200 @ 85Hz Maximum Number of Users 1 active user plus up to 3 viewing Audio No Cascadable Yes Number of KVM Ports 1 Number of Monitors Supported 1 Rack-Mountable Yes Supported Platforms PS/2 Carton Depth (mm) 569 Carton Height (mm) 332 Carton Quantity 6 Carton Weight Gross (g) 13140 Package Depth (mm) 270 Package Height (mm) 106 Package Width (mm) 295 Package Weight (g) 1990 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 1 Connector 2 PS/2 Connector 2 (Quantity) 4 Connector 3 DB-9 Serial Connector 3 (Quantity) 1 Connector 4 VGA Connector 4 (Quantity) 1 Connector 5 VGA Connector 5 (Quantity) 1 Connector 6 RJ-45 Connector 6 (Quantity) 2 Connector 7 USB Mini-B (480Mbps, 2.5W) Connector 7 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
