SV1110IPPCI
Main Image

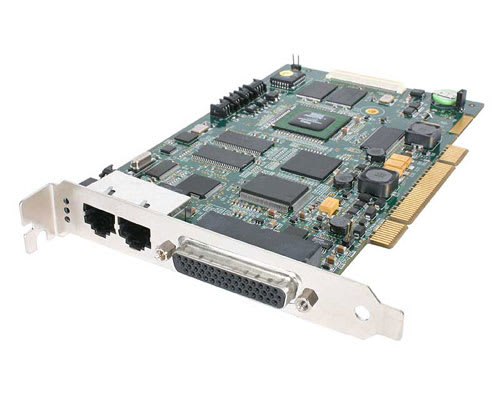

Product Name Server Remote Control Internal KVM Control over IP Product Number SV1110IPPCI UPC 065030804233 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Long) PCI Server Remote Control Internal IP KVM Card Bullet 1 Users can re-boot the hardware, access the BIOS, have full keyboard and mouse control - as if they are on location Bullet 2 Web-Based control allows the server(s) to be controlled from any browser, eliminating licensing costs and making the product easier to use Bullet 3 Advanced video detection algorithms provide excellent remote video quality and industry-leading performance Bullet 4 Flash upgradeable Bullet 5 Low Bandwidth Consumption - usable over a 56k dial-up connection Marketing Copy Applications - Ideal solution for managing a server located in a remote branch office via the Internet.
- Allows users to diagnose, restart, access or change BIOS level settings of a server from a remote location
- Ideal for enterprise, data center environments, Data Warehousing and Financial Services industries
Special Notes Accessory Products - RJ45PATCH6
- RJ45PATCH10
- M45PATCH10BL
Power Consumption (In Watts) 1.2W Power Source AC Adapter Included Center Tip Polarity Positive Color Black Product Length (mm) 198 Product Width (mm) 168 Product Weight (g) 680 TAA Compliant No DVI Support No General Specifications - Supported Operating Systems: Windows NT, 95, 98, 2000, ME, XP, MS-DOS, CPM, Linux, FreeBSD, UNIX and more
- Connectors: WAN LAN Multifunction breakout cable port (connects to system Video, USB, Keyboard, Mouse & Video) External Power Adapter
- Network Protocols:SSH, HTTP, SNMP, HTTPS, VNC, VNCS
- Package Contents: SV1110IPPCI Card, Breakout cable, manual, Power Adapter
- LED indicators: USB, WAN/LAN
- Power Supply: External 15 watts (12 VDC, 1.5Amps)
- Ethernet LAN: 10/100 Base TX
KVM IP Control Yes Maximum Analog Resolutions 1600 x 1200 pixels @ 85 Hz Maximum Number of Users 16 On-Screen Display Yes Audio No Cascadable No Number of KVM Ports 1 Number of Monitors Supported 1 Rack-Mountable No Supported Platforms USB and PS/2 Carton Depth (mm) 565 Carton Height (mm) 330 Carton Quantity 6 Carton Weight Gross (g) 10440 Package Depth (mm) 108 Package Height (mm) 272 Package Width (mm) 296 Package Weight (g) 1540 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 en-US Content Approved Yes Product Manager Daryl Hunt
