SV1115IPEXT
1 Port External Server Remote Control
Full remote IP control of a server or PC, with virtual media remote file copying and installation
Main Image
Product Images
Product Images
BOM Image
Product Name 1 Port External Server Remote Control Product Number SV1115IPEXT UPC 065030823302 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 Single Port IP KVMs Country of Origin Europe & Japan Canada Country of Origin North America Canada Country of Origin History (1) Canada Country of Origin Revision (1) XXXXXX019X Product Title (Ultra-Short) 1 Port IP KVM Switch Product Title (Short) 1 Port USB Server Remote Control IP KVM Product Title (Standard) StarTech.com 1 Port USB PS/2 Server Remote Control IP KVM w/Virtual Media & Serial - External Server Remote Control over IP - Remote control device Product Title (Long) 1 Port USB PS/2 Server Remote Control IP KVM w/Virtual Media & Serial Title Ingram (Part 1) 1 Port USB PS/2 Server Remote Co Title Ingram (Part 2) ntrol IP KVM w/Virtual Media Website Product Headline Full remote IP control of a server or PC, with virtual media remote file copying and installation Bullet 1 Supports 16-bit video for richer picture quality through a web browser or VNC client Bullet 2 Three integrated USB ports for local peripherals (keyboard, mouse, USB drive, USB CD ROM, etc.) Bullet 3 Supports SSL encryption, SSH tunneling, and RADIUS authentication Bullet 4 Virtual Media allows for remote disk emulation and file transfers Bullet 5 Platform independent: the IP KVM switch can be managed using any Java-enabled Web browser and connected to virtually any USB or PS/2 host computer Marketing Copy Applications - BIOS level remote access to servers at co-location facilities and ISPs
- Enables access to existing KVM switches via TCP/IP for single console remote administration
- Remote access for outsourced server / IT hardware management
- Remote access to mission-critical corporate datacenter servers, increasing uptime
- Create a scalable, streamlined access solution in your Datacenter or Server Farm
- Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice and allows remote access
- Perfect for manufacturing line computer control, simplifying access to multiple systems through cascading
Website Search Keyword - Server remote
- IP
- KVM
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Special Notes Accessory Products - SV831
- USB2PS2
- MXT100
- RPORT
- PCM815SHNA
- NM9FF
- NM9MF
- NM9MM
- 1110EXTRACK
- USB56KEM
Related Products - SV1110IPPCI
- SV441HDIE
- SV841HDIE
- SV1641HDIE
Equivalent Part Number in the UK SV1115IPEXGB Output Current 3A Output Voltage (V) 5 DC Power Consumption (In Watts) 15 Power Source AC Adapter Included Color Black Material Steel Product Length (mm) 168 Product Width (mm) 188 Product Height (mm) 22 Product Weight (g) 700 TAA Compliant No General Specifications - Note: The SSL certificate provided is for testing and initialization purposes only and provides minimum strength security. We strongly recommend users upgrade the included certificate with individual SSL Certificate.
- TLS version supported: 1.0
Hot-Key Selection No KVM IP Control Yes Maximum Analog Resolutions 1600 x 1200 @85Hz Maximum Data Transfer Rate Ethernet LAN/WAN ports - 10/100Mbps Maximum Number of Users 1 active user plus up to 3 viewing On-Screen Display No OS Compatibility OS Independent Security Features 128-bit SSL Encryption Supported Protocols SSH, HTTP, SNMP, HTTPS, VNC & VNCS Audio No Cables Included Yes Cascadable Yes LED Indicators - 1 - Power
- 1 - R-Port
- 1 - WANLink
- 1 - LAN link
- 1 - USB
- 1 - Video

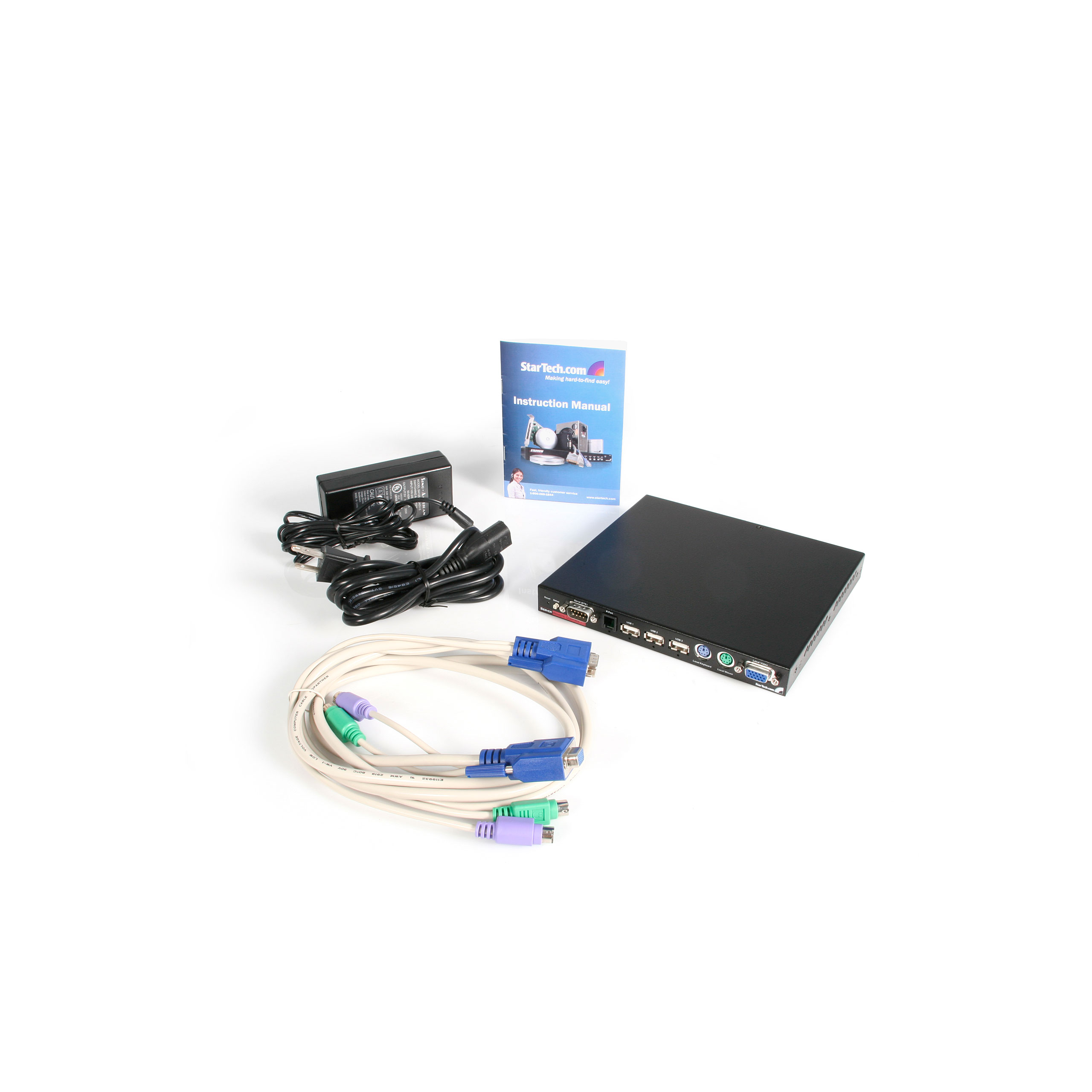

Number of KVM Ports 1 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 Carton Depth (mm) 569 Carton Height (mm) 332 Carton Quantity 6 Carton Weight Gross (g) 12720 Included in Package - 1 - IP KVM Unit
- 1 - 6ft VGA PS/2 KVM Cable
- 1 - Power Adapter
- 1 - Instruction Manual
- 1 - Pack, Rubber Feet
Package Depth (mm) 106 Package Height (mm) 274 Package Width (mm) 300 Package Quantity 1 Package Weight (g) 1920 Packaging Description 1 Port USB PS/2 IP KVM w/ Virtual Media Packaging Description India 1 Port USB PS/2 IP KVM w/ Virtual Media Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 2 Connector 2 VGA Connector 2 (Quantity) 1 Connector 3 RJ-11 Connector 3 (Quantity) 1 Connector 4 DB-9 Serial Connector 4 (Quantity) 1 Connector 5 Mini HDMI Connector 5 (Quantity) 2 Connector 6 USB-A (480Mbps, 2.5W) Connector 6 (Quantity) 3 Host Connector 1 VGA Host Connector 1 (Quantity) 1 Host Connector 2 USB-B (480Mbps, 2.5W) Host Connector 2 (Quantity) 1 Host Connector 3 DB-9 Serial Host Connector 3 (Quantity) 1 Host Connector 4 PS/2 Host Connector 4 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Scott Dunlop Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
