SV122
Main Image

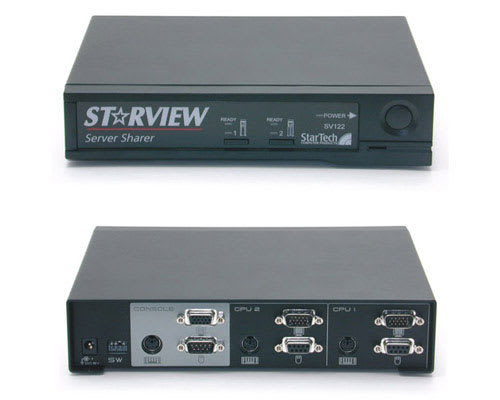

Product Name *D*StarView Server Sharer 2-Port KVM Switch Product Number SV122 UPC 065030773478 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) *D*StarView Server Sharer 2-Port KVM Switch Bullet 1 CPU's are selected using keyboard HOT-KEYS or by front panel pushbutton Bullet 2 Autoscan mode cycles through all CPU's automatically. The time spent on each CPU can be set from 3 to 40 seconds. Bullet 3 Supports VGA, SVGA, and multisync monitors of up to 100MHz bandwidth. Bullet 4 Units can be cascaded into each other to allow expansion as your needs grow Bullet 5 Keyboard emulation feature allows any CPU to be powered up without resulting in a keyboard error. Marketing Copy The StarTech Personal StarView SV122 is a 2 port KVM switch that allows 2 computers with PS/2 style keyboard and mouse connections to be controlled from 1 monitor, keyboard, and mouse. This saves the user space by only needing one control console for both computers, and saves the time spent moving between the PCs. Ports are switched by pressing a button on the unit, or by a simple keyboard hot-key sequence. The StarView prevents bootup errors by providing keyboard and mouse emulation to the non-selected PC. Applications - Allows 1 console to control 2 computers
- Requires 5 DIN Male to 6 DIN Male cable (KXT1056MM) or GC56MF adapter to connect to computer with AT-style keyboard port
- Note: Both PCs must be PS/2 or AT (not 1 AT computer and 1 PS/2 computer)
Accessory Products - SVPS23N1_6
- SVPS23N1_10
- SVPS23N1_15
- SVPS23N1_25
- SVPS23N1_35
- SVPS23N1_50
- GC56MF
- GC56MFCABLE
- SVPOWER
- SVPOWERBRIT
Related Products SV231 TAA Compliant No General Specifications - Keyboard Connector: 6 pin MiniDIN
- Mouse Connector: DB9 Male, 6 pin MiniDIN
- Monitor Connector: 15 pin High Density D-Sub-Female to Monitor, Male to CPU's
- Weight: 6.7 lbs or 2.55 Kilograms
- Dimensions (mm): 254 x 180 x 82
- LED Status Indicators: 1 Indicates Scan or Manual mode and 1 for the status of each port
- Enclosure: Heavy duty metal, Optional rack mount capability for SV621, SV421
Included in Package - 1 - STARVIEW SWITCH
- 1 - ADAPTOR
- 1 - MANUAL
