SV1621EM
Main Image

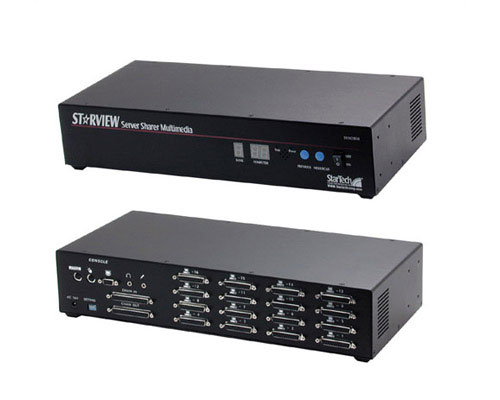

Product Name *D*StarView Multimedia 16-Port KVM Switch *D* Product Number SV1621EM UPC 065030784016 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) *D*StarView Multimedia 16-Port KVM Switch *D* Bullet 1 Keyboard and Mouse emulation for all inactive channels Bullet 2 Supports SVGA, VGA and Multisync monitors Bullet 3 Supports VESA DCC1/2B standard Bullet 4 On-Screen Display (OSD) feature allows user to choose the computer controlled from an On-Screen menu Bullet 5 PC name is user-definable via OSD menu Marketing Copy The StarTech.com Enterprise StarView is a 16 port KVM switch that allows up to 16 computers to be controlled from 1 monitor, keyboard, and mouse. This saves the user space by only needing one control console for several computers, and saves the time spent moving between the PC's. Ports are switched by calling up an On-Screen menu, pressing a button on the front of the unit, or by a simple keyboard hot-key sequence. PCs with either PS/2 or serial style mouse connections can be connected and used transparently. The StarView prevents bootup errors by providing keyboard and mouse emulation to the non-selected PC. Up to 8 Enterprise StarViews can be daisy chained to control a maximum of 128 PC's. The switch also has microphone and speaker connections, allowing it to be used in multimedia applications. It's low cost, rackmount capability, and high 1600 x 1280 resolution display capability make this switch perfect for professional test labs or server room environments. Applications - Allows 1 console to control 16 computers (standalone mode)
- Allows 1 console to control up to 128 computers (daisy chained)
Related Products - SV1632DS
- SV1631D
TAA Compliant No General Specifications - Ports: 16 for connecting PCs, 1 for connecting control console, 1 Cascade IN, 1 Cascade OUT
- PC Selection Method: Pushbutton/Keyboard Hot Keys/OSD Menu
- Scan Interval: 5/10/20/40 seconds
- Signal Type: VGA/Keyboard/Mouse/Stereo Audio/Microphone
- VGA Bandwidth: 150MHz
- Console Connectors: High Density DB15 Female, 6 DIN Female, mini DIN6 Female, 3.5mm stereo socket, 3.5mm mono socket
- PC Port Connector: DB25 Female
- Chain Connector: DB37 Female
- Cable Length: PC to Switch: 35m, Console to Switch: 50 m
- Enclosure: Metal, Rackmountable
- Dimensions: W17.3xD7.9xH3.5" (44x20x9cm)
- Weight: 8.38 lb (3800g)
- Power: AC 16V 1000mA (AC 120V adapter included)
- Certifications: FCC Part 15 Class A, CE Mark
Included in Package - 1 - 16 PORT SWITCH
- 1 - POWER ADAPTOR
- 1 - INSTRUCTION MANUAL
- 1 - RACKMOUNT
- 1 - CONNECTING CABLE
