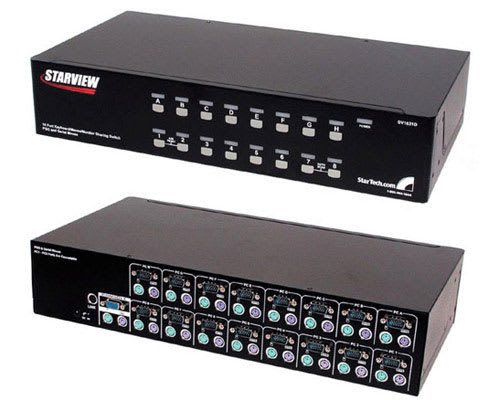

SV1631D
Main Image
Product Name 16 Port StarView KVM with OSD Product Number SV1631D UPC 065030787185 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Long) 16 Port StarView KVM Switch with OSD Bullet 1 A dependable 3-year warranty provides peace of mind. Bullet 2 Hot-pluggable to allow computers to be added or removed without worrying about having to reboot the other connected systems. Bullet 3 "Keep-alive" feature draws power from PC keyboard ports if power is lost. Switch will continue to operate during power outage even it it loses power, retaining mouse control. Bullet 4 Rugged, all-metal chassis for use in harsh environments and space-saving cabinets. Bullet 5 Designed for guaranteed compatibility with Dell, Compaq, IBM and HP servers and systems. Marketing Copy Applications - Datacenter computer control
- Manufacturing line computer control
- PC test/burn-in computer control
Accessory Products - SVPS23N1_6
- SVPS23N1_15
- SVPS23N1_35
- SV560UTP
- SVPS23N1_10
- SVPS23N1_25
- SVPS23N1_50
- USB2PS2
- GC56MF
- SVPOWER
- PS23N1THIN4
- PS23N1THIN10
- PS23N1THIN25
- PS23N1THIN2
- PS23N1THIN6
- PS23N1THIN15
- SV125
Related Products - SV1632DS
- SV832DS
Input Current 0.2A Input Voltage 110V-240V AC Output Current 0.6A Output Voltage (V) 9V DC Power Consumption (In Watts) 0.6W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Material Steel Product Length (mm) 436 Product Width (mm) 220 TAA Compliant No General Specifications - Ports: 16 PC ports (HDDB15 Male, 2x 6 Pin MiniDIN Female), 1 Console port (HDDB15 Female, 2x 6 Pin MiniDIN Female), 1 Feature Expansion port (8 pin MiniDIN Female)
- PC Selection methods: OSD Menu, Keyboard hot-key, Front panel button
- Video Bandwidth: 300 MHz
- Enclosure: Metal, rackmount brackets included
- Dimensions: H3.5 x L17.2 x D8.7 inches (88 x 436 x 220mm)
- Weight: 8.26lbs (3.75kg)
- Certifications: FCC Part 15 Class A, CE Mark, VCCI
Maximum Analog Resolutions 1920 x 1440 @ 70 Hz Maximum Number of Users 1 On-Screen Display Yes U Height 2U Carton Depth (mm) 526 Carton Height (mm) 375 Carton Quantity 3 Carton Weight Gross (g) 0 Included in Package - 1 - 16 Port StarView KVM with OSD
- 8 - PS/2 Mouse Connectors
- 4 - Rubber Feet
- 1 - Power Adapter
- 1 - Instruction Manual
- 1 - rackmount kit
- 1 - Hot key reference
Package Depth (mm) 119 Package Height (mm) 360 Package Width (mm) 509 Package Weight (g) 5730 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 S-Video (Y/C) Connector 1 (Quantity) 1 Connector 2 PS/2 Connector 2 (Quantity) 34 Connector 3 VGA Connector 3 (Quantity) 16 Connector 4 VGA Connector 4 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
