Main Image
SV1631D1U
Main Image

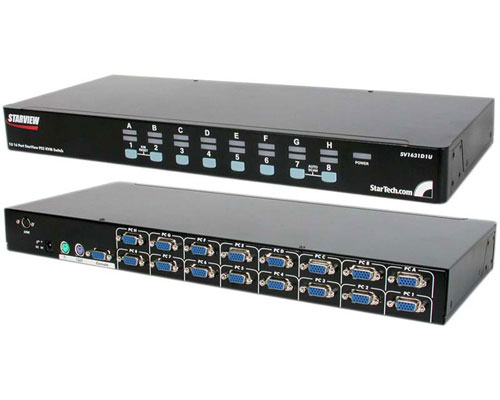

Product Name 16 Port 1U StarView PS2 KVM swtich w/ OSD Product Number SV1631D1U UPC 065030802024 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Long) 16 Port StarView PS/2 KVM Switch with OSD Bullet 1 Supports PCs with PS/2 keyboard and mouse connectors Bullet 2 KVM switch lets users control up to 16 computers directly and up to 136 computers by cascading 8 additional KVM switches Bullet 3 Compact 1U rack height takes up very little cabinet or rack space Bullet 4 Hot-pluggable feature allow computers to be added or removed without shutting down Bullet 5 Compatible with Dell, Compaq, IBM and HP servers and systems Marketing Copy Applications - Datacenter computer control
- Manufacturing line computer control
- PC test/burn-in computer control
- Co-location/ISP computer control
- Server farms
Input Current 0.2A Input Voltage 110V-240V AC Output Current 0.6A Output Voltage (V) 9V DC Power Consumption (In Watts) 0.6W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Material Steel Product Length (mm) 436 Product Width (mm) 180 TAA Compliant No DVI Support No General Specifications - Computer Port Connectors: 16 x HD-15 (Female)
- Console Port Connector: 1 x PS/2 Keyboard 6-pin Mini-Din (Female) 1 x PS/2 Mouse 6-pin Mini-Din (Female) 1 x HD-15 (Female)
- Channel Selection: Hotkeys
- Auto Scan Interval: 3,8,15 & 30 seconds
- Login Password: 4 character/computer
- OSD Support: Yes
- Computer Name Entry: 14 Characters
- Cable Length: 100ft for Console Connection 100ft for PS/2 Computers
- Enclosure: Metal, Rackmount brackets included
- Dimensions: 17.2 X 7.0 X 1.7 INCHES (436 X 180 X 44 mm)
- Safety Standards: fcc & ce
- LED Display: 16 x Active PCs (Green LED) & 16 x Selected PCs (Red LED)
KVM IP Control No Maximum Analog Resolutions 1920 x 1440 pixels Maximum Cable Length (mm) 30480 Maximum Number of Users 1 On-Screen Display Yes Audio No Cascadable Yes Number of KVM Ports 16 Number of Monitors Supported 1 Rack-Mountable Yes Supported Platforms PS/2 U Height 1U Carton Depth (mm) 285 Carton Height (mm) 410 Carton Quantity 4 Carton Weight Gross (g) 16800 Package Depth (mm) 262 Package Height (mm) 90 Package Width (mm) 592 Package Weight (g) 3900 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 S-Video (Y/C) Connector 1 (Quantity) 1 Connector 2 PS/2 Connector 2 (Quantity) 2 Connector 3 VGA Connector 3 (Quantity) 16 Connector 4 VGA Connector 4 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
