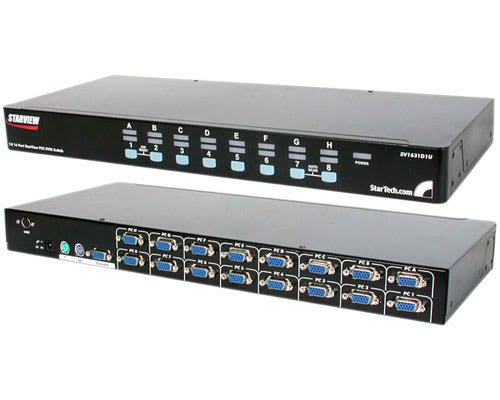

16 Port StarView PS/2 KVM Switch with OSD

Main Image

Product Name	16 Port StarView PS/2 KVM Switch with OSD
Product Number	SV1631D1UEU
UPC	065030811569
Warranty	3 Years
Taxonomy	Product > Legacy Discontinued
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan
Country of Origin History (1)	Taiwan
Country of Origin Revision (1)	1

Product Title (Long)	16 Port StarView PS/2 KVM Switch with OSD
Bullet 1
Bullet 2	Auto Scan Mode lets you switch between computers for easy monitoring
Bullet 3	Compact 1U rack height takes up very little cabinet or rack space
Bullet 4	Compatible with Dell, Compaq, IBM and HP servers and systems
Bullet 5	DDC2B compatible
Marketing Copy
Applications	Co-location/ISP computer control Datacenter computer control Manufacturing line computer control PC test/burn-in computer control Server farms

Power Consumption (In Watts) 0.6W
Color Black
Material Steel
Product Length (mm) 436
Product Width (mm) 180
TAA Compliant No

General Specifications	Auto Scan Interval: 3,8,15 & 30 seconds Cable Length: 100ft for Console Connection 100ft for PS/2 Computers Channel Selection: Hotkeys Computer Name Entry: 14 Characters Computer Port Connectors: 16 x HD-15 (Female) Computer Ports: 16 Console Port Connector: 1 x PS/2 Keyboard 6-pin Mini-Din (Female) 1 x PS/2 Mouse 6-pin Mini-Din (Female) 1 x HD-15 (Female) Dimensions: 17.2 X 7.0 X 1.7 INCHES (436 X 180 X 44 mm) Enclosure: Metal, Rackmount brackets included LED Display: 16 x Active PCs (Green LED) & 16 x Selected PCs (Red LED) Login Password: 4 character/computer OSD Support: Yes Power: 9V 600mA DC Power Adapter Safety Standards: fcc & ce User Ports: 1 VGA Resolution: 1920 x 1440 pixels
Maximum Analog Resolutions	1920 x 1440
Maximum Cable Length (mm)	30480
Maximum Number of Users	1
On-Screen Display	Yes
