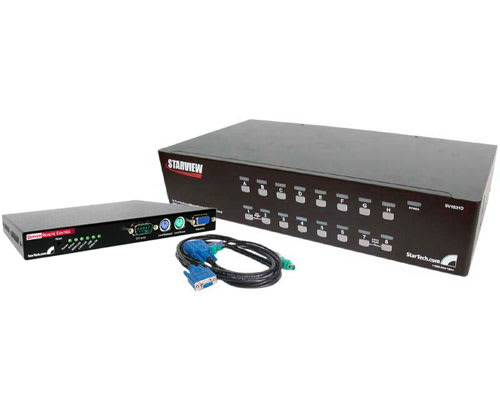

16 Port KVM Switch with Remote IP Access

Main Image

Product Name	16 Port KVM Switch with Remote IP Access
Product Number	SV1631DI
UPC	065030798556
Warranty	2 Years
Taxonomy	Product > Legacy Discontinued
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan
Country of Origin History (1)	Taiwan
Country of Origin Revision (1)	1

Manual https://images.salsify.com/image/upload/s--unzTRPV---/da6aa82f427879e0e18a5743e03af496add94c29.pdf

Product Title (Long)	16 Port KVM Switch with Remote IP Access
Bullet 1	SV1631D
Bullet 2	A dependable 3-year warranty provides peace of mind.
Bullet 3	Hot-pluggable to allow computers to be added or removed without worrying about having to reboot the other connected systems.
Bullet 4	"Keep-alive" feature draws power from PC keyboard ports if power is lost. Switch will continue to operate during power outage even it it loses power, retaining mouse control.
Bullet 5	Rugged, all-metal chassis for use in harsh environments and space-saving cabinets.
Marketing Copy
Applications	Remote access to mission-critical corporate datacenter servers Application service providers (ASPs) BIOS level remote access to servers located at co-location facilities and ISPs Remote access for outsourced server/IT hardware management IP enable existing KVM switches Datacenter computer control Manufacturing line computer control PC test/burn-in computer control

Accessory Products
2630CABINET
2636CABINET
7230CABINET
7236CABINET
CAB1019WALL
CAB4236BK
RPORT
PCM815SHNA
Related Products SV1641HDI
Power Consumption (In Watts) 0.6W
Power Source AC Adapter Included
Color Black
Material Steel
Product Length (mm) 436
Product Width (mm) 220
TAA Compliant No

DVI Support	No
General Specifications	SV1631D1U: : Ports: 16 HDDB15 Female, Console port (1x HDDB15 Female, 2x 6 Pin MiniDIN Female) : PC Selection methods: OSD Menu, Keyboard hot-key, Front panel button : Video Bandwidth: 200 MHz : Maximum resolution: 1920 x 1440 pixels : Enclosure: Metal, rackmount brackets included Dimensions: 17.2 X 7.0 X 1.7 INCHES (436 X 180 X 44 mm) : Power: 9V DC 600mA - Adapter included : Certifications: FCC Part 15 Class A, CE Mark, VCCI SV1110IPEXT: : Login Security: MD5 and DAA encryption protocols : Web Interface Security: SSL2, SSL3 and TLS1.0 protocols : Traffic Encryption: 128-bit encrypted using RC-4 based encryption algorithms and 1024-bit keys : Maximum Supported Resolution: 1600 x 1200 pixels : Supported Operating Systems: Windows NT, 95, 98, 2000, ME, XP, MS-DOS, CPM, Linux, FreeBSD, UNIX and more : Safety Approvals: FCC & CE : Warranty: 2-year Package Contents: : SV1631D1U : SV1110IPEXT : 4 SVECON2 : 4 SVECON4 : 6 SVECON6 : 6 SVECON10
KVM IP Control	Yes
Maximum Analog Resolutions	1600 x 1280 @ 85 Hz
Maximum Number of Users	1
On-Screen Display	Yes

Accessory Products	2630CABINET 2636CABINET 7230CABINET 7236CABINET CAB1019WALL CAB4236BK RPORT PCM815SHNA
Related Products	SV1641HDI

Power Consumption (In Watts)	0.6W
Power Source	AC Adapter Included

Audio	No
Cascadable	Yes
Number of KVM Ports	16
Number of Monitors Supported	1
Rack-Mountable	Yes
Supported Platforms	PS/2
U Height	2U
