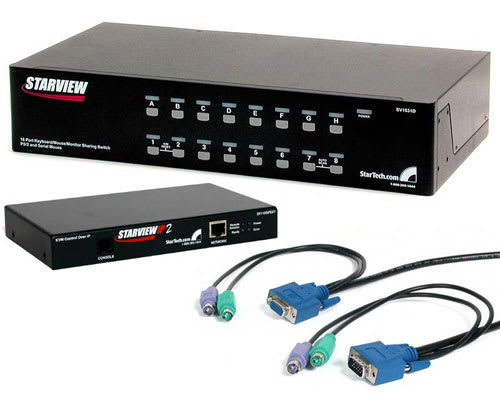

16 Port KVM Switch with Remote IP Access

Main Image

Product Name	16 Port KVM Switch with Remote IP Access
Product Number	SV1631DIGB
UPC	065030800549
Warranty	2 Years
Taxonomy	Product > Legacy Discontinued
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan
Country of Origin History (1)	Taiwan
Country of Origin Revision (1)	1

Product Title (Long)	16 Port KVM Switch with Remote IP Access
Bullet 1	SV1631DGB
Bullet 2	A dependable 3-year warranty provides peace of mind.
Bullet 3	Hot-pluggable to allow computers to be added or removed without worrying about having to reboot the other connected systems.
Bullet 4	"Keep-alive" feature draws power from PC keyboard ports if power is lost. Switch will continue to operate during power outage even it it loses power, retaining mouse control.
Bullet 5	Rugged, all-metal chassis for use in harsh environments and space-saving cabinets.
Marketing Copy
Applications	Remote access to mission-critical corporate datacenter servers Application service providers (ASPs) BIOS level remote access to servers located at co-location facilities and ISPs Remote access for outsourced server/IT hardware management IP enable existing KVM switches Datacenter computer control Manufacturing line computer control PC test/burn-in computer control

General Specifications

SV1631DGB:
: Ports: 16 PC ports (HDDB15 Male, 2x 6 Pin MiniDIN Female), 1 Console port (HDDB15 Female, 2x 6 Pin MiniDIN Female), 1 Feature Expansion port (8 pin MiniDIN Female
: PC Selection methods: OSD Menu, Keyboard hot-key, Front panel button
: Video Bandwidth: 200 MHz
: Maximum resolution: 1600 x 1280 pixels @ 85Hz
: Enclosure: Metal, rackmount brackets included
: Dimensions: H3.5 x L17.2 x D8.7 inches (88 x 436 x 220mm)
: Power: 9V DC 600mA - Adapter included
: Certifications: FCC Part 15 Class A, CE Mark, VCCI
SV1105IPEXGB:
: Login Security: MD5 and DAA encryption protocols
: Web Interface Security: SSL2, SSL3 and TLS1.0 protocols
: Traffic Encryption: 128-bit encrypted using RC-4 based encryption algorithms and 1024-bit keys
: Maximum Supported Resolution: 1280x1024 pixels at 60Hz
: Supported Operating Systems: Windows NT, 95, 98, 2000, ME, XP, MS-DOS, CPM, Linux, FreeBSD, UNIX and more
: Connectors: 1 x RJ45 10/100 Ethernet 1 x RJ11 Serial 2 x HD-DB15 VGA Video (In/Out) 2 x PS/2 Keyboard/Mouse (In/Out) USB (In)
: Dimensions: Length: 4.53" (11.5cm) Width: 7.8" (19.8cm) Height: .98" (2.5cm)
: Safety Approvals: FCC & CE
: Warranty: 2-year
Package Contents:
: SV1631DGB
: SV1105IPEXGB
: 4 CABLPS23N1THIN_2
: 4 CABLPS23N1THIN_4
: 6 CABLPS23N1THIN_6
: 6 CABLPS23N1THIN_10

Color	Black
TAA Compliant	No
