SV1631DUSB
16 Port 1U Rackmount USB PS 2 KVM Switch with OSD
Control up to 16 USB or PS/2-connected computers from one keyboard, mouse and monitor
Main Image
Product Images
Product Images
BOM Image
Product Name 16 Port 1U Rackmount USB PS 2 KVM Switch with OSD Product Number SV1631DUSB UPC 065030821100 Lifecycle status Active Warranty 3 Years Taxonomy Product > KVMs, Switches & Splitters > Rackmount KVMs Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 VGA Rack-Mount KVMs Family Basic Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) 16Pt USB PS/2 KVM Product Title (Short) 16 Port 1U Rackmount USB PS/2 KVM Switch Product Title (Standard) 16 Port 1U Rackmount USB PS/2 KVM Switch with OSD, TAA Product Title (Long) 16 Port 1U Rackmount USB PS/2 KVM Switch with OSD - TAA Product Title (AMZ) 16-Port KVM Switch with OSD- 1U Rackmount KVM Switch - USB and PS/2 - 1920 x 1440 , TAA @60hz (SV1631DUSB) Title Ingram (Part 1) 16 Port 1U Rackmount USB PS/2 KV Title Ingram (Part 2) M Switch with OSD Website Product Headline Control up to 16 USB or PS/2-connected computers from one keyboard, mouse and monitor Bullet 1 Connect USB and PS/2 based computer systems Bullet 2 OS independent – No software or drivers required Bullet 3 Auto-scan function cycles through computers sequentially Bullet 4 Cascade configuration expands system capability Bullet 5 Front panel push-buttons and Hot-key functions allow for easy switching Bullets (Compact) Control up to 16 USB or PS/2-connected computers from one keyboard, mouse and monitor - USB KVM switch - 16 port KVM switch - VGA KVM switch - Rackmount KVM Bullets (Consolidated) Connect USB and PS/2 based computer systems - OS independent - No software or drivers required - Auto scan function cycles through computers sequentially - Cascade configuration expands system capability - Front panel push-buttons and Hot-key functions allow for easy switching - On Screen Display (OSD) supports naming connected computers Marketing Copy Applications - Add single console administration to your Co-location/ISP facility saving you time and money
- Create a scalable, streamlined access solution in your Datacenter or Server Farm
- Perfect for manufacturing line computer control, simplifying access to multiple systems
- Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice
Website Search Keyword - SV1631DUSB
- Multiplatform
- USB Console
- StarView
- 16 port
- KVM
- B042-016
Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class A Digital Device Interference Full Statement
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - SV125
- SV565UTP
- SVSERIALAD
- USB2PS2
- SVECONUS6
- SVECONUS10
- SVECON6
- SVECON10
- SVECONUS15
- SVUSBVGA6
- SVUSBVGA10
- SVA9M2NEUA
- SVA12M2NEUA
- SVA12M5NA
Related Products - SV1631HD
- SV831DUSB
- SV431DUSB

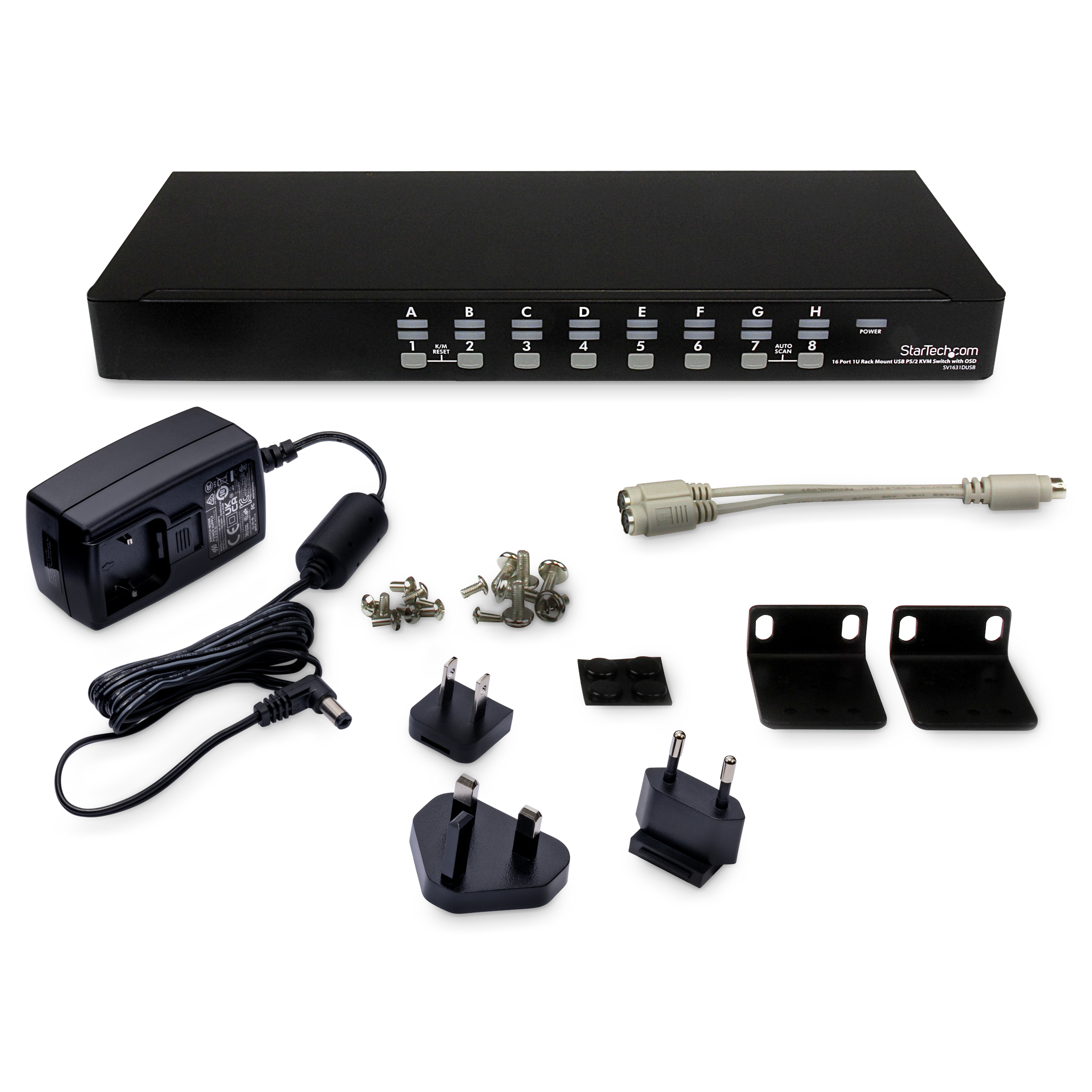

Equivalent Part Number in the EU SV1631DUSBGB Equivalent Part Number in the UK SV1631DUSBGB Input Current 0.2A Input Voltage 100 - 240 AC Output Current 0.6A Output Voltage (V) 9V DC Power Consumption (In Watts) 5.4 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~80% RH Material Steel Operating Temperature 5°C to 40°C (41°F to 104°F) Primary Material Steel Product Length (mm) 438 Product Width (mm) 180 Product Height (mm) 45 Product Weight (g) 3100 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes DVI Support No Hot-Key Selection Yes KVM IP Control No Maximum Analog Resolutions 1920 x 1440 @60hz Maximum Number of Users 1 MTBF (hours) 158000 hours On-Screen Display No OS Compatibility OS Independent Port Selection Support Push Button and Hotkeys Audio No Cables Included No CAC Support No Cascadable Yes Number of KVM Ports 16 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 Carton Depth (mm) 284 Carton Height (mm) 414 Carton Quantity 4 Carton Weight Gross (g) 14810 Included in Package - 1 - 16 Port KVM Switch
- 1 - Universal Power Adapter (NA/UK/EU)
- 1 - User Manual
- 2 - Mounting Brackets
- 1 - PS/2 keyboard and mouse Y cable
- 4 - foot pads
Package Depth (mm) 244 Package Height (mm) 95 Package Width (mm) 476 Package Quantity 1 Package Weight (g) 3138 Packaging Description 16 Port 1U Rackmount USB PS/2 KVM Switch Packaging Description India 16 Port 1U Rackmount USB PS/2 KVM Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
