SV1631DUSBU

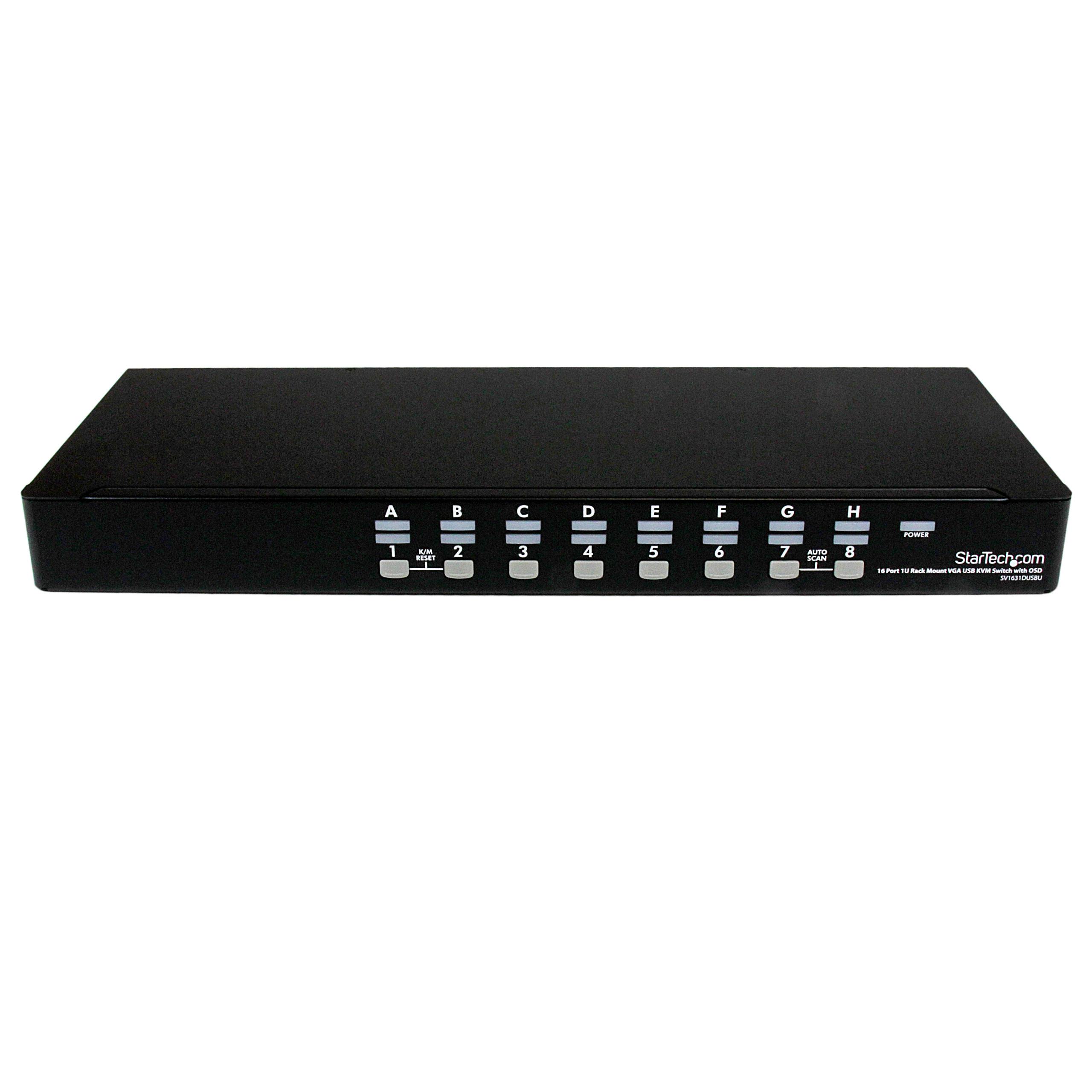

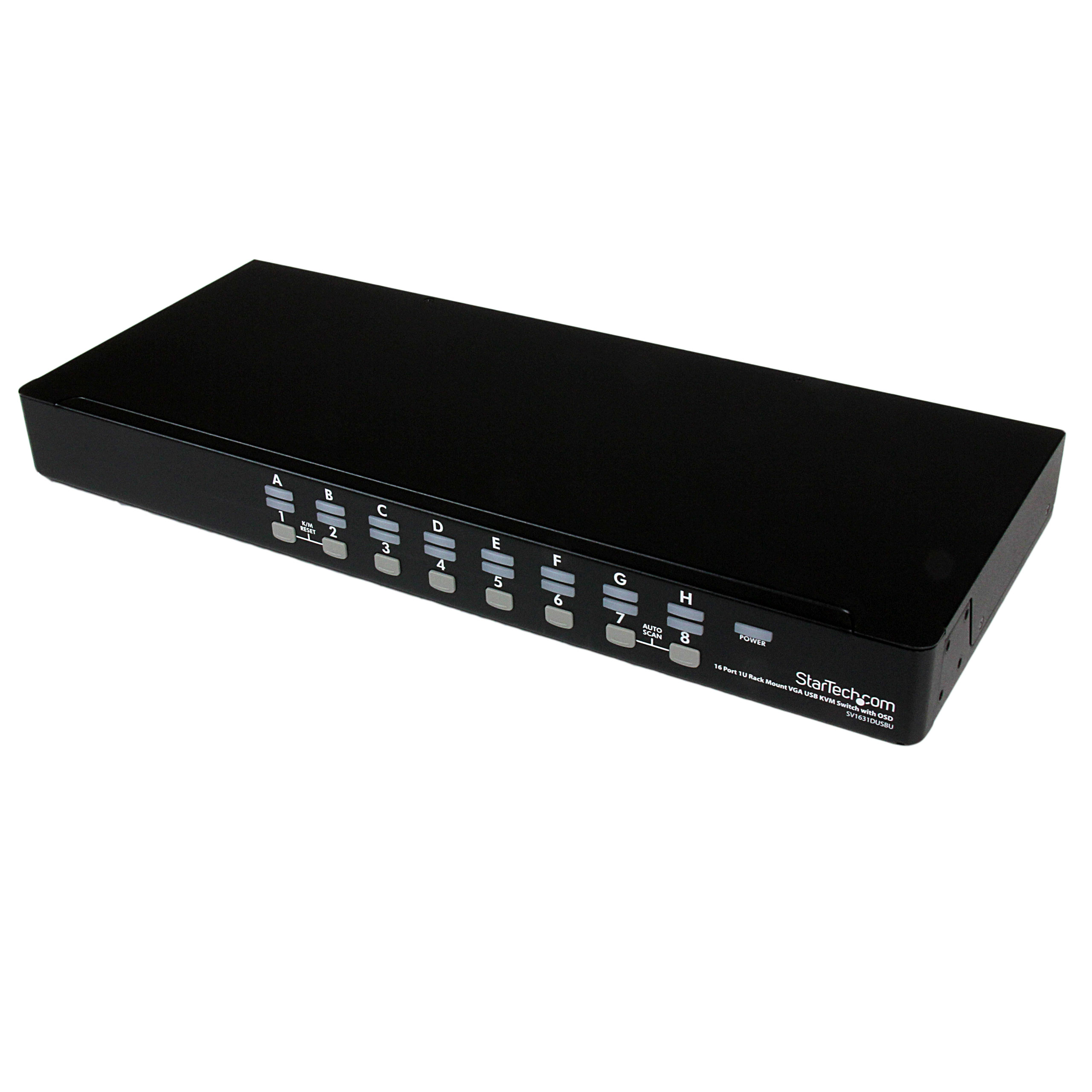

16 port USB KVM Switch with OSD
Control up to 16 USB computers from a single keyboard, mouse and monitor
Main Image
Product Images
Product Images
BOM Image
Product Name 16 port USB KVM Switch with OSD Product Number SV1631DUSBU UPC 065030837224 Lifecycle status Active Warranty 3 Years Taxonomy Product > KVMs, Switches & Splitters > Rackmount KVMs Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 VGA Rack-Mount KVMs Family Basic Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) 16Pt USB KVM Switch Product Title (Short) 16 Port 1U Rackmount USB KVM Switch Product Title (Standard) 16 Port 1U Rackmount USB KVM Switch with OSD, TAA Product Title (Long) 16 Port 1U Rackmount USB KVM Switch with OSD - TAA Product Title (AMZ) 16 Port 1U Rackmount USB KVM Switch with OSD , TAA (SV1631DUSBU) Title Ingram (Part 1) 16 Port 1U Rackmount USB KVM Swi Title Ingram (Part 2) tch with OSD Website Product Headline Control up to 16 USB computers from a single keyboard, mouse and monitor Bullet 1 Auto-scan function automatically selects computer sequentially Bullet 2 Cascade configuration expands system capability Bullet 3 Front panel push-button and Hotkey switching allow easy computer access Bullet 4 Identifies and selects computers by the names assigned using the OSD Bullet 5 OSD security allows each PC to be password protected Bullets (Compact) Control up to 16 USB computers from a single keyboard, mouse and monitor - USB KVM switch - 16 port KVM switch - VGA KVM switch - Rack mount KVM Bullets (Consolidated) Control up to 16 USB computers from a single keyboard, mouse and monitor - Compatible with VGA and USB enabled computers such as desktops and laptops and VGA monitors - Mounts into any standard server rack with 1U available space - USB KVM switch/16 port KVM switch/VGA switch/Rackmount KVM - Supports cascading w/ other KVM switches for one spot control of up to 136 computers - OS Independent - No drivers or software required - Auto-scan function automatically selects computer sequentially Marketing Copy Applications - Add single console administration to your Co-location/ISP facility saving you time and money
- Create a scalable, streamlined access solution in your Datacenter or Server Farm
- Perfect for manufacturing line computer control, simplifying access to multiple systems
- Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice
- Ideal for control of multiple PCs in a QA testing environment
Website Search Keyword - 16 port
- KVM
- Multiplatform
- StarView
- SV1631DUSB
- USB Console
- KVM Switch
- Rackmount switch
- Rack KVM
- B042-016
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - SV125
- SV565UTPU
- SVECONUS10
- SVECONUS6
- SVSERIALAD
- USB2PS2
- SVECONUS15
- SVUSBVGA6
- SVUSBVGA10
- SVA12M2NEUA
- SVA12M5NA
Related Products - SV1631HD
- SV431DUSB
- SV831DUSB
- SV1631DUSB
Input Current 0.6A Input Voltage 100 - 240 AC Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 80% RH Material Steel Operating Temperature 5°C to 40°C (41°F to 104°F) Primary Material Steel Product Length (mm) 180 Product Width (mm) 540 Product Height (mm) 45 Product Weight (g) 3100 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Hot-Key Selection Yes KVM IP Control No Maximum Analog Resolutions 1920x1440 @60Hz (1920x1200 @60Hz - Wide Screen) Maximum Number of Users 1 MTBF (hours) 158000 hours On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Push Button, Hotkeys, and OSD (On Screen Display) Wide Screen Supported Yes Audio No Cables Included No CAC Support No Cascadable Yes LED Indicators - 1 - Green - Power
- 16 - Green - PC Online
- 16 - Red - PC Selected

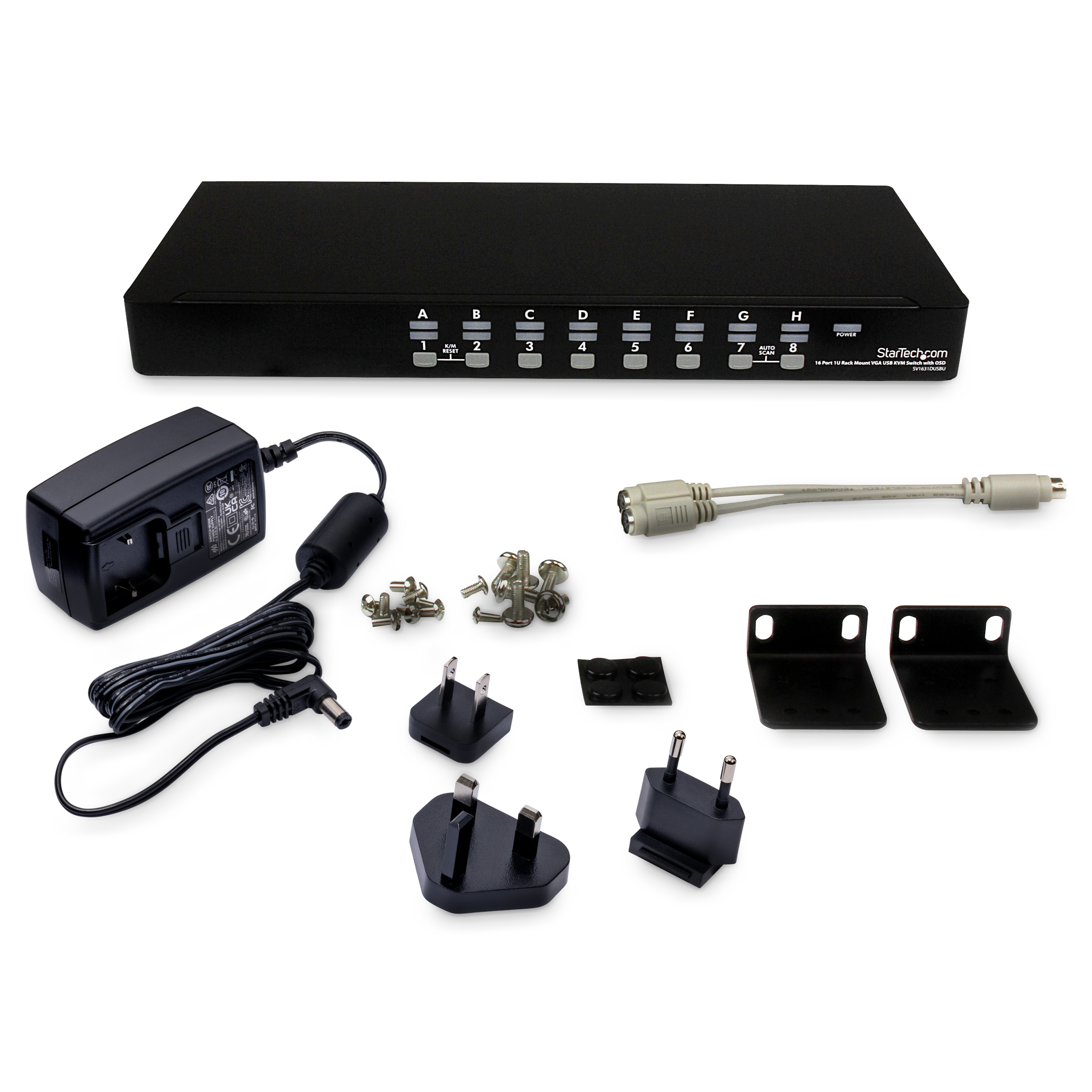

Number of KVM Ports 16 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB Carton Depth (mm) 613 Carton Height (mm) 412 Carton Quantity 4 Carton Weight Gross (g) 14818 Included in Package - 2 - Mounting Brackets
- 1 - Power Adapter
- 1 - 16 Port USB KVM Switch
- 1 - User Manual
- 1 - Bag of Screws
- 1 - Pack Rubber Feet

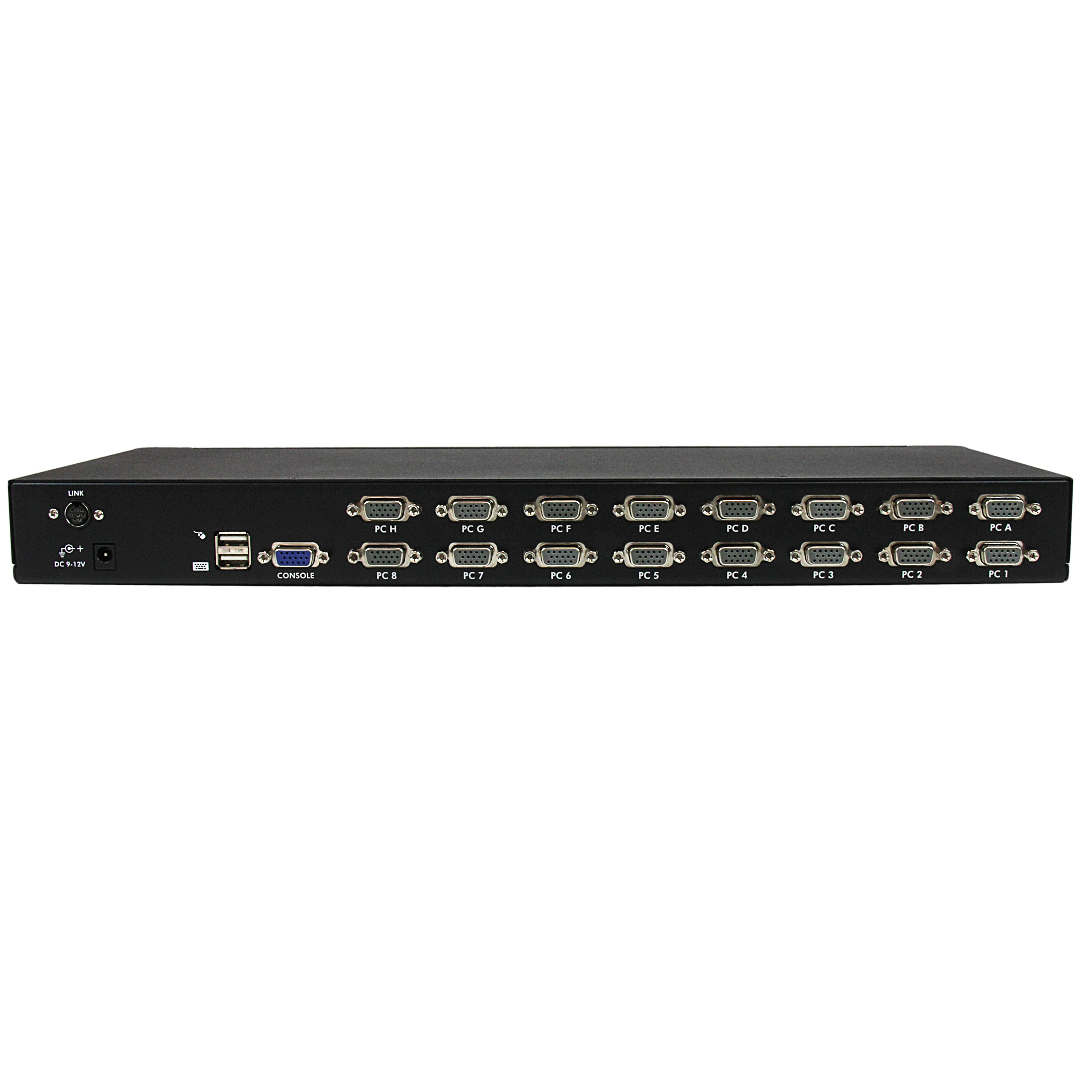

Package Depth (mm) 597 Package Height (mm) 91 Package Width (mm) 265 Package Quantity 1 Package Weight (g) 3432 Packaging Description 16 Port 1U Rack Mount VGA USB KVM Switch Packaging Description India 16 Port 1U Rack Mount VGA USB KVM Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 16 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
