SV1631DUSBUK

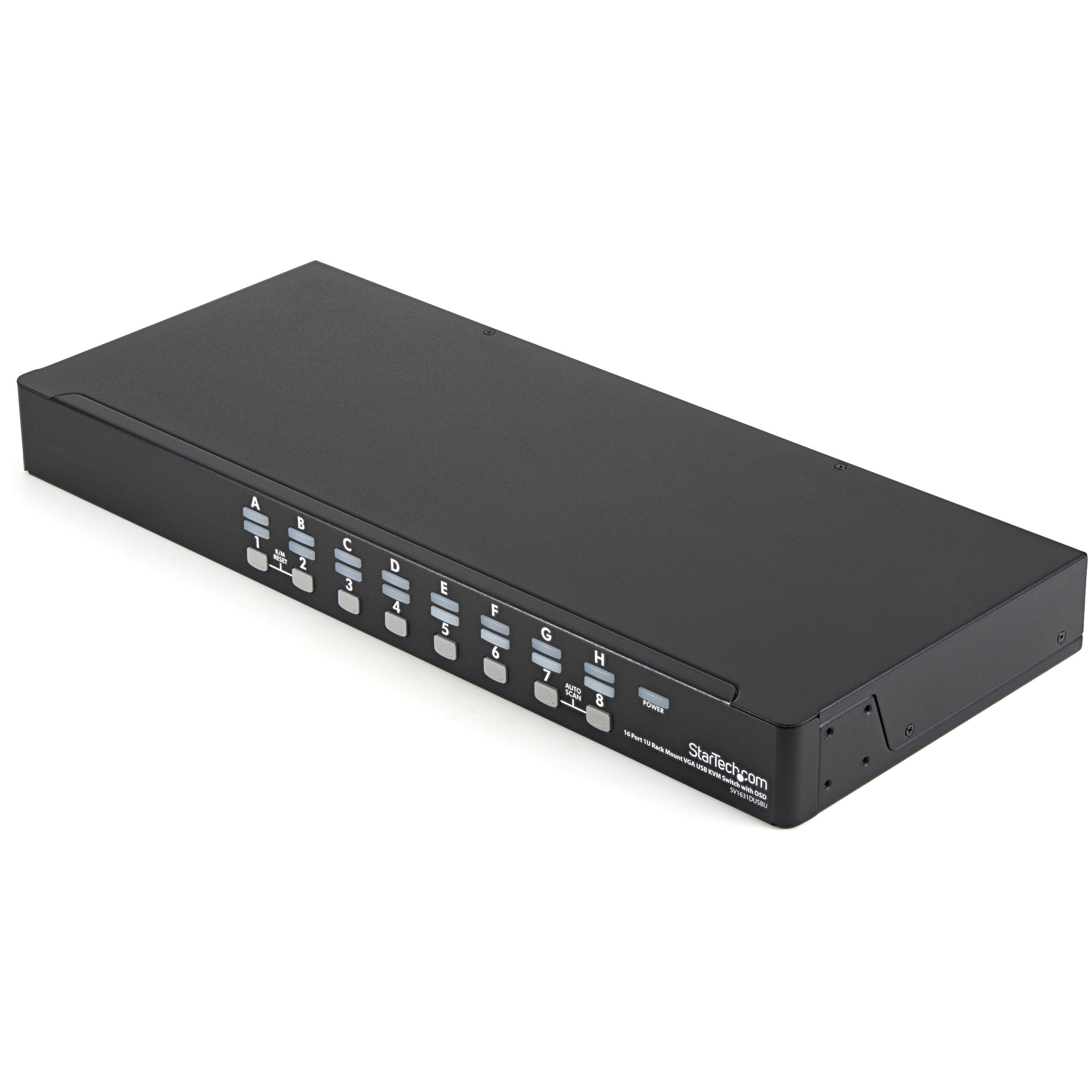

16 port USB KVM Switch with OSD with cables
A complete 16-port USB KVM kit, including all necessary cables and accessories
Main Image
Product Images
Product Images
BOM Image
Product Name 16 port USB KVM Switch with OSD with cables Product Number SV1631DUSBUK UPC 065030840828 Lifecycle status Active Warranty 3 Years Taxonomy Product > KVMs, Switches & Splitters > Rackmount KVMs Category Level 1 KVM Switches Category Level 2 Enterprise KVMs Category Level 3 VGA Rack-Mount KVMs Family Basic Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) 16 Port 1U Rackmount USB KVM Switch Kit Product Title (Medium) x Product Title (Standard) 16 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables, TAA Product Title (Long) 16 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables - TAA Product Title (AMZ) 16 Port Rackmount USB KVM Switch Kit with OSD and Cables - 1U , TAA (SV1631DUSBUK) Title Ingram (Part 1) 16 Port 1U Rackmount USB KVM Swi Title Ingram (Part 2) tch Kit with OSD and Cables Website Product Headline A complete 16-port USB KVM kit, including all necessary cables and accessories Bullet 1 Auto-scan function automatically switches between connected PCs sequentially Bullet 2 Cascade configuration expands system capability Bullet 3 Hotkey functions allow easy computer access Bullet 4 Identifies and selects computers by the names assigned Bullet 5 OSD security option allows selected KVM ports to be password-protected from unauthorized use Bullets (Compact) A complete 16-port USB KVM kit, including all necessary cables and accessories - USB switch - 16 port KVM switch - VGA KVM switch - rackmount KVM Bullets (Consolidated) A complete 16-port USB KVM kit, including all necessary cables and accessories - Compatible with VGA and USB desk computers and Servers - KVM cables included - Rugged, all metal 1U chassis for use in harsh environments and server cabinets - Supports wireless USB keyboard and mouse combos - USB KVM switch/16-port KVM Switch/KVM with wireless support/VGA KVM Switch/Keyboard video mouse/Rack Mount KVM - Effectively manage your server farms from a single console Marketing Copy Applications - Systems management in Co-location/ISP facilities
- Central control for multiple systems in a Datacenter
- Manufacturing line computer control and management
- Great for PC test/burn-in computer control, avoiding the cost of buying additional peripherals
- Effectively manage your server farms from a single console
- Useful in Software QA labs where testing is being done across multiple platforms
Website Search Keyword - 16 port
- KVM
- KVM Switch
- Multiplatform
- Rack KVM
- Rackmount switch
- StarView
- SV1631DUSB
- USB Console
- Bundle
- Kit
- KVM package
- with cables
- B042-016
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - USB3SEXT6BK
- USB3SEXT1MBK
- USB3SEXT2MBK
- SVUSBVGA6
- SVUSBVGA10
- SVECONUS6
- SVECONUS10
- SVECONUS15
- SV565UTPU
- SV565UTPUL
- SV565UTPUSA
- MXT101MMHQ1
- MXT101MMHQ3
- MXT101MMHQ
- MXT101MMHQ10
- MXT101MMHQ20
- MXT101MMHQ25
- MU1MMS
- MU3MMS
- MU6MMS
- MU10MMS
- MU15MMS
- SVA9M2NEUA
Related Products - SV1631DUSBU
- SV1631DUSB
- SV831DVIU
- SV831DUSBUK
- SV831DUSBU
- SV831DUSB
- SV831DUSBAU
- SV231QDVIUA
- SV431DVIUAQV
- SV1115IPEXT
- SV841HDIE
- SV1653DXI
Input Current 0.6A Input Voltage 100 - 240 AC Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~80% RH Material Steel Operating Temperature 5°C to 40°C (41°F to 104°F) Primary Material Steel Product Length (mm) 438.000 Product Width (mm) 180.000 Product Depth (mm) 190 Product Height (mm) 45.000 Product Weight (g) 2416.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Hot-Key Selection Yes KVM IP Control No Maximum Analog Resolutions 1920 x 1440@60Hz (1920 x 1200@60Hz - Wide Screen) Maximum Number of Users 1 MTBF (hours) 158000 hours On-Screen Display Yes OS Compatibility OS Independent Port Selection Support Push Button, Hotkeys, and OSD (On Screen Display) Wide Screen Supported Yes Audio No Cables Included Yes CAC Support No Cascadable Yes LED Indicators - 16 - Green - PC Online
- 1 - Green - Power
- 16 - Red - PC Selected

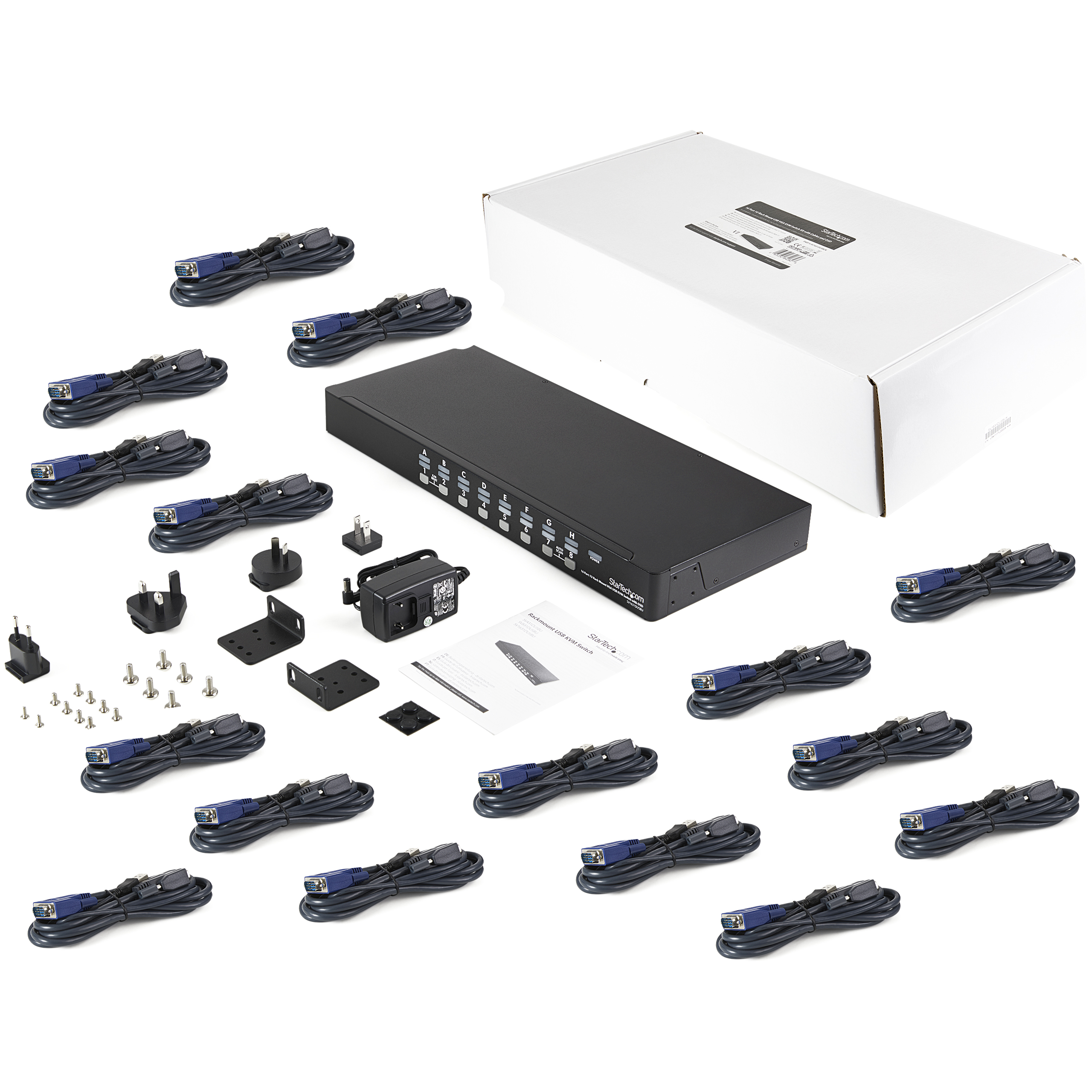

Number of KVM Ports 16 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB Carton Depth (mm) 624 Carton Height (mm) 409 Carton Quantity 3 Carton Weight Gross (g) 18504 Included in Package - 2 - mounting brackets
- 1 - universal power adapter (NA/EU/UK/AU)
- 1 - 16-port USB KVM switch
- 1 - instruction manual
- 16 - 6ft 2-in-1 USB VGA KVM cables
- 1 - screw kit
- 4 - foot pads
Package Depth (mm) 701 Package Height (mm) 129 Package Width (mm) 269 Package Quantity 1 Package Weight (g) 5810 Packaging Description 16 Port 1U Rack Mount USB VGA KVM Switch Kit Packaging Description India 16 Port 1U Rack Mount USB VGA KVM Switch Kit Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 USB-A (480Mbps, 2.5W) Connector 2 (Quantity) 2 Host Connector 1 VGA Host Connector 1 (Quantity) 16 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,EU,FR,HK,IE,IT,JP,MX,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
