Main Image
SV1631DUTGB

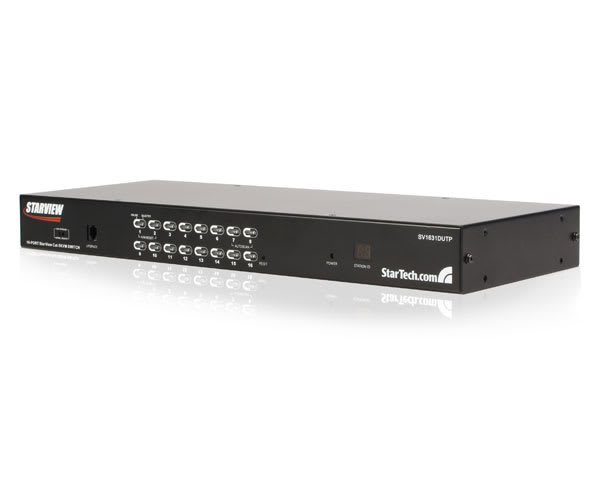

16-Port Cat 5 UTP KVM Switch
Control up to 16 VGA USB or PS/2 computers, connected using Cat 5 UTP cabling
Main Image
Product Images
Product Images
Product Name 16-Port Cat 5 UTP KVM Switch Product Number SV1631DUTGB UPC 065030831840 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 16 Port Cat5 USB PS/2 KVM Switch Product Title (Standard) StarTech.com 16 Port Cat5 USB PS/2 KVM Switch Product Title (Long) 16 Port Cat5 USB PS/2 KVM Switch Title Ingram (Part 1) 16 Port Cat5 USB PS/2 KVM Switch Website Product Headline Control up to 16 VGA USB or PS/2 computers, connected using Cat 5 UTP cabling Bullet 1 A dependable 2-year warranty provides peace of mind Bullet 2 Auto-scan function automatically selects computer sequentially Bullet 3 Cascade configuration expands system capability up to 512 computers Bullet 4 Easy to use computer selection via port selection switches, Hotkeys and intuitive On Screen Display (OSD) menus Bullet 5 Extends the distance between computers and switch - up to 130 feet for resolutions of 1280 x 1024 @ 60Hz, and 100 feet for a resolution of 1600 x 1200 @ 60Hz Marketing Copy Applications - Enterprise network management
- Manufacturing line computer control
- PC test/burn-in computer control
- Server farms
Website Search Keyword - 16 Port
- CAT5
- Enterprise
- KVM
- Multiplatform
- StarView
- UTP
System and Cable Requirements - CAT5, CAT5e or CAT6 cable - 1 for each computer connected to the SV1631DUTGB
- SV5PS2S - Connecting from SV1631DUTGB to PS/2 computers
- SV5USBS - Connecting from SV1631DUTGB to USB computers
Accessory Products - M45PATCH10BL
- M45PATCH3BL
- M45PATCH6BL
- SC10MF
- SC6MF
- SV125
- SV565UTP
- SV5PS2S
- SV5PS2S4P
- SV5PS2S8P
- SV5USBS
- SV5USBS4P
- SV5USBS8P
Related Products - RACKCONS1501
- RACKCONS1701
- RACKCONS1901
- SV1115IPEXT
- SV1641HDIE
- SV831DUTP

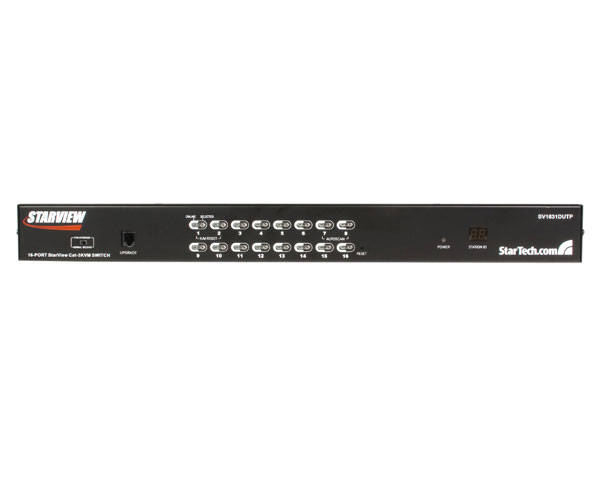

Center Tip Polarity Positive Color Black Humidity 0-80% RH Material Steel Operating Temperature 0°C to 50°C (32°F to 122°F) Product Width (mm) 437 Product Depth (mm) 160 Product Height (mm) 44 Product Weight (g) 2700 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No DVI Support No Hot-Key Selection Yes KVM IP Control No Maximum Analog Resolutions Maximum Cable Length (mm) 39635 Maximum Number of Users 1 Port Selection Support Push Button, Hotkeys, and OSD (On Screen Display) Audio No Cables Included No Cascadable Yes Number of KVM Ports 16 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms USB and PS/2 U Height 1U Carton Depth (mm) 570 Carton Height (mm) 260 Carton Quantity 1 Carton Weight Gross (g) 10710 Included in Package - 1 - Firmware upgrade cable
- 1 - Mounting brackets
- 1 - Power adapter
- 1 - StarView 16 Port CAT5 KVM Switch
- 1 - User manual

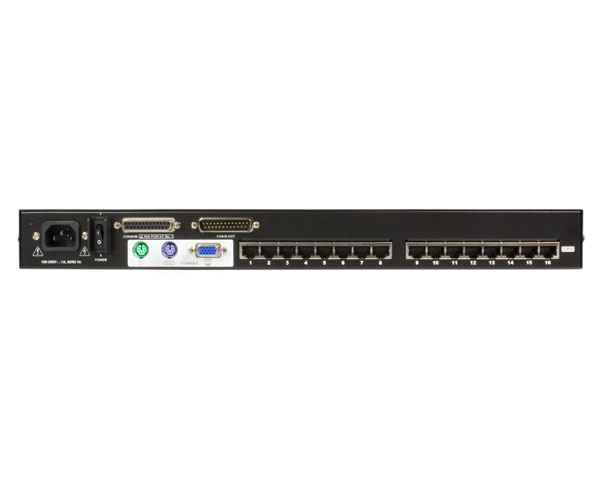

Package Depth (mm) 120 Package Height (mm) 240 Package Width (mm) 570 Package Weight (g) 3170 Packaging Description 16 Port 1U VGA USB or PS/2 Cat5 UTP KVM Switch Packaging Description India 16 Port 1U VGA USB or PS/2 Cat5 UTP KVM Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-25 Parallel / Serial Connector 1 (Quantity) 1 Connector 2 DB-25 Parallel / Serial Connector 2 (Quantity) 1 Connector 3 VGA Connector 3 (Quantity) 1 Connector 4 PS/2 Connector 4 (Quantity) 2 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 16 en-US Content Approved Yes Product Manager Daryl Hunt
