SV1632DS
Main Image
Product Images
Product Images
Product Images
Product Images

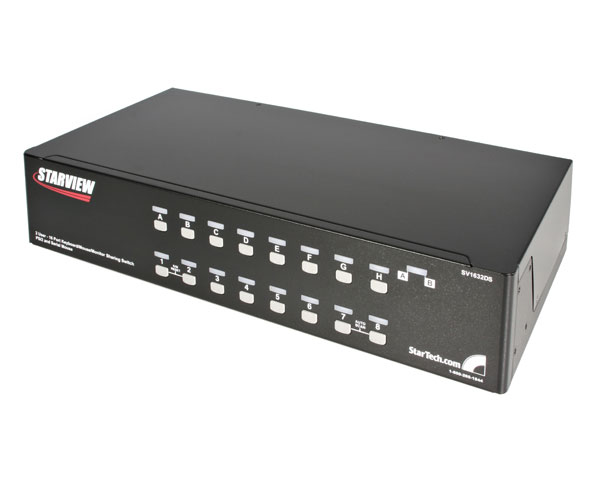

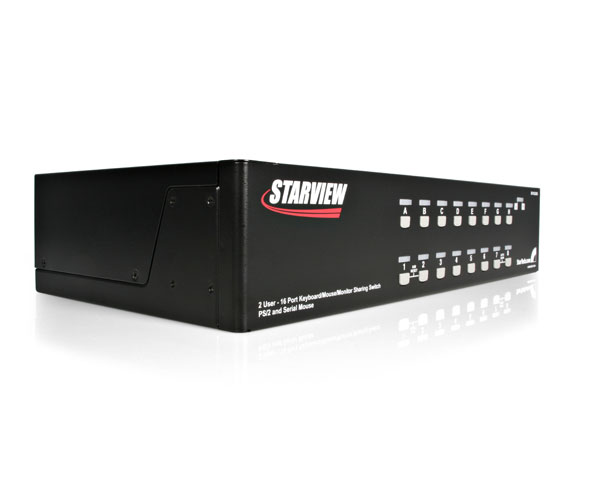

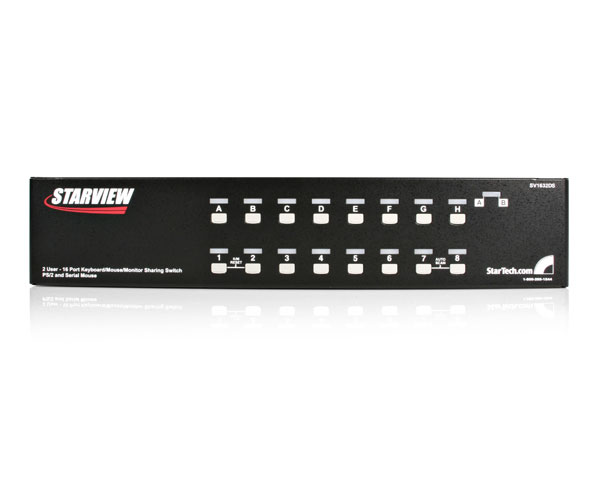

Product Name 2 Console Shared 16 Port Starview KVM Product Number SV1632DS UPC 065030788175 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Long) Dual User 16 Port 1U Rackmount PS/2 KVM Switch with OSD Bullet 1 2 user consoles provides 2 points of access to the computers connected to the KVM switch. KVM control is shared between the consoles on a first come-first served basis. Only user 1 console can be active at a time. Bullet 2 On-Screen PC selection menu for fast and easy computer access Bullet 3 Compact 2U rack height takes up very little cabinet or rack space Bullet 4 Completely hot-pluggable feature allows you to add or remove keyboards, mice, monitors and even cascaded switches without powering down the switch or an attached computer Bullet 5 A front panel pushbutton and status lights for each port make PC selection and switch status monitoring fast and easy Marketing Copy Applications - Datacenter computer control
- Cabinets with 2U Rack Dense Servers
- Manufacturing computer control
- PC test/burn-in computer control
Accessory Products - SVPS23N1_6
- SVPS23N1_10
- SVPS23N1_15
- SVPS23N1_25
- SVPS23N1_35
- SVPS23N1_50
- SV560UTP
- SV110
- USB2PS2
- GC56MF
- SVSERIALAD
- SVPOWER
- PS23N1THIN2
- PS23N1THIN6
- PS23N1THIN15
- SV125
- PS23N1THIN4
- PS23N1THIN10
- PS23N1THIN25
- SV1105IPEXT
Related Products - SV1631D
- SV832DS
- SV831D

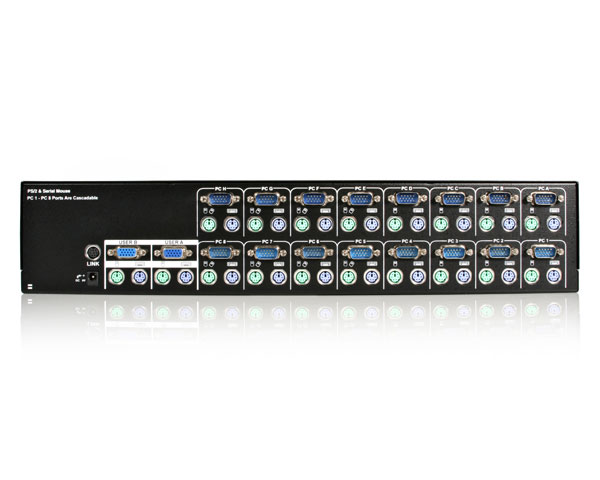

Input Current 0.2A Input Voltage 110V-240V AC Output Current 0.6A Output Voltage (V) 9V DC Power Consumption (In Watts) 0.6W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Material Steel Product Length (mm) 436 TAA Compliant No General Specifications - Ports: 16 PC ports (HDDB15 Male, 2x 6 Pin MiniDIN Female), 2 Console ports (HDDB15 Female, 2x 6 Pin MiniDIN Female), 1 Feature Expansion port (8 pin MiniDIN Female)
- PC Selection methods: OSD Menu, Keyboard hot-key, Front panel button
- Video Bandwidth: 200 MHz
- Maximum resolution: 1600 x 1280 pixels
- Enclosure: Metal, rackmount brackets included
- Dimensions:
- Weight:
- Certifications: FCC Part 15 Class A, CE Mark, VCCI

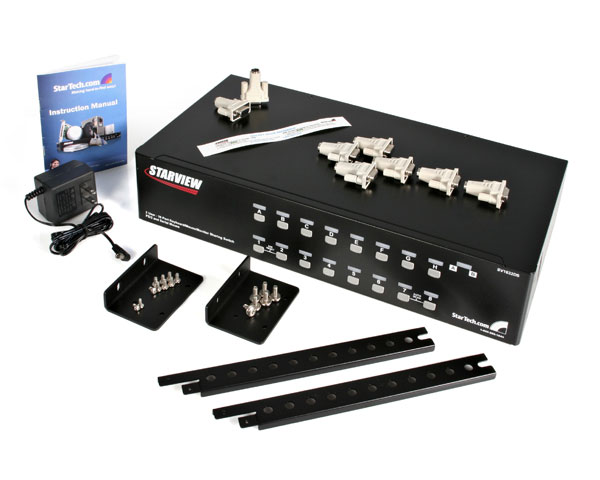

Hot-Key Selection Yes KVM IP Control No Maximum Analog Resolutions 1920 x 1440 pixels Maximum Number of Users 1 Port Selection Support Push Button, Hotkeys, and OSD (On Screen Display) Audio No Cables Included No Cascadable Yes Number of KVM Ports 16 Number of Monitors Supported 1 PC Video Type VGA Rack-Mountable Yes Supported Platforms PS/2 U Height 2U Carton Depth (mm) 650 Carton Height (mm) 290 Carton Quantity 3 Carton Weight Gross (g) 70680 Included in Package - 1 - 2 Console Shared 16 port Starview KVM
- 8 - PS/2 Connectors
- 1 - Instruction Manual (not in picture)
- 4 - Rubber Feet
- 1 - Power Adapter
- 2 - 2 brackets
- 2 - Rails
- 1 - Hot key reference
Package Depth (mm) 360 Package Height (mm) 118 Package Width (mm) 510 Package Weight (g) 5790 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 S-Video (Y/C) Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 2 Connector 3 PS/2 Connector 3 (Quantity) 4 Host Connector 1 VGA Host Connector 1 (Quantity) 16 Host Connector 2 PS/2 Host Connector 2 (Quantity) 32 en-US Content Approved Yes Product Manager Daryl Hunt
